LN90L-CRMDSW (1988)
Toyota Hilux (Jpp)

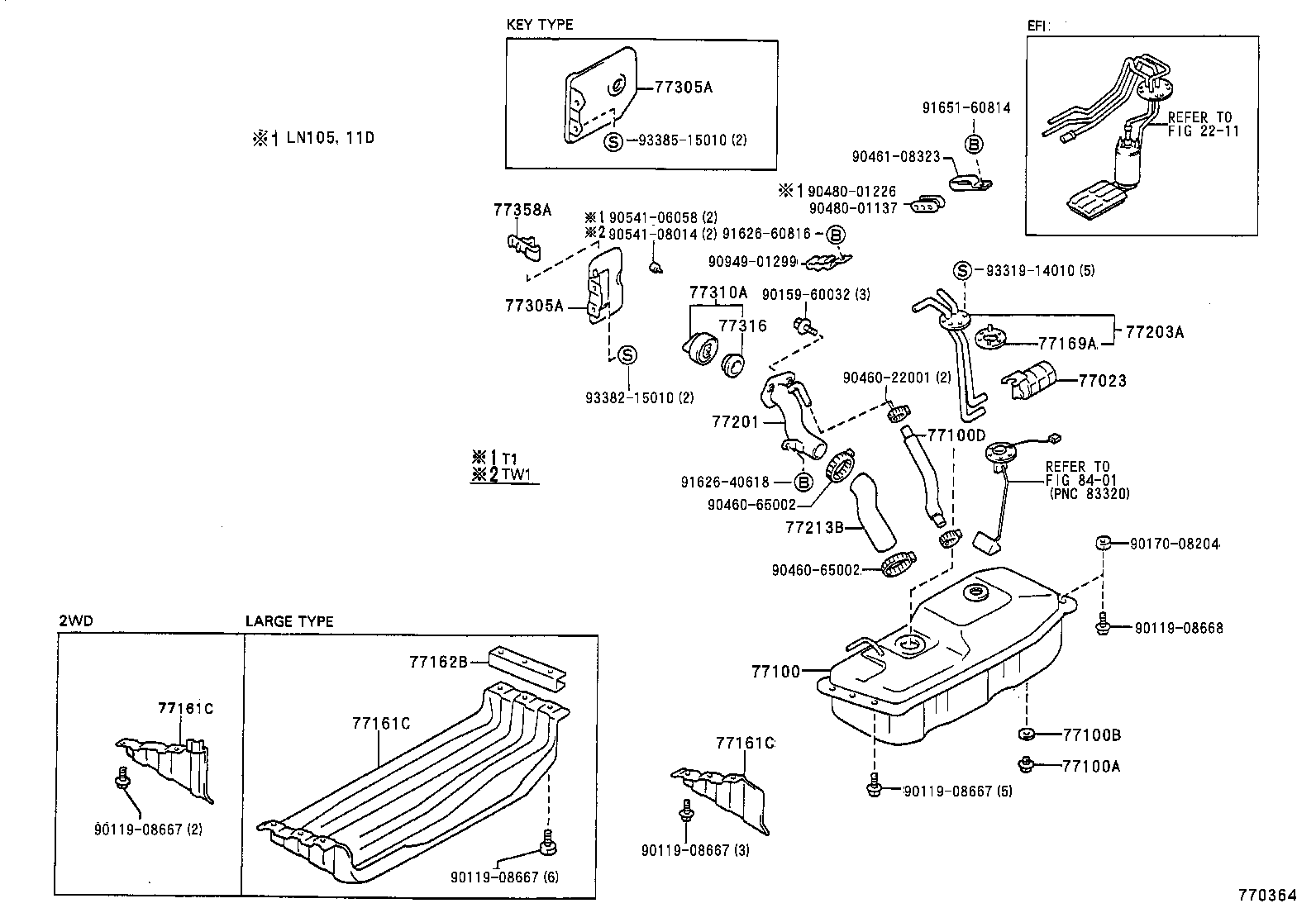

ILLUST NO. 1 OF 2(8808- )LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-22040 |
LN10#,110,130,85,90..JPP |
1 | ||
| 77023-12050 |
YN106,110,85,90..JPP |
1 | ||
| 77023-22040 |
LN10#,110,85,90..JPP |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-35977 |
LN85,90,YN85,90..JPP..T1 |
1 | ||
| 77001-35989 |
LN85,90,YN85,90..JPP..T1 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12018 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 90430-12245 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP |
1 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 77408-35020 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..T1 L=340 |
1 | ||
| 77161C - PROTECTOR, FUEL TANK, LOWER | ||||
| 77161-35050 |
LN85,90,YN85,90..JPP..T1 |
1 | ||
| 77161-35051 |
LN85,90,YN85,90..JPP..T1 |
1 | ||
| 77161C - PROTECTOR, FUEL TANK, LOWER | ||||
| 77161-35050 |
LN85,90,YN85,90..JPP..T1 |
1 | ||
| 77161-35051 |
LN85,90,YN85,90..JPP..T1 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-14020 |
KZN130,LN10#,110,130,85,90,YN106,110,85,90..JPP |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-35380 |
LN105,110,85,90,YN106,110,85,90..JPP..T1 |
1 | ||
| 77201-35450 |
LN105,110,85,90,YN106,110,85,90..JPP..T1 |
1 | ||
| 77201-35450 |
LN105,110,85,90..JPP..T1..CBU |
1 | ||
| 77201-35380 |
LN110,90..JPP PORTUGAL SPEC |
1 | ||
| 77201-35380 |
LN110,90..JPP;LN105,85..JPP..IV3 PORTUGAL SPEC |
1 | ||
| 77201-35380 |
LN90..JPP PORTUGAL SPEC |
1 | ||
| 77203A - TUBE SUB-ASSY, FUEL SUCTION | ||||
| 77203-35380 |
YN85,90..JPP |
1 | ||
| 77203-35390 |
LN85,90..JPP |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-35200 |
LN85,90,YN85,90..JPP..T1 |
1 | ||
| 77305A - LID SUB-ASSY, FUEL FILLER OPENING | ||||
| 77305-89108 |
LN105,110,90,RN106,110,YN106,110,90..JPP..T1..CBU |
1 | ||
| 77305A - LID SUB-ASSY, FUEL FILLER OPENING | ||||
| 77305-89108 |
LN105,110,90,RN106,110,YN106,110,90..JPP..T1..CBU |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-12100 |
RN106,110,YN106,110,85,90..JPP |
1 | ||
| 77310-35061 |
LN105,110,130,85,90..JPP..(4D,T1) |
1 | ||
| 77310-35080 |
RN106,110,VZN130,YN106,110,85,90..JPP..(4D,T1) |
1 | ||
| 77310-35110 |
KZN130,LN105,110,130,85,90..JPP..(4D,T1)..CBU |
1 | ||
| 77310-35110 |
KZN130,LN105,110,130,85,90..JPP..(4D,T1) |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
KZN130,LN105,110,130,85,90,RN106,110,VZN130..JPP..(4D,T1)..CBU |
1 | ||
| 77316-12050 |
LN105,110,130,85,90,RN106,110,YN106,110,85,90..JPP..(4D,T1) |
1 | ||
| 77316-16010 |
KZN130,LN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP..(4D,T1) |
1 | ||
| 77358A - STOPPER, FUEL FILLER OPENING LID | ||||
| 77358-24010 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP..T1..CBU |
1 | ||
| 77358-89101 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..T1..CBU |
1 | ||
| Common parts | ||||
| 90119-08667 | ||||
| 90119-08668 | ||||
| 90159-60032 | ||||
| 90170-08204 | ||||
| 90460-22001 | ||||
| 90460-65002 | ||||
| 90461-08323 | ||||
| 90480-01137 | ||||
| 90480-01226 | ||||
| 90541-06058 | ||||
| 90541-08014 | ||||
| 90949-01299 | ||||
| 91626-40618 | ||||
| 91626-60816 | ||||
| 91651-60814 | ||||
| 93319-14010 | ||||
| 93382-15010 | ||||
| 93385-15010 | ||||
| Linked diagrams | ||||
| 2211 | ||||
| 8401 | ||||

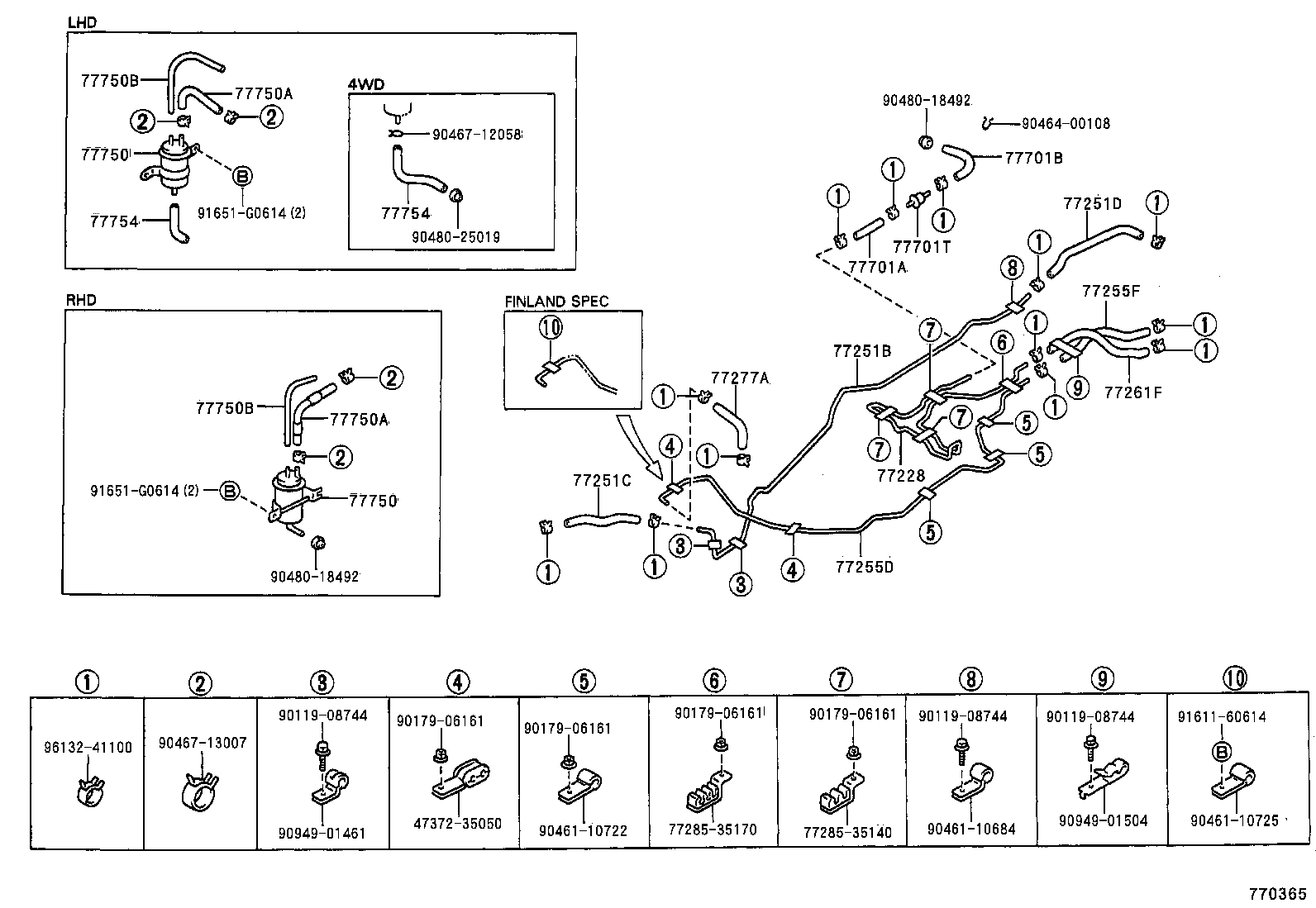

ILLUST NO. 2 OF 2(8808- )YN106,110,85,90..JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77228 - TUBE, FUEL TANK EVAPORATION VENT, NO.2 | ||||
| 77228-35190 |
LN110,90..JPP |
1 | ||
| 77228-35070 |
LN110,90,YN110,90..JPP |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-35740 |
LN90..JPP |
1 | ||
| 77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE) | ||||
| 77259-35180 |
YN106,110,85,90..JPP L=400 |
1 | ||
| 95333-08030 |
LN10#,110,85,90..JPP..LHD *H,L=240,ID=7.6 |
1 | ||
| 77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE) | ||||
| 77259-35150 |
LN90..JPP L=670 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-35631 |
YN110,90..JPP W(HEADLAMP CLEANER) |
1 | ||
| 77255-35540 |
YN110,90..JPP |
1 | ||
| 77255-35640 |
LN90..JPP |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 90445-12165 |
LN90..JPP L=480 |
1 | ||
| 90445-12165 |
LN85,90..JPP..T1 L=480 |
1 | ||
| 77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 77209-35300 |
LN90..JPP L=500 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 95333-06030 |
YN110,85,90..JPP..LHD *H,L=240,W(HEADLAMP CLEANER) |
1 | ||
| 95333-06040 |
YN106,110,85,90..JPP *H,L=400 |
1 | ||
| 90445-12238 |
YN106,110,85,90..JPP L=400 |
1 | ||
| 90447-12110 |
LN105,110,85,90..JPP L=330 |
1 | ||
| 90447-12135 |
LN10#,110,85,90..JPP..LHD |
1 | ||
| 95333-06030 |
YN110,85,90..JPP..LHD *H,L=260,W(HEADLAMP CLEANER) |
1 | ||
| 77701A - HOSE, FUEL, NO.1 (FOR BREATHER VALVE) | ||||
| 95333-06010 |
LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP *H,L=70 |
1 | ||
| 95333-06010 |
LN10#,110,85,90,YN85,90..JPP *H,L=70 |
1 | ||
| 77701B - HOSE, FUEL, NO.2 (FOR BREATHER VALVE) | ||||
| 77249-35070 |
LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP |
1 | ||
| 77249-35070 |
LN10#,110,85,90,YN85,90..JPP |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10054 |
LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP |
1 | ||
| 90917-10054 |
LN10#,110,85,90,YN85,90..JPP |
1 | ||
| 77750A - HOSE, FUEL, NO.1 (FOR CHARCOAL CANISTER) | ||||
| 90445-14090 |
YN110,85,90..JPP..LHD L=320 |
1 | ||
| 77750A - HOSE, FUEL, NO.1 (FOR CHARCOAL CANISTER) | ||||
| 90445-14090 |
YN110,85,90..JPP..LHD L=320 |
1 | ||
| 77750B - HOSE, FUEL, NO.2 (FOR CHARCOAL CANISTER) | ||||
| 90999-92003 |
YN110,85,90..JPP..LHD *H,L=480,MARK=#6 |
1 | ||
| 77750B - HOSE, FUEL, NO.2 (FOR CHARCOAL CANISTER) | ||||
| 90999-92003 |
YN110,85,90..JPP..LHD *H,L=480,MARK=#6 |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-35140 |
YN85,90..JPP..LHD L=160 |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-35140 |
YN85,90..JPP..LHD L=160 |
1 | ||
| Common parts | ||||
| 47372-35050 | ||||
| 77285-35140 | ||||
| 77285-35170 | ||||
| 90119-08744 | ||||
| 90179-06161 | ||||
| 90461-10684 | ||||
| 90461-10722 | ||||
| 90461-10725 | ||||
| 90464-00108 | ||||
| 90467-12058 | ||||
| 90467-13007 | ||||
| 90480-18492 | ||||
| 90480-25019 | ||||
| 90949-01461 | ||||
| 90949-01504 | ||||
| 91611-60614 | ||||
| 91651-G0614 | ||||
| 96132-41100 | ||||

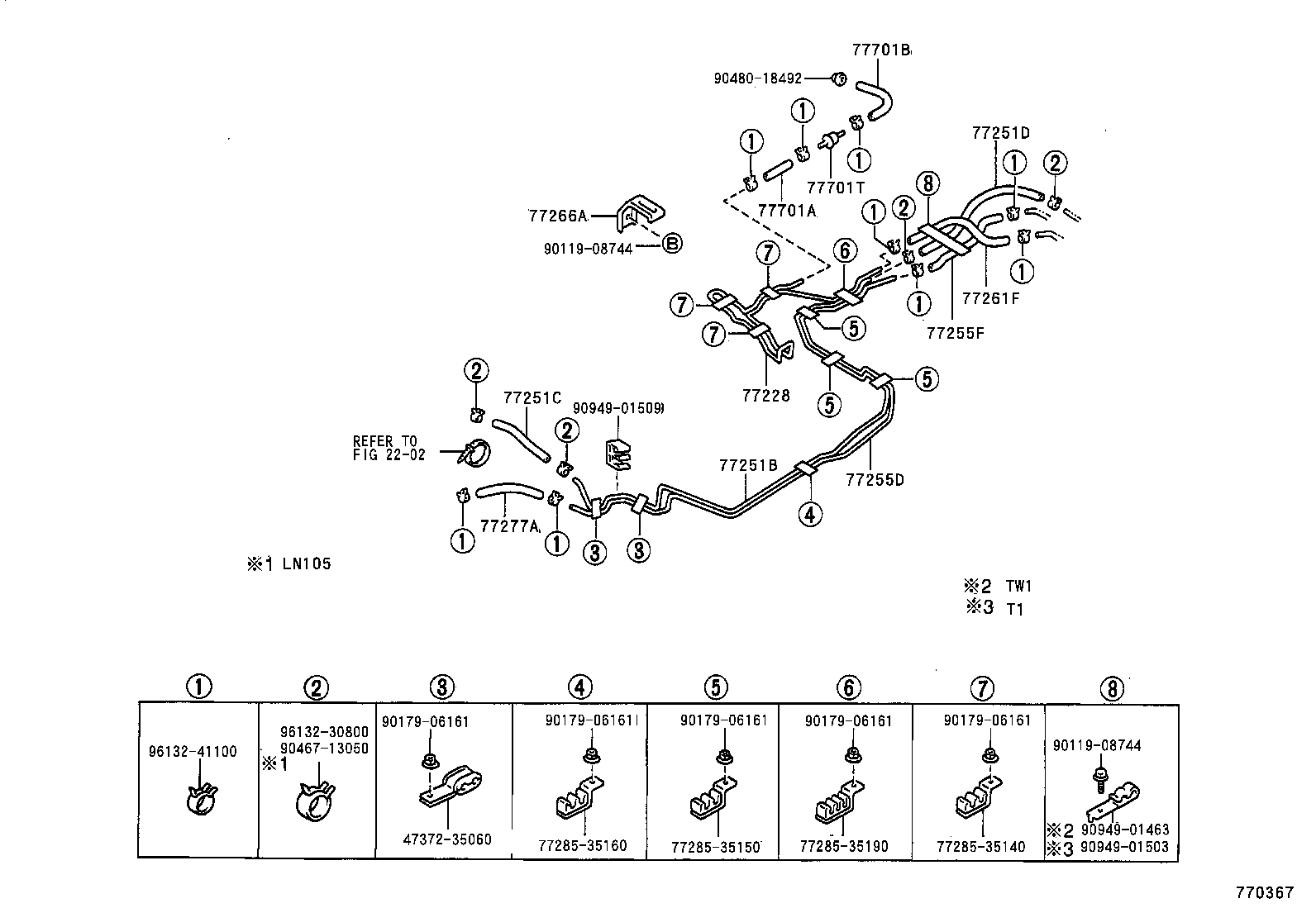

ILLUST NO. 2 OF 2(8808- )LN10#,110,85,90..JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77228 - TUBE, FUEL TANK EVAPORATION VENT, NO.2 | ||||
| 77228-35190 |
LN110,90..JPP |
1 | ||
| 77228-35070 |
LN110,90,YN110,90..JPP |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-35740 |
LN90..JPP |
1 | ||
| 77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE) | ||||
| 77259-35180 |
YN106,110,85,90..JPP L=400 |
1 | ||
| 95333-08030 |
LN10#,110,85,90..JPP..LHD *H,L=240,ID=7.6 |
1 | ||
| 77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE) | ||||
| 77259-35150 |
LN90..JPP L=670 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-35631 |
YN110,90..JPP W(HEADLAMP CLEANER) |
1 | ||
| 77255-35540 |
YN110,90..JPP |
1 | ||
| 77255-35640 |
LN90..JPP |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 90445-12165 |
LN90..JPP L=480 |
1 | ||
| 90445-12165 |
LN85,90..JPP..T1 L=480 |
1 | ||
| 77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 77209-35300 |
LN90..JPP L=500 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 95333-06030 |
YN110,85,90..JPP..LHD *H,L=240,W(HEADLAMP CLEANER) |
1 | ||
| 95333-06040 |
YN106,110,85,90..JPP *H,L=400 |
1 | ||
| 90445-12238 |
YN106,110,85,90..JPP L=400 |
1 | ||
| 90447-12110 |
LN105,110,85,90..JPP L=330 |
1 | ||
| 90447-12135 |
LN10#,110,85,90..JPP..LHD |
1 | ||
| 95333-06030 |
YN110,85,90..JPP..LHD *H,L=260,W(HEADLAMP CLEANER) |
1 | ||
| 77701A - HOSE, FUEL, NO.1 (FOR BREATHER VALVE) | ||||
| 95333-06010 |
LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP *H,L=70 |
1 | ||
| 95333-06010 |
LN10#,110,85,90,YN85,90..JPP *H,L=70 |
1 | ||
| 77701B - HOSE, FUEL, NO.2 (FOR BREATHER VALVE) | ||||
| 77249-35070 |
LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP |
1 | ||
| 77249-35070 |
LN10#,110,85,90,YN85,90..JPP |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10054 |
LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP |
1 | ||
| 90917-10054 |
LN10#,110,85,90,YN85,90..JPP |
1 | ||
| Common parts | ||||
| 47372-35060 | ||||
| 77285-35140 | ||||
| 77285-35150 | ||||
| 77285-35160 | ||||
| 77285-35190 | ||||
| 90119-08744 | ||||
| 90179-06161 | ||||
| 90467-13050 | ||||
| 90480-18492 | ||||
| 90949-01463 | ||||
| 90949-01503 | ||||
| 90949-01509 | ||||
| 96132-30800 | ||||
| 96132-41100 | ||||
| Linked diagrams | ||||
| 2202 | ||||
