LN90L-CRMDSW (1988)

Toyota Hilux (Jpp)

Production Aug 1988 - Aug 1997
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )LN110,90,RN110,YN110,90..JPP

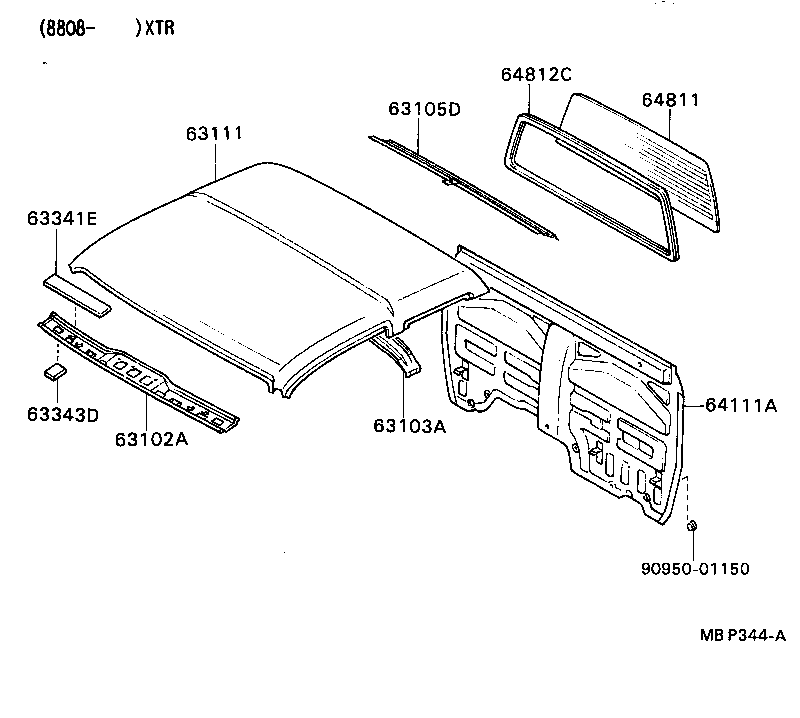

Click highlighted areas on diagram

diagram 63102A 63103A 63105D 63111 63341E 63343D 64111A 64811 64812C 9095001150
Part # Description Qty Price
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-89107

LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..T1

 1
63103A - REINFORCEMENT SUB-ASSY, ROOF PANEL
63103-89106

LN110,90,RN110,YN110,90..JPP

 1
63105D - FRAME SUB-ASSY, BACK WINDOW, UPPER
63105-89109

LN110,90,RN110,YN110,90..JPP

 1
63105-35050

LN110,90,RN110,YN110,90..JPP

 1
63111 - PANEL, ROOF
63111-89120

LN110,90,RN110,YN110,90..JPP

 1
63341E - SILENCER, ROOF, RH
63341-89125

LN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP..(4D,T1)

 2
63343D - PAD, ROOF SILENCER, NO.3
63343-89106

LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..T1

 2
64111A - PANEL, BACK
64101-89135

LN110,90,RN110,YN110,90..JPP

 1
64811 - GLASS, BACK WINDOW
64811-89138

LN110,90,RN110,YN110,90..JPP

*TEM,T=3.5

 1
64811-89139

LN110,90,RN110,YN110,90..JPP

*TT,T=3.5,BLUE

 1
64811-89141

LN110,90,RN110,YN110,90..JPP

*EHTT,T=3.5

 1
64811-89140

LN110,90,RN110,YN110,90..JPP

*EHT,T=3.5

 1
64812C - WEATHERSTRIP, BACK WINDOW GLASS
64812-89111

LN110,90,RN110,YN110,90..JPP

 1
Common parts
90950-01150
