LN130L-GKMSXW (1990)

Toyota Hilux (Jpp)

Production Jan 1990 - Nov 1995
Engine 2LT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9001-9511)2LT..JPP

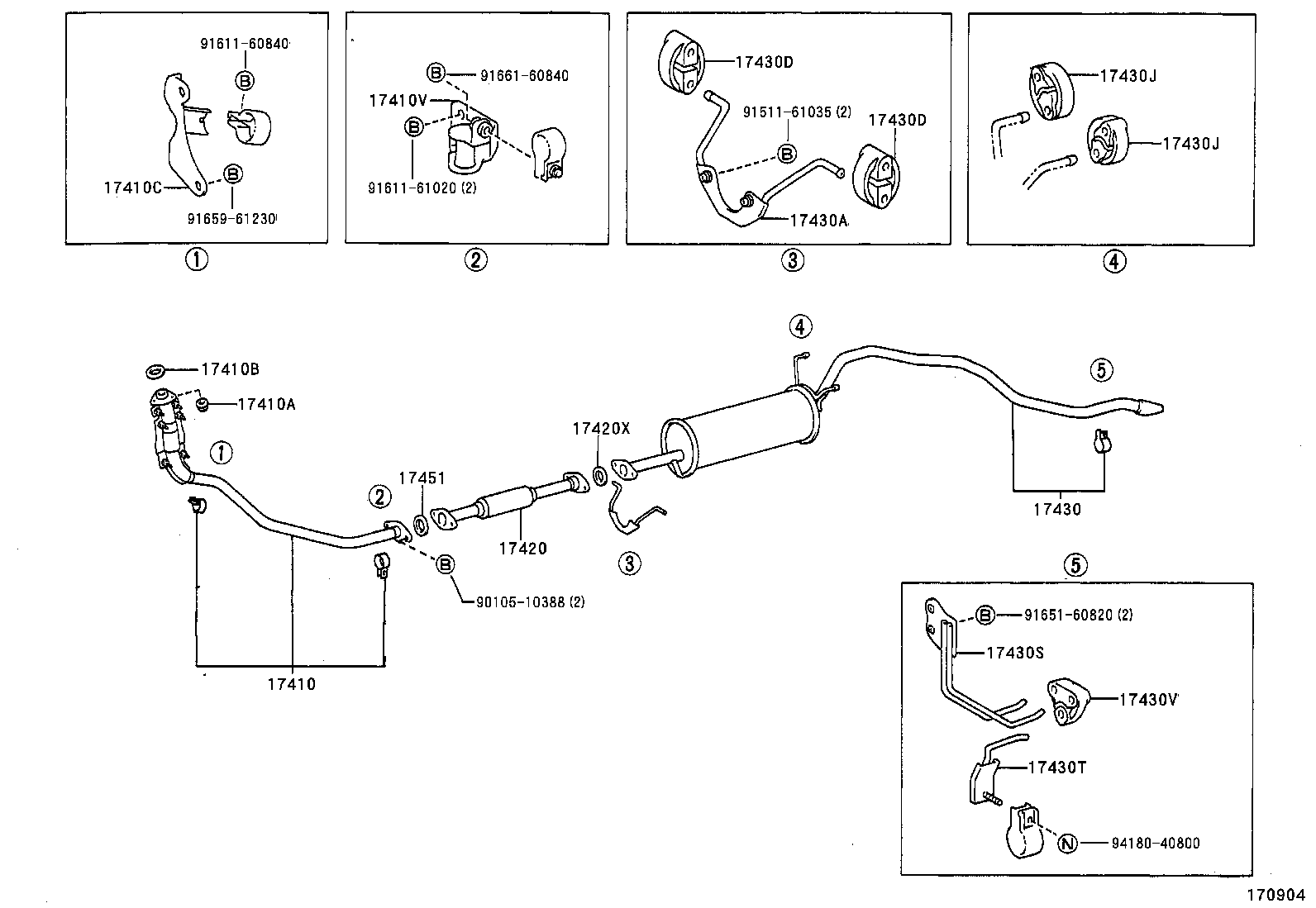

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17410C 17410V 17420 17420X 17430 17430A 17430D 17430D 17430J 17430J 17430S 17430T 17430V 17451 9010510388 9151161035 9161160840 9161161020 9165160820 9165961230 9166160840 9418040800
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-35580

2LT..LN130..JPP

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

22RE,2L#,3VZE,2Y,4Y..LN10#,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP

 3
17410B - GASKET, EXHAUST PIPE
90917-06041

2L#,3VZE..LN10#,110,130,VZN130..JPP

 1
90917-06066

2L#,3VZE..LN10#,110,130,85,90,VZN130..JPP

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-54300

2LT..LN130..JPP

 1
17410V - BRACKET, EXHAUST PIPE FRONT (FOR REAR)
17562-54191

2L#..LN108,130..JPP

 1
17562-54190

2L#..LN108,130..JPP

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-35020

2LT..LN130..JPP

 1
17420-35021

2LT..LN130..JPP

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06047

2LT..LN130..JPP

 1
90917-06045

2LT..LN130..JPP

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-3D180

2LT..LN130..JPP

 1
17430-3D181

2LT..LN130..JPP

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17564-35151

2LT..LN130..JPP

 1
17564-35150

2LT..LN130..JPP

 1
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
17563-35020

22RE,1KZT,2L#,3VZE,2Y,4Y..KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP

 2
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
17563-35020

22RE,1KZT,2L#,3VZE,2Y,4Y..KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP

 2
17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER)
17565-35010

22RE,2L#,3VZE,2Y,4Y..LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP

 2
17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER)
17565-35010

22RE,2L#,3VZE,2Y,4Y..LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP

 2
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17575-35060

2LT..LN130..JPP

 1
17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR)
17585-71010

2L#,2Y,4Y..LN10#,110,130,85,90,YN106,110,85,90..JPP

 1
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
17566-35030

22RE,2L#,3VZE,4Y..LN10#,110,130,RN106,110,VZN130,YN106,110..JPP

 1
17451 - GASKET, EXHAUST PIPE
90917-06045

2L#..LN10#,130,85,90..JPP

 1
90917-06045

2L#..LN10#,110,130,85,90..JPP

 1
Common parts
90105-10388
91511-61035
91611-60840
91611-61020
91651-60820
91659-61230
91661-60840
94180-40800
