LN130L-GKMSXW (1990)

Toyota Hilux (Jpp)

Production Jan 1990 - Nov 1995
Engine 2LT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-9511)2L#..LN10#,110,130..JPP ; (9511- )2L..LN10#,110..JPP

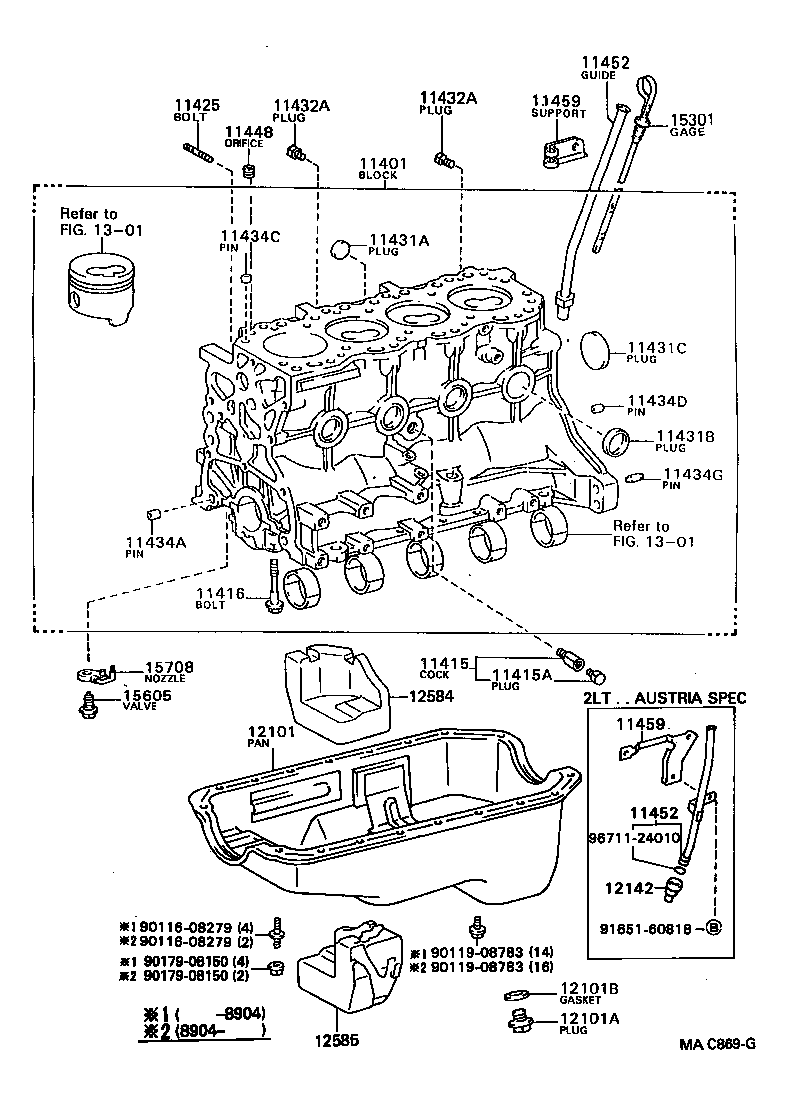

Click highlighted areas on diagram

diagram 11401 11415 11415A 11416 11425 11431A 11431B 11431C 11432A 11432A 11434A 11434C 11434D 11434G 11448 11452 11452 11459 11459 12101 12101A 12101B 12142 12584 12585 1301 1301 15301 15605 15708 9011608279 9011608279 9011908783 9011908783 9017908150 9017908150 9165160818 9671124010
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-59357

2LT..LN130..JPP

 1
11401-59355

2LT..LN130..JPP

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90345-53030

2L#..LN10#,110,130,85,90..JPP

 1
96431-53828

2L#..LN10#,110,130,85,90..JPP

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
96432-23814

2L#..LN10#,110,130,85,90..JPP

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02061

2L#..LN10#,110,130,85,90..JPP

 10
11425 - BOLT, STUD(FOR OIL FILTER)
90116-08157

2L#..LN10#,110,130,85,90..JPP

 2
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-42500

2L#..LN10#,110,130,85,90..JPP

 2
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-43500

2L#..LN10#,110,130,85,90..JPP

 4
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
96411-45000

2L#..LN10#,110,130,85,90..JPP

 1
11432A - PLUG, W/HEAD TAPER SCREW, NO.1
90345-51006

2L#..LN105,110,130,85,90..JPP

 2
90345-51006

2LT..LN130..JPP

 2
11432A - PLUG, W/HEAD TAPER SCREW, NO.1
90345-51006

2L#..LN105,110,130,85,90..JPP

 2
90345-51006

2LT..LN130..JPP

 2
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90253-11001

2L#..LN105,110,130,85,90..JPP

L=11,OD=11

 2
90253-11021

2L#..LN10#,110,130,85,90..JPP

L=8,OD=11

 2
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90253-15005

2L#..LN10#,110,130,85,90..JPP

L=7,OD=14.5

 2
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90253-11001

2L#..LN105,110,130,85,90..JPP

L=11,OD=11

 2
90253-11021

2L#..LN10#,110,130,85,90..JPP

L=8,OD=11

 2
11434G - PIN, STRAIGHT(FOR END PLATE)
90250-10113

2L#..LN10#,110,130,85,90..JPP

 2
90250-10192

2L#..LN10#,110,130,85,90..JPP

 2
11448 - ORIFICE, CYLINDER BLOCK OIL
11448-54020

2L#..LN10#,110,130,85,90..JPP

 1
11452 - GUIDE, OIL LEVEL GAGE
11452-54110

2LT..LN130..JPP

 1
11452-54110

2LT..LN130..JPP

AUSTRIA SPEC

 1
11452-54080

2L#..LN10#,110,130,85,90..JPP

 1
11452 - GUIDE, OIL LEVEL GAGE
11452-54110

2LT..LN130..JPP

 1
11452-54110

2LT..LN130..JPP

AUSTRIA SPEC

 1
11452-54080

2L#..LN10#,110,130,85,90..JPP

 1
11459 - SUPPORT, OIL LEVEL GAGE GUIDE
11459-54011

2LT..LN130..JPP

AUSTRIA SPEC

 1
11459-54011

2LT..LN130..JPP

 1
90929-01204

2L#..LN10#,110,130,85,90..JPP

 1
11459 - SUPPORT, OIL LEVEL GAGE GUIDE
11459-54011

2LT..LN130..JPP

AUSTRIA SPEC

 1
11459-54011

2LT..LN130..JPP

 1
90929-01204

2L#..LN10#,110,130,85,90..JPP

 1
12101 - PAN SUB-ASSY, OIL
12101-54200

2LT..LN130..JPP

 1
12101-54201

2LT..LN130..JPP

 1
12101-54202

2LT..LN130..JPP

 1
12101-54203

2LT..LN130..JPP

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-18089

2L#..LN105,110,130,85,90..JPP

 1
90341-12012

2L#..LN10#,110,130,85,90..JPP

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12027

2L#..LN10#,110,130,85,90..JPP

 1
90430-12031

2L#..LN10#,110,130,85,90..JPP

 1
12142 - GUIDE, OIL LEVEL GAGE, NO.2
12142-54020

2LT..LN130..JPP

 1
12142-54020

2LT..LN130..JPP

AUSTRIA SPEC

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-54070

2L#..LN10#,110,130,85,90..JPP

 1
15605 - VALVE SUB-ASSY, OIL CHECK
15605-54010

2L#..LN10#,110,130,85,90..JPP

 4
Common parts
90116-08279
90119-08783
90179-08150
91651-60818
96711-24010
Linked diagrams
1301
