LN105L-TRMRSW3 (1988)
Toyota Hilux (Jpp)
ILLUST NO. 2 OF 3(9108- )JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-30430 |
LN10#,110,85,90..JPP..LHD |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-22310 |
LN105,85,YN85..JPP..LHD;KZN130,LN108,110,130,90,YN110,90..JPP |
1 | ||
| 88411-2B080 |
LN10#,110,85,90,YN110,85,90..JPP..LHD |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-35250 |
LN10#,110,85,90..JPP..LHD |
1 | ||
| 88320-35560 |
LN10#,110,85,90..JPP..LHD |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-16011 |
LN10#,110,85,90,YN110,85,90..JPP..LHD |
1 | ||
| 88403-30290 |
LN105,85,YN85..JPP..LHD;KZN130,LN108,110,130,90,VZN130,YN110,90..JPP |
1 | ||
| 88403-16011 |
LN10#,110,130,85,90,YN110,85,90..JPP..LHD |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-90P80 |
LN10#,110,85,90..JPP..LHD |
1 | ||
| 88410-22480 |
LN10#,110,85,90..JPP..LHD |
1 | ||
| Common parts | ||||
| 90099-04349 | ||||
| 90099-07114 | ||||
| 90099-07125 | ||||

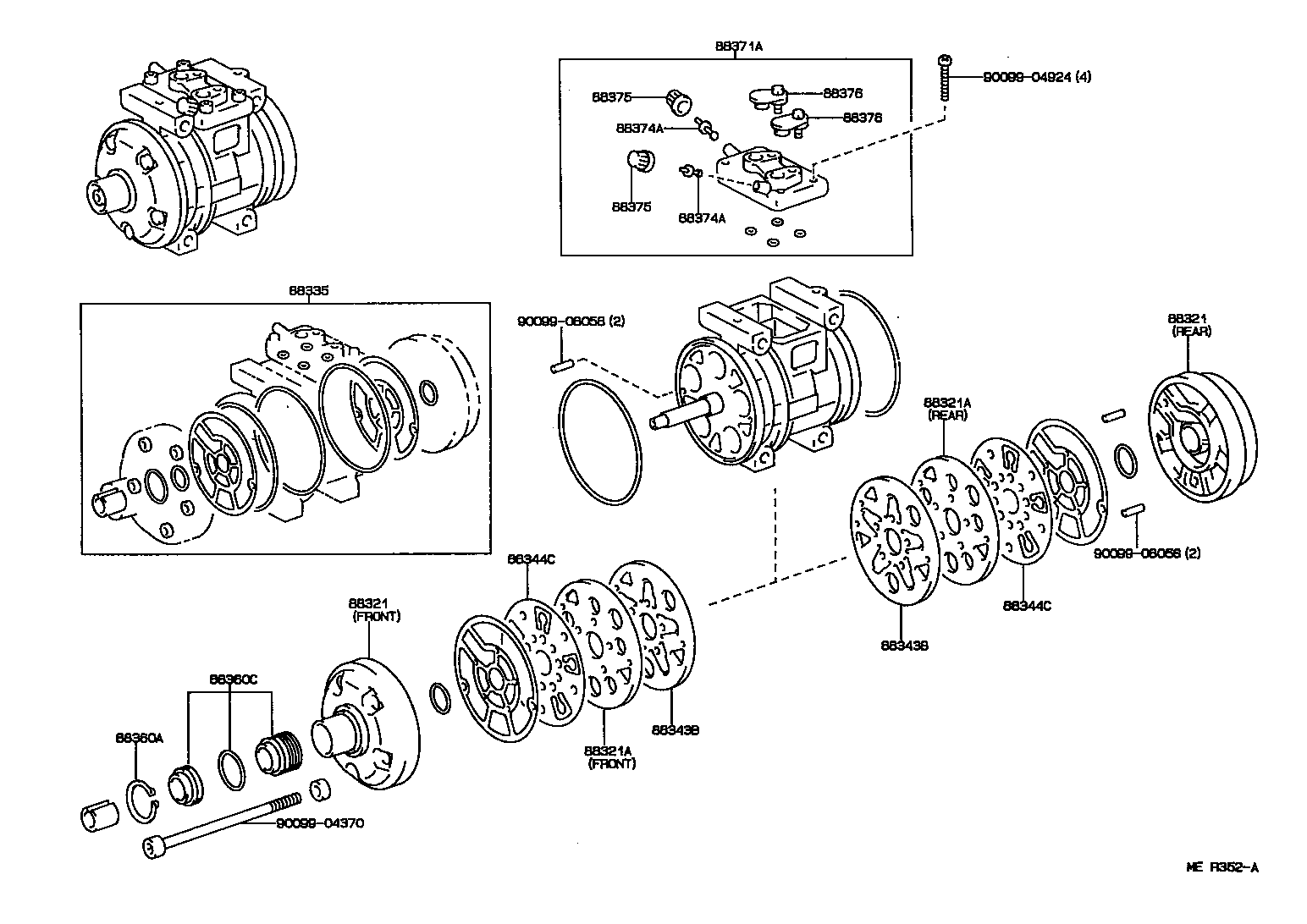

ILLUST NO. 3 OF 3(9108- )JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88322-14020 |
LN10#,110,85,90..JPP..LHD REAR |
1 | ||
| 88321-32010 |
LN105,85,YN85..JPP..LHD;KZN130,LN108,110,130,90,VZN130,YN110,90..JPP FRONT |
1 | ||
| 88322-32040 |
LN105,85,YN85..JPP..LHD;KZN130,LN108,110,130,90,VZN130,YN110,90..JPP REAR |
1 | ||
| 88321-14021 |
LN10#,110,85,90..JPP..LHD FRONT |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88322-14020 |
LN10#,110,85,90..JPP..LHD REAR |
1 | ||
| 88321-32010 |
LN105,85,YN85..JPP..LHD;KZN130,LN108,110,130,90,VZN130,YN110,90..JPP FRONT |
1 | ||
| 88322-32040 |
LN105,85,YN85..JPP..LHD;KZN130,LN108,110,130,90,VZN130,YN110,90..JPP REAR |
1 | ||
| 88321-14021 |
LN10#,110,85,90..JPP..LHD FRONT |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88341-22010 |
LN105,85,YN85..JPP..LHD;KZN130,LN108,110,130,90,VZN130,YN110,90..JPP FRONT |
1 | ||
| 88341-14020 |
LN10#,110,85,90..JPP..LHD FRONT |
1 | ||
| 88342-14020 |
LN10#,110,85,90..JPP..LHD REAR |
1 | ||
| 88342-22010 |
LN105,85,YN85..JPP..LHD;KZN130,LN108,110,130,90,VZN130,YN110,90..JPP REAR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88341-22010 |
LN105,85,YN85..JPP..LHD;KZN130,LN108,110,130,90,VZN130,YN110,90..JPP FRONT |
1 | ||
| 88341-14020 |
LN10#,110,85,90..JPP..LHD FRONT |
1 | ||
| 88342-14020 |
LN10#,110,85,90..JPP..LHD REAR |
1 | ||
| 88342-22010 |
LN105,85,YN85..JPP..LHD;KZN130,LN108,110,130,90,VZN130,YN110,90..JPP REAR |
1 | ||
| 88335 - GASKET KIT, OVERHAUL | ||||
| 88335-2B030 |
LN10#,110..JPP..LHD |
1 | ||
| 88335-2B030 |
LN10#,110,85,90..JPP..LHD |
1 | ||
| 88335-2B010 |
VZN130..JPP;KZN130..JPP..RHD;LN10#,110,85,90..JPP..LHD |
1 | ||
| 88335-14010 |
LN10#,110,85,90..JPP..LHD |
1 | ||
| 88343B - REED, SUCTION VALVE | ||||
| 88343-14020 |
VZN130..JPP..RHD;LN105,85..JPP..LHD;KZN130,LN108,110,130,90..JPP |
2 | ||
| 88343-14020 |
LN10#,110,85,90..JPP..LHD |
2 | ||
| 88343-14020 |
VZN130..JPP..RHD;LN105,85,YN85..JPP..LHD;KZN130,LN108,110,130,90,YN110,90..JPP |
2 | ||
| 88343B - REED, SUCTION VALVE | ||||
| 88343-14020 |
VZN130..JPP..RHD;LN105,85..JPP..LHD;KZN130,LN108,110,130,90..JPP |
2 | ||
| 88343-14020 |
LN10#,110,85,90..JPP..LHD |
2 | ||
| 88343-14020 |
VZN130..JPP..RHD;LN105,85,YN85..JPP..LHD;KZN130,LN108,110,130,90,YN110,90..JPP |
2 | ||
| 88344C - REED, DISCHARGE VALVE | ||||
| 88344-22010 |
LN105,85,YN85..JPP..LHD;KZN130,LN108,110,130,90,VZN130,YN110,90..JPP |
2 | ||
| 88344-14020 |
LN10#,110,85,90..JPP..LHD |
2 | ||
| 88344C - REED, DISCHARGE VALVE | ||||
| 88344-22010 |
LN105,85,YN85..JPP..LHD;KZN130,LN108,110,130,90,VZN130,YN110,90..JPP |
2 | ||
| 88344-14020 |
LN10#,110,85,90..JPP..LHD |
2 | ||
| 88360A - RING, COMPRESSOR SEAL PLATE SNAP | ||||
| 90096-90022 |
LN105,85..JPP..LHD;KZN130,LN108,110,130,90,VZN130..JPP |
1 | ||
| 90096-90022 |
LN10#,110,85,90..JPP..LHD |
1 | ||
| 90096-90022 |
LN105,85,YN85..JPP..LHD;KZN130,LN108,110,130,90,VZN130,YN110,90..JPP |
1 | ||
| 88360C - SEAL ASSY, SHAFT | ||||
| 88360-14030 |
LN10#,110,85,90..JPP..LHD |
1 | ||
| 88360-2B010 |
LN105,85,YN85..JPP..LHD;KZN130,LN108,110,130,90,VZN130,YN110,90..JPP |
1 | ||
| 88360-2B020 |
LN10#,110,85,90..JPP..LHD |
1 | ||
| 88360-2B020 |
LN10#,110..JPP..LHD |
1 | ||
| 88371A - VALVE, SUCTION | ||||
| 88371-35070 |
LN10#,110,85,90..JPP..LHD |
1 | ||
| 88371-35240 |
LN10#,110,85,90..JPP..LHD |
1 | ||
| 88374A - VALVE, SERVICE | ||||
| 88374-12020 |
LN10#,110,85,90..JPP..LHD |
2 | ||
| 88374A - VALVE, SERVICE | ||||
| 88374-12020 |
LN10#,110,85,90..JPP..LHD |
2 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-20010 |
LN10#,110,85,90..JPP..LHD DISCHARGE |
1 | ||
| 88375-30270 |
LN10#,110,85,90..JPP..LHD SUCTION |
1 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-20010 |
LN10#,110,85,90..JPP..LHD DISCHARGE |
1 | ||
| 88375-30270 |
LN10#,110,85,90..JPP..LHD SUCTION |
1 | ||
| 88376 - CAP, BLIND | ||||
| 88376-22020 |
LN10#,110,85,90..JPP..LHD SUCTION |
1 | ||
| 88376-22010 |
LN10#,110,85,90..JPP..LHD DISCHARGE |
1 | ||
| 88376 - CAP, BLIND | ||||
| 88376-22020 |
LN10#,110,85,90..JPP..LHD SUCTION |
1 | ||
| 88376-22010 |
LN10#,110,85,90..JPP..LHD DISCHARGE |
1 | ||
| Common parts | ||||
| 90099-04370 | ||||
| 90099-04924 | ||||
| 90099-08058 | ||||

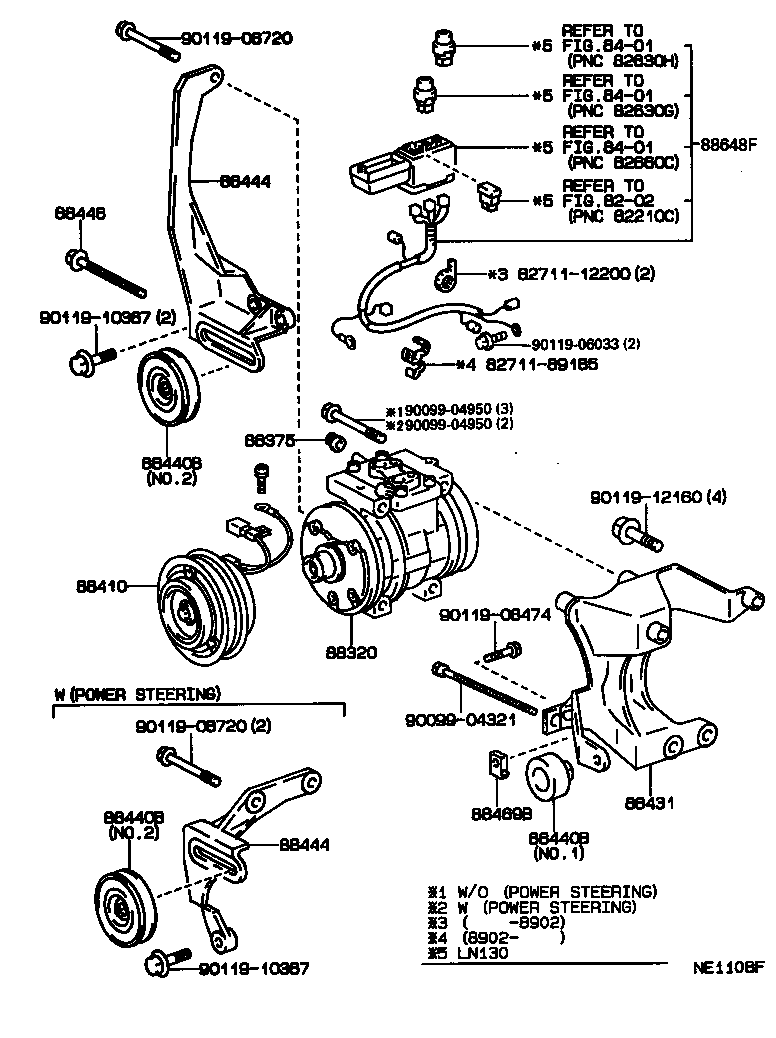

ILLUST NO. 1 OF 3(8808- )LN10#,110,130,85,90..JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-35250 |
LN10#,110,85,90..JPP..LHD |
1 | ||
| 88320-35560 |
LN10#,110,85,90..JPP..LHD |
1 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-20010 |
LN10#,110,85,90..JPP..LHD DISCHARGE |
1 | ||
| 88375-30270 |
LN10#,110,85,90..JPP..LHD SUCTION |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-90P80 |
LN10#,110,85,90..JPP..LHD |
1 | ||
| 88410-22480 |
LN10#,110,85,90..JPP..LHD |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-35170 |
LN10#,110,130,85,90..JPP..LHD |
1 | ||
| 88440B - PULLEY ASSY, IDLE | ||||
| 88440-35030 |
LN10#,110,130..JPP..LHD NO.2 |
1 | ||
| 88440-26070 |
LN10#,110,130,85,90..JPP..LHD NO.1 |
1 | ||
| 88440B - PULLEY ASSY, IDLE | ||||
| 88440-35030 |
LN10#,110,130..JPP..LHD NO.2 |
1 | ||
| 88440-26070 |
LN10#,110,130,85,90..JPP..LHD NO.1 |
1 | ||
| 88440B - PULLEY ASSY, IDLE | ||||
| 88440-35030 |
LN10#,110,130..JPP..LHD NO.2 |
1 | ||
| 88440-26070 |
LN10#,110,130,85,90..JPP..LHD NO.1 |
1 | ||
| 88444 - BRACKET, IDLE PULLEY | ||||
| 88444-35060 |
LN10#,110,130..JPP..LHD |
1 | ||
| 88444 - BRACKET, IDLE PULLEY | ||||
| 88444-35060 |
LN10#,110,130..JPP..LHD |
1 | ||
| 88446 - BOLT, IDLE PULLEY | ||||
| 88446-35040 |
LN10#,110,130..JPP..LHD |
1 | ||
| 88469B - COLLAR | ||||
| 88469-30280 |
LN10#,110,130,85,90..JPP..LHD |
1 | ||
| 88648F - WIRE, MAGNET CLUTCH | ||||
| 88648-35090 |
LN10#,110,85,90..JPP..LHD |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 82711-89185 | ||||
| 90099-04321 | ||||
| 90099-04950 | ||||
| 90119-06033 | ||||
| 90119-08474 | ||||
| 90119-08720 | ||||
| 90119-10367 | ||||
| 90119-12160 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8401 | ||||
