LN105L-TRMRSW3 (1988)

Toyota Hilux (Jpp)

Production Aug 1988 - Aug 1997
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8808- )LN10#,110,85,90,YN110,85,90..JPP..LHD

Click highlighted areas on diagram

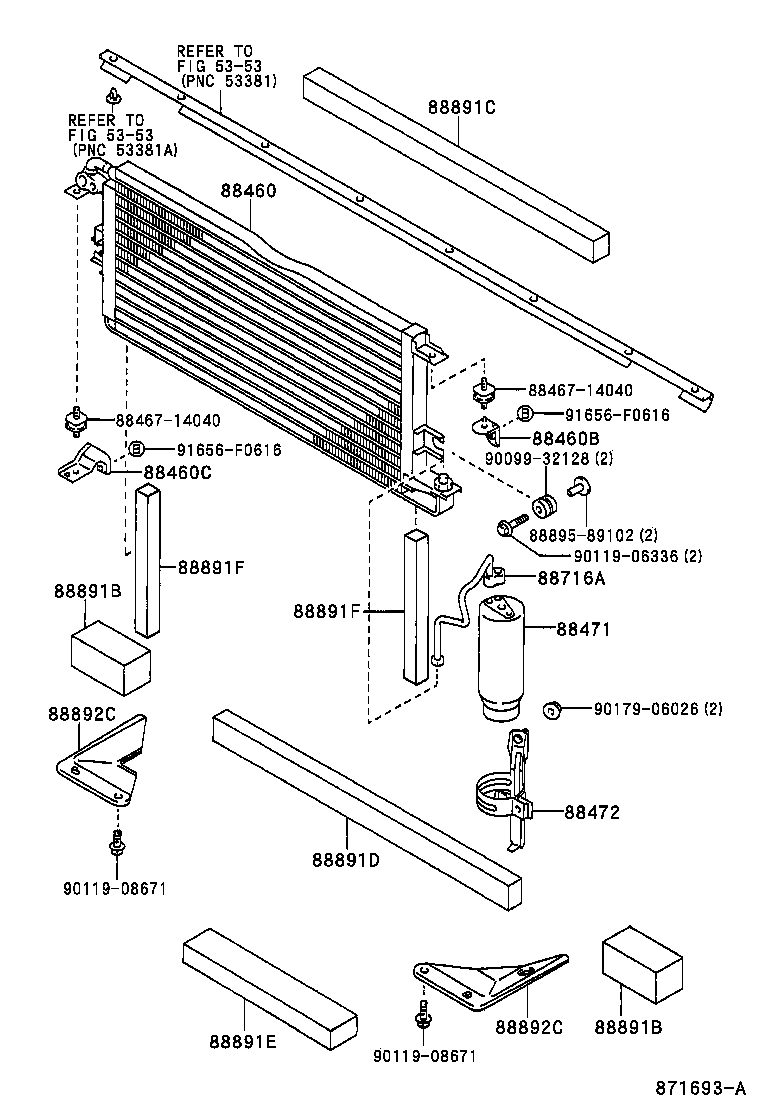

CONDENSER & RECEIVER

diagram 5353 5353 88460 88460B 88460C 8846714040 8846714040 88471 88472 88716A 88891B 88891B 88891C 88891D 88891E 88891F 88891F 88892C 88892C 8889589102 9009932128 9011906336 9011908671 9011908671 9017906026 91656F0616 91656F0616
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-35150

LN10#,110,85,90..JPP..LHD

 1
88460-89115

LN10#,110,85,90,YN110,85,90..JPP..LHD

 1
88460-35130

LN10#,110,85,90,YN110,85,90..JPP..LHD

 1
88460B - BRACKET, COOLER CONDENSER, NO.1
88688-89120

LN10#,110,85,90,YN110,85,90..JPP..LHD

 1
88460C - BRACKET, COOLER CONDENSER, NO.2
88688-89121

LN10#,110,85,90,YN110,85,90..JPP..LHD

 1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-50010

LN10#,110,85,90,YN110,85,90..JPP..LHD

 1
88471-20050

LN10#,110,85,90,YN110,85,90..JPP..LHD

 1
88471-16040

LN10#,110,130,85,90,VZN130,YN110,85,90..JPP..LHD

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-89110

LN10#,110,85,90,YN110,85,90..JPP..LHD

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-35230

LN10#,110,85,90,YN110,85,90..JPP..LHD

 1
88716-89163

LN10#,110,85,90,YN110,85,90..JPP..LHD

 1
88891B - PACKING B (FOR COOLER)
88578-89111

LN10#,110,85,90,YN110..JPP..LHD

 2
88891B - PACKING B (FOR COOLER)
88578-89111

LN10#,110,85,90,YN110..JPP..LHD

 2
88891E - PACKING E (FOR COOLER)
88578-89120

LN105..JPP..LHD

 1
88891F - PACKING F (FOR COOLER)
88578-89123

LN10#,110,85,90,YN110,85,90..JPP..LHD

RH

 1
88578-89122

LN10#,110,85,90,YN110,85,90..JPP..LHD

LH

 1
88578-89122

LN10#,110,85,90..JPP..LHD

RH

 1
88891F - PACKING F (FOR COOLER)
88578-89123

LN10#,110,85,90,YN110,85,90..JPP..LHD

RH

 1
88578-89122

LN10#,110,85,90,YN110,85,90..JPP..LHD

LH

 1
88578-89122

LN10#,110,85,90..JPP..LHD

RH

 1
Common parts
88467-14040
88895-89102
90099-32128
90119-06336
90119-08671
90179-06026
91656-F0616
Linked diagrams
5353

ILLUST NO. 2 OF 2(8808- )LN10#,110,130,85,90..JPP..LHD

Click highlighted areas on diagram

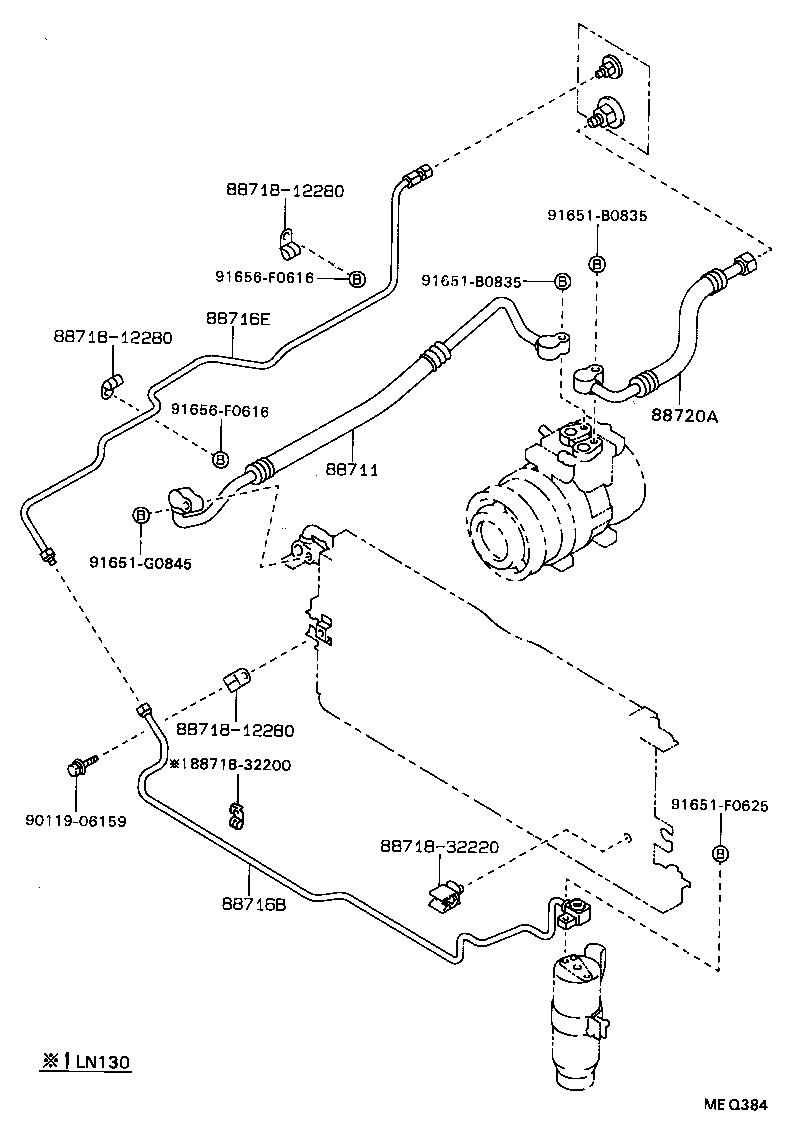

HOSE & PIPE

diagram 88711 88716B 88716E 8871812280 8871812280 8871812280 8871832200 8871832220 88720A 9011906159 91651B0835 91651B0835 91651F0625 91651G0845 91656F0616 91656F0616
Part # Description Qty Price
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-35300

LN105..JPP..IV3;LN85,90..JPP..LHD

 1
88720-35080

LN105..JPP..IV3;LN85,90..JPP..LHD

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-89162

LN10#,110,85,90,YN110,85,90..JPP..LHD

 1
88716-35240

LN10#,110,85,90,YN110,85,90..JPP..LHD

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-89160

LN10#,110,85,90,YN110,85,90..JPP..LHD

 1
88716-35260

LN10#,110,85,90,YN110,85,90..JPP..LHD

 1
88720A - HOSE & ACCESSORY, AIR CONDITIONER
88720-35310

LN10#,110,85,90..JPP..LHD

 1
88720-35140

LN10#,110,85,90..JPP..LHD

 1
Common parts
88718-12280
88718-32200
88718-32220
90119-06159
91651-B0835
91651-F0625
91651-G0845
91656-F0616
