LN105L-TRMRSW3 (1988)

Toyota Hilux (Jpp)

Production Aug 1988 - Aug 1997
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )LN10#,110,130,85,90,YN110,85,90..JPP..LHD

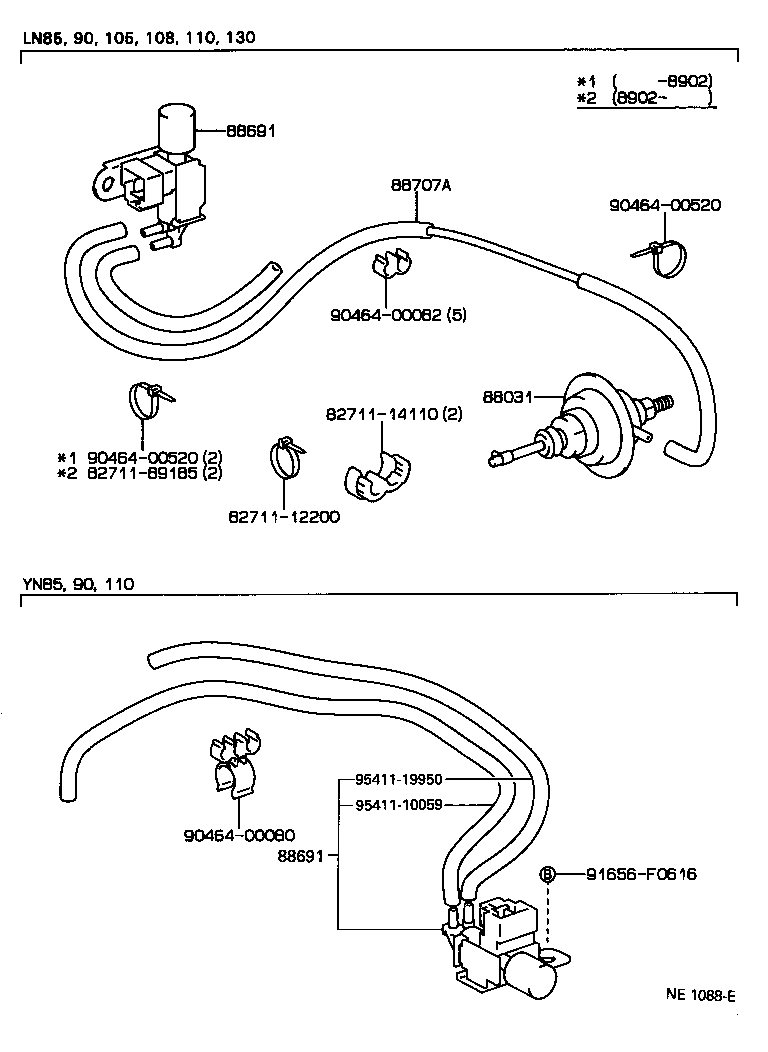

Click highlighted areas on diagram

diagram 8271112200 8271114110 8271189185 88031 88691 88691 88707A 9046400080 9046400082 9046400520 9046400520 91656F0616 9541110059 9541119950
Part # Description Qty Price
88031 - ACTUATOR SET, IDLE-UP
88031-35100

LN10#,110,85,90..JPP..LHD

 1
88031-35100

LN10#,110,130,85,90..JPP..LHD

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-89129

LN10#,110,85,90..JPP..LHD

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-89129

LN10#,110,85,90..JPP..LHD

 1
Common parts
82711-12200
82711-14110
82711-89185
90464-00080
90464-00082
90464-00520
91656-F0616
95411-10059
95411-19950
