LN105L-TRMRSW3 (1988)

Toyota Hilux (Jpp)

Production Aug 1988 - Aug 1997
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8810- )LN10#,110,130,85,90..JPP

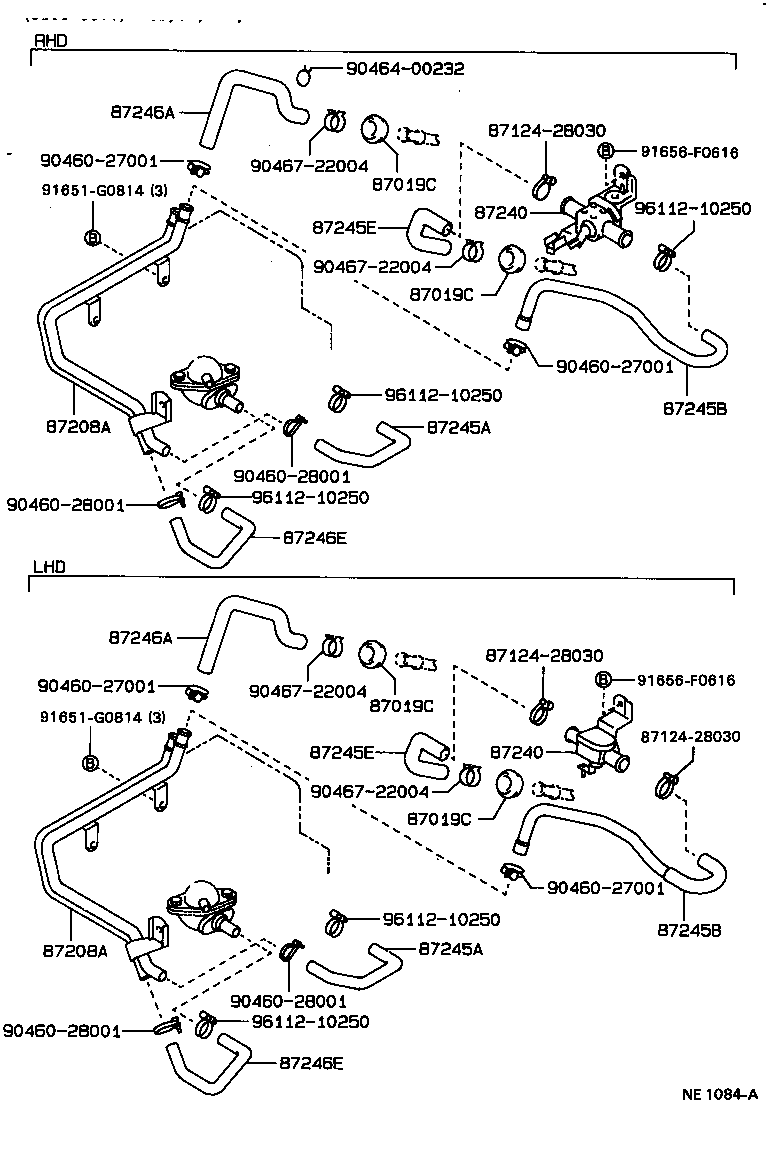

Click highlighted areas on diagram

diagram 87019C 87019C 87019C 87019C 8712428030 8712428030 8712428030 8712428030 8712428030 8712428030 8712428030 87208A 87208A 87208A 87208A 87240 87240 87245A 87245A 87245B 87245B 87245C 87245C 87245E 87245E 87246A 87246A 87246B 87246B 87246E 87246E 9046024002 9046024002 9046027001 9046027001 9046027001 9046027001 9046028001 9046028001 9046028001 9046028001 9046028001 9046028001 9046028001 9046028001 9046400232 9046722004 9046722004 9046722004 9046722004 9046722008 9046722008 91651G0814 91651G0814 91651G0814 91651G0814 91656F0616 91656F0616 9611210250 9611210250 9611210250 9611210250 9611210250
Part # Description Qty Price
87019C - GROMMET, HEATER HOSE
90480-36005

LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP

 2
87019C - GROMMET, HEATER HOSE
90480-36005

LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP

 2
87019C - GROMMET, HEATER HOSE
90480-36005

LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP

 2
87019C - GROMMET, HEATER HOSE
90480-36005

LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP

 2
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-89144

LN10#,110,85,90..JPP

NO.2

 1
87208-89136

LN105,110,85,90..JPP

 1
87208-89143

LN10#,110,85,90..JPP

NO.1

 1
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-89144

LN10#,110,85,90..JPP

NO.2

 1
87208-89136

LN105,110,85,90..JPP

 1
87208-89143

LN10#,110,85,90..JPP

NO.1

 1
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-89144

LN10#,110,85,90..JPP

NO.2

 1
87208-89136

LN105,110,85,90..JPP

 1
87208-89143

LN10#,110,85,90..JPP

NO.1

 1
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-89144

LN10#,110,85,90..JPP

NO.2

 1
87208-89136

LN105,110,85,90..JPP

 1
87208-89143

LN10#,110,85,90..JPP

NO.1

 1
87240 - VALVE ASSY, HEATER WATER
87240-89125

KZN130,LN10#,110,130,85,90..JPP..LHD

 1
87240 - VALVE ASSY, HEATER WATER
87240-89125

KZN130,LN10#,110,130,85,90..JPP..LHD

 1
87245A - HOSE, HEATER WATER, INLET A
87245-89238

LN105,110,85,90..JPP

 1
87245-89279

LN10#,110,130,85,90..JPP

 1
87245A - HOSE, HEATER WATER, INLET A
87245-89238

LN105,110,85,90..JPP

 1
87245-89279

LN10#,110,130,85,90..JPP

 1
87245B - HOSE, HEATER WATER, INLET B
87245-89281

LN10#,110,130,85,90..JPP

 1
87245B - HOSE, HEATER WATER, INLET B
87245-89281

LN10#,110,130,85,90..JPP

 1
87245C - HOSE, HEATER WATER ,INLET C
87245-89243

LN10#,110,85,90..JPP..LHD

 1
87245C - HOSE, HEATER WATER ,INLET C
87245-89243

LN10#,110,85,90..JPP..LHD

 1
87245E - HOSE, HEATER WATER, INLET E
87245-89232

KZN130,LN10#,110,130,85,90..JPP..LHD

 1
87245E - HOSE, HEATER WATER, INLET E
87245-89232

KZN130,LN10#,110,130,85,90..JPP..LHD

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-89242

LN10#,110,85,90..JPP..LHD

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-89242

LN10#,110,85,90..JPP..LHD

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-89282

LN10#,110,130,85,90..JPP

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-89282

LN10#,110,130,85,90..JPP

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-89280

LN10#,110,130,85,90..JPP

 1
87245-89239

LN105,110,85,90..JPP

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-89280

LN10#,110,130,85,90..JPP

 1
87245-89239

LN105,110,85,90..JPP

 1
Common parts
87124-28030
90460-24002
90460-27001
90460-28001
90464-00232
90467-22004
90467-22008
91651-G0814
91656-F0616
96112-10250

(8808-8810)LN105,110,85,90..JPP

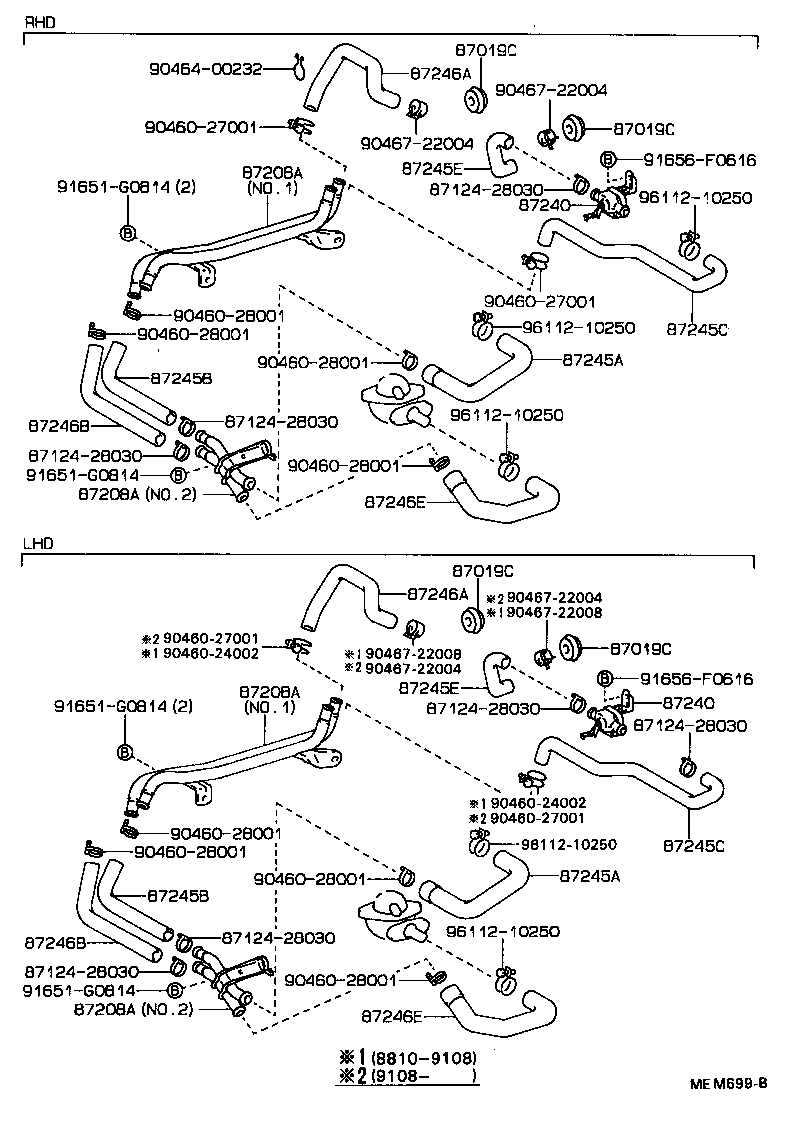

Click highlighted areas on diagram

diagram 87019C 87019C 87019C 87019C 8712428030 8712428030 8712428030 87208A 87208A 87240 87240 87245A 87245A 87245B 87245B 87245E 87245E 87246A 87246A 87246E 87246E 9046027001 9046027001 9046027001 9046027001 9046028001 9046028001 9046028001 9046028001 9046400232 9046722004 9046722004 9046722004 9046722004 91651G0814 91651G0814 91656F0616 91656F0616 9611210250 9611210250 9611210250 9611210250 9611210250
Part # Description Qty Price
87019C - GROMMET, HEATER HOSE
90480-36005

LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP

 2
87019C - GROMMET, HEATER HOSE
90480-36005

LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP

 2
87019C - GROMMET, HEATER HOSE
90480-36005

LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP

 2
87019C - GROMMET, HEATER HOSE
90480-36005

LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP

 2
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-89144

LN10#,110,85,90..JPP

NO.2

 1
87208-89136

LN105,110,85,90..JPP

 1
87208-89143

LN10#,110,85,90..JPP

NO.1

 1
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-89144

LN10#,110,85,90..JPP

NO.2

 1
87208-89136

LN105,110,85,90..JPP

 1
87208-89143

LN10#,110,85,90..JPP

NO.1

 1
87240 - VALVE ASSY, HEATER WATER
87240-89125

KZN130,LN10#,110,130,85,90..JPP..LHD

 1
87240 - VALVE ASSY, HEATER WATER
87240-89125

KZN130,LN10#,110,130,85,90..JPP..LHD

 1
87245A - HOSE, HEATER WATER, INLET A
87245-89238

LN105,110,85,90..JPP

 1
87245-89279

LN10#,110,130,85,90..JPP

 1
87245A - HOSE, HEATER WATER, INLET A
87245-89238

LN105,110,85,90..JPP

 1
87245-89279

LN10#,110,130,85,90..JPP

 1
87245B - HOSE, HEATER WATER, INLET B
87245-89281

LN10#,110,130,85,90..JPP

 1
87245B - HOSE, HEATER WATER, INLET B
87245-89281

LN10#,110,130,85,90..JPP

 1
87245E - HOSE, HEATER WATER, INLET E
87245-89232

KZN130,LN10#,110,130,85,90..JPP..LHD

 1
87245E - HOSE, HEATER WATER, INLET E
87245-89232

KZN130,LN10#,110,130,85,90..JPP..LHD

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-89242

LN10#,110,85,90..JPP..LHD

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-89242

LN10#,110,85,90..JPP..LHD

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-89280

LN10#,110,130,85,90..JPP

 1
87245-89239

LN105,110,85,90..JPP

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-89280

LN10#,110,130,85,90..JPP

 1
87245-89239

LN105,110,85,90..JPP

 1
Common parts
87124-28030
90460-27001
90460-28001
90464-00232
90467-22004
91651-G0814
91656-F0616
96112-10250
