LN105L-TRMRSW3 (1988)
Toyota Hilux (Jpp)
ILLUST NO. 1 OF 3(8808- )JPP
FRONT BLOWER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN | ||||
| 87103-89101 |
LN105,110,85,90,RN106,110,YN110,85,90..JPP..LHD |
1 | ||
| 87103-17020 |
LN105,110,85,90,RN106,110,YN110,85,90..JPP..LHD |
1 | ||
| 87103-42020 |
LN10#,110,85,90,RN106,110..JPP..LHD DENSO |
1 | ||
| 87103-17020 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD HEAVY HEATER |
1 | ||
| 87103-04021 |
LN10#,110,85,90,RN106,110..JPP..LHD HEAVY HEATER,DENSO USA |
1 | ||
| 87103-17020 |
LN10#,110,85,90,RN106,110..JPP..LHD HEAVY HEATER,DENSO |
1 | ||
| 87103-04021 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD HEAVY HEATER,DENSO USA |
1 | ||
| 87103-17020 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD DENSO |
1 | ||
| 87103-04021 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD DENSO USA |
1 | ||
| 87105 - FAN SUB-ASSY, HEATER BLOWER | ||||
| 87105-32020 |
LN105,110,85,90,RN110,YN110,85,90..JPP..LHD |
1 | ||
| 87126 - CLAMP, HEATER CONTROL | ||||
| 87126-12050 |
LN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP NO.1 |
2 | ||
| 87126-01010 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD NO.1 NIPPONDENSO USA |
2 | ||
| 87126-89101 |
LN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP NO.2 |
1 | ||
| 87126-04010 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD HEAVY HEATER,NO.2,NIPPONDENSO USA |
1 | ||
| 87126-04010 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD W(HEAVY HEATER),NIPPONDENSO USA,NO.2 |
1 | ||
| 87126-12050 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD HEAVY HEATER,NO.1 |
2 | ||
| 87126-12050 |
LN10#,110,85,90,YN110,85,90..JPP..LHD MAKER OPTOION,NO.1 NIPPONDENSO |
2 | ||
| 87126-01010 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD W(HEAVY HEATER),NIPPONDENSO USA,NO.1 |
2 | ||
| 87126-89101 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD NO.2 NIPPONDENSO |
1 | ||
| 87126-89101 |
LN10#,110,85,90,YN110,85,90..JPP..LHD MAKER OPTOION,NO.2 NIPPONDENSO |
1 | ||
| 87126-12050 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD HEAVY HEATER,NO.2,NIPPONDENSO |
2 | ||
| 87126-89101 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD NO.1 NIPPONDENSO |
1 | ||
| 87126-01010 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD HEAVY HEATER,NO.1,NIPPONDENSO USA |
2 | ||
| 87126-89101 |
LN10#,110,85,90,YN110,85,90..JPP..LHD HEAVY HEATER & MAKER OPT,NO.2,NIPPONDENSO |
1 | ||
| 87126-04010 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD NO.2 NIPPONDENSO USA |
1 | ||
| 87126-04010 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD NO.2,NIPPONDENSO USA |
1 | ||
| 87126-01010 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD NO.1,NIPPONDENSO USA |
2 | ||
| 87126-12050 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD NO.2 NIPPONDENSO |
2 | ||
| 87126-12050 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD NO.2,NIPPONDENSO |
2 | ||
| 87126-12050 |
LN10#,110,85,90,YN110,85,90..JPP..LHD MAKER OPTOION,NO.1,NIPPONDENSO |
2 | ||
| 87126-89101 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD HEAVY HEATER,NO.1,NIPPONDENSO |
1 | ||
| 87126-12050 |
LN10#,110,85,90,YN110,85,90..JPP..LHD HEAVY HEATER & MAKER OPT,NO.1,NIPPONDENSO |
2 | ||
| 87126-89101 |
LN10#,110,85,90,YN110,85,90..JPP..LHD MAKER OPTOION,NO.2,NIPPONDENSO |
1 | ||
| 87126-89101 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD NO.1,NIPPONDENSO |
1 | ||
| 87130 - BLOWER ASSY, HEATER, FRONT | ||||
| 87130-89115 |
LN105,110,85,90,RN106,110,YN110,85,90..JPP..LHD |
1 | ||
| 87130-35020 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD DENSO |
1 | ||
| 87130-35020 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD HEAVY HEATER |
1 | ||
| 87130-04021 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD DENSO USA |
1 | ||
| 87130-04021 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD HEAVY HEATER,DENSO USA |
1 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 87138-89105 |
LN105,110,85,90,RN106,110,YN110,85,90..JPP..LHD |
1 | ||
| 87138-35030 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD HEAVY HEATER |
1 | ||
| 87138-35030 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD DENSO |
1 | ||
| 87138-04011 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD DENSO USA |
1 | ||
| 87138-04011 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD HEAVY HEATER,DENSO USA |
1 | ||
| Common parts | ||||
| 90119-06446 | ||||
| 90179-06069 | ||||

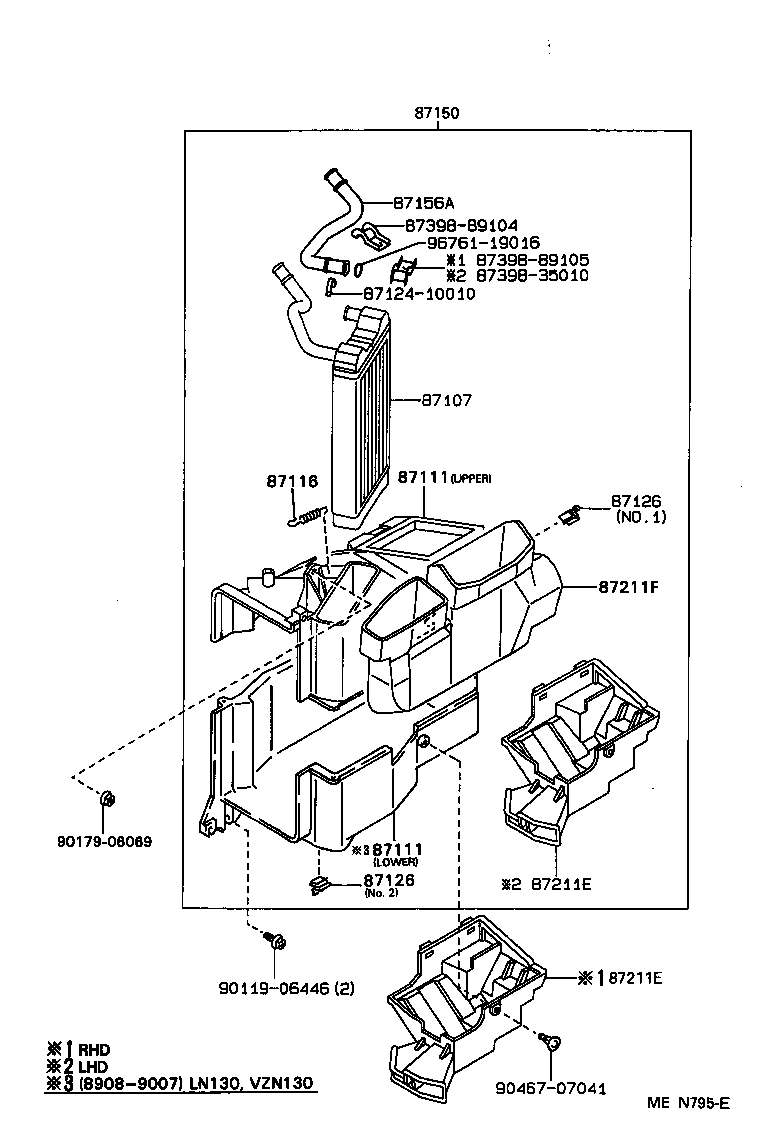

ILLUST NO. 2 OF 3(8808- )JPP
FRONT RADIATOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87107 - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-89116 |
LN105,110,85,90,RN106,110,YN110,85,90..JPP..LHD |
1 | ||
| 87107-89118 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD HEAVY HEATER,DENSO |
1 | ||
| 87107-04020 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD HEAVY HEATER,DENSO USA |
1 | ||
| 87107-89116 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD DENSO |
1 | ||
| 87107-04010 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD DENSO USA |
1 | ||
| 87111 - CASE, HEATER | ||||
| 87111-35020 |
LN105,110,85,90,RN106,110,YN110,85,90..JPP..LHD UPR |
1 | ||
| 87111-35030 |
LN105,110,85,90,RN106,110,YN110,85,90..JPP..LHD LWR |
1 | ||
| 87111-04020 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD HEAVY HEATER,LWR,NIPPONDENSO USA |
1 | ||
| 87111-04010 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD HEAVY HEATER,UPR,NIPPONDENSO USA |
1 | ||
| 87111-35020 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD HEAVY HEATER,UPR,NIPPONDENSO |
1 | ||
| 87111-04010 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD UPR,NIPPONDENSO USA |
1 | ||
| 87111-35020 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD UPR,NIPPONDENSO |
1 | ||
| 87111-35120 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD HEAVY HEATER,LWR,NIPPONDENSO |
1 | ||
| 87111-04020 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD LWR,NIPPONDENSO USA |
1 | ||
| 87111-35120 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD LWR,NIPPONDENSO |
1 | ||
| 87111 - CASE, HEATER | ||||
| 87111-35020 |
LN105,110,85,90,RN106,110,YN110,85,90..JPP..LHD UPR |
1 | ||
| 87111-35030 |
LN105,110,85,90,RN106,110,YN110,85,90..JPP..LHD LWR |
1 | ||
| 87111-04020 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD HEAVY HEATER,LWR,NIPPONDENSO USA |
1 | ||
| 87111-04010 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD HEAVY HEATER,UPR,NIPPONDENSO USA |
1 | ||
| 87111-35020 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD HEAVY HEATER,UPR,NIPPONDENSO |
1 | ||
| 87111-04010 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD UPR,NIPPONDENSO USA |
1 | ||
| 87111-35020 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD UPR,NIPPONDENSO |
1 | ||
| 87111-35120 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD HEAVY HEATER,LWR,NIPPONDENSO |
1 | ||
| 87111-04020 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD LWR,NIPPONDENSO USA |
1 | ||
| 87111-35120 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD LWR,NIPPONDENSO |
1 | ||
| 87116 - SPRING, HEATER CASE FASTENING | ||||
| 87116-89101 |
LN105,110,85,90,RN106,110,YN110,85,90..JPP..LHD |
1 | ||
| 87126 - CLAMP, HEATER CONTROL | ||||
| 87126-12050 |
LN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP NO.1 |
2 | ||
| 87126-01010 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD NO.1 NIPPONDENSO USA |
2 | ||
| 87126-89101 |
LN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP NO.2 |
1 | ||
| 87126-04010 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD HEAVY HEATER,NO.2,NIPPONDENSO USA |
1 | ||
| 87126-04010 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD W(HEAVY HEATER),NIPPONDENSO USA,NO.2 |
1 | ||
| 87126-12050 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD HEAVY HEATER,NO.1 |
2 | ||
| 87126-12050 |
LN10#,110,85,90,YN110,85,90..JPP..LHD MAKER OPTOION,NO.1 NIPPONDENSO |
2 | ||
| 87126-01010 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD W(HEAVY HEATER),NIPPONDENSO USA,NO.1 |
2 | ||
| 87126-89101 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD NO.2 NIPPONDENSO |
1 | ||
| 87126-89101 |
LN10#,110,85,90,YN110,85,90..JPP..LHD MAKER OPTOION,NO.2 NIPPONDENSO |
1 | ||
| 87126-12050 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD HEAVY HEATER,NO.2,NIPPONDENSO |
2 | ||
| 87126-89101 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD NO.1 NIPPONDENSO |
1 | ||
| 87126-01010 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD HEAVY HEATER,NO.1,NIPPONDENSO USA |
2 | ||
| 87126-89101 |
LN10#,110,85,90,YN110,85,90..JPP..LHD HEAVY HEATER & MAKER OPT,NO.2,NIPPONDENSO |
1 | ||
| 87126-04010 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD NO.2 NIPPONDENSO USA |
1 | ||
| 87126-04010 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD NO.2,NIPPONDENSO USA |
1 | ||
| 87126-01010 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD NO.1,NIPPONDENSO USA |
2 | ||
| 87126-12050 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD NO.2 NIPPONDENSO |
2 | ||
| 87126-12050 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD NO.2,NIPPONDENSO |
2 | ||
| 87126-12050 |
LN10#,110,85,90,YN110,85,90..JPP..LHD MAKER OPTOION,NO.1,NIPPONDENSO |
2 | ||
| 87126-89101 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD HEAVY HEATER,NO.1,NIPPONDENSO |
1 | ||
| 87126-12050 |
LN10#,110,85,90,YN110,85,90..JPP..LHD HEAVY HEATER & MAKER OPT,NO.1,NIPPONDENSO |
2 | ||
| 87126-89101 |
LN10#,110,85,90,YN110,85,90..JPP..LHD MAKER OPTOION,NO.2,NIPPONDENSO |
1 | ||
| 87126-89101 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD NO.1,NIPPONDENSO |
1 | ||
| 87126 - CLAMP, HEATER CONTROL | ||||
| 87126-12050 |
LN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP NO.1 |
2 | ||
| 87126-01010 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD NO.1 NIPPONDENSO USA |
2 | ||
| 87126-89101 |
LN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP NO.2 |
1 | ||
| 87126-04010 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD HEAVY HEATER,NO.2,NIPPONDENSO USA |
1 | ||
| 87126-04010 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD W(HEAVY HEATER),NIPPONDENSO USA,NO.2 |
1 | ||
| 87126-12050 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD HEAVY HEATER,NO.1 |
2 | ||
| 87126-12050 |
LN10#,110,85,90,YN110,85,90..JPP..LHD MAKER OPTOION,NO.1 NIPPONDENSO |
2 | ||
| 87126-01010 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD W(HEAVY HEATER),NIPPONDENSO USA,NO.1 |
2 | ||
| 87126-89101 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD NO.2 NIPPONDENSO |
1 | ||
| 87126-89101 |
LN10#,110,85,90,YN110,85,90..JPP..LHD MAKER OPTOION,NO.2 NIPPONDENSO |
1 | ||
| 87126-12050 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD HEAVY HEATER,NO.2,NIPPONDENSO |
2 | ||
| 87126-89101 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD NO.1 NIPPONDENSO |
1 | ||
| 87126-01010 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD HEAVY HEATER,NO.1,NIPPONDENSO USA |
2 | ||
| 87126-89101 |
LN10#,110,85,90,YN110,85,90..JPP..LHD HEAVY HEATER & MAKER OPT,NO.2,NIPPONDENSO |
1 | ||
| 87126-04010 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD NO.2 NIPPONDENSO USA |
1 | ||
| 87126-04010 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD NO.2,NIPPONDENSO USA |
1 | ||
| 87126-01010 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD NO.1,NIPPONDENSO USA |
2 | ||
| 87126-12050 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD NO.2 NIPPONDENSO |
2 | ||
| 87126-12050 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD NO.2,NIPPONDENSO |
2 | ||
| 87126-12050 |
LN10#,110,85,90,YN110,85,90..JPP..LHD MAKER OPTOION,NO.1,NIPPONDENSO |
2 | ||
| 87126-89101 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD HEAVY HEATER,NO.1,NIPPONDENSO |
1 | ||
| 87126-12050 |
LN10#,110,85,90,YN110,85,90..JPP..LHD HEAVY HEATER & MAKER OPT,NO.1,NIPPONDENSO |
2 | ||
| 87126-89101 |
LN10#,110,85,90,YN110,85,90..JPP..LHD MAKER OPTOION,NO.2,NIPPONDENSO |
1 | ||
| 87126-89101 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD NO.1,NIPPONDENSO |
1 | ||
| 87150 - RADIATOR ASSY, HEATER | ||||
| 87150-89120 |
LN105,110,85,90,RN106,110,YN110,85,90..JPP..LHD |
1 | ||
| 87150-89122 |
LN105,110,85,90,RN106,110,YN110,85,90..JPP..LHD HEAVY HEATER |
1 | ||
| 87150-89116 |
LN105,110,85,90,RN110,YN110,85,90..JPP..LHD HEAVY HEATER |
1 | ||
| 87150-89116 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD HEAVY HEATER |
1 | ||
| 87150-89114 |
LN105,110,85,90,RN110,YN110,85,90..JPP..LHD |
1 | ||
| 87150-04010 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD DENSO USA |
1 | ||
| 87150-89114 |
LN105,110,85,90,RN106,110,YN110,85,90..JPP..LHD |
1 | ||
| 87150-89114 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD DENSO |
1 | ||
| 87150-04020 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD HEAVY HEATER,DENSO USA |
1 | ||
| 87150-89116 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD HEAVY HEATER,DENSO |
1 | ||
| 87156A - CONNECTOR, HEATER WATER HOSE | ||||
| 87156-34010 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD |
1 | ||
| 87211E - DUCT, AIR | ||||
| 87211-89116 |
LN105,110,85,90,RN106,110,YN110,85,90..JPP..LHD |
1 | ||
| 87211-04020 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD DENSO USA |
1 | ||
| 87211-89116 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD DENSO |
1 | ||
| 87211E - DUCT, AIR | ||||
| 87211-89116 |
LN105,110,85,90,RN106,110,YN110,85,90..JPP..LHD |
1 | ||
| 87211-04020 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD DENSO USA |
1 | ||
| 87211-89116 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD DENSO |
1 | ||
| 87211F - DUCT, AIR | ||||
| 87211-35050 |
LN105,110,85,90,RN106,110,YN110,85,90..JPP..LHD |
1 | ||
| 87211-04010 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD DENSO USA |
1 | ||
| 87211-35050 |
LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD DENSO |
1 | ||
| Common parts | ||||
| 87124-10010 | ||||
| 87398-35010 | ||||
| 87398-89104 | ||||
| 87398-89105 | ||||
| 90119-06446 | ||||
| 90179-06069 | ||||
| 90467-07041 | ||||
| 96761-19016 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
