LN105L-TRMRSW3 (1988)
Toyota Hilux (Jpp)

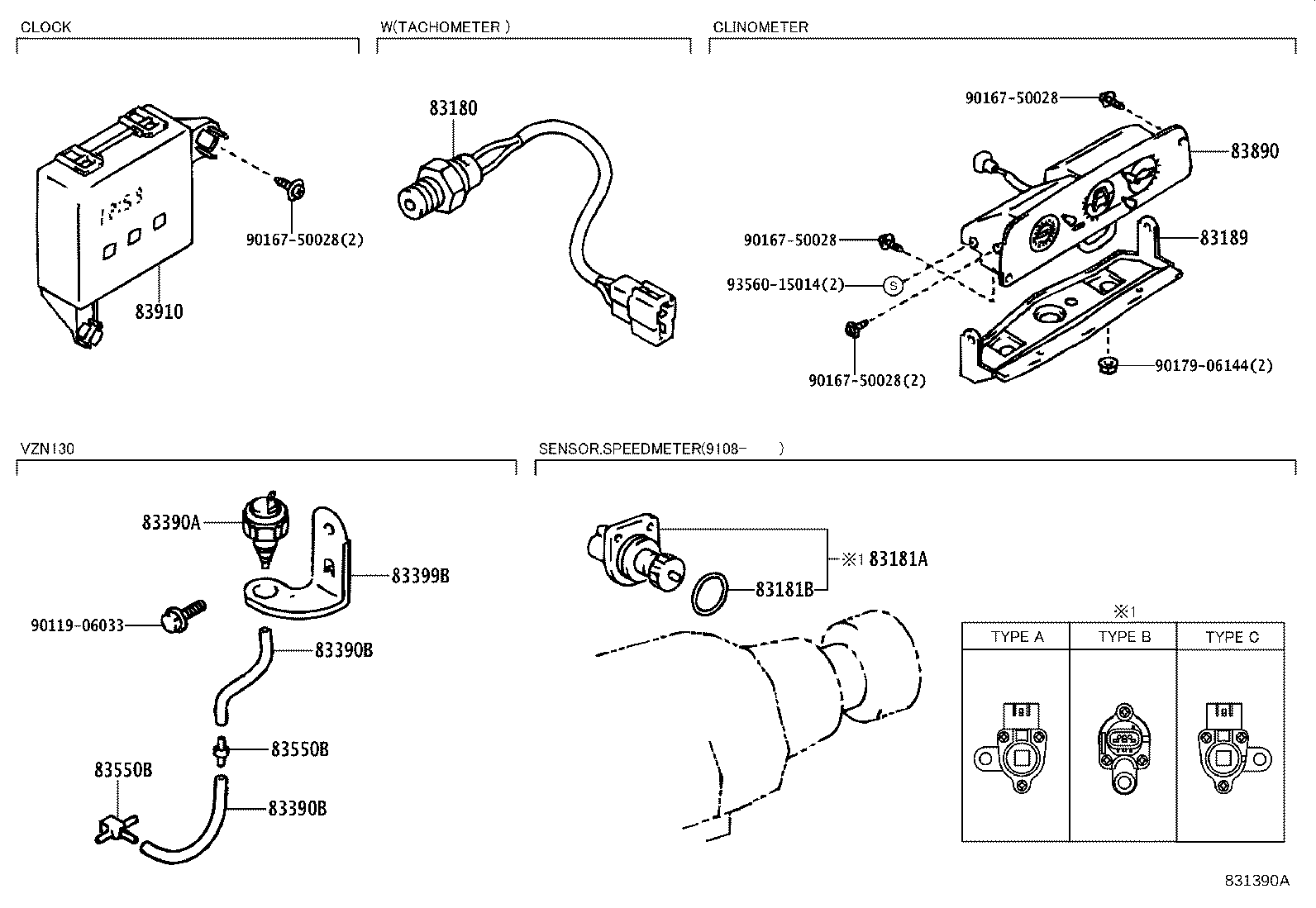

ILLUST NO. 3 OF 3(8808- )JPP
CLOCK,DETECTOR,CLINOMETER,SENSOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-35050 |
VZN130..JPP..4FC;LN10#,110,RN106,110,YN106,110..JPP TYPE A:REFER ILLUST. |
1 | ||
| 83181-35051 |
VZN130..JPP..4FC;LN10#,110,RN106,110,YN106,110..JPP TYPE A:REFER ILLUST. |
1 | ||
| 83181B - RING, O (FOR SPEEDOMETER SENSOR) | ||||
| 90301-18018 |
VZN130..JPP..4FC;LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-89107 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD |
1 | ||
| Common parts | ||||
| 90119-06033 | ||||
| 90167-50028 | ||||
| 90179-06144 | ||||
| 93560-15014 | ||||

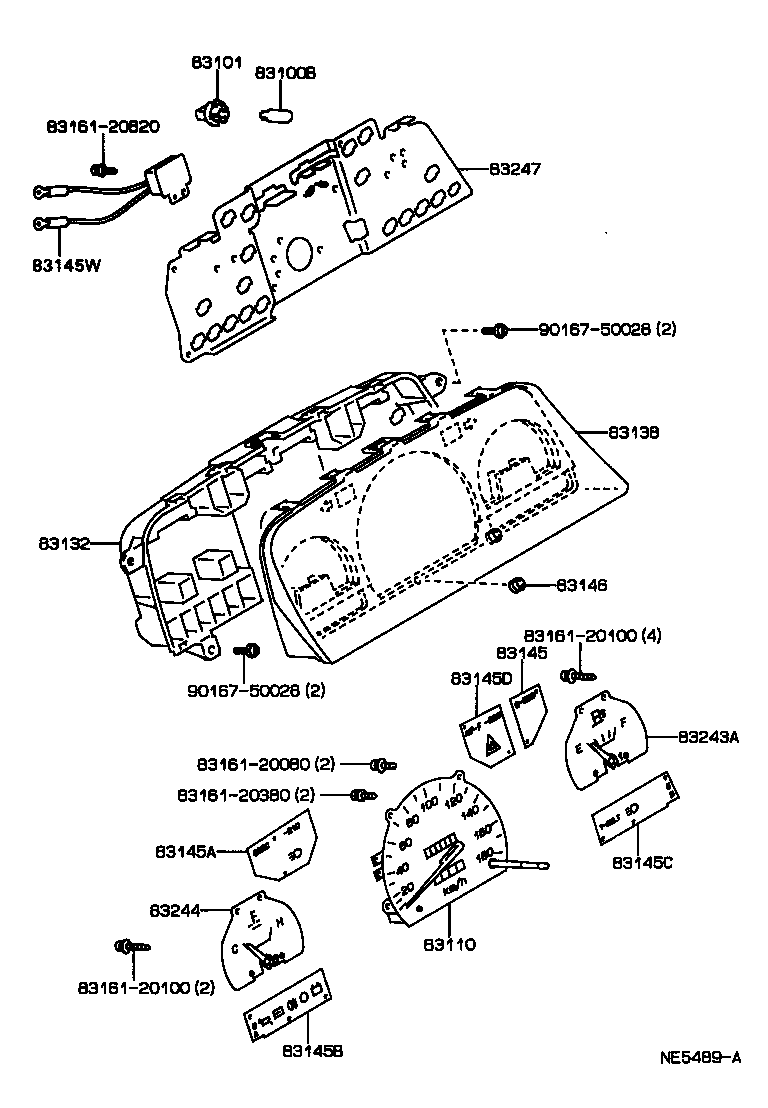

ILLUST NO. 1 OF 3(8808- )JPP
COMBINATION METER, W/O(TACHOMETER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
LN105,110,85,90..JPP 12V 3.4W |
14 | ||
| 99132-12034 |
LN105,110,85,90..JPP..LHD 12V 3.4W |
15 | ||
| 99132-12034 |
LN105,110,85,90..JPP 12V 3.4W |
15 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
LN105,85,90..JPP..LHD TYPE B:REFER TO ILLUSTRATION |
14 | ||
| 83101-20040 |
RN106..JPP..SR5;LN10#,110,85,90,YN110,90..JPP TYPE B:REFER TO ILLUSTRATION |
5 | ||
| 83101-20040 |
LN105,110,85,90..JPP TYPE B:REFER TO ILLUSTRATION |
14 | ||
| 83101-20040 |
LN10#,110,85,90,RN106,110..JPP TYPE B:REFER TO ILLUSTRATION |
5 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-35070 |
LN105,110,85,90..JPP..LHD |
1 | ||
| 83110-89309 |
LN105,110,85,90..JPP..LHD |
1 | ||
| 83110-35470 |
LN105,110,85,90..JPP..LHD |
1 | ||
| 83110-35290 |
LN105,110,85,90..JPP..LHD |
1 | ||
| 83110-3D310 |
LN105,110,85,90..JPP..LHD |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-89504 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP |
1 | ||
| 83132-35020 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..(DLX,STD) |
1 | ||
| 83132-89504 |
LN105,110,85,90,RN106,110..JPP..(DLX,STD) |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83138-89528 |
LN105,110,85,90..JPP..LHD |
1 | ||
| 83138-89528 |
LN105,110,85,90..JPP |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-89504 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..(DLX,STD) |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-89408 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..(DLX,STD) |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83145-89518 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..(DLX,STD) |
1 | ||
| 83145C - LENS, METER, NO.4 | ||||
| 83145-89604 |
LN105,110,85,90,RN106,110..JPP |
1 | ||
| 83145-89604 |
YN85..JPP..LHD;LN105,110,85,90,RN106,110,YN110,90..JPP..(DLX,STD) |
1 | ||
| 83145D - LENS, METER, NO.5 | ||||
| 83145-89410 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..(DLX,STD) |
1 | ||
| 83145-89410 |
LN105,110,85,90,RN106,110,YN110,85,90..JPP..LHD |
1 | ||
| 83146 - GROMMET, METER GLASS | ||||
| 83145-89318 |
KZN130,LN10#,110,130,85,90..JPP |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-35040 |
YN85..JPP..RHD;LN105,110,85,90,YN106..JPP |
1 | ||
| 83243-89506 |
LN105,110,85,90,YN106,110,85,90..JPP |
1 | ||
| 83243-35120 |
LN105,110,85,90..JPP |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-89510 |
LN105,110,85,90..JPP |
1 | ||
| 83244-35100 |
LN105,110,85,90..JPP |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-89544 |
LN105,110,85,90..JPP |
1 | ||
| 83247-89608 |
LN105,110,85,90..JPP..LHD |
1 | ||
| 83247-35320 |
LN105,110,85,90..JPP |
1 | ||
| 83247-89608 |
LN105,110,85,90..JPP |
1 | ||
| Common parts | ||||
| 83161-20080 | ||||
| 83161-20100 | ||||
| 83161-20380 | ||||
| 83161-20820 | ||||
| 90167-50028 | ||||

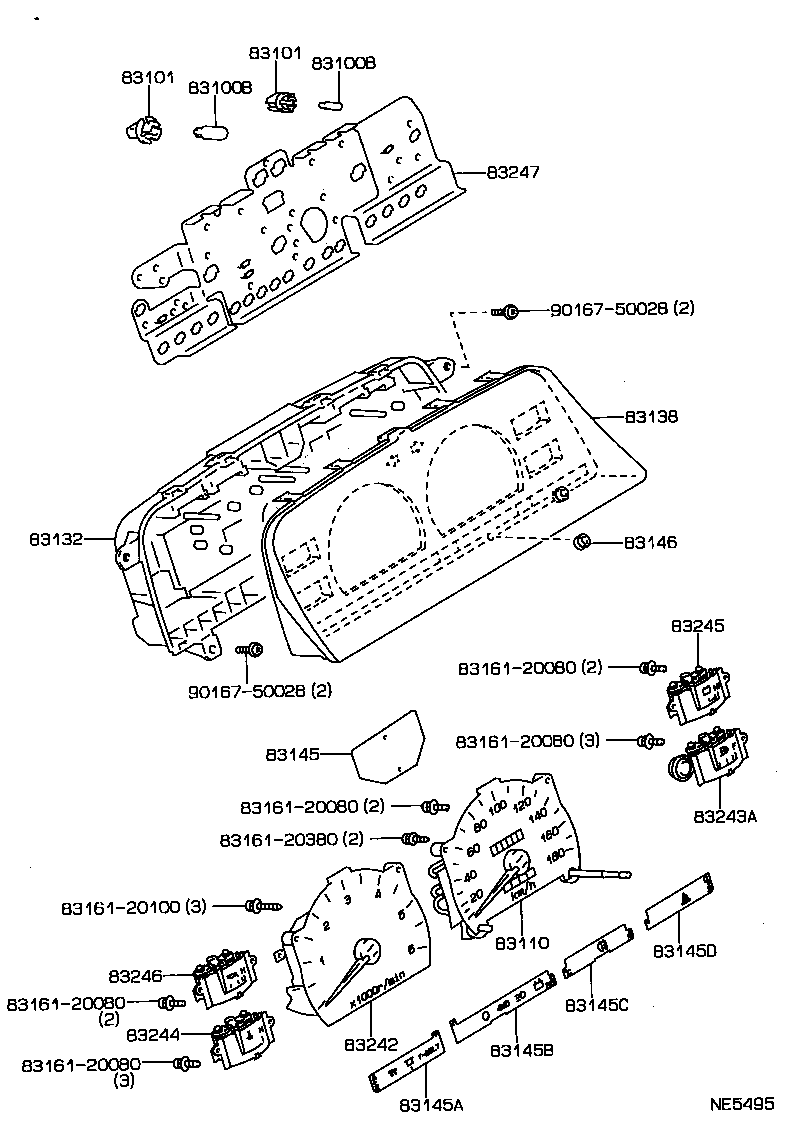

ILLUST NO. 1 OF 3(8808- )JPP
COMBINATION METER, W(TACHOMETER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
LN105,110,85,90..JPP 12V 3.4W |
14 | ||
| 99132-12034 |
LN105,110,85,90..JPP..LHD 12V 3.4W |
15 | ||
| 99132-12034 |
LN105,110,85,90..JPP 12V 3.4W |
15 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
LN105,110,85,90..JPP 12V 3.4W |
14 | ||
| 99132-12034 |
LN105,110,85,90..JPP..LHD 12V 3.4W |
15 | ||
| 99132-12034 |
LN105,110,85,90..JPP 12V 3.4W |
15 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
LN105,85,90..JPP..LHD TYPE B:REFER TO ILLUSTRATION |
14 | ||
| 83101-20040 |
RN106..JPP..SR5;LN10#,110,85,90,YN110,90..JPP TYPE B:REFER TO ILLUSTRATION |
5 | ||
| 83101-20040 |
LN105,110,85,90..JPP TYPE B:REFER TO ILLUSTRATION |
14 | ||
| 83101-20040 |
LN10#,110,85,90,RN106,110..JPP TYPE B:REFER TO ILLUSTRATION |
5 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
LN105,85,90..JPP..LHD TYPE B:REFER TO ILLUSTRATION |
14 | ||
| 83101-20040 |
RN106..JPP..SR5;LN10#,110,85,90,YN110,90..JPP TYPE B:REFER TO ILLUSTRATION |
5 | ||
| 83101-20040 |
LN105,110,85,90..JPP TYPE B:REFER TO ILLUSTRATION |
14 | ||
| 83101-20040 |
LN10#,110,85,90,RN106,110..JPP TYPE B:REFER TO ILLUSTRATION |
5 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-35070 |
LN105,110,85,90..JPP..LHD |
1 | ||
| 83110-89309 |
LN105,110,85,90..JPP..LHD |
1 | ||
| 83110-35470 |
LN105,110,85,90..JPP..LHD |
1 | ||
| 83110-35290 |
LN105,110,85,90..JPP..LHD |
1 | ||
| 83110-3D310 |
LN105,110,85,90..JPP..LHD |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-89504 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP |
1 | ||
| 83132-35020 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..(DLX,STD) |
1 | ||
| 83132-89504 |
LN105,110,85,90,RN106,110..JPP..(DLX,STD) |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83138-89528 |
LN105,110,85,90..JPP..LHD |
1 | ||
| 83138-89528 |
LN105,110,85,90..JPP |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-89504 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..(DLX,STD) |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-89408 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..(DLX,STD) |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83145-89518 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..(DLX,STD) |
1 | ||
| 83145C - LENS, METER, NO.4 | ||||
| 83145-89604 |
LN105,110,85,90,RN106,110..JPP |
1 | ||
| 83145-89604 |
YN85..JPP..LHD;LN105,110,85,90,RN106,110,YN110,90..JPP..(DLX,STD) |
1 | ||
| 83145D - LENS, METER, NO.5 | ||||
| 83145-89410 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..(DLX,STD) |
1 | ||
| 83145-89410 |
LN105,110,85,90,RN106,110,YN110,85,90..JPP..LHD |
1 | ||
| 83146 - GROMMET, METER GLASS | ||||
| 83145-89318 |
KZN130,LN10#,110,130,85,90..JPP |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-35040 |
YN85..JPP..RHD;LN105,110,85,90,YN106..JPP |
1 | ||
| 83243-89506 |
LN105,110,85,90,YN106,110,85,90..JPP |
1 | ||
| 83243-35120 |
LN105,110,85,90..JPP |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-89510 |
LN105,110,85,90..JPP |
1 | ||
| 83244-35100 |
LN105,110,85,90..JPP |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-89544 |
LN105,110,85,90..JPP |
1 | ||
| 83247-89608 |
LN105,110,85,90..JPP..LHD |
1 | ||
| 83247-35320 |
LN105,110,85,90..JPP |
1 | ||
| 83247-89608 |
LN105,110,85,90..JPP |
1 | ||
| Common parts | ||||
| 83161-20080 | ||||
| 83161-20100 | ||||
| 83161-20380 | ||||
| 90167-50028 | ||||

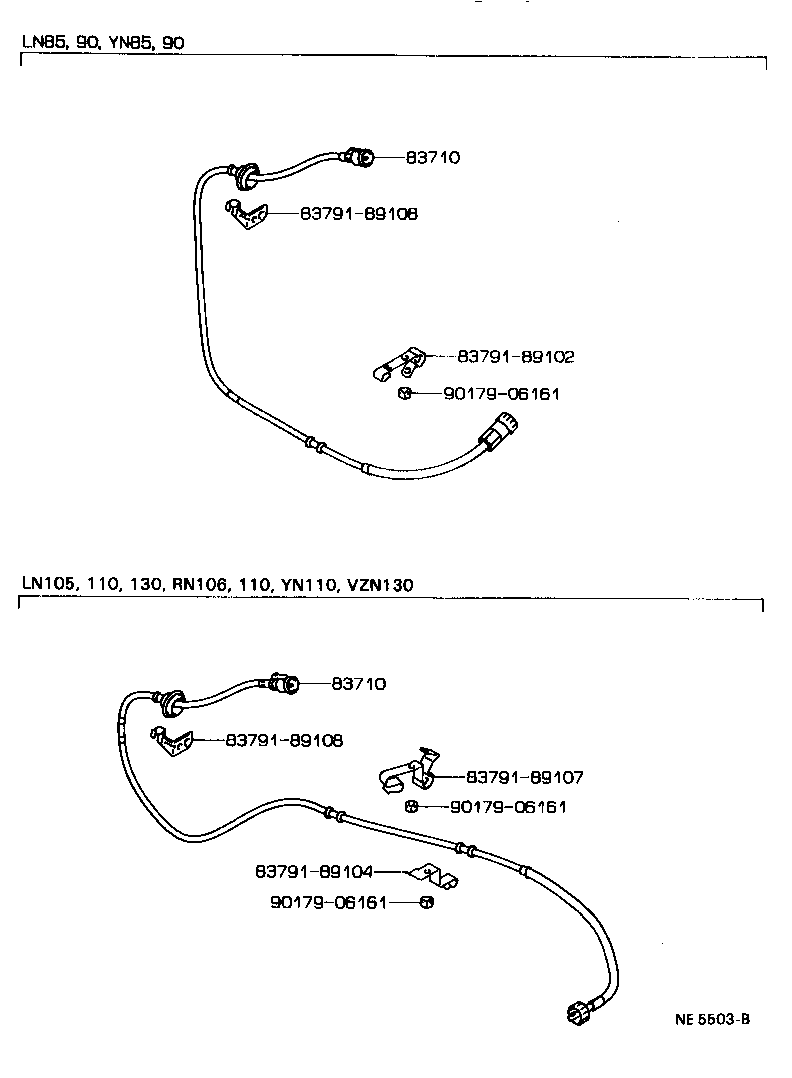

ILLUST NO. 2 OF 3(8808-9108)JPP..LHD ; (9408- )JPP..LHD
SPEEDOMETER DRIVE CABLE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-89186 |
LN105,110,130..JPP..LHD |
1 | ||
| 83710-35450 |
LN10#,110,130..JPP..LHD |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-89186 |
LN105,110,130..JPP..LHD |
1 | ||
| 83710-35450 |
LN10#,110,130..JPP..LHD |
1 | ||
| Common parts | ||||
| 83791-89102 | ||||
| 83791-89104 | ||||
| 83791-89107 | ||||
| 83791-89108 | ||||
| 90179-06161 | ||||
