Toyota Hilux (jpp) LN105 WIRING & CLAMP

LN105L-TRMRSW3 (1988)

Toyota Hilux (Jpp)

Production Aug 1988 - Aug 1997

Engine 2L

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 4 OF 4(8808- )JPP

Click highlighted areas on diagram

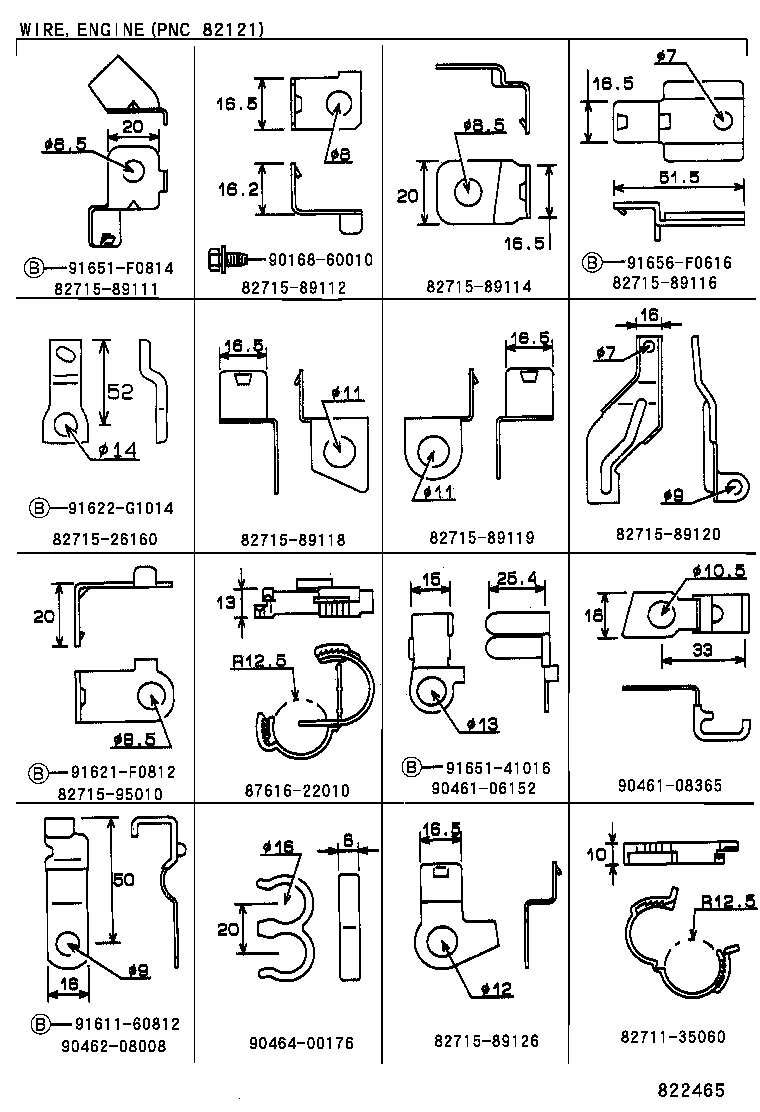

ENGINE WIRE CLAMPS & BRACKETS

Part #	Description	Period	Qty	Price
Common parts
82711-35060
82715-26160
82715-89111
82715-89112
82715-89114
82715-89116
82715-89118
82715-89119
82715-89120
82715-89126
82715-95010
87616-22010
90168-60010
90461-06152
90461-08365
90462-08008
90464-00176
91611-60812
91621-F0812
91622-G1014
91651-41016
91651-F0814
91656-F0616

ILLUST NO. 2 OF 4(8908- )JPP

Click highlighted areas on diagram

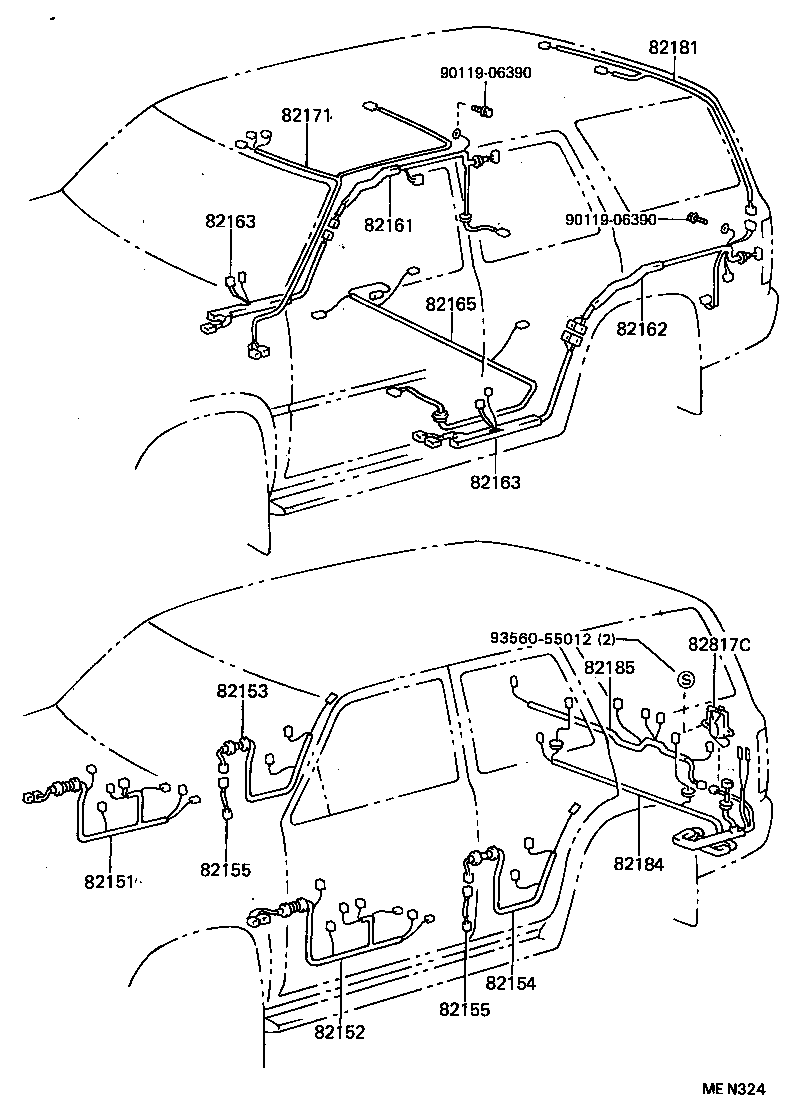

ROOF,FLOOR,FRAME & DOOR WIRE

Part #	Description	Period	Qty
82171 - WIRE, ROOF, NO.1
82171-89117	LN105,85,RN106,YN106,85..JPP..T1	08/1988 - 08/1991	1
82171-35010	LN105,85,RN106,YN106,85..JPP..T1	08/1991 - 08/1997	1
Common parts
90119-06390
93560-55012

ILLUST NO. 4 OF 4(8808- )JPP

Click highlighted areas on diagram

ENGINE ROOM WIRE CLAMP & BRACKETS

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82111-89184	LN105,110,85,90..JPP..LHD W(FUEL HEATER & 12V 60A ALTERNATOR)	08/1988 - 08/1990	1
82111-89182	LN105,110,85,90..JPP..LHD W(12V 60A ALTERNATOR)	08/1988 - 08/1990	1
82111-89180	LN105,110,85,90..JPP..LHD W(FUEL HEATER)	08/1988 - 08/1990	1
82111-89178	LN105,110,85,90..JPP..LHD	08/1988 - 08/1990	1
82111-89283	LN105,110,85,90..JPP..LHD W(12V 60A ALTERNATOR)	08/1990 - 08/1991	1
82111-89279	LN105,110,85,90..JPP..LHD	08/1990 - 08/1991	1
82111-89284	LN105,110,85,90..JPP..LHD W(FUEL HEATER & 12V 60A ALTERNATOR)	08/1990 - 08/1991	1
82111-89280	LN105,110,85,90..JPP..LHD W(FUEL HEATER)	08/1990 - 08/1991	1
82111-35860	LN10#,110,85,90..JPP..LHD	08/1991 - 08/1992	1
82111-35870	LN10#,110,85,90..JPP..LHD W(FUEL HEATER)	08/1991 - 08/1992	1
82111-3D040	LN10#,110,85,90..JPP..LHD W(FUEL HEATER & 12V 60A ALTERNATOR)	08/1991 - 08/1992	1
82111-3D030	LN10#,110,85,90..JPP..LHD W(12V 60A ALTERNATOR)	08/1991 - 08/1992	1
82111-35861	LN10#,110,85,90..JPP..LHD	08/1992 - 01/1996	1
82111-35871	LN10#,110,85,90..JPP..LHD W(FUEL HEATER)	08/1992 - 01/1996	1
82111-3D041	LN10#,110,85,90..JPP..LHD W(FUEL HEATER & 12V 60A ALTERNATOR)	08/1992 - 01/1996	1
82111-3D031	LN10#,110,85,90..JPP..LHD W(12V 60A ALTERNATOR)	08/1992 - 01/1996	1
82111-35862	LN10#,110,85,90..JPP..LHD	01/1996 - 08/1997	1
82111-35872	LN10#,110,85,90..JPP..LHD W(FUEL HEATER)	01/1996 - 08/1997	1
82111-3D032	LN10#,110,85,90..JPP..LHD W(12V 60A ALTERNATOR)	01/1996 - 08/1997	1
82111-3D042	LN10#,110,85,90..JPP..LHD W(FUEL HEATER & 12V 60A ALTERNATOR)	01/1996 - 08/1997	1
Common parts
82711-35060
82715-35030
82715-89104
82715-89106
90119-06431
90119-08671

ILLUST NO. 4 OF 4(8808- )JPP

Click highlighted areas on diagram

ENGINE WIRE CLAMPS & BRACKETS

Part #	Description	Period	Qty
82121 - WIRE, ENGINE
82121-89223	LN105,110..JPP	08/1988 - 08/1990	1
82121-89314	LN105,110..JPP	08/1990 - 08/1991	1
82121-35530	LN10#,110..JPP	08/1991 - 08/1992	1
82121-35531	LN10#,110..JPP	08/1992 - 01/1994	1
82121-35532	LN105,110..JPP	01/1994 - 08/1994	1
82121-35533	LN105,110..JPP	08/1994 - 08/1997	1
Common parts
82710-87002
82711-89120
82711-89123
82715-30500
82715-35040
82715-35070
82715-89113
82715-89127
82715-89128
82715-89135
82715-89136
82715-89137
82715-95J26
82751-89104
84248-35010
87616-35010
91631-60616
91651-40610
91656-F0616
93381-16014

ILLUST NO. 4 OF 4(8808- )JPP

Click highlighted areas on diagram

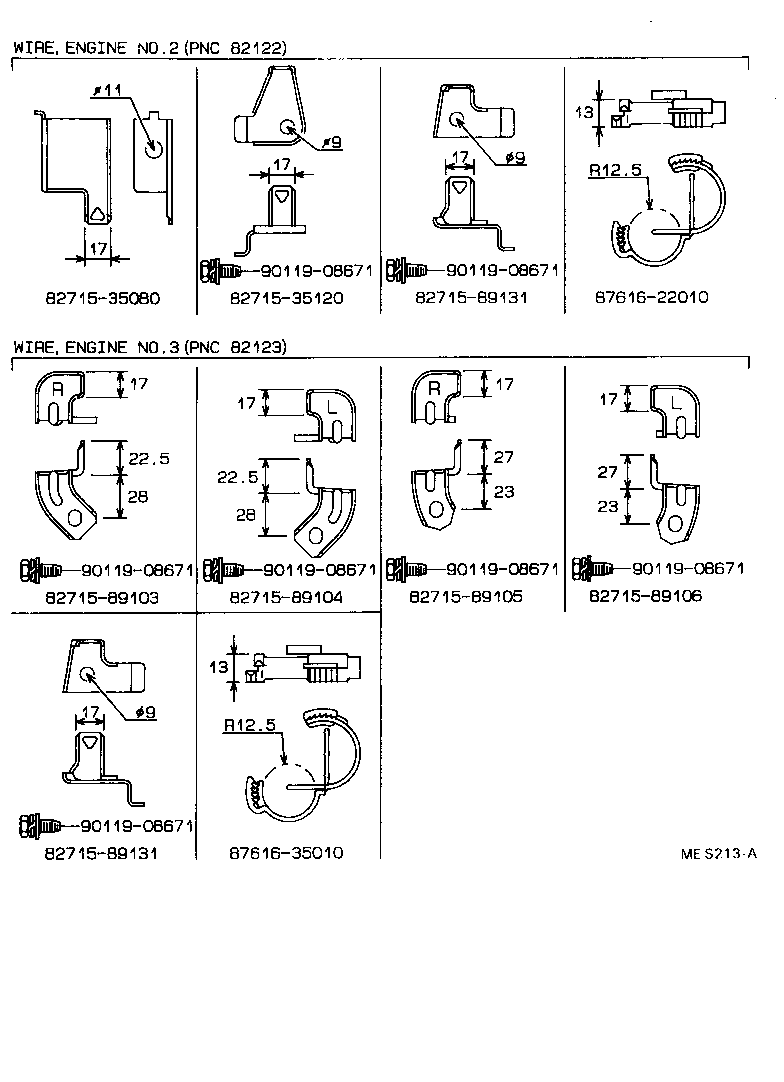

ENGINE WIRE NO.2,NO.3 CLAMPS & BKTS

Part #	Description	Period	Qty
82122 - WIRE, ENGINE, NO.2
82122-89117	LN105,85,90..JPP..LHD 1-BATTERY	08/1988 - 08/1991	1
82122-89123	LN105,110,130,85,90..JPP..LHD COLD SPEC,2-BATTERY,NO.2	08/1988 - 08/1990	1
82122-89119	LN105,85,90..JPP..LHD COLD SPEC,2-BATTERY,NO.1	08/1988 - 08/1990	1
82122-89119	LN105,85,90..JPP..LHD COLD SPEC,NO.1	08/1990 - 08/1991	1
82122-89123	LN105,130,85,90..JPP..LHD COLD SPEC,NO.2	08/1990 - 08/1991	1
82122-89117	LN105,85,90..JPP..LHD	08/1991 - 08/1993	1
82122-89119	LN105,85,90..JPP..LHD COLD SPEC,2-BATTERY,NO.1	08/1991 - 08/1993	1
82122-35340	LN105,85,90..JPP..LHD	08/1993 - 08/1997	1
82122-89123	LN10#,110,130,85,90..JPP..LHD COLD SPEC,2-BATTERY,NO.2	08/1991 - 08/1997	1
82122-35360	LN105,85,90..JPP..LHD COLD SPEC,2-BATTERY,NO.1	08/1993 - 08/1997	1
82123 - WIRE, ENGINE, NO.3
82123-89104	LN105,85,90..JPP	08/1988 - 08/1997	1
Common parts
82715-35080
82715-35120
82715-89103
82715-89104
82715-89105
82715-89106
82715-89131
87616-22010
87616-35010
90119-08671

ILLUST NO. 4 OF 4(8808- )JPP

Click highlighted areas on diagram

COWL WIRE CLAMPS & BRACKETS

Part #	Description	Period	Qty
82131 - WIRE, COWL
82131-89723	LN85..JPP..CBU;LN105,110,90..JPP..LHD W(HEADLAMP CLEANER)	08/1988 - 08/1990	1
82131-89721	LN105,110,85,90..JPP..LHD	08/1988 - 08/1990	1
82131-89B76	LN105,110,85,90..JPP..LHD	08/1990 - 08/1991	1
82131-89B78	LN85..JPP..CBU;LN105,110,90..JPP..LHD W(HEADLAMP CLEANER)	08/1990 - 08/1991	1
82131-3G020	LN105,110,85,90..JPP..LHD	08/1991 - 08/1992	1
82131-3G021	LN105,110,85,90..JPP..LHD	08/1992 - 01/1994	1
82131-3G022	LN105,110,85,90..JPP..LHD	01/1994 - 08/1994	1
82131-3G023	LN105,110,85,90..JPP..LHD	08/1994 - 08/1997	1
Common parts
82711-14110
82711-35210
82711-89146
82711-89166
82711-89194
82715-22070
82715-89113
82715-89130
90461-08309
91651-40814
91656-F0616

ILLUST NO. 2 OF 4(8808- )LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP

Click highlighted areas on diagram

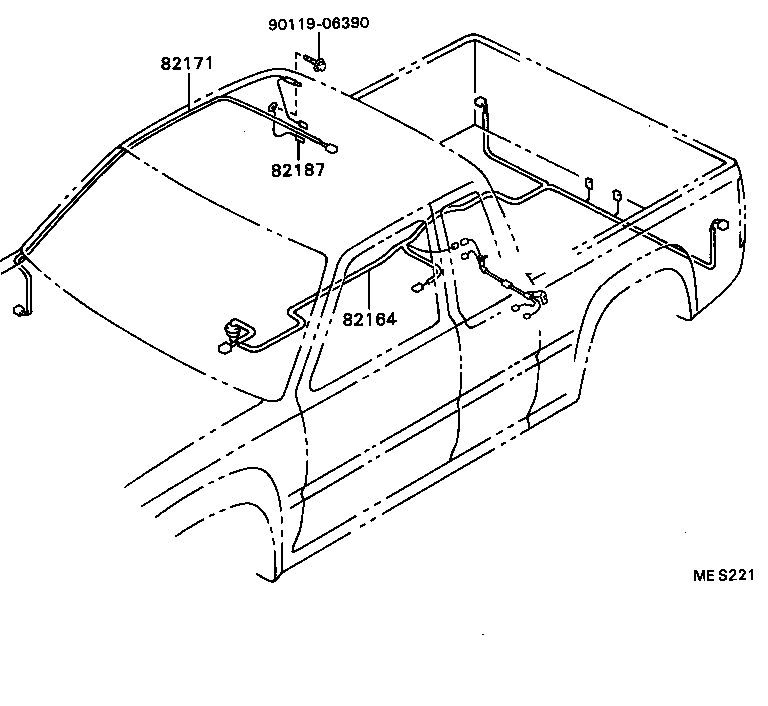

ROOF,FRAME,BACK WINDOW & DIFF. WIRE

Part #	Description	Period	Qty
82164 - WIRE, FRAME
82164-89184	LN105,85..JPP..IV3	08/1988 - 08/1990	1
82164-89242	LN105..JPP..IV3 W(L.S.D.)	08/1990 - 08/1991	1
82164-89241	LN105,85..JPP..IV3	08/1990 - 08/1991	1
82164-35500	LN105,85..JPP..IV3 PORTUGAL SPEC	08/1991 - 03/1994	1
82164-35510	LN105..JPP..IV3 PORTUGAL SPEC & W(L.S.D.)	08/1991 - 03/1994	1
82164-35501	LN105,85..JPP..IV3 PORTUGAL SPEC	03/1994 - 10/1995	1
82164-35560	LN105..JPP..IV3 W(L.S.D.)	08/1991 - 03/1994	1
82164-35550	LN105,85..JPP..IV3	08/1991 - 03/1994	1
82164-35551	LN105,85..JPP..IV3	03/1994 - 10/1995	1
82164-35561	LN105..JPP..IV3 W(L.S.D.)	03/1994 - 10/1995	1
82164-35511	LN105..JPP..IV3 PORTUGAL SPEC & W(L.S.D.)	03/1994 - 01/1996	1
82164-35750	LN105,85..JPP..IV3 PORTUGAL SPEC	10/1995 - 01/1996	1
82164-35552	LN105,85..JPP..IV3	10/1995 - 08/1997	1
82164-35562	LN105..JPP..IV3 W(L.S.D.)	10/1995 - 08/1997	1
82164-35760	LN105..JPP SPECIAL EDITION(PORTUGAL)	11/1995 - 03/1997	1
82171 - WIRE, ROOF, NO.1
82171-89117	LN105,85,RN106,YN106,85..JPP..T1	08/1988 - 08/1991	1
82171-35010	LN105,85,RN106,YN106,85..JPP..T1	08/1991 - 08/1997	1
Common parts
90119-06390

ILLUST NO. 4 OF 4(8808- )JPP

Click highlighted areas on diagram

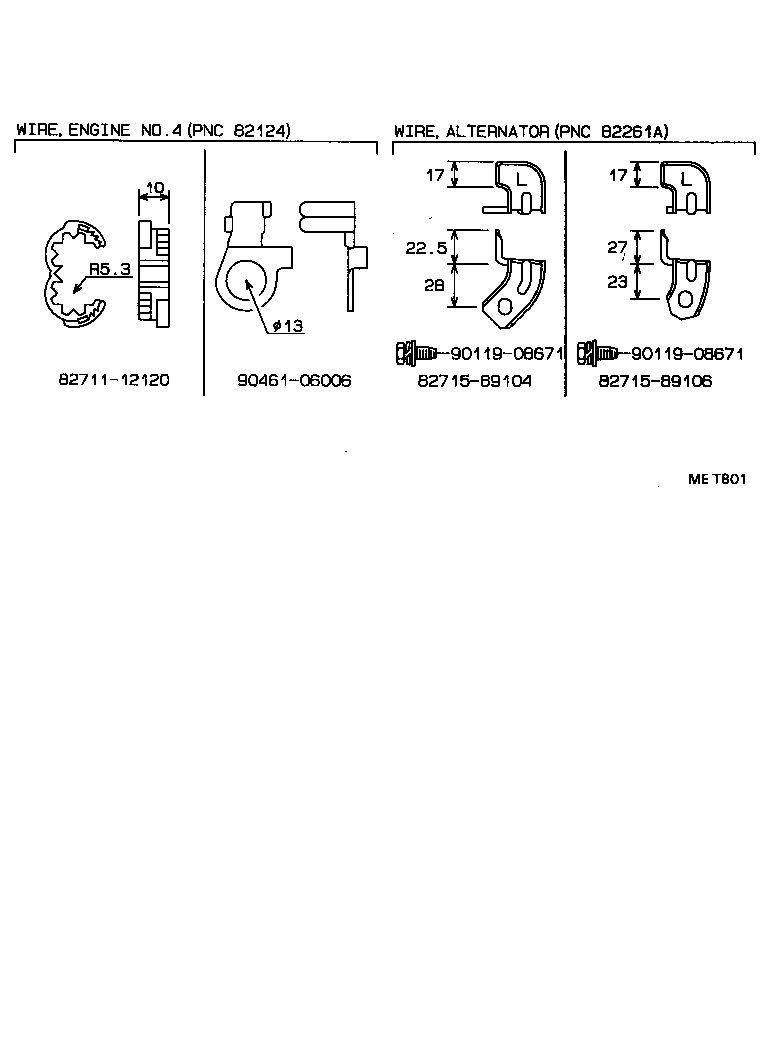

E/G WIRE NO.4,ALT.WIRE CLAMPS & BKT

Part #	Description	Period	Qty
82124 - WIRE, ENGINE, NO.4
82124-35030	LN105..JPP..RHD;LN105..JPP..IV3	08/1992 - 08/1997	1
82261A - WIRE, ALTERNATOR
82261-35410	LN10#,110,85,90..JPP..LHD	08/1991 - 08/1992	1
82261-35060	LN10#,110..JPP..LHD	08/1992 - 08/1997	1
Common parts
82711-12120
82715-89104
82715-89106
90119-08671
90461-06006

ILLUST NO. 4 OF 4(8808- )JPP

Click highlighted areas on diagram

FRAME,ROOF WIRE CLAMPS & BRACKETS

Part #	Description	Period	Qty
82164 - WIRE, FRAME
82164-89184	LN105,85..JPP..IV3	08/1988 - 08/1990	1
82164-89242	LN105..JPP..IV3 W(L.S.D.)	08/1990 - 08/1991	1
82164-89241	LN105,85..JPP..IV3	08/1990 - 08/1991	1
82164-35500	LN105,85..JPP..IV3 PORTUGAL SPEC	08/1991 - 03/1994	1
82164-35510	LN105..JPP..IV3 PORTUGAL SPEC & W(L.S.D.)	08/1991 - 03/1994	1
82164-35501	LN105,85..JPP..IV3 PORTUGAL SPEC	03/1994 - 10/1995	1
82164-35560	LN105..JPP..IV3 W(L.S.D.)	08/1991 - 03/1994	1
82164-35550	LN105,85..JPP..IV3	08/1991 - 03/1994	1
82164-35551	LN105,85..JPP..IV3	03/1994 - 10/1995	1
82164-35561	LN105..JPP..IV3 W(L.S.D.)	03/1994 - 10/1995	1
82164-35511	LN105..JPP..IV3 PORTUGAL SPEC & W(L.S.D.)	03/1994 - 01/1996	1
82164-35750	LN105,85..JPP..IV3 PORTUGAL SPEC	10/1995 - 01/1996	1
82164-35552	LN105,85..JPP..IV3	10/1995 - 08/1997	1
82164-35562	LN105..JPP..IV3 W(L.S.D.)	10/1995 - 08/1997	1
82164-35760	LN105..JPP SPECIAL EDITION(PORTUGAL)	11/1995 - 03/1997	1
82171 - WIRE, ROOF, NO.1
82171-89117	LN105,85,RN106,YN106,85..JPP..T1	08/1988 - 08/1991	1
82171-35010	LN105,85,RN106,YN106,85..JPP..T1	08/1991 - 08/1997	1
Common parts
82711-22300
82711-89104
82711-89108
82711-89183
82711-89189
82711-89206
82715-89131
90119-08671
90463-10337
90464-00165

ILLUST NO. 3 OF 4(8808- )JPP

Click highlighted areas on diagram

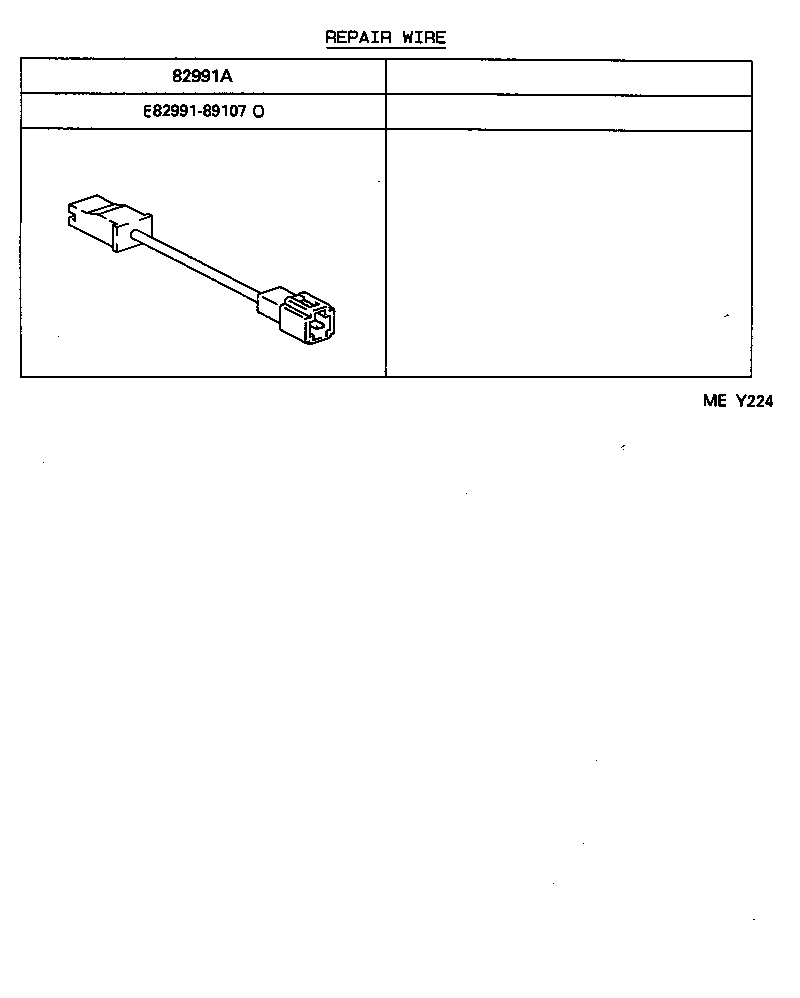

FUSIBLE LINK REPAIR WIRE

Part #	Description	Period	Qty
82991A - WIRE, FUSIBLE LINK
82991-89107	LN10#,110,130,85,90..JPP	08/1988 - 08/1997	1
Common parts
82991-89107

ILLUST NO. 1 OF 4(8808- )KZN130,LN10#,110,130,85,90..JPP

Click highlighted areas on diagram

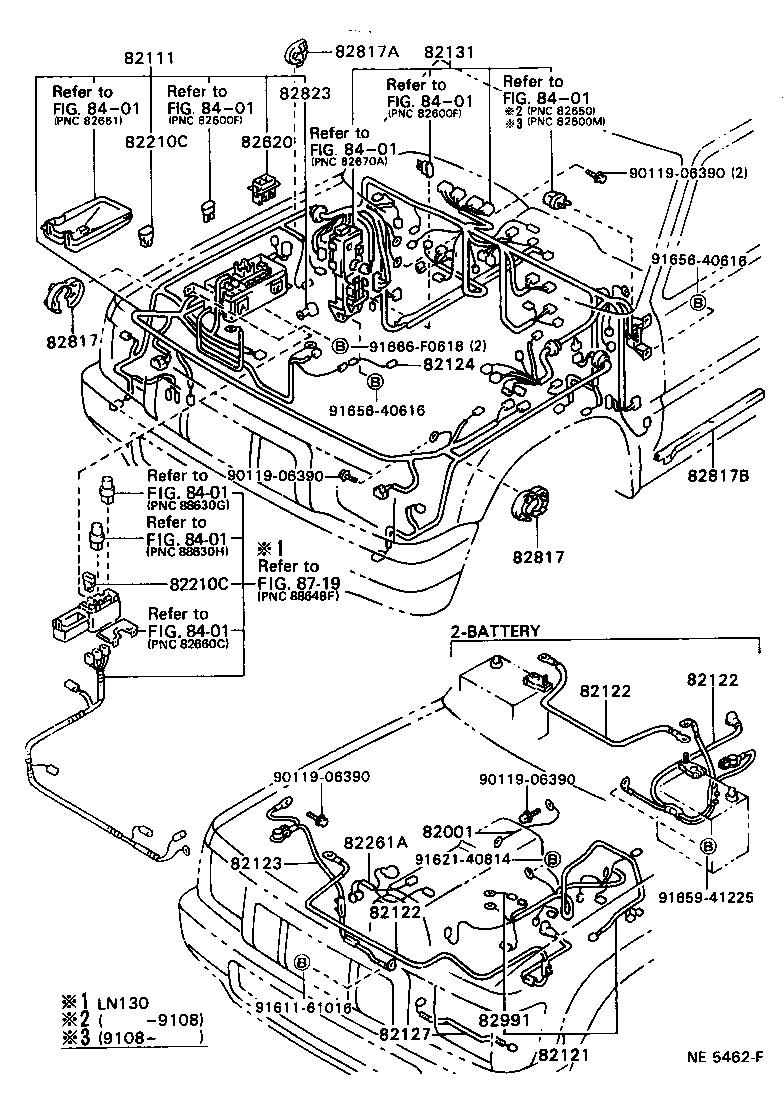

ENGINE ROOM & INSTRUMENT PANEL WIRE

Part #	Description	Period	Qty
82001 - CABLE, BOND, NO.1
90980-07311	LN10#,110,85,90..JPP	08/1988 - 08/1997	1
82111 - WIRE, ENGINE ROOM MAIN
82111-89184	LN105,110,85,90..JPP..LHD W(FUEL HEATER & 12V 60A ALTERNATOR)	08/1988 - 08/1990	1
82111-89182	LN105,110,85,90..JPP..LHD W(12V 60A ALTERNATOR)	08/1988 - 08/1990	1
82111-89180	LN105,110,85,90..JPP..LHD W(FUEL HEATER)	08/1988 - 08/1990	1
82111-89178	LN105,110,85,90..JPP..LHD	08/1988 - 08/1990	1
82111-89283	LN105,110,85,90..JPP..LHD W(12V 60A ALTERNATOR)	08/1990 - 08/1991	1
82111-89279	LN105,110,85,90..JPP..LHD	08/1990 - 08/1991	1
82111-89284	LN105,110,85,90..JPP..LHD W(FUEL HEATER & 12V 60A ALTERNATOR)	08/1990 - 08/1991	1
82111-89280	LN105,110,85,90..JPP..LHD W(FUEL HEATER)	08/1990 - 08/1991	1
82111-35860	LN10#,110,85,90..JPP..LHD	08/1991 - 08/1992	1
82111-35870	LN10#,110,85,90..JPP..LHD W(FUEL HEATER)	08/1991 - 08/1992	1
82111-3D040	LN10#,110,85,90..JPP..LHD W(FUEL HEATER & 12V 60A ALTERNATOR)	08/1991 - 08/1992	1
82111-3D030	LN10#,110,85,90..JPP..LHD W(12V 60A ALTERNATOR)	08/1991 - 08/1992	1
82111-35861	LN10#,110,85,90..JPP..LHD	08/1992 - 01/1996	1
82111-35871	LN10#,110,85,90..JPP..LHD W(FUEL HEATER)	08/1992 - 01/1996	1
82111-3D041	LN10#,110,85,90..JPP..LHD W(FUEL HEATER & 12V 60A ALTERNATOR)	08/1992 - 01/1996	1
82111-3D031	LN10#,110,85,90..JPP..LHD W(12V 60A ALTERNATOR)	08/1992 - 01/1996	1
82111-35862	LN10#,110,85,90..JPP..LHD	01/1996 - 08/1997	1
82111-35872	LN10#,110,85,90..JPP..LHD W(FUEL HEATER)	01/1996 - 08/1997	1
82111-3D032	LN10#,110,85,90..JPP..LHD W(12V 60A ALTERNATOR)	01/1996 - 08/1997	1
82111-3D042	LN10#,110,85,90..JPP..LHD W(FUEL HEATER & 12V 60A ALTERNATOR)	01/1996 - 08/1997	1
82121 - WIRE, ENGINE
82121-89223	LN105,110..JPP	08/1988 - 08/1990	1
82121-89314	LN105,110..JPP	08/1990 - 08/1991	1
82121-35530	LN10#,110..JPP	08/1991 - 08/1992	1
82121-35531	LN10#,110..JPP	08/1992 - 01/1994	1
82121-35532	LN105,110..JPP	01/1994 - 08/1994	1
82121-35533	LN105,110..JPP	08/1994 - 08/1997	1
82122 - WIRE, ENGINE, NO.2
82122-89117	LN105,85,90..JPP..LHD 1-BATTERY	08/1988 - 08/1991	1
82122-89123	LN105,110,130,85,90..JPP..LHD COLD SPEC,2-BATTERY,NO.2	08/1988 - 08/1990	1
82122-89119	LN105,85,90..JPP..LHD COLD SPEC,2-BATTERY,NO.1	08/1988 - 08/1990	1
82122-89119	LN105,85,90..JPP..LHD COLD SPEC,NO.1	08/1990 - 08/1991	1
82122-89123	LN105,130,85,90..JPP..LHD COLD SPEC,NO.2	08/1990 - 08/1991	1
82122-89117	LN105,85,90..JPP..LHD	08/1991 - 08/1993	1
82122-89119	LN105,85,90..JPP..LHD COLD SPEC,2-BATTERY,NO.1	08/1991 - 08/1993	1
82122-35340	LN105,85,90..JPP..LHD	08/1993 - 08/1997	1
82122-89123	LN10#,110,130,85,90..JPP..LHD COLD SPEC,2-BATTERY,NO.2	08/1991 - 08/1997	1
82122-35360	LN105,85,90..JPP..LHD COLD SPEC,2-BATTERY,NO.1	08/1993 - 08/1997	1
82122 - WIRE, ENGINE, NO.2
82122-89117	LN105,85,90..JPP..LHD 1-BATTERY	08/1988 - 08/1991	1
82122-89123	LN105,110,130,85,90..JPP..LHD COLD SPEC,2-BATTERY,NO.2	08/1988 - 08/1990	1
82122-89119	LN105,85,90..JPP..LHD COLD SPEC,2-BATTERY,NO.1	08/1988 - 08/1990	1
82122-89119	LN105,85,90..JPP..LHD COLD SPEC,NO.1	08/1990 - 08/1991	1
82122-89123	LN105,130,85,90..JPP..LHD COLD SPEC,NO.2	08/1990 - 08/1991	1
82122-89117	LN105,85,90..JPP..LHD	08/1991 - 08/1993	1
82122-89119	LN105,85,90..JPP..LHD COLD SPEC,2-BATTERY,NO.1	08/1991 - 08/1993	1
82122-35340	LN105,85,90..JPP..LHD	08/1993 - 08/1997	1
82122-89123	LN10#,110,130,85,90..JPP..LHD COLD SPEC,2-BATTERY,NO.2	08/1991 - 08/1997	1
82122-35360	LN105,85,90..JPP..LHD COLD SPEC,2-BATTERY,NO.1	08/1993 - 08/1997	1
82122 - WIRE, ENGINE, NO.2
82122-89117	LN105,85,90..JPP..LHD 1-BATTERY	08/1988 - 08/1991	1
82122-89123	LN105,110,130,85,90..JPP..LHD COLD SPEC,2-BATTERY,NO.2	08/1988 - 08/1990	1
82122-89119	LN105,85,90..JPP..LHD COLD SPEC,2-BATTERY,NO.1	08/1988 - 08/1990	1
82122-89119	LN105,85,90..JPP..LHD COLD SPEC,NO.1	08/1990 - 08/1991	1
82122-89123	LN105,130,85,90..JPP..LHD COLD SPEC,NO.2	08/1990 - 08/1991	1
82122-89117	LN105,85,90..JPP..LHD	08/1991 - 08/1993	1
82122-89119	LN105,85,90..JPP..LHD COLD SPEC,2-BATTERY,NO.1	08/1991 - 08/1993	1
82122-35340	LN105,85,90..JPP..LHD	08/1993 - 08/1997	1
82122-89123	LN10#,110,130,85,90..JPP..LHD COLD SPEC,2-BATTERY,NO.2	08/1991 - 08/1997	1
82122-35360	LN105,85,90..JPP..LHD COLD SPEC,2-BATTERY,NO.1	08/1993 - 08/1997	1
82123 - WIRE, ENGINE, NO.3
82123-89104	LN105,85,90..JPP	08/1988 - 08/1997	1
82124 - WIRE, ENGINE, NO.4
82124-35030	LN105..JPP..RHD;LN105..JPP..IV3	08/1992 - 08/1997	1
82127 - WIRE, DIFFERENTIAL
82127-35010	LN10#..JPP..LHD	08/1991 - 08/1997	1
82131 - WIRE, COWL
82131-89723	LN85..JPP..CBU;LN105,110,90..JPP..LHD W(HEADLAMP CLEANER)	08/1988 - 08/1990	1
82131-89721	LN105,110,85,90..JPP..LHD	08/1988 - 08/1990	1
82131-89B76	LN105,110,85,90..JPP..LHD	08/1990 - 08/1991	1
82131-89B78	LN85..JPP..CBU;LN105,110,90..JPP..LHD W(HEADLAMP CLEANER)	08/1990 - 08/1991	1
82131-3G020	LN105,110,85,90..JPP..LHD	08/1991 - 08/1992	1
82131-3G021	LN105,110,85,90..JPP..LHD	08/1992 - 01/1994	1
82131-3G022	LN105,110,85,90..JPP..LHD	01/1994 - 08/1994	1
82131-3G023	LN105,110,85,90..JPP..LHD	08/1994 - 08/1997	1
82210C - FUSIBLE LINK
90982-08216	KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP 30A,TERM.:FEMALE,PNK,YAZAKI	08/1991 - 01/1996	1
90982-08188	KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP 30A,TERM.:FEMALE,PNK,TAIHEIYO	08/1988 - 08/1997	1
90982-08203	KZN130,LN10#,110,130,85,90,RN106,110,VZN130..JPP 80A,TERM.:MALE,BLK,TAIHEIYO	08/1988 - 08/1997	1
90982-08189	YN85..JPP..LHD;KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN110..JPP 40A,TERM.:FEMALE,GRN	08/1988 - 08/1997	1
90982-08202	LN10#,110,85,90..JPP 60A,TERM.:MALE,YEL	08/1988 - 08/1997	1
90982-08203	LN105,85..JPP..LHD;KZN130,LN108,110,130,90..JPP 80A,TERM.:MALE,BLK	08/1991 - 08/1997	2
90982-08216	LN85..JPP..LHD;LN10#,110,90,RN106,110..JPP 30A,TERM.:FEMALE,PNK,YAZAKI	01/1996 - 08/1997	1
82210C - FUSIBLE LINK
90982-08216	KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP 30A,TERM.:FEMALE,PNK,YAZAKI	08/1991 - 01/1996	1
90982-08188	KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP 30A,TERM.:FEMALE,PNK,TAIHEIYO	08/1988 - 08/1997	1
90982-08203	KZN130,LN10#,110,130,85,90,RN106,110,VZN130..JPP 80A,TERM.:MALE,BLK,TAIHEIYO	08/1988 - 08/1997	1
90982-08189	YN85..JPP..LHD;KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN110..JPP 40A,TERM.:FEMALE,GRN	08/1988 - 08/1997	1
90982-08202	LN10#,110,85,90..JPP 60A,TERM.:MALE,YEL	08/1988 - 08/1997	1
90982-08203	LN105,85..JPP..LHD;KZN130,LN108,110,130,90..JPP 80A,TERM.:MALE,BLK	08/1991 - 08/1997	2
90982-08216	LN85..JPP..LHD;LN10#,110,90,RN106,110..JPP 30A,TERM.:FEMALE,PNK,YAZAKI	01/1996 - 08/1997	1
82261A - WIRE, ALTERNATOR
82261-35410	LN10#,110,85,90..JPP..LHD	08/1991 - 08/1992	1
82261-35060	LN10#,110..JPP..LHD	08/1992 - 08/1997	1
82620 - BLOCK ASSY, FUSIBLE LINK
82620-89101	LN105,110,130,85,90,RN106,110,VZN130..JPP	08/1988 - 08/1991	1
82620-35020	KZN130,LN10#,110,130,85,90,RN106,110,VZN130..JPP	08/1991 - 08/1997	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-89123	KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP	08/1988 - 08/1997	2
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-89123	KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP	08/1988 - 08/1997	2
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-89130	KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP	08/1991 - 08/1997	1
82817-89130	LN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP	08/1988 - 08/1990	1
82823 - CAP, TERMINAL, NO.1
82823-22060	LN105,110,130,85,90..JPP	08/1988 - 08/1990	1
82823-22060	KZN130,LN10#,110,130,85,90..JPP	08/1991 - 08/1997	1
82991 - WIRE, FUSIBLE LINK REPAIR
82991-35030	KZN130,LN10#,110,130,85,90..JPP	09/1991 - 08/1997	1
82991-89106	LN10#,110,130,85,90..JPP	08/1988 - 09/1991	1
Common parts
90119-06390
91611-61016
91621-40814
91656-40616
91659-41225
91666-F0618
Linked diagrams
8401
8719

ILLUST NO. 3 OF 4(8808- )JPP

Click highlighted areas on diagram

FUSIBLE LINK REPAIR WIRE

Part #	Description	Period	Qty
82991 - WIRE, FUSIBLE LINK REPAIR
82991-35030	KZN130,LN10#,110,130,85,90..JPP	09/1991 - 08/1997	1
82991-89106	LN10#,110,130,85,90..JPP	08/1988 - 09/1991	1
82991 - WIRE, FUSIBLE LINK REPAIR
82991-35030	KZN130,LN10#,110,130,85,90..JPP	09/1991 - 08/1997	1
82991-89106	LN10#,110,130,85,90..JPP	08/1988 - 09/1991	1
82991 - WIRE, FUSIBLE LINK REPAIR
82991-35030	KZN130,LN10#,110,130,85,90..JPP	09/1991 - 08/1997	1
82991-89106	LN10#,110,130,85,90..JPP	08/1988 - 09/1991	1
82991 - WIRE, FUSIBLE LINK REPAIR
82991-35030	KZN130,LN10#,110,130,85,90..JPP	09/1991 - 08/1997	1
82991-89106	LN10#,110,130,85,90..JPP	08/1988 - 09/1991	1
82991 - WIRE, FUSIBLE LINK REPAIR
82991-35030	KZN130,LN10#,110,130,85,90..JPP	09/1991 - 08/1997	1
82991-89106	LN10#,110,130,85,90..JPP	08/1988 - 09/1991	1
82991 - WIRE, FUSIBLE LINK REPAIR
82991-35030	KZN130,LN10#,110,130,85,90..JPP	09/1991 - 08/1997	1
82991-89106	LN10#,110,130,85,90..JPP	08/1988 - 09/1991	1
Common parts
82991-35010
82991-35020
82991-35030
82991-89104
82991-89105
82991-89106

ILLUST NO. 4 OF 4(8808- )JPP

Click highlighted areas on diagram

ENGINE WIRE CLAMPS & BRACKETS

Part #	Description	Period	Qty	Price
Common parts
82711-12120
82711-12200
82711-12290
82711-14110
82711-2A190
82711-30800
82711-89123
82711-89156
82711-89157
82711-95024
82715-22180
82715-89102
82715-89107
82715-89108
82715-89109
82715-89110
90168-60010
91621-40812

ILLUST NO. 4 OF 4(8808- )JPP

Click highlighted areas on diagram

ENGINE WIRE NO.2 CLAMPS & BRACKETS

Part #	Description	Period	Qty	Price
Common parts
82711-12200
82711-14110
82711-89162
82711-89197
82715-89101
82715-89103
82715-89104
82715-89105
82715-89106
82715-89108
82715-89110
82715-89115
82715-89118
82715-89119
82751-89104
90119-08671
90168-60010
90464-00503
91656-F0616

LN105L-TRMRSW3 (1988)

ILLUST NO. 4 OF 4(8808- )JPP

ILLUST NO. 2 OF 4(8908- )JPP

ILLUST NO. 4 OF 4(8808- )JPP

ILLUST NO. 4 OF 4(8808- )JPP

ILLUST NO. 4 OF 4(8808- )JPP

ILLUST NO. 4 OF 4(8808- )JPP

ILLUST NO. 2 OF 4(8808- )LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP

ILLUST NO. 4 OF 4(8808- )JPP

ILLUST NO. 4 OF 4(8808- )JPP

ILLUST NO. 3 OF 4(8808- )JPP

ILLUST NO. 1 OF 4(8808- )KZN130,LN10#,110,130,85,90..JPP

ILLUST NO. 3 OF 4(8808- )JPP

ILLUST NO. 4 OF 4(8808- )JPP

ILLUST NO. 4 OF 4(8808- )JPP

Part Price Details
