LN105L-TRMRSW3 (1988)

Toyota Hilux (Jpp)

Production Aug 1988 - Aug 1997
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-9108)JPP ; (9108- )LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP

Click highlighted areas on diagram

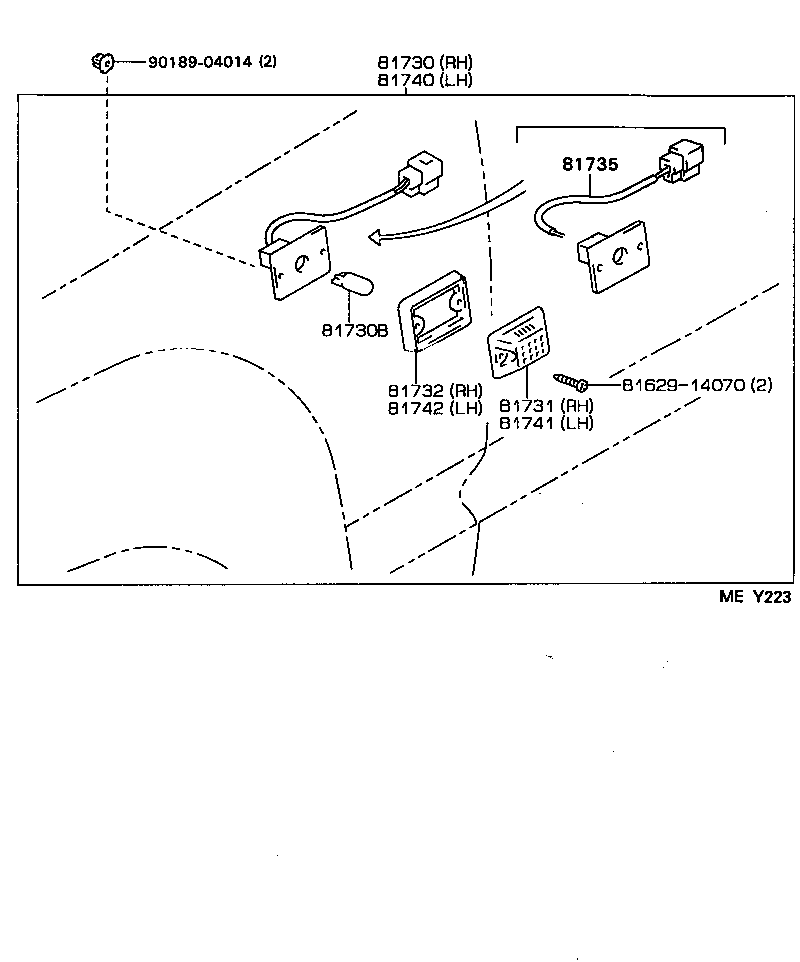

diagram 8162914070 81730 81730B 81731 81732 81735 81740 81741 81742 9018904014
Part # Description Qty Price
81730 - LAMP ASSY, SIDE TURN SIGNAL, RH
81730-35010

LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP

 1
81730-89111

LN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP

 1
81730-89111

LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP

 1
81730B - BULB (FOR SIDE TURN SIGNAL LAMP)
99132-12050

KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP

12V 5W

 2
81731 - LENS, SIDE TURN SIGNAL LAMP, RH
81731-89111

LN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP

 1
81731-35010

LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP

 1
81731-89111

LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP

 1
81732 - GASKET, SIDE TURN SIGNAL LAMP LENS, RH
81732-14140

LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP

 1
81732-14140

LN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP

 1
81740 - LAMP ASSY, SIDE TURN SIGNAL, LH
81730-35010

LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP

 1
81730-89111

LN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP

 1
81730-89111

LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP

 1
81741 - LENS, SIDE TURN SIGNAL LAMP, LH
81731-89111

LN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP

 1
81731-89111

LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP

 1
81731-35010

LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP

 1
81742 - GASKET, SIDE TURN SIGNAL LAMP LENS, LH
81732-14140

LN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP

 1
81732-14140

LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP

 1
Common parts
81629-14070
90189-04014
