LN105L-TRMRSW3 (1988)

Toyota Hilux (Jpp)

Production Aug 1988 - Aug 1997
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )JPP..T1

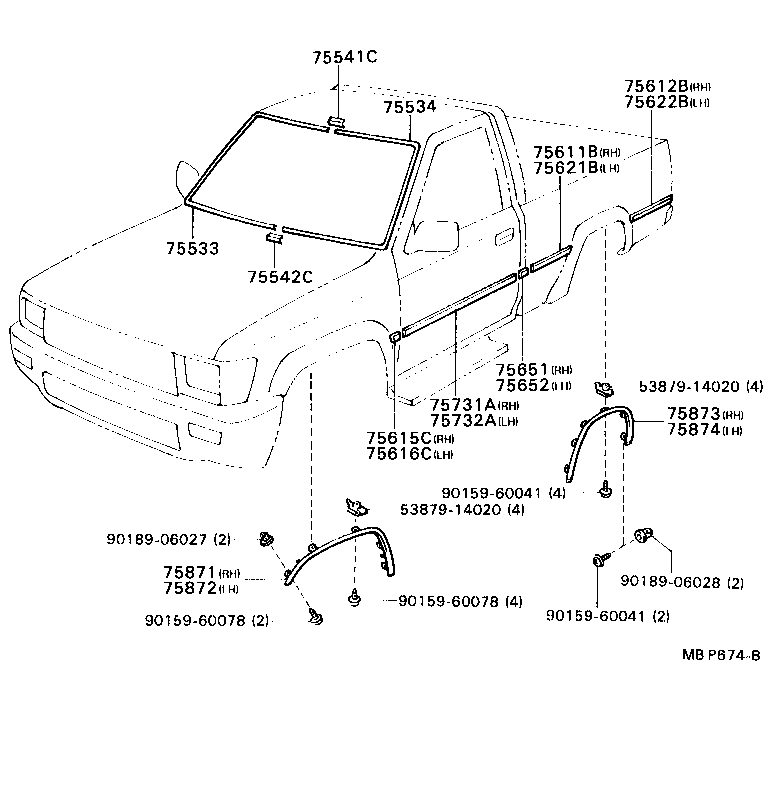

Click highlighted areas on diagram

diagram 5387914020 5387914020 75533 75534 75541C 75542C 75611B 75612B 75615C 75616C 75621B 75622B 75651 75652 75731A 75732A 75871 75872 75873 75874 9015960041 9015960041 9015960078 9015960078 9018906027 9018906028
Part # Description Qty Price
75533 - MOULDING, WINDSHIELD, OUTSIDE RH
75533-89108

LN85..JPP..TW1;LN10#,110,90,RN106,110,YN106,110,90..JPP

CHROME PLATED PACKAGE

 1
75534 - MOULDING, WINDSHIELD, OUTSIDE LH
75534-89106

LN85..JPP..TW1;LN10#,110,90,RN106,110,YN106,110,90..JPP

CHROME PLATED PACKAGE

 1
75541C - COVER, WINDSHIELD MOULDING JOINT, UPPER RH
75541-89103

LN85..JPP..TW1;LN10#,110,90,RN106,110,YN106,110,90..JPP

 1
75542C - COVER, WINDSHIELD MOULDING JOINT, UPPER LH
75541-89103

LN85..JPP..TW1;LN10#,110,90,RN106,110,YN106,110,90..JPP

 1
Common parts
53879-14020
90159-60041
90159-60078
90189-06027
90189-06028
