LN105L-TRMRSW3 (1988)
Toyota Hilux (Jpp)

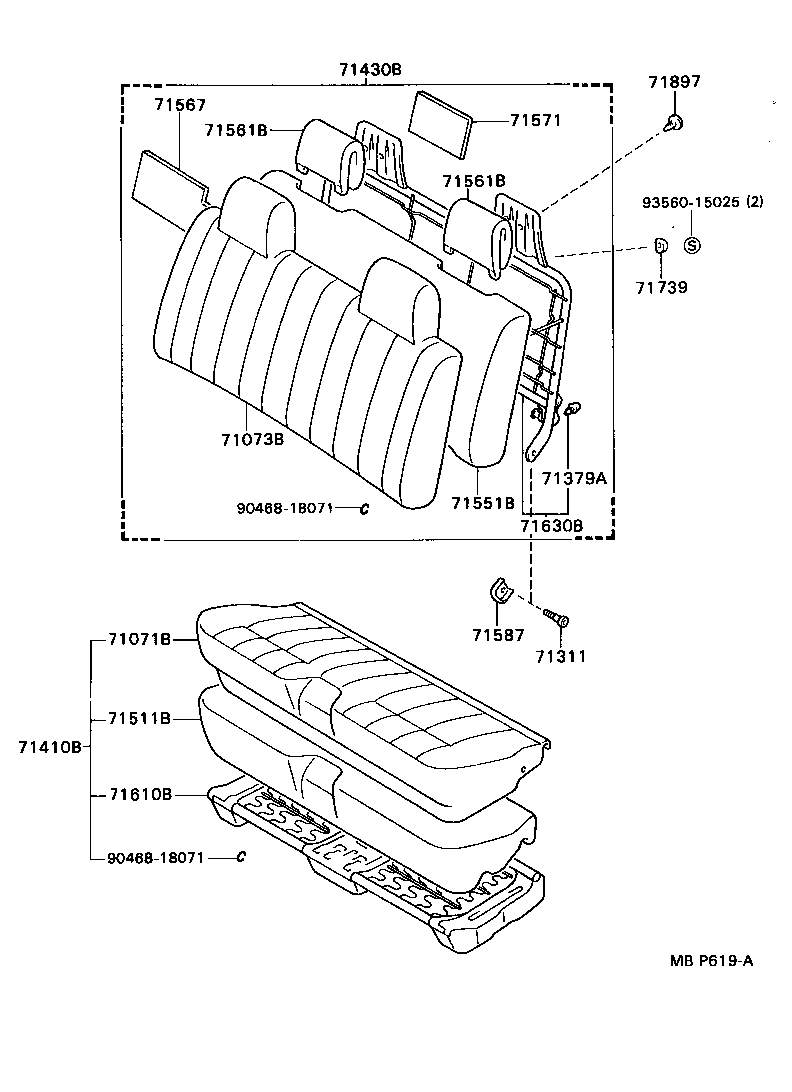

ILLUST NO. 1 OF 3(8808- )JPP
BENCH SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071B - COVER, FRONT SEAT CUSHION(FOR BENCH TYPE) | ||||
| 71071-8935704 |
LN105..JPP..LHD..T1 BLUE,TRIM8# |
1 | ||
| 71071-8935803 |
LN105..JPP..LHD..T1 DLX PACKAGE,GRAY,TRIM1# |
1 | ||
| 71071-8935703 |
LN105..JPP..LHD..T1 GRAY,TRIM1# |
1 | ||
| 71071-8935806 |
LN105..JPP..LHD..T1 DLX PACKAGE,BROWN,TRIM4# |
1 | ||
| 71071-8935804 |
LN105..JPP..LHD..T1 DLX PACKAGE,BLUE,TRIM8# |
1 | ||
| 71071-8935706 |
LN105..JPP..LHD..T1 BROWN,TRIM4# |
1 | ||
| 71071-8943606 |
LN105,RN106..JPP..LHD..T1 BROWN,TRIM4# |
1 | ||
| 71071-8943603 |
LN105,RN106..JPP..LHD..T1 GRAY,TRIM1# |
1 | ||
| 71071-8943604 |
LN105,RN106..JPP..LHD..T1 BLUE,TRIM8# |
1 | ||
| 71071-8943703 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE,GRAY,TRIM1# |
1 | ||
| 71071-8943706 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE,BROWN,TRIM4# |
1 | ||
| 71071-8943704 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE,BLUE,TRIM8# |
1 | ||
| 71071-35220B0 |
LN105,RN106..JPP..LHD..T1 GRAY,TRIM1#,PLANT NO.P11 |
1 | ||
| 71071-35220J0 |
LN105,RN106..JPP..LHD..T1 BLUE,TRIM8#,PLANT NO.P11 |
1 | ||
| 71071-35640B0 |
LN105,RN106..JPP..LHD..T1 GRAY,TRIM1#,PLANT NO.A51-A54 |
1 | ||
| 71071-35640J0 |
LN105,RN106..JPP..LHD..T1 BLUE,TRIM8#,PLANT NO.A51-A54 |
1 | ||
| 71071-35090J0 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE,BLUE,TRIM8#,PLANT NO.P11 |
1 | ||
| 71071-35630J0 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE,BLUE,TRIM8#,PLANT NO.A51-A54 |
1 | ||
| 71071-3D090B0 |
LN105,RN106..JPP..LHD..T1 FABRIC,GRAY,TRIM1# |
1 | ||
| 71071-35640B0 |
LN105,RN106..JPP..LHD..T1 GRAY,TRIM1#,PLANT NO.A51-A54 |
1 | ||
| 71071-35640J0 |
LN105,RN106..JPP..LHD..T1 BLUE,TRIM8#,PLANT NO.A51-A54 |
1 | ||
| 71071-35220B0 |
LN105,RN106..JPP..LHD..T1 GRAY,TRIM1#,PLANT NO.P11 |
1 | ||
| 71071-35630B0 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE,GRAY,TRIM1#,PLANT NO.A51-A54 |
1 | ||
| 71071-35090B0 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE,GRAY,TRIM1#,PLANT NO.P11 |
1 | ||
| 71071-3D110B0 |
LN105,RN106..JPP..LHD..T1 VINYL,GRAY,TRIM1# |
1 | ||
| 71071-35220J0 |
LN105,RN106..JPP..LHD..T1 BLUE,TRIM8#,PLANT NO.P11 |
1 | ||
| 71073B - COVER, FRONT SEAT BACK(FOR BENCH TYPE) | ||||
| 71073-8937704 |
LN105,85,YN85..JPP..LHD..T1 DLX PACKAGE,BLUE,TRIM8#,PLANT NO.A51,A52 |
1 | ||
| 71073-8937703 |
LN105,85,YN85..JPP..LHD..T1 DLX PACKAGE,GRAY,TRIM1#,PLANT NO.A51,A52 |
1 | ||
| 71073-8941203 |
LN105..JPP..LHD..T1 GRAY,TRIM1#,PLANT NO.A51-A54 |
1 | ||
| 71073-8941204 |
LN105..JPP..LHD..T1 BLUE,TRIM8#,PLANT NO.A51-A54 |
1 | ||
| 71073-8941206 |
LN105..JPP..LHD..T1 BROWN,TRIM4#,PLANT NO.A51-A54 |
1 | ||
| 71073-8937706 |
LN105,85,YN85..JPP..LHD..T1 DLX PACKAGE,BROWN,TRIM4#,PLANT NO.A51,A52 |
1 | ||
| 71073-8943104 |
LN105..JPP..LHD..T1 BLUE,TRIM8#,PLANT NO.P11 |
1 | ||
| 71073-8943103 |
LN105..JPP..LHD..T1 GRAY,TRIM1#,PLANT NO.P11 |
1 | ||
| 71073-8943204 |
LN105,85,YN85..JPP..LHD..T1 DLX PACKAGE,BLUE,TRIM8#,PLANT NO.P11 |
1 | ||
| 71073-8943203 |
LN105,85,YN85..JPP..LHD..T1 DLX PACKAGE,GRAY,TRIM1#,PLANT NO.P11 |
1 | ||
| 71073-8943106 |
LN105..JPP..LHD..T1 BROWN,TRIM4#,PLANT NO.P11 |
1 | ||
| 71073-8944706 |
LN105,85,RN106,YN85..JPP..LHD..T1 DLX PACKAGE,BROWN,TRIM4#,PLANT NO.A51,A52 |
1 | ||
| 71073-8945103 |
LN105,RN106..JPP..LHD..T1 GRAY,TRIM1#,PLANT NO.A51,A52 |
1 | ||
| 71073-8945104 |
LN105,RN106..JPP..LHD..T1 BLUE,TRIM8#,PLANT NO.A51,A52 |
1 | ||
| 71073-8944803 |
LN105,85,RN106,YN85..JPP..LHD..T1 DLX PACKAGE,GRAY,TRIM1#,PLANT NO.P11 |
1 | ||
| 71073-8944704 |
LN105,85,RN106,YN85..JPP..LHD..T1 DLX PACKAGE,BLUE,TRIM8#,PLANT NO.A51,A52 |
1 | ||
| 71073-8943206 |
LN105,85,YN85..JPP..LHD..T1 DLX PACKAGE,BROWN,TRIM4#,PLANT NO.P11 |
1 | ||
| 71073-8945203 |
LN105,RN106..JPP..LHD..T1 GRAY,TRIM1#,PLANT NO.P11 |
1 | ||
| 71073-8944804 |
LN105,85,RN106,YN85..JPP..LHD..T1 DLX PACKAGE,BLUE,TRIM8#,PLANT NO.P11 |
1 | ||
| 71073-8944703 |
LN105,85,RN106,YN85..JPP..LHD..T1 DLX PACKAGE,GRAY,TRIM1#,PLANT NO.A51,A52 |
1 | ||
| 71073-8945204 |
LN105,RN106..JPP..LHD..T1 BLUE,TRIM8#,PLANT NO.P11 |
1 | ||
| 71073-8945106 |
LN105,RN106..JPP..LHD..T1 BROWN,TRIM4#,PLANT NO.A51,A52 |
1 | ||
| 71073-35090B0 |
LN105,85,RN106,YN85..JPP..LHD..T1 DLX PACKAGE,GRAY,TRIM1#,PLANT NO.A51-A54 |
1 | ||
| 71073-8944806 |
LN105,85,RN106,YN85..JPP..LHD..T1 DLX PACKAGE,BROWN,TRIM4#,PLANT NO.P11 |
1 | ||
| 71073-35300B0 |
LN105,85,RN106,YN85..JPP..LHD..T1 DLX PACKAGE,GRAY,TRIM1#,PLANT NO.P11 |
1 | ||
| 71073-35300J0 |
LN105,85,RN106,YN85..JPP..LHD..T1 DLX PACKAGE,BLUE,TRIM8#,PLANT NO.P11 |
1 | ||
| 71073-8945206 |
LN105,RN106..JPP..LHD..T1 BROWN,TRIM4#,PLANT NO.P11 |
1 | ||
| 71073-35310B0 |
LN105,RN106..JPP..LHD..T1 GRAY,TRIM1#,PLANT NO.P11 |
1 | ||
| 71073-35090J0 |
LN105,85,RN106,YN85..JPP..LHD..T1 DLX PACKAGE,BLUE,TRIM8#,PLANT NO.A51-A54 |
1 | ||
| 71073-35430J0 |
LN105,RN106..JPP..LHD..T1 BLUE,TRIM8#,PLANT NO.A51-A54 |
1 | ||
| 71073-35650B0 |
LN105,RN106..JPP..LHD..T1 GRAY,PLANT NO.A51,52 |
1 | ||
| 71073-35640B0 |
LN105,RN106..JPP..LHD..T1 GRAY,TRIM1# |
1 | ||
| 71073-35650J0 |
LN105,RN106..JPP..LHD..T1 BLUE,PLANT NO.A51,52 |
1 | ||
| 71073-35430B0 |
LN105,RN106..JPP..LHD..T1 GRAY,TRIM1#,PLANT NO.A51-A54 |
1 | ||
| 71073-35620B0 |
LN105,85,RN106,YN85..JPP..LHD..T1 DLX PACKAGE,GRAY,TRIM1#,PLANT NO.A51-A54 |
1 | ||
| 71073-35630B0 |
LN105,85,RN106,YN85..JPP..LHD..T1 DLX PACKAGE,GRAY,TRIM1#,PLANT NO.P11 |
1 | ||
| 71073-35640J0 |
LN105,RN106..JPP..LHD..T1 BLUE,TRIM8# |
1 | ||
| 71073-35630J0 |
LN105,85,RN106,YN85..JPP..LHD..T1 DLX PACKAGE,BLUE,TRIM8#,PLANT NO.P11 |
1 | ||
| 71073-35310J0 |
LN105,RN106..JPP..LHD..T1 BLUE,TRIM8#,PLANT NO.P11 |
1 | ||
| 71073-35620J0 |
LN105,85,RN106,YN85..JPP..LHD..T1 DLX PACKAGE,BLUE,TRIM8#,PLANT NO.A51-A54 |
1 | ||
| 71073-35660B0 |
LN105,85,RN106,YN85..JPP..LHD..T1 DLX PACKAGE,GRAY,TRIM1# |
1 | ||
| 71073-35680J0 |
LN105,RN106..JPP..LHD..T1 BLUE,TRIM8# |
1 | ||
| 71073-35680B0 |
LN105,RN106..JPP..LHD..T1 GRAY,TRIM1# |
1 | ||
| 71073-35660J0 |
LN105,85,RN106,YN85..JPP..LHD..T1 DLX PACKAGE,BLUE,TRIM8# |
1 | ||
| 71073-3D230B0 |
LN105,RN106..JPP..LHD..T1 GRAY,TRIM1# |
1 | ||
| 71073-3D210B0 |
LN105,85,RN106..JPP..LHD..T1 DLX PACKAGE,GRAY,TRIM1# |
1 | ||
| 71311 - PIN, FRONT SEAT HINGE | ||||
| 71311-89105 |
LN105,85,RN106,YN85..JPP..LHD..STD |
2 | ||
| 71379A - STOPPER, FRONT SEAT VERTICAL HANDLE | ||||
| 71379-89101 |
LN105,85,RN106,YN85..JPP..LHD..T1 |
4 | ||
| 71379-89101 |
LN105,85,RN106,YN85..JPP..LHD..T1 |
2 | ||
| 71410B - CUSHION ASSY, FRONT SEAT(FOR BENCH TYPE) | ||||
| 71410-8938003 |
LN105..JPP..LHD..T1 GRAY,TRIM1# |
1 | ||
| 71410-8938006 |
LN105..JPP..LHD..T1 BROWN,TRIM4# |
1 | ||
| 71410-8939006 |
LN105..JPP..LHD..T1 DLX PACKAGE,BROWN,TRIM4# |
1 | ||
| 71410-8939003 |
LN105..JPP..LHD..T1 DLX PACKAGE,GRAY,TRIM1# |
1 | ||
| 71410-8938004 |
LN105..JPP..LHD..T1 BLUE,TRIM8# |
1 | ||
| 71410-8944504 |
LN105,RN106..JPP..LHD..T1 BLUE,TRIM8# |
1 | ||
| 71410-8939004 |
LN105..JPP..LHD..T1 DLX PACKAGE,BLUE,TRIM8# |
1 | ||
| 71410-8944604 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE,BLUE,TRIM8# |
1 | ||
| 71410-8944506 |
LN105,RN106..JPP..LHD..T1 BROWN,TRIM4# |
1 | ||
| 71410-8944603 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE,GRAY,TRIM1# |
1 | ||
| 71410-8944503 |
LN105,RN106..JPP..LHD..T1 GREY,TRIM1# |
1 | ||
| 71410-8944606 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE,BROWN,TRIM4# |
1 | ||
| 71410-35330J0 |
LN105,RN106..JPP..LHD..T1 BLUE,TRIM8# |
1 | ||
| 71410-35330B0 |
LN105,RN106..JPP..LHD..T1 GRAY,TRIM1# |
1 | ||
| 71410-35460B0 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE,GRAY,TRIM1# |
1 | ||
| 71410-35330J0 |
LN105,RN106..JPP..LHD..T1 BLUE,TRIM8# |
1 | ||
| 71410-35460J0 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE,BLUE,TRIM8# |
1 | ||
| 71410-35330B0 |
LN105,RN106..JPP..LHD..T1 GRAY,TRIM1# |
1 | ||
| 71410-35820B0 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE,GRAY,TRIM1# |
1 | ||
| 71410-35830B0 |
LN105,RN106..JPP..LHD..T1 GRAY,TRIM1# |
1 | ||
| 71430B - BACK ASSY, FRONT SEAT(FOR BENCH TYPE) | ||||
| 71430-8937006 |
LN105..JPP..LHD..T1 BROWN,TRIM4# |
1 | ||
| 71430-8937103 |
LN105,85,YN85..JPP..LHD..T1 DLX PACKAGE,GRAY,TRIM1# |
1 | ||
| 71430-8937104 |
LN105,85,YN85..JPP..LHD..T1 DLX PACKAGE,BLUE,TRIM8# |
1 | ||
| 71430-8937106 |
LN105,85,YN85..JPP..LHD..T1 DLX PACKAGE,BROWN,TRIM4# |
1 | ||
| 71430-8937003 |
LN105..JPP..LHD..T1 GRAY,TRIM1# |
1 | ||
| 71430-8937004 |
LN105..JPP..LHD..T1 BLUE,TRIM8# |
1 | ||
| 71430-8946404 |
LN105,RN106..JPP..LHD..T1 BLUE,TRIM8# |
1 | ||
| 71430-8946204 |
LN105,85,RN106,YN85..JPP..LHD..T1 DLX PACKAGE,BLUE,TRIM8# |
1 | ||
| 71430-8946406 |
LN105,RN106..JPP..LHD..T1 BROWN,TRIM4# |
1 | ||
| 71430-8946203 |
LN105,85,RN106,YN85..JPP..LHD..T1 DLX PACKAGE,GRAY,TRIM1# |
1 | ||
| 71430-8946403 |
LN105,RN106..JPP..LHD..T1 GRAY,TRIM1# |
1 | ||
| 71430-8946206 |
LN105,85,RN106,YN85..JPP..LHD..T1 DLX PACKAGE,BROWN,TRIM4# |
1 | ||
| 71430-35370B0 |
LN105,85,RN106,YN85..JPP..LHD..T1 DLX PACKAGE,GRAY,TRIM1# |
1 | ||
| 71430-35660B0 |
LN105,RN106..JPP..LHD..T1 GRAY,TRIM1# |
1 | ||
| 71430-35580J0 |
LN105,RN106..JPP..LHD..T1 BLUE,TRIM8# |
1 | ||
| 71430-35660J0 |
LN105,RN106..JPP..LHD..T1 BLUE,TRIM8# |
1 | ||
| 71430-35370J0 |
LN105,85,RN106,YN85..JPP..LHD..T1 DLX PACKAGE,BLUE,TRIM8# |
1 | ||
| 71430-35580B0 |
LN105,RN106..JPP..LHD..T1 GRAY,TRIM1# |
1 | ||
| 71430-35650J0 |
LN105,85,RN106,YN85..JPP..LHD..T1 DLX PACKAGE,BLUE,TRIM8# |
1 | ||
| 71430-35700B0 |
LN105,RN106..JPP..LHD..T1 GRAY,TRIM1# |
1 | ||
| 71430-35670B0 |
LN105,85,RN106,YN85..JPP..LHD..T1 DLX PACKAGE,GRAY,TRIM1# |
1 | ||
| 71430-35650B0 |
LN105,85,RN106,YN85..JPP..LHD..T1 DLX PACKAGE,GRAY,TRIM1# |
1 | ||
| 71430-35700J0 |
LN105,RN106..JPP..LHD..T1 BLUE,TRIM8# |
1 | ||
| 71430-35670J0 |
LN105,85,RN106,YN85..JPP..LHD..T1 DLX PACKAGE,BLUE,TRIM8# |
1 | ||
| 71430-3D420B0 |
LN105,85,RN106..JPP..LHD..T1 DLX PACKAGE,GRAY,TRIM1# |
1 | ||
| 71430-3D440B0 |
LN105,RN106..JPP..LHD..T1 GRAY,TRIM1# |
1 | ||
| 71511B - PAD, FRONT SEAT CUSHION(FOR BENCH TYPE) | ||||
| 71511-89150 |
LN105,RN106..JPP..LHD..STD PLANT NO. P11 |
1 | ||
| 71511-89142 |
LN105,RN106..JPP..LHD..STD PLANT NO.A51-A54 |
1 | ||
| 71511-89150 |
LN105,RN106..JPP..LHD..STD VINYL SEAT COVER TYPE,PLANT NO. P11 |
1 | ||
| 71511-89150 |
LN105,RN106..JPP..LHD..STD PLANT NO.P11 |
1 | ||
| 71511-89142 |
LN105,RN106..JPP..LHD..STD FABRIC SEAT COVER TYPE,PLANT NO. A51-A54 |
1 | ||
| 71511-89142 |
LN105,RN106..JPP..LHD PLANT NO.A51,A52 |
1 | ||
| 71511-89142 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE,PLANT NO.A51-A54 |
1 | ||
| 71551B - PAD, FRONT SEAT BACK(FOR BENCH TYPE) | ||||
| 71551-89128 |
LN105,85,RN106,YN85..JPP..LHD..T1 PLANT NO.A51,A52 |
1 | ||
| 71551-89128 |
LN105,85,RN106,YN85..JPP..LHD..T1 PLANT NO.A51-A54 |
1 | ||
| 71551-35030 |
LN105,85,RN106,YN85..JPP..LHD..T1 PLANT NO.P11 |
1 | ||
| 71551-35030 |
LN105,85,RN106,YN85..JPP..LHD..T1 |
1 | ||
| 71551-89144 |
LN105,85,RN106,YN85..JPP..LHD..T1 PLANT NO.P11 |
1 | ||
| 71551-35030 |
LN105,85,RN106..JPP..LHD..STD DLX PACKAGE |
1 | ||
| 71561B - PAD, FRONT SEAT BACK, UPPER | ||||
| 71561-89116 |
LN105,RN106..JPP..LHD..T1 PLANT NO.A51,A52 |
2 | ||
| 71561-35010 |
LN105,85,RN106,YN85..JPP..LHD..T1 |
2 | ||
| 71561-89114 |
LN105,85,YN85..JPP..LHD..T1 PLANT NO.P11 |
2 | ||
| 71561-89114 |
LN105,RN106..JPP..LHD..T1 PLANT NO.P11 |
2 | ||
| 71561-35010 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE |
2 | ||
| 71561-89116 |
LN105,85,YN85..JPP..LHD..T1 PLANT NO.A51,A52 |
2 | ||
| 71561-35040 |
LN105,85,RN106,YN85..JPP..LHD..T1 |
2 | ||
| 71561B - PAD, FRONT SEAT BACK, UPPER | ||||
| 71561-89116 |
LN105,RN106..JPP..LHD..T1 PLANT NO.A51,A52 |
2 | ||
| 71561-35010 |
LN105,85,RN106,YN85..JPP..LHD..T1 |
2 | ||
| 71561-89114 |
LN105,85,YN85..JPP..LHD..T1 PLANT NO.P11 |
2 | ||
| 71561-89114 |
LN105,RN106..JPP..LHD..T1 PLANT NO.P11 |
2 | ||
| 71561-35010 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE |
2 | ||
| 71561-89116 |
LN105,85,YN85..JPP..LHD..T1 PLANT NO.A51,A52 |
2 | ||
| 71561-35040 |
LN105,85,RN106,YN85..JPP..LHD..T1 |
2 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-89103 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE |
2 | ||
| 71587-89103 |
LN105,85,RN106,YN85..JPP..LHD..STD |
2 | ||
| 71587-89103 |
LN105,85,RN106,YN85..JPP..LHD..STD |
2 | ||
| 71610B - SPRING ASSY, FRONT SEAT CUSHION(FOR BENCH TYPE) | ||||
| 71610-89146 |
LN105,RN106..JPP..LHD..T1 PLANT NO.P11 |
1 | ||
| 71610-89158 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE,PLANT NO.A51-A54 |
1 | ||
| 71610-89158 |
LN105,RN106..JPP..LHD..T1 PLANT NO.A51-A54 |
1 | ||
| 71610-89146 |
LN105,RN106..JPP..LHD..T1 PLANT NO.P11 |
1 | ||
| 71610-89158 |
LN105,RN106..JPP..LHD..T1 PLANT NO.A51-A54 |
1 | ||
| 71610-89146 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE,PLANT NO.P11 |
1 | ||
| 71630B - SPRING ASSY, FRONT SEAT BACK(FOR BENCH TYPE) | ||||
| 71630-89146 |
LN105,85,YN85..JPP..LHD..T1 PLANT NO.P11 |
1 | ||
| 71630-89155 |
LN105,RN106..JPP..LHD..T1 PLANT NO.A51-A54 |
1 | ||
| 71630-89155 |
LN105,85,YN85..JPP..LHD..T1 PLANT NO.A51-A54 |
1 | ||
| 71630-89146 |
LN105,RN106..JPP..LHD..T1 PLANT NO.P11 |
1 | ||
| 71630-35030 |
LN105,85,RN106,YN85..JPP..LHD..T1 |
1 | ||
| 71630-89155 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE,PLANT NO.A51-A54 |
1 | ||
| 71630-35020 |
LN105,85,RN106,YN85..JPP..LHD..T1 PLANT NO.P11 |
1 | ||
| 71630-89155 |
LN105,85,RN106,YN85..JPP..LHD..T1 PLANT NO.A51-A54 |
1 | ||
| 71630-89146 |
LN105,85,RN106,YN85..JPP..LHD..T1 PLANT NO.P11 |
1 | ||
| 71630-35020 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE,PLANT NO.P11 |
1 | ||
| 71739 - CUSHION, SEAT SUPPORT | ||||
| 71739-89112 |
LN105,85,RN106,YN85..JPP..LHD..T1 PLANT NO.P11 |
2 | ||
| 71739-89114 |
LN105,85,RN106,YN106,85..JPP..T1 |
2 | ||
| 71739-89112 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE,PLANT NO.P11 |
2 | ||
| 71739-89115 |
LN105,85,RN106,YN85..JPP..LHD..T1 PLANT NO.A51-A54 |
2 | ||
| 71739-35010 |
LN105,85,RN106..JPP..T1 |
2 | ||
| 71739-89115 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE,PLANT NO.A51-A54 |
2 | ||
| 71739-89112 |
LN105,85,RN106,YN85..JPP..LHD..T1 PLANT NO.P11 |
2 | ||
| 71739-89115 |
LN105,85,RN106,YN85..JPP..LHD..T1 PLANT NO.A51-A54 |
2 | ||
| 71897 - HOOK, SEAT COVER SIDE | ||||
| 71897-89102B1 |
LN105,85,RN106,YN85..JPP..LHD..T1 GRAY,TRIM1# |
4 | ||
| 71897-8910224 |
LN105,85,YN85..JPP..LHD..T1 BLUE,TRIM8# |
4 | ||
| 71897-89102J1 |
LN105,85,RN106,YN85..JPP..LHD..T1 BLUE,TRIM8# |
4 | ||
| 71897-89102E0 |
LN105,85,RN106,YN85..JPP..LHD..T1 LIGHT BROWN,TRIM4# |
4 | ||
| 71897-8910226 |
LN105,85,YN85..JPP..LHD..T1 BROWN,TRIM4# |
4 | ||
| 71897-8910223 |
LN105,85,YN85..JPP..LHD..T1 GRAY,TRIM1# |
4 | ||
| Common parts | ||||
| 90468-18071 | ||||
| 93560-15025 | ||||

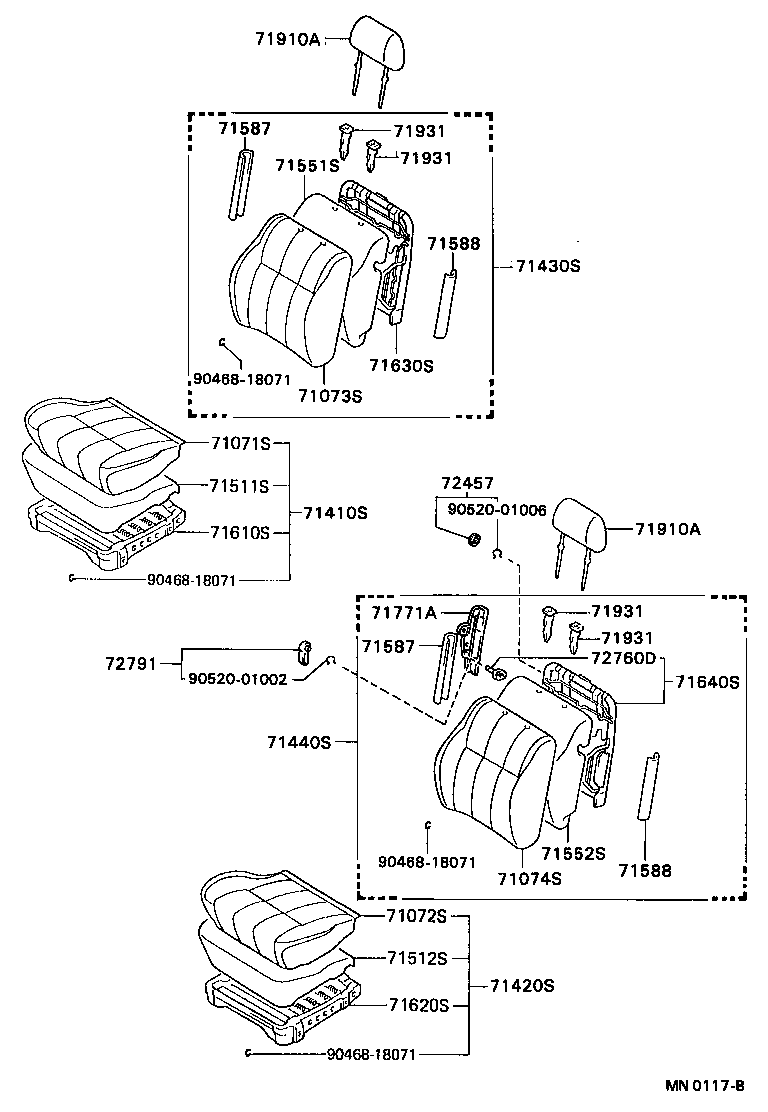

ILLUST NO. 1 OF 3(8808- )JPP
SEPARATE SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-8938604 |
LN105,85,YN106,85..JPP..T1 BLUE,TRIM8# |
1 | ||
| 71071-8938603 |
LN105,85,YN106,85..JPP..T1 GRAY,TRIM1# |
1 | ||
| 71071-8938606 |
LN105,85,YN106,85..JPP..T1 BROWN,TRIM4# |
1 | ||
| 71071-8945406 |
LN105,85,RN106,YN106,85..JPP..T1 BROWN,TRIM4# |
1 | ||
| 71071-8945404 |
LN105,85,RN106,YN106,85..JPP..T1 BLUE,TRIM8# |
1 | ||
| 71071-8945403 |
LN105,85,RN106,YN106,85..JPP..T1 GRAY,TRIM1# |
1 | ||
| 71071-35350B0 |
LN105,85,RN106,YN106,85..JPP..T1 GRAY,TRIM1# |
1 | ||
| 71071-35680J0 |
LN105,85,RN106,YN106,85..JPP..T1 BLUE,TRIM8#,PLANT NO.A51-A54 |
1 | ||
| 71071-35370B0 |
LN85..JPP..T1..CBU;LN105,RN106,YN85..JPP..LHD..T1 W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71071-35350J0 |
LN105,85,RN106,YN106,85..JPP..T1 BLUE,TRIM8# |
1 | ||
| 71071-35370J0 |
LN85..JPP..T1..CBU;LN105,RN106,YN85..JPP..LHD..T1 W(SEAT HEATER),BLUE,TRIM8# |
1 | ||
| 71071-35680B0 |
LN105,85,RN106,YN106,85..JPP..T1 GRAY,TRIM1#,PLANT NO.A51-A54 |
1 | ||
| 71071-35370B0 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71071-35680J1 |
LN105,85,RN106,YN106,85..JPP..T1 LIGHT BLUE,TRIM8#,PLANT NO.A51-A54 |
1 | ||
| 71071-35370J0 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),BLUE,TRIM8# |
1 | ||
| 71071-35350B0 |
LN105,85,RN106,YN106,85..JPP..T1 GRAY,TRIM1#,PLANT NO.P11 |
1 | ||
| 71071-35680B1 |
LN105,85,RN106,YN106,85..JPP..T1 LIGHT GRAY,TRIM1#,PLANT NO.A51-A54 |
1 | ||
| 71071-35350J0 |
LN105,85,RN106,YN106,85..JPP..T1 BLUE,TRIM8#,PLANT NO.P11 |
1 | ||
| 71071-3D150B0 |
LN85..JPP..LHD..T1..CBU;LN105,RN106..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71071-3D330B0 |
RN106..JPP..T1;LN105..JPP..LHD;LN85..JPP..LHD..CBU DLX PACKAGE & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71071-3D130B0 |
LN105,85,RN106..JPP..T1 GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71071-8938606 |
LN105,85,YN106,85..JPP..T1 BROWN,TRIM4# |
1 | ||
| 71071-8938604 |
LN105,85,YN106,85..JPP..T1 BLUE,TRIM8# |
1 | ||
| 71072-8916204 |
LN105..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),BLUE,TRIM8# |
1 | ||
| 71072-8916203 |
LN105..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71071-8938603 |
LN105,85,YN106,85..JPP..T1 GRAY,TRIM1# |
1 | ||
| 71072-8916206 |
LN105..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),BROWN,TRIM4# |
1 | ||
| 71071-8945404 |
LN105,85,RN106,YN106,85..JPP..T1 BLUE,TRIM8# |
1 | ||
| 71071-8945403 |
LN105,85,RN106,YN106,85..JPP..T1 GRAY,TRIM1# |
1 | ||
| 71071-8945406 |
LN105,85,RN106,YN106,85..JPP..T1 BROWN,TRIM4# |
1 | ||
| 71072-8917303 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71072-8917306 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),BROWN,TRIM4# |
1 | ||
| 71072-8917304 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),BLUE,TRIM8# |
1 | ||
| 71071-35350J0 |
LN105,85,RN106,YN106,85..JPP..T1 BLUE,TRIM8# |
1 | ||
| 71071-35350B0 |
LN105,85,RN106,YN106,85..JPP..T1 GRAY,TRIM1# |
1 | ||
| 71071-35680B0 |
LN105,85,RN106,YN106,85..JPP..T1 GRAY,TRIM1#,PLANT NO.A51-A54 |
1 | ||
| 71071-35370J0 |
LN85..JPP..T1..CBU;LN105,RN106,YN85..JPP..LHD..T1 W(SEAT HEATER),BLUE,TRIM8# |
1 | ||
| 71071-35370B0 |
LN85..JPP..T1..CBU;LN105,RN106,YN85..JPP..LHD..T1 W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71071-35680J0 |
LN105,85,RN106,YN106,85..JPP..T1 BLUE,TRIM8#,PLANT NO.A51-A54 |
1 | ||
| 71071-35350B0 |
LN105,85,RN106,YN106,85..JPP..T1 GRAY,TRIM1#,PLANT NO.P11 |
1 | ||
| 71071-35680J1 |
LN105,85,RN106,YN106,85..JPP..T1 LIGHT BLUE,TRIM8#,PLANT NO.A51-A54 |
1 | ||
| 71071-35350J0 |
LN105,85,RN106,YN106,85..JPP..T1 BLUE,TRIM8#,PLANT NO.P11 |
1 | ||
| 71071-35370B0 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71071-35370J0 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),BLUE,TRIM8# |
1 | ||
| 71071-35680B1 |
LN105,85,RN106,YN106,85..JPP..T1 LIGHT GRAY,TRIM1#,PLANT NO.A51-A54 |
1 | ||
| 71071-3D150B0 |
LN85..JPP..LHD..T1..CBU;LN105,RN106..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71071-3D130B0 |
LN105,85,RN106..JPP..T1 GRAY,TRIM1# |
1 | ||
| 71071-3D330B0 |
RN106..JPP..T1;LN105..JPP..LHD;LN85..JPP..LHD..CBU DLX PACKAGE & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-8938504 |
LN105,85,YN106,85..JPP..T1 BLUE,TRIM8# |
1 | ||
| 71073-8938503 |
LN105,85,YN106,85..JPP..T1 GRAY,TRIM1# |
1 | ||
| 71073-8938506 |
LN105,85,YN106,85..JPP..T1 BROWN,TRIM4# |
1 | ||
| 71073-8946606 |
LN105,85,RN106,YN106,85..JPP..T1 BROWN,TRIM4# |
1 | ||
| 71073-8946604 |
LN105,85,RN106,YN106,85..JPP..T1 BLUE,TRIM8# |
1 | ||
| 71073-8946603 |
LN105,85,RN106,YN106,85..JPP..T1 GRAY,TRIM1# |
1 | ||
| 71073-35160B0 |
LN105,85,RN106,YN106,85..JPP..T1 GRAY,TRIM1# |
1 | ||
| 71073-35560J0 |
LN105,85,RN106,YN106,85..JPP..T1 BLUE,TRIM8#,PLANT NO.A51,52 |
1 | ||
| 71073-35160J0 |
LN105,85,RN106,YN106,85..JPP..T1 BLUE,TRIM8# |
1 | ||
| 71073-35390B0 |
LN85..JPP..T1..CBU;LN105,RN106,YN85..JPP..LHD..T1 W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71073-35390J0 |
LN85..JPP..T1..CBU;LN105,RN106,YN85..JPP..LHD..T1 W(SEAT HEATER),BLUE,TRIM8# |
1 | ||
| 71073-35560B0 |
LN105,85,RN106,YN106,85..JPP..T1 GRAY,TRIM1#,PLANT NO.A51,52 |
1 | ||
| 71073-35160B0 |
LN105,85,RN106,YN106,85..JPP..T1 GRAY,TRIM1#,PLANT NO.P11 |
1 | ||
| 71073-35160J0 |
LN105,85,RN106,YN106,85..JPP..T1 BLUE,TRIM8#,PLANT NO.P11 |
1 | ||
| 71073-35390J0 |
LN85..JPP..LHD..T1..CBU;LN105,RN106,YN85..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),BLUE,TRIM8# |
1 | ||
| 71073-35390B0 |
LN85..JPP..LHD..T1..CBU;LN105,RN106,YN85..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71073-35560B1 |
LN105,85,RN106,YN106,85..JPP..T1 LIGHT GRAY,TRIM1#,PLANT NO.A51,52 |
1 | ||
| 71073-35560J1 |
LN105,85,RN106,YN106,85..JPP..T1 LIGHT BLUE,TRIM8#,PLANT NO.A51,52 |
1 | ||
| 71073-3D180B0 |
LN105,85,RN106..JPP..T1 GRAY,TRIM1# |
1 | ||
| 71073-3D190B0 |
LN85..JPP..LHD..T1..CBU;LN105,RN106..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-8938503 |
LN105,85,YN106,85..JPP..T1 GRAY,TRIM1# |
1 | ||
| 71073-8938506 |
LN105,85,YN106,85..JPP..T1 BROWN,TRIM4# |
1 | ||
| 71073-8938504 |
LN105,85,YN106,85..JPP..T1 BLUE,TRIM8# |
1 | ||
| 71074-8917103 |
LN105..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71074-8917104 |
LN105..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),BLUE,TRIM8# |
1 | ||
| 71074-8917106 |
LN105..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),BROWN,TRIM4# |
1 | ||
| 71073-8946603 |
LN105,85,RN106,YN106,85..JPP..T1 GRAY,TRIM1# |
1 | ||
| 71073-8946606 |
LN105,85,RN106,YN106,85..JPP..T1 BROWN,TRIM4# |
1 | ||
| 71074-8919303 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71073-8946604 |
LN105,85,RN106,YN106,85..JPP..T1 BLUE,TRIM8# |
1 | ||
| 71074-8919304 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),BLUE,TRIM8# |
1 | ||
| 71074-8919306 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),BROWN,TRIM4# |
1 | ||
| 71073-35160J0 |
LN105,85,RN106,YN106,85..JPP..T1 BLUE,TRIM8# |
1 | ||
| 71073-35560J0 |
LN105,85,RN106,YN106,85..JPP..T1 BLUE,TRIM8#,PLANT NO.A51,52 |
1 | ||
| 71073-35390B0 |
LN85..JPP..T1..CBU;LN105,RN106,YN85..JPP..LHD..T1 W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71073-35390J0 |
LN85..JPP..T1..CBU;LN105,RN106,YN85..JPP..LHD..T1 W(SEAT HEATER),BLUE,TRIM8# |
1 | ||
| 71073-35160B0 |
LN105,85,RN106,YN106,85..JPP..T1 GRAY,TRIM1# |
1 | ||
| 71073-35560B0 |
LN105,85,RN106,YN106,85..JPP..T1 GRAY,TRIM1#,PLANT NO.A51,52 |
1 | ||
| 71073-35160B0 |
LN105,85,RN106,YN106,85..JPP..T1 GRAY,TRIM1#,PLANT NO.P11 |
1 | ||
| 71073-35560B1 |
LN105,85,RN106,YN106,85..JPP..T1 LIGHT GRAY,TRIM1#,PLANT NO.A51,52 |
1 | ||
| 71073-35160J0 |
LN105,85,RN106,YN106,85..JPP..T1 BLUE,TRIM8#,PLANT NO.P11 |
1 | ||
| 71073-35560J1 |
LN105,85,RN106,YN106,85..JPP..T1 LIGHT BLUE,TRIM8#,PLANT NO.A51,52 |
1 | ||
| 71073-35390B0 |
LN85..JPP..LHD..T1..CBU;LN105,RN106,YN85..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71073-35390J0 |
LN85..JPP..LHD..T1..CBU;LN105,RN106,YN85..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),BLUE,TRIM8# |
1 | ||
| 71073-3D190B0 |
LN85..JPP..LHD..T1..CBU;LN105,RN106..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71073-3D180B0 |
LN105,85,RN106..JPP..T1 GRAY,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-8941003 |
LN105,85,YN106,85..JPP..T1 GRAY,TRIM4# |
1 | ||
| 71410-8941004 |
LN105,85,YN106,85..JPP..T1 BLUE,TRIM8# |
1 | ||
| 71410-8941006 |
LN105,85,YN106,85..JPP..T1 BROWN,TRIM4# |
1 | ||
| 71410-8946303 |
LN105,85,RN106,YN106,85..JPP..T1 GRAY,TRIM1# |
1 | ||
| 71410-8946304 |
LN105,85,RN106,YN106,85..JPP..T1 BLUE,TRIM8# |
1 | ||
| 71410-8946306 |
LN105,85,RN106,YN106,85..JPP..T1 BROWN,TRIM4# |
1 | ||
| 71410-35100B0 |
LN85..JPP..T1..CBU;LN105,RN106,YN85..JPP..LHD..T1 W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71410-35100J0 |
LN85..JPP..T1..CBU;LN105,RN106,YN85..JPP..LHD..T1 W(SEAT HEATER),BLUE,TRIM8# |
1 | ||
| 71410-35160J0 |
LN105,85,RN106,YN106,85..JPP..T1 BLUE,TRIM8# |
1 | ||
| 71410-35160B0 |
LN105,85,RN106,YN106,85..JPP..T1 GRAY,TRIM1# |
1 | ||
| 71410-35100J0 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),BLUE,TRIM8# |
1 | ||
| 71410-35100B0 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71410-35850B0 |
LN85..JPP..LHD..T1..CBU;LN105,RN106..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71410-35840B0 |
LN105,85,RN106..JPP..T1 GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71410-8941003 |
LN105,85,YN106,85..JPP..T1 GRAY,TRIM4# |
1 | ||
| 71410-8941004 |
LN105,85,YN106,85..JPP..T1 BLUE,TRIM8# |
1 | ||
| 71410-8941006 |
LN105,85,YN106,85..JPP..T1 BROWN,TRIM4# |
1 | ||
| 71420-8918906 |
LN105..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),BROWN,TRIM4# |
1 | ||
| 71420-8918903 |
LN105..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71420-8918904 |
LN105..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),BLUE,TRIM8# |
1 | ||
| 71410-8946304 |
LN105,85,RN106,YN106,85..JPP..T1 BLUE,TRIM8# |
1 | ||
| 71410-8946303 |
LN105,85,RN106,YN106,85..JPP..T1 GRAY,TRIM1# |
1 | ||
| 71420-8920404 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),BLUE,TRIM8# |
1 | ||
| 71420-8920403 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71410-8946306 |
LN105,85,RN106,YN106,85..JPP..T1 BROWN,TRIM4# |
1 | ||
| 71420-8920406 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),BROWN,TRIM4# |
1 | ||
| 71420-35120J0 |
LN85..JPP..T1..CBU;LN105,RN106,YN85..JPP..LHD..T1 W(SEAT HEATER),BLUE,TRIM8# |
1 | ||
| 71420-35120B0 |
LN85..JPP..T1..CBU;LN105,RN106,YN85..JPP..LHD..T1 W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71410-35160B0 |
LN105,85,RN106,YN106,85..JPP..T1 GRAY,TRIM1# |
1 | ||
| 71410-35160J0 |
LN105,85,RN106,YN106,85..JPP..T1 BLUE,TRIM8# |
1 | ||
| 71420-35120B0 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71420-35120J0 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),BLUE,TRIM8# |
1 | ||
| 71420-35310B0 |
LN85..JPP..LHD..T1..CBU;LN105,RN106..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71410-35840B0 |
LN105,85,RN106..JPP..T1 GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-8942203 |
LN105,85,YN106,85..JPP..T1 GRAY,TRIM1# |
1 | ||
| 71430-8942204 |
LN105,85,YN106,85..JPP..T1 BLUE,TRIM8# |
1 | ||
| 71430-8942206 |
LN105,85,YN106,85..JPP..T1 BROWN,TRIM4# |
1 | ||
| 71430-8947703 |
LN105,85,RN106,YN106,85..JPP..T1 GRAY,TRIM1# |
1 | ||
| 71430-8947704 |
LN105,85,RN106,YN106,85..JPP..T1 BLUE,TRIM8# |
1 | ||
| 71430-8947706 |
LN105,85,RN106,YN106,85..JPP..T1 BROWN,TRIM4# |
1 | ||
| 71430-35140J0 |
LN85..JPP..T1..CBU;LN105,RN106,YN85..JPP..LHD..T1 W(SEAT HEATER),BLUE,TRIM8# |
1 | ||
| 71430-35220J0 |
LN105,85,RN106,YN106,85..JPP..T1 BLUE,TRIM8# |
1 | ||
| 71430-35140B0 |
LN85..JPP..T1..CBU;LN105,RN106,YN85..JPP..LHD..T1 W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71430-35220B0 |
LN105,85,RN106,YN106,85..JPP..T1 GRAY,TRIM1# |
1 | ||
| 71430-35680B0 |
LN105,85,RN106,YN106,85..JPP..T1 GRAY,TRIM1# |
1 | ||
| 71430-35810J0 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),BLUE,TRIM8# |
1 | ||
| 71430-35680J0 |
LN105,85,RN106,YN106,85..JPP..T1 BLUE,TRIM8# |
1 | ||
| 71430-35810B0 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71430-3D460B0 |
LN85..JPP..LHD..T1..CBU;LN105,RN106..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71430-3D450B0 |
LN105,85,RN106..JPP..T1 GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-8920803 |
LN105,85,YN106,85..JPP..T1 GRAY,TRIM1# |
1 | ||
| 71440-8920903 |
LN105..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71440-8920904 |
LN105..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),BLUE,TRIM8# |
1 | ||
| 71440-8920806 |
LN105,85,YN106,85..JPP..T1 BROWN,TRIM4# |
1 | ||
| 71440-8920804 |
LN105,85,YN106,85..JPP..T1 BLUE,TRIM8# |
1 | ||
| 71440-8920906 |
LN105..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),BROWN,TRIM4# |
1 | ||
| 71440-8923004 |
LN105,85,RN106,YN106,85..JPP..T1 BLUE,TRIM8# |
1 | ||
| 71440-8923003 |
LN105,85,RN106,YN106,85..JPP..T1 GRAY,TRIM1# |
1 | ||
| 71440-8923106 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),BROWN,TRIM4# |
1 | ||
| 71440-8923104 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),BLUE,TRIM8# |
1 | ||
| 71440-8923006 |
LN105,85,RN106,YN106,85..JPP..T1 BROWN,TRIM4# |
1 | ||
| 71440-8923103 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71440-35110J0 |
LN105,85,RN106,YN106,85..JPP..T1 BLUE,TRIM8# |
1 | ||
| 71440-35210J0 |
LN85..JPP..T1..CBU;LN105,RN106,YN85..JPP..LHD..T1 W(SEAT HEATER),BLUE,TRIM8# |
1 | ||
| 71440-35210B0 |
LN85..JPP..T1..CBU;LN105,RN106,YN85..JPP..LHD..T1 W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71440-35110B0 |
LN105,85,RN106,YN106,85..JPP..T1 GRAY,TRIM1# |
1 | ||
| 71440-35330B0 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71440-35320B0 |
LN105,85,RN106,YN106,85..JPP..T1 GRAY,TRIM1# |
1 | ||
| 71440-35320J0 |
LN105,85,RN106,YN106,85..JPP..T1 BLUE,TRIM8# |
1 | ||
| 71440-35330J0 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),BLUE,TRIM8# |
1 | ||
| 71440-35530B0 |
LN85..JPP..LHD..T1..CBU;LN105,RN106..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71440-35520B0 |
LN105,85,RN106..JPP..T1 GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-89136 |
RN106..JPP..T1;RN106..JPP..SR5;LN10#,110,130,85,90,RN110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 71511-89136 |
LN105,85,RN106,YN85..JPP..LHD..T1 W(SEPARATE SEAT) |
1 | ||
| 71511-89136 |
LN105,85,RN106,YN85..JPP..LHD..STD W(SEPARATE SEAT) |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-89136 |
LN105,85,RN106,YN85..JPP..LHD..T1 W(SEPARATE SEAT) |
1 | ||
| 71511-89136 |
RN106..JPP..T1;RN106..JPP..SR5;LN10#,110,130,85,90,RN110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 71511-89136 |
LN105,85,RN106,YN85..JPP..LHD..STD W(SEPARATE SEAT) |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-89132 |
LN105,85,RN106,YN106,85..JPP..T1 PLANT NO.A51-A54 |
1 | ||
| 71551-89141 |
LN105,85,RN106,YN106,85..JPP..T1 PLANT NO.P11 |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-89132 |
LN105,85,RN106,YN106,85..JPP..T1 PLANT NO.A51-A54 |
1 | ||
| 71551-89141 |
LN105,85,RN106,YN106,85..JPP..T1 PLANT NO.P11 |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-35050 |
LN85..JPP..T1..CBU;LN105,RN106,YN85..JPP..LHD..T1 W(SEAT HEATER) |
1 | ||
| 71610-89144 |
LN85..JPP..T1..CBU;LN105,RN106,YN85..JPP..LHD..T1 W(SEPARATE SEAT) |
1 | ||
| 71610-89144 |
LN105,85,RN106,YN85..JPP..LHD W(SEPARATE SEAT) |
1 | ||
| 71610-89144 |
LN105,85,RN106,YN85..JPP..LHD..T1 W(SEPARATE SEAT) |
1 | ||
| 71610-35050 |
LN85..JPP..LHD..T1..CBU;LN105,RN106,YN85..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER) |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71610-89153 |
LN105..JPP..LHD DLX PACKAGE & W(SEAT HEATER) |
1 | ||
| 71610-89144 |
LN105,85,RN106,YN85..JPP..LHD W(SEPARATE SEAT) |
1 | ||
| 71610-89144 |
LN85..JPP..T1..CBU;LN105,RN106,YN85..JPP..LHD..T1 W(SEPARATE SEAT) |
1 | ||
| 71610-89153 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER) |
1 | ||
| 71620-89115 |
RN106..JPP..T1;LN85..JPP..LHD..CBU;LN105,YN85..JPP..LHD DLX PACKAGE & W(SEAT HEATER) |
1 | ||
| 71610-89144 |
LN105,85,RN106,YN85..JPP..LHD..T1 W(SEPARATE SEAT) |
1 | ||
| 71620-89115 |
LN85..JPP..CBU;RN106..JPP..T1;RN106..JPP..SR5;LN10#,110,130,RN110,VZN130,YN85..JPP..LHD W(SEAT HEATER) |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-89162 |
LN105,85,RN106,YN106,85..JPP..T1 PLANT NO.A51-A54 |
1 | ||
| 71630-89162 |
LN85..JPP..T1..CBU;LN105,RN106,YN85..JPP..LHD..T1 W(SEAT HEATER),PLANT NO.A51-A54 |
1 | ||
| 71630-89163 |
LN85..JPP..T1..CBU;LN105,RN106,YN85..JPP..LHD..T1 W(SEAT HEATER),PLANT NO.P11 |
1 | ||
| 71630-89163 |
LN105,85,RN106,YN106,85..JPP..T1 PLANT NO.P11 |
1 | ||
| 71630-35070 |
LN105,85,RN106,YN106,85..JPP..T1 |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-89122 |
LN105,85,RN106,YN106,85..JPP..T1 PLANT NO.P11 |
1 | ||
| 71640-89119 |
LN105,85,RN106,YN106,85..JPP..T1 PLANT NO.A51-A54 |
1 | ||
| 71640-89119 |
LN85..JPP..T1..CBU;LN105,RN106,YN85..JPP..LHD..T1 W(SEAT HEATER),PLANT NO.A51-A54 |
1 | ||
| 71640-89122 |
LN85..JPP..T1..CBU;LN105,RN106,YN85..JPP..LHD..T1 W(SEAT HEATER),PLANT NO.P11 |
1 | ||
| 71640-35020 |
LN105,85,RN106,YN106,85..JPP..T1 |
1 | ||
| 71739 - CUSHION, SEAT SUPPORT | ||||
| 71739-89112 |
LN105,85,RN106,YN85..JPP..LHD..T1 PLANT NO.P11 |
2 | ||
| 71739-89114 |
LN105,85,RN106,YN106,85..JPP..T1 |
2 | ||
| 71739-89112 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE,PLANT NO.P11 |
2 | ||
| 71739-89115 |
LN105,85,RN106,YN85..JPP..LHD..T1 PLANT NO.A51-A54 |
2 | ||
| 71739-35010 |
LN105,85,RN106..JPP..T1 |
2 | ||
| 71739-89115 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE,PLANT NO.A51-A54 |
2 | ||
| 71739-89112 |
LN105,85,RN106,YN85..JPP..LHD..T1 PLANT NO.P11 |
2 | ||
| 71739-89115 |
LN105,85,RN106,YN85..JPP..LHD..T1 PLANT NO.A51-A54 |
2 | ||
| 71739 - CUSHION, SEAT SUPPORT | ||||
| 71739-89112 |
LN105,85,RN106,YN85..JPP..LHD..T1 PLANT NO.P11 |
2 | ||
| 71739-89114 |
LN105,85,RN106,YN106,85..JPP..T1 |
2 | ||
| 71739-89112 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE,PLANT NO.P11 |
2 | ||
| 71739-89115 |
LN105,85,RN106,YN85..JPP..LHD..T1 PLANT NO.A51-A54 |
2 | ||
| 71739-35010 |
LN105,85,RN106..JPP..T1 |
2 | ||
| 71739-89115 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE,PLANT NO.A51-A54 |
2 | ||
| 71739-89112 |
LN105,85,RN106,YN85..JPP..LHD..T1 PLANT NO.P11 |
2 | ||
| 71739-89115 |
LN105,85,RN106,YN85..JPP..LHD..T1 PLANT NO.A51-A54 |
2 | ||

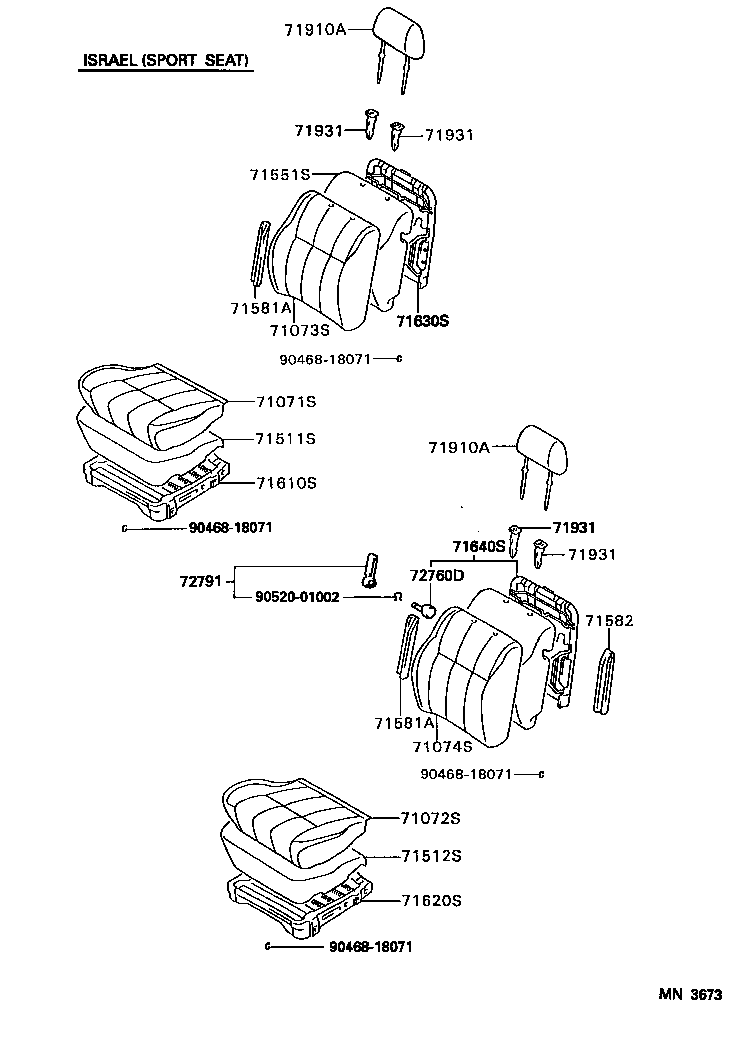

| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-8914406 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP BROWN,TRIM4# |
2 | ||
| 71910-8914403 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP GRAY,TRIM1# |
2 | ||
| 71910-8914404 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP BLUE,TRIM8# |
2 | ||
| 71910-89144E1 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP BROWN,TRIM4# |
2 | ||
| 71910-89144B1 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..(DLX,STD) MEDIUM GRAY,TRIM1# |
2 | ||
| 71910-89144J1 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..(DLX,STD) MEDIUM BLUE,TRIM8# |
2 | ||
| 71910-35100J0 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..(DLX,STD) BLUE,TRIM8# |
2 | ||
| 71910-35100B0 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..(DLX,STD) GRAY,TRIM1# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-8914406 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP BROWN,TRIM4# |
2 | ||
| 71910-8914403 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP GRAY,TRIM1# |
2 | ||
| 71910-8914404 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP BLUE,TRIM8# |
2 | ||
| 71910-89144E1 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP BROWN,TRIM4# |
2 | ||
| 71910-89144B1 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..(DLX,STD) MEDIUM GRAY,TRIM1# |
2 | ||
| 71910-89144J1 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..(DLX,STD) MEDIUM BLUE,TRIM8# |
2 | ||
| 71910-35100J0 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..(DLX,STD) BLUE,TRIM8# |
2 | ||
| 71910-35100B0 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..(DLX,STD) GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006057 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP W(LOCK),BROWN,TRIM4# |
2 | ||
| 71930-1006044 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP W(LOCK),DEEP BLUE,TRIM8# |
2 | ||
| 71931-1001057 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP W/O(LOCK),BROWN,TRIM4# |
2 | ||
| 71931-1001020 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-1006020 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1001044 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP W/O(LOCK),DEEP BLUE,TRIM8# |
2 | ||
| 71931-10010B1 |
LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP W/O(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71930-10060E1 |
LN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP W(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71930-10060J1 |
LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP W(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71930-10060B1 |
LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP W(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71931-10010J1 |
LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP W/O(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71931-10010E1 |
LN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP W/O(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71930-10060B1 |
LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP W(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71931-10010J1 |
LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP W/O(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71930-10060J1 |
LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP W(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71931-10010B1 |
LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP W/O(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006057 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP W(LOCK),BROWN,TRIM4# |
2 | ||
| 71930-1006044 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP W(LOCK),DEEP BLUE,TRIM8# |
2 | ||
| 71931-1001057 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP W/O(LOCK),BROWN,TRIM4# |
2 | ||
| 71931-1001020 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-1006020 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1001044 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP W/O(LOCK),DEEP BLUE,TRIM8# |
2 | ||
| 71931-10010B1 |
LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP W/O(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71930-10060E1 |
LN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP W(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71930-10060J1 |
LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP W(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71930-10060B1 |
LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP W(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71931-10010J1 |
LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP W/O(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71931-10010E1 |
LN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP W/O(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71930-10060B1 |
LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP W(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71931-10010J1 |
LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP W/O(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71930-10060J1 |
LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP W(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71931-10010B1 |
LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP W/O(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006057 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP W(LOCK),BROWN,TRIM4# |
2 | ||
| 71930-1006044 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP W(LOCK),DEEP BLUE,TRIM8# |
2 | ||
| 71931-1001057 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP W/O(LOCK),BROWN,TRIM4# |
2 | ||
| 71931-1001020 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-1006020 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1001044 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP W/O(LOCK),DEEP BLUE,TRIM8# |
2 | ||
| 71931-10010B1 |
LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP W/O(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71930-10060E1 |
LN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP W(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71930-10060J1 |
LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP W(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71930-10060B1 |
LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP W(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71931-10010J1 |
LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP W/O(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71931-10010E1 |
LN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP W/O(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71930-10060B1 |
LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP W(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71931-10010J1 |
LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP W/O(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71930-10060J1 |
LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP W(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71931-10010B1 |
LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP W/O(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006057 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP W(LOCK),BROWN,TRIM4# |
2 | ||
| 71930-1006044 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP W(LOCK),DEEP BLUE,TRIM8# |
2 | ||
| 71931-1001057 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP W/O(LOCK),BROWN,TRIM4# |
2 | ||
| 71931-1001020 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-1006020 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1001044 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP W/O(LOCK),DEEP BLUE,TRIM8# |
2 | ||
| 71931-10010B1 |
LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP W/O(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71930-10060E1 |
LN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP W(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71930-10060J1 |
LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP W(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71930-10060B1 |
LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP W(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71931-10010J1 |
LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP W/O(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71931-10010E1 |
LN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP W/O(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71930-10060B1 |
LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP W(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71931-10010J1 |
LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP W/O(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71930-10060J1 |
LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP W(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71931-10010B1 |
LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP W/O(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| Common parts | ||||
| 90468-18071 | ||||
| 93560-15025 | ||||

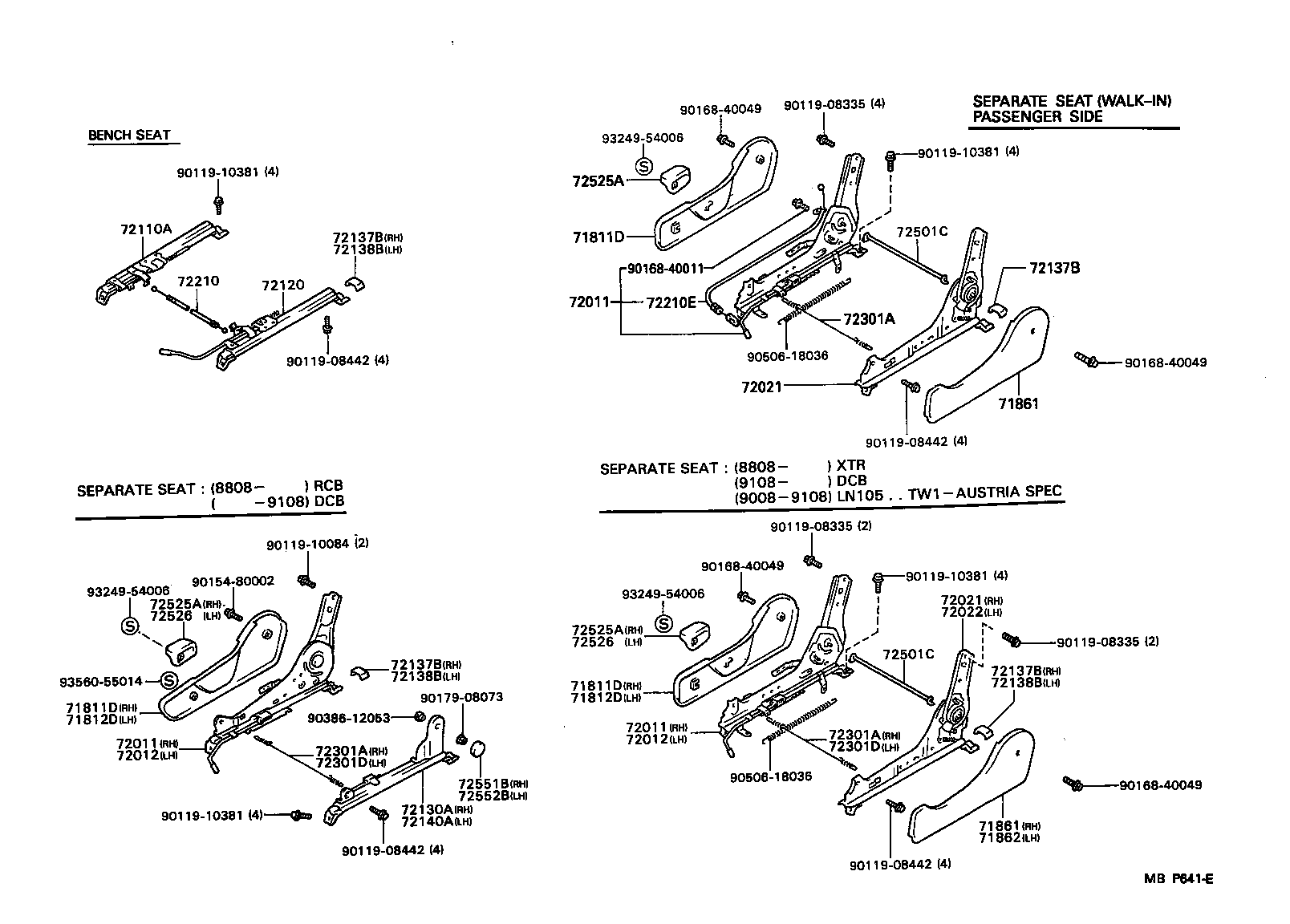

ILLUST NO. 2 OF 3(8808- )LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-8911004 |
LN105,85,YN85..JPP..LHD W(SEPARATE SEAT),BLUE,TRIM8# |
1 | ||
| 71811-8911006 |
LN105,85,YN85..JPP..LHD W(SEPARATE SEAT),BROWN,TRIM4# |
1 | ||
| 71811-8911003 |
LN105,85,YN85..JPP..LHD W(SEPARATE SEAT),GRAY,TRIM1# |
1 | ||
| 71811-89110J0 |
LN105,85,RN106,YN85..JPP..LHD W(SEPARATE SEAT),MEDIUM BLUE,TRIM8# |
1 | ||
| 71811-89110B0 |
LN105,85,RN106,YN85..JPP..LHD W(SEPARATE SEAT),MEDIUM GRAY,TRIM1# |
1 | ||
| 71811-89110E0 |
LN105,85,RN106,YN85..JPP..LHD W(SEPARATE SEAT),BROWN,TRIM4# |
1 | ||
| 71811-89110J0 |
LN105,85,RN106,YN85..JPP..LHD..T1 W(SEPARATE SEAT),MEDIUM BLUE,TRIM8# |
1 | ||
| 71811-89110B0 |
LN105,85,RN106,YN85..JPP..LHD..T1 W(SEPARATE SEAT),MEDIUM GRAY,TRIM1# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-8911004 |
LN105,85,YN85..JPP..LHD W(SEPARATE SEAT),BLUE,TRIM8# |
1 | ||
| 71811-8911006 |
LN105,85,YN85..JPP..LHD W(SEPARATE SEAT),BROWN,TRIM4# |
1 | ||
| 71811-8911003 |
LN105,85,YN85..JPP..LHD W(SEPARATE SEAT),GRAY,TRIM1# |
1 | ||
| 71811-89110J0 |
LN105,85,RN106,YN85..JPP..LHD W(SEPARATE SEAT),MEDIUM BLUE,TRIM8# |
1 | ||
| 71811-89110B0 |
LN105,85,RN106,YN85..JPP..LHD W(SEPARATE SEAT),MEDIUM GRAY,TRIM1# |
1 | ||
| 71811-89110E0 |
LN105,85,RN106,YN85..JPP..LHD W(SEPARATE SEAT),BROWN,TRIM4# |
1 | ||
| 71811-89110J0 |
LN105,85,RN106,YN85..JPP..LHD..T1 W(SEPARATE SEAT),MEDIUM BLUE,TRIM8# |
1 | ||
| 71811-89110B0 |
LN105,85,RN106,YN85..JPP..LHD..T1 W(SEPARATE SEAT),MEDIUM GRAY,TRIM1# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-8911004 |
LN105,85,YN85..JPP..LHD W(SEPARATE SEAT),BLUE,TRIM8# |
1 | ||
| 71811-8911006 |
LN105,85,YN85..JPP..LHD W(SEPARATE SEAT),BROWN,TRIM4# |
1 | ||
| 71811-8911003 |
LN105,85,YN85..JPP..LHD W(SEPARATE SEAT),GRAY,TRIM1# |
1 | ||
| 71811-89110J0 |
LN105,85,RN106,YN85..JPP..LHD W(SEPARATE SEAT),MEDIUM BLUE,TRIM8# |
1 | ||
| 71811-89110B0 |
LN105,85,RN106,YN85..JPP..LHD W(SEPARATE SEAT),MEDIUM GRAY,TRIM1# |
1 | ||
| 71811-89110E0 |
LN105,85,RN106,YN85..JPP..LHD W(SEPARATE SEAT),BROWN,TRIM4# |
1 | ||
| 71811-89110J0 |
LN105,85,RN106,YN85..JPP..LHD..T1 W(SEPARATE SEAT),MEDIUM BLUE,TRIM8# |
1 | ||
| 71811-89110B0 |
LN105,85,RN106,YN85..JPP..LHD..T1 W(SEPARATE SEAT),MEDIUM GRAY,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-8910904 |
LN105,85,YN106,85..JPP BLUE,TRIM8# |
1 | ||
| 71812-8910903 |
LN105,85,YN106,85..JPP GRAY,TRIM1# |
1 | ||
| 71812-89109E0 |
LN105,85,RN106,YN106,85..JPP BROWN,TRIM4# |
1 | ||
| 71812-89109B0 |
LN105,85,RN106,YN106,85..JPP MEDIUM GRAY,TRIM1# |
1 | ||
| 71812-8910906 |
LN105,85,YN106,85..JPP BROWN,TRIM4# |
1 | ||
| 71812-89109J0 |
LN105,85,RN106,YN106,85..JPP MEDIUM BLUE,TRIM8# |
1 | ||
| 71812-89109B0 |
LN105,85,RN106,YN106,85..JPP..T1 MEDIUM GRAY,TRIM1# |
1 | ||
| 71812-89109J0 |
LN105,85,RN106,YN106,85..JPP..T1 MEDIUM BLUE,TRIM8# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-8910904 |
LN105,85,YN106,85..JPP BLUE,TRIM8# |
1 | ||
| 71812-8910903 |
LN105,85,YN106,85..JPP GRAY,TRIM1# |
1 | ||
| 71812-89109E0 |
LN105,85,RN106,YN106,85..JPP BROWN,TRIM4# |
1 | ||
| 71812-89109B0 |
LN105,85,RN106,YN106,85..JPP MEDIUM GRAY,TRIM1# |
1 | ||
| 71812-8910906 |
LN105,85,YN106,85..JPP BROWN,TRIM4# |
1 | ||
| 71812-89109J0 |
LN105,85,RN106,YN106,85..JPP MEDIUM BLUE,TRIM8# |
1 | ||
| 71812-89109B0 |
LN105,85,RN106,YN106,85..JPP..T1 MEDIUM GRAY,TRIM1# |
1 | ||
| 71812-89109J0 |
LN105,85,RN106,YN106,85..JPP..T1 MEDIUM BLUE,TRIM8# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-89109 |
LN105,85..JPP..IV3;LN105,85..JPP..TW1;LN105,YN106,85..JPP..RHD |
1 | ||
| 72010-89108 |
RN106,YN106..JPP;LN105,85..JPP..IV3;LN105,85..JPP..TW1;LN105,YN85..JPP..RHD |
1 | ||
| 72010-89108 |
RN106..JPP..T1;LN105..JPP..IV3;LN105,85,YN106,85..JPP..RHD..T1 |
1 | ||
| 72010-89108 |
LN85..JPP..TW1;RN106,YN106..JPP;LN105,85..JPP..IV3;LN105,YN85..JPP..RHD |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-89109 |
LN105,85..JPP..IV3;LN105,85..JPP..TW1;LN105,YN106,85..JPP..RHD |
1 | ||
| 72010-89108 |
RN106,YN106..JPP;LN105,85..JPP..IV3;LN105,85..JPP..TW1;LN105,YN85..JPP..RHD |
1 | ||
| 72010-89108 |
RN106..JPP..T1;LN105..JPP..IV3;LN105,85,YN106,85..JPP..RHD..T1 |
1 | ||
| 72010-89108 |
LN85..JPP..TW1;RN106,YN106..JPP;LN105,85..JPP..IV3;LN105,YN85..JPP..RHD |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-89109 |
LN105,85..JPP..IV3;LN105,85..JPP..TW1;LN105,YN106,85..JPP..RHD |
1 | ||
| 72010-89108 |
RN106,YN106..JPP;LN105,85..JPP..IV3;LN105,85..JPP..TW1;LN105,YN85..JPP..RHD |
1 | ||
| 72010-89108 |
RN106..JPP..T1;LN105..JPP..IV3;LN105,85,YN106,85..JPP..RHD..T1 |
1 | ||
| 72010-89108 |
LN85..JPP..TW1;RN106,YN106..JPP;LN105,85..JPP..IV3;LN105,YN85..JPP..RHD |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-89109 |
LN105,85,YN106,85..JPP |
1 | ||
| 72020-89108 |
LN105,85,RN106,YN106,85..JPP |
1 | ||
| 72020-89108 |
LN105,85,RN106,YN106,85..JPP..T1 |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-89109 |
LN105,85,YN106,85..JPP |
1 | ||
| 72020-89108 |
LN105,85,RN106,YN106,85..JPP |
1 | ||
| 72020-89108 |
LN105,85,RN106,YN106,85..JPP..T1 |
1 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-89147 |
LN105,85,YN85..JPP..LHD..T1 |
1 | ||
| 72110-89147 |
LN105,85,RN106,YN85..JPP..LHD..STD |
1 | ||
| 72110-35020 |
LN105,85,RN106,YN85..JPP..LHD..STD |
1 | ||
| 72120 - TRACK ASSY, FRONT SEAT, OUTER LH | ||||
| 72120-89147 |
LN105,85,RN106,YN85..JPP..LHD..STD |
1 | ||
| 72120-89147 |
LN105,85,YN85..JPP..LHD..T1 |
1 | ||
| 72120-35030 |
LN105,85,RN106,YN85..JPP..LHD..STD |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-35020 |
LN105,85,RN106,YN106,85..JPP..T1 |
1 | ||
| 72130-89106 |
LN105,85,RN106,YN106,85..JPP |
1 | ||
| 72130-89107 |
LN105,85,YN106,85..JPP |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-89107 |
LN105,85,RN106,YN106,85..JPP |
1 | ||
| 72140-35030 |
LN105,85,RN106,YN106,85..JPP..T1 |
1 | ||
| 72140-89111 |
LN105,85,YN106,85..JPP |
1 | ||
| 72210 - CABLE ASSY, SEAT TRACK CONTROL | ||||
| 72210-89108 |
LN105,85,RN106,YN85..JPP..LHD..STD |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-89112 |
LN105,85,RN106,YN85..JPP..LHD W(SEPARATE SEAT) |
1 | ||
| 72301-89112 |
LN105,85,RN106,YN85..JPP..LHD..T1 W(SEPARATE SEAT) |
1 | ||
| 72301-89112 |
LN105,85,RN106,YN106,85..JPP..T1 |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-89112 |
LN105,85,RN106,YN85..JPP..LHD W(SEPARATE SEAT) |
1 | ||
| 72301-89112 |
LN105,85,RN106,YN85..JPP..LHD..T1 W(SEPARATE SEAT) |
1 | ||
| 72301-89112 |
LN105,85,RN106,YN106,85..JPP..T1 |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-89112 |
LN105,85,RN106,YN85..JPP..LHD W(SEPARATE SEAT) |
1 | ||
| 72301-89112 |
LN105,85,RN106,YN85..JPP..LHD..T1 W(SEPARATE SEAT) |
1 | ||
| 72301-89112 |
LN105,85,RN106,YN106,85..JPP..T1 |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-89112 |
LN105,85,RN106,YN106,85..JPP..T1 |
1 | ||
| 72301-89112 |
LN105,85,RN106,YN85..JPP..LHD W(SEPARATE SEAT) |
1 | ||
| 72301-89112 |
LN105,85,RN106,YN85..JPP..LHD..T1 W(SEPARATE SEAT) |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-89112 |
LN105,85,RN106,YN106,85..JPP..T1 |
1 | ||
| 72301-89112 |
LN105,85,RN106,YN85..JPP..LHD W(SEPARATE SEAT) |
1 | ||
| 72301-89112 |
LN105,85,RN106,YN85..JPP..LHD..T1 W(SEPARATE SEAT) |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-8910503 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP GRAY,TRIM1# |
1 | ||
| 72525-89105J0 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP MEDIUM BLUE,TRIM8# |
1 | ||
| 72525-8910504 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP BLUE,TRIM8# |
1 | ||
| 72525-8910506 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP BROWN,TRIM4# |
1 | ||
| 72525-89105E0 |
LN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP BROWN,TRIM4# |
1 | ||
| 72525-89105B0 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP MEDIUM GRAY,TRIM1# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-8910503 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP GRAY,TRIM1# |
1 | ||
| 72525-89105J0 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP MEDIUM BLUE,TRIM8# |
1 | ||
| 72525-8910504 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP BLUE,TRIM8# |
1 | ||
| 72525-8910506 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP BROWN,TRIM4# |
1 | ||
| 72525-89105E0 |
LN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP BROWN,TRIM4# |
1 | ||
| 72525-89105B0 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP MEDIUM GRAY,TRIM1# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-8910503 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP GRAY,TRIM1# |
1 | ||
| 72525-89105J0 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP MEDIUM BLUE,TRIM8# |
1 | ||
| 72525-8910504 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP BLUE,TRIM8# |
1 | ||
| 72525-8910506 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP BROWN,TRIM4# |
1 | ||
| 72525-89105E0 |
LN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP BROWN,TRIM4# |
1 | ||
| 72525-89105B0 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP MEDIUM GRAY,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-8910104 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP BLUE,TRIM8# |
1 | ||
| 72526-89101E0 |
LN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP BROWN,TRIM4# |
1 | ||
| 72526-89101J0 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP MEDIUM BLUE,TRIM8# |
1 | ||
| 72526-8910103 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP GRAY,TRIM1# |
1 | ||
| 72526-8910106 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP BROWN,TRIM4# |
1 | ||
| 72526-89101B0 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP MEDIUM GRAY,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-8910104 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP BLUE,TRIM8# |
1 | ||
| 72526-89101E0 |
LN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP BROWN,TRIM4# |
1 | ||
| 72526-89101J0 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP MEDIUM BLUE,TRIM8# |
1 | ||
| 72526-8910103 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP GRAY,TRIM1# |
1 | ||
| 72526-8910106 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP BROWN,TRIM4# |
1 | ||
| 72526-89101B0 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP MEDIUM GRAY,TRIM1# |
1 | ||
| 72551B - COVER, RECLINING HINGE, RH | ||||
| 72551-12070 |
LN105,85,RN106,YN106,85..JPP..T1 |
1 | ||
| 72551-12070 |
LN105,85,RN106,YN106,85..JPP |
1 | ||
| 72552B - COVER, RECLINING HINGE, LH | ||||
| 72551-12070 |
LN105,85,RN106,YN106,85..JPP |
1 | ||
| 72551-12070 |
LN105,85,RN106,YN106,85..JPP..T1 |
1 | ||
| Common parts | ||||
| 90119-08335 | ||||
| 90119-08442 | ||||
| 90119-10084 | ||||
| 90119-10381 | ||||
| 90154-80002 | ||||
| 90168-40011 | ||||
| 90168-40049 | ||||
| 90179-08073 | ||||
| 90386-12053 | ||||
| 90506-18036 | ||||
| 93249-54006 | ||||
| 93560-55014 | ||||
ILLUST NO. 1 OF 3(8908- )JPP
SPORTS SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-8938604 |
LN105,85,YN106,85..JPP..T1 BLUE,TRIM8# |
1 | ||
| 71071-8938603 |
LN105,85,YN106,85..JPP..T1 GRAY,TRIM1# |
1 | ||
| 71071-8938606 |
LN105,85,YN106,85..JPP..T1 BROWN,TRIM4# |
1 | ||
| 71071-8945406 |
LN105,85,RN106,YN106,85..JPP..T1 BROWN,TRIM4# |
1 | ||
| 71071-8945404 |
LN105,85,RN106,YN106,85..JPP..T1 BLUE,TRIM8# |
1 | ||
| 71071-8945403 |
LN105,85,RN106,YN106,85..JPP..T1 GRAY,TRIM1# |
1 | ||
| 71071-35350B0 |
LN105,85,RN106,YN106,85..JPP..T1 GRAY,TRIM1# |
1 | ||
| 71071-35680J0 |
LN105,85,RN106,YN106,85..JPP..T1 BLUE,TRIM8#,PLANT NO.A51-A54 |
1 | ||
| 71071-35370B0 |
LN85..JPP..T1..CBU;LN105,RN106,YN85..JPP..LHD..T1 W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71071-35350J0 |
LN105,85,RN106,YN106,85..JPP..T1 BLUE,TRIM8# |
1 | ||
| 71071-35370J0 |
LN85..JPP..T1..CBU;LN105,RN106,YN85..JPP..LHD..T1 W(SEAT HEATER),BLUE,TRIM8# |
1 | ||
| 71071-35680B0 |
LN105,85,RN106,YN106,85..JPP..T1 GRAY,TRIM1#,PLANT NO.A51-A54 |
1 | ||
| 71071-35370B0 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71071-35680J1 |
LN105,85,RN106,YN106,85..JPP..T1 LIGHT BLUE,TRIM8#,PLANT NO.A51-A54 |
1 | ||
| 71071-35370J0 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),BLUE,TRIM8# |
1 | ||
| 71071-35350B0 |
LN105,85,RN106,YN106,85..JPP..T1 GRAY,TRIM1#,PLANT NO.P11 |
1 | ||
| 71071-35680B1 |
LN105,85,RN106,YN106,85..JPP..T1 LIGHT GRAY,TRIM1#,PLANT NO.A51-A54 |
1 | ||
| 71071-35350J0 |
LN105,85,RN106,YN106,85..JPP..T1 BLUE,TRIM8#,PLANT NO.P11 |
1 | ||
| 71071-3D150B0 |
LN85..JPP..LHD..T1..CBU;LN105,RN106..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71071-3D330B0 |
RN106..JPP..T1;LN105..JPP..LHD;LN85..JPP..LHD..CBU DLX PACKAGE & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71071-3D130B0 |
LN105,85,RN106..JPP..T1 GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71071-8938606 |
LN105,85,YN106,85..JPP..T1 BROWN,TRIM4# |
1 | ||
| 71071-8938604 |
LN105,85,YN106,85..JPP..T1 BLUE,TRIM8# |
1 | ||
| 71072-8916204 |
LN105..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),BLUE,TRIM8# |
1 | ||
| 71072-8916203 |
LN105..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71071-8938603 |
LN105,85,YN106,85..JPP..T1 GRAY,TRIM1# |
1 | ||
| 71072-8916206 |
LN105..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),BROWN,TRIM4# |
1 | ||
| 71071-8945404 |
LN105,85,RN106,YN106,85..JPP..T1 BLUE,TRIM8# |
1 | ||
| 71071-8945403 |
LN105,85,RN106,YN106,85..JPP..T1 GRAY,TRIM1# |
1 | ||
| 71071-8945406 |
LN105,85,RN106,YN106,85..JPP..T1 BROWN,TRIM4# |
1 | ||
| 71072-8917303 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71072-8917306 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),BROWN,TRIM4# |
1 | ||
| 71072-8917304 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),BLUE,TRIM8# |
1 | ||
| 71071-35350J0 |
LN105,85,RN106,YN106,85..JPP..T1 BLUE,TRIM8# |
1 | ||
| 71071-35350B0 |
LN105,85,RN106,YN106,85..JPP..T1 GRAY,TRIM1# |
1 | ||
| 71071-35680B0 |
LN105,85,RN106,YN106,85..JPP..T1 GRAY,TRIM1#,PLANT NO.A51-A54 |
1 | ||
| 71071-35370J0 |
LN85..JPP..T1..CBU;LN105,RN106,YN85..JPP..LHD..T1 W(SEAT HEATER),BLUE,TRIM8# |
1 | ||
| 71071-35370B0 |
LN85..JPP..T1..CBU;LN105,RN106,YN85..JPP..LHD..T1 W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71071-35680J0 |
LN105,85,RN106,YN106,85..JPP..T1 BLUE,TRIM8#,PLANT NO.A51-A54 |
1 | ||
| 71071-35350B0 |
LN105,85,RN106,YN106,85..JPP..T1 GRAY,TRIM1#,PLANT NO.P11 |
1 | ||
| 71071-35680J1 |
LN105,85,RN106,YN106,85..JPP..T1 LIGHT BLUE,TRIM8#,PLANT NO.A51-A54 |
1 | ||
| 71071-35350J0 |
LN105,85,RN106,YN106,85..JPP..T1 BLUE,TRIM8#,PLANT NO.P11 |
1 | ||
| 71071-35370B0 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71071-35370J0 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),BLUE,TRIM8# |
1 | ||
| 71071-35680B1 |
LN105,85,RN106,YN106,85..JPP..T1 LIGHT GRAY,TRIM1#,PLANT NO.A51-A54 |
1 | ||
| 71071-3D150B0 |
LN85..JPP..LHD..T1..CBU;LN105,RN106..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71071-3D130B0 |
LN105,85,RN106..JPP..T1 GRAY,TRIM1# |
1 | ||
| 71071-3D330B0 |
RN106..JPP..T1;LN105..JPP..LHD;LN85..JPP..LHD..CBU DLX PACKAGE & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-8938504 |
LN105,85,YN106,85..JPP..T1 BLUE,TRIM8# |
1 | ||
| 71073-8938503 |
LN105,85,YN106,85..JPP..T1 GRAY,TRIM1# |
1 | ||
| 71073-8938506 |
LN105,85,YN106,85..JPP..T1 BROWN,TRIM4# |
1 | ||
| 71073-8946606 |
LN105,85,RN106,YN106,85..JPP..T1 BROWN,TRIM4# |
1 | ||
| 71073-8946604 |
LN105,85,RN106,YN106,85..JPP..T1 BLUE,TRIM8# |
1 | ||
| 71073-8946603 |
LN105,85,RN106,YN106,85..JPP..T1 GRAY,TRIM1# |
1 | ||
| 71073-35160B0 |
LN105,85,RN106,YN106,85..JPP..T1 GRAY,TRIM1# |
1 | ||
| 71073-35560J0 |
LN105,85,RN106,YN106,85..JPP..T1 BLUE,TRIM8#,PLANT NO.A51,52 |
1 | ||
| 71073-35160J0 |
LN105,85,RN106,YN106,85..JPP..T1 BLUE,TRIM8# |
1 | ||
| 71073-35390B0 |
LN85..JPP..T1..CBU;LN105,RN106,YN85..JPP..LHD..T1 W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71073-35390J0 |
LN85..JPP..T1..CBU;LN105,RN106,YN85..JPP..LHD..T1 W(SEAT HEATER),BLUE,TRIM8# |
1 | ||
| 71073-35560B0 |
LN105,85,RN106,YN106,85..JPP..T1 GRAY,TRIM1#,PLANT NO.A51,52 |
1 | ||
| 71073-35160B0 |
LN105,85,RN106,YN106,85..JPP..T1 GRAY,TRIM1#,PLANT NO.P11 |
1 | ||
| 71073-35160J0 |
LN105,85,RN106,YN106,85..JPP..T1 BLUE,TRIM8#,PLANT NO.P11 |
1 | ||
| 71073-35390J0 |
LN85..JPP..LHD..T1..CBU;LN105,RN106,YN85..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),BLUE,TRIM8# |
1 | ||
| 71073-35390B0 |
LN85..JPP..LHD..T1..CBU;LN105,RN106,YN85..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71073-35560B1 |
LN105,85,RN106,YN106,85..JPP..T1 LIGHT GRAY,TRIM1#,PLANT NO.A51,52 |
1 | ||
| 71073-35560J1 |
LN105,85,RN106,YN106,85..JPP..T1 LIGHT BLUE,TRIM8#,PLANT NO.A51,52 |
1 | ||
| 71073-3D180B0 |
LN105,85,RN106..JPP..T1 GRAY,TRIM1# |
1 | ||
| 71073-3D190B0 |
LN85..JPP..LHD..T1..CBU;LN105,RN106..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-8938503 |
LN105,85,YN106,85..JPP..T1 GRAY,TRIM1# |
1 | ||
| 71073-8938506 |
LN105,85,YN106,85..JPP..T1 BROWN,TRIM4# |
1 | ||
| 71073-8938504 |
LN105,85,YN106,85..JPP..T1 BLUE,TRIM8# |
1 | ||
| 71074-8917103 |
LN105..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71074-8917104 |
LN105..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),BLUE,TRIM8# |
1 | ||
| 71074-8917106 |
LN105..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),BROWN,TRIM4# |
1 | ||
| 71073-8946603 |
LN105,85,RN106,YN106,85..JPP..T1 GRAY,TRIM1# |
1 | ||
| 71073-8946606 |
LN105,85,RN106,YN106,85..JPP..T1 BROWN,TRIM4# |
1 | ||
| 71074-8919303 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71073-8946604 |
LN105,85,RN106,YN106,85..JPP..T1 BLUE,TRIM8# |
1 | ||
| 71074-8919304 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),BLUE,TRIM8# |
1 | ||
| 71074-8919306 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),BROWN,TRIM4# |
1 | ||
| 71073-35160J0 |
LN105,85,RN106,YN106,85..JPP..T1 BLUE,TRIM8# |
1 | ||
| 71073-35560J0 |
LN105,85,RN106,YN106,85..JPP..T1 BLUE,TRIM8#,PLANT NO.A51,52 |
1 | ||
| 71073-35390B0 |
LN85..JPP..T1..CBU;LN105,RN106,YN85..JPP..LHD..T1 W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71073-35390J0 |
LN85..JPP..T1..CBU;LN105,RN106,YN85..JPP..LHD..T1 W(SEAT HEATER),BLUE,TRIM8# |
1 | ||
| 71073-35160B0 |
LN105,85,RN106,YN106,85..JPP..T1 GRAY,TRIM1# |
1 | ||
| 71073-35560B0 |
LN105,85,RN106,YN106,85..JPP..T1 GRAY,TRIM1#,PLANT NO.A51,52 |
1 | ||
| 71073-35160B0 |
LN105,85,RN106,YN106,85..JPP..T1 GRAY,TRIM1#,PLANT NO.P11 |
1 | ||
| 71073-35560B1 |
LN105,85,RN106,YN106,85..JPP..T1 LIGHT GRAY,TRIM1#,PLANT NO.A51,52 |
1 | ||
| 71073-35160J0 |
LN105,85,RN106,YN106,85..JPP..T1 BLUE,TRIM8#,PLANT NO.P11 |
1 | ||
| 71073-35560J1 |
LN105,85,RN106,YN106,85..JPP..T1 LIGHT BLUE,TRIM8#,PLANT NO.A51,52 |
1 | ||
| 71073-35390B0 |
LN85..JPP..LHD..T1..CBU;LN105,RN106,YN85..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71073-35390J0 |
LN85..JPP..LHD..T1..CBU;LN105,RN106,YN85..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),BLUE,TRIM8# |
1 | ||
| 71073-3D190B0 |
LN85..JPP..LHD..T1..CBU;LN105,RN106..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71073-3D180B0 |
LN105,85,RN106..JPP..T1 GRAY,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-8941003 |
LN105,85,YN106,85..JPP..T1 GRAY,TRIM4# |
1 | ||
| 71410-8941004 |
LN105,85,YN106,85..JPP..T1 BLUE,TRIM8# |
1 | ||
| 71410-8941006 |
LN105,85,YN106,85..JPP..T1 BROWN,TRIM4# |
1 | ||
| 71410-8946303 |
LN105,85,RN106,YN106,85..JPP..T1 GRAY,TRIM1# |
1 | ||
| 71410-8946304 |
LN105,85,RN106,YN106,85..JPP..T1 BLUE,TRIM8# |
1 | ||
| 71410-8946306 |
LN105,85,RN106,YN106,85..JPP..T1 BROWN,TRIM4# |
1 | ||
| 71410-35100B0 |
LN85..JPP..T1..CBU;LN105,RN106,YN85..JPP..LHD..T1 W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71410-35100J0 |
LN85..JPP..T1..CBU;LN105,RN106,YN85..JPP..LHD..T1 W(SEAT HEATER),BLUE,TRIM8# |
1 | ||
| 71410-35160J0 |
LN105,85,RN106,YN106,85..JPP..T1 BLUE,TRIM8# |
1 | ||
| 71410-35160B0 |
LN105,85,RN106,YN106,85..JPP..T1 GRAY,TRIM1# |
1 | ||
| 71410-35100J0 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),BLUE,TRIM8# |
1 | ||
| 71410-35100B0 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71410-35850B0 |
LN85..JPP..LHD..T1..CBU;LN105,RN106..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71410-35840B0 |
LN105,85,RN106..JPP..T1 GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71410-8941003 |
LN105,85,YN106,85..JPP..T1 GRAY,TRIM4# |
1 | ||
| 71410-8941004 |
LN105,85,YN106,85..JPP..T1 BLUE,TRIM8# |
1 | ||
| 71410-8941006 |
LN105,85,YN106,85..JPP..T1 BROWN,TRIM4# |
1 | ||
| 71420-8918906 |
LN105..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),BROWN,TRIM4# |
1 | ||
| 71420-8918903 |
LN105..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71420-8918904 |
LN105..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),BLUE,TRIM8# |
1 | ||
| 71410-8946304 |
LN105,85,RN106,YN106,85..JPP..T1 BLUE,TRIM8# |
1 | ||
| 71410-8946303 |
LN105,85,RN106,YN106,85..JPP..T1 GRAY,TRIM1# |
1 | ||
| 71420-8920404 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),BLUE,TRIM8# |
1 | ||
| 71420-8920403 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71410-8946306 |
LN105,85,RN106,YN106,85..JPP..T1 BROWN,TRIM4# |
1 | ||
| 71420-8920406 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),BROWN,TRIM4# |
1 | ||
| 71420-35120J0 |
LN85..JPP..T1..CBU;LN105,RN106,YN85..JPP..LHD..T1 W(SEAT HEATER),BLUE,TRIM8# |
1 | ||
| 71420-35120B0 |
LN85..JPP..T1..CBU;LN105,RN106,YN85..JPP..LHD..T1 W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71410-35160B0 |
LN105,85,RN106,YN106,85..JPP..T1 GRAY,TRIM1# |
1 | ||
| 71410-35160J0 |
LN105,85,RN106,YN106,85..JPP..T1 BLUE,TRIM8# |
1 | ||
| 71420-35120B0 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71420-35120J0 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),BLUE,TRIM8# |
1 | ||
| 71420-35310B0 |
LN85..JPP..LHD..T1..CBU;LN105,RN106..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71410-35840B0 |
LN105,85,RN106..JPP..T1 GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-8942203 |
LN105,85,YN106,85..JPP..T1 GRAY,TRIM1# |
1 | ||
| 71430-8942204 |
LN105,85,YN106,85..JPP..T1 BLUE,TRIM8# |
1 | ||
| 71430-8942206 |
LN105,85,YN106,85..JPP..T1 BROWN,TRIM4# |
1 | ||
| 71430-8947703 |
LN105,85,RN106,YN106,85..JPP..T1 GRAY,TRIM1# |
1 | ||
| 71430-8947704 |
LN105,85,RN106,YN106,85..JPP..T1 BLUE,TRIM8# |
1 | ||
| 71430-8947706 |
LN105,85,RN106,YN106,85..JPP..T1 BROWN,TRIM4# |
1 | ||
| 71430-35140J0 |
LN85..JPP..T1..CBU;LN105,RN106,YN85..JPP..LHD..T1 W(SEAT HEATER),BLUE,TRIM8# |
1 | ||
| 71430-35220J0 |
LN105,85,RN106,YN106,85..JPP..T1 BLUE,TRIM8# |
1 | ||
| 71430-35140B0 |
LN85..JPP..T1..CBU;LN105,RN106,YN85..JPP..LHD..T1 W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71430-35220B0 |
LN105,85,RN106,YN106,85..JPP..T1 GRAY,TRIM1# |
1 | ||
| 71430-35680B0 |
LN105,85,RN106,YN106,85..JPP..T1 GRAY,TRIM1# |
1 | ||
| 71430-35810J0 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),BLUE,TRIM8# |
1 | ||
| 71430-35680J0 |
LN105,85,RN106,YN106,85..JPP..T1 BLUE,TRIM8# |
1 | ||
| 71430-35810B0 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71430-3D460B0 |
LN85..JPP..LHD..T1..CBU;LN105,RN106..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71430-3D450B0 |
LN105,85,RN106..JPP..T1 GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-8920803 |
LN105,85,YN106,85..JPP..T1 GRAY,TRIM1# |
1 | ||
| 71440-8920903 |
LN105..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71440-8920904 |
LN105..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),BLUE,TRIM8# |
1 | ||
| 71440-8920806 |
LN105,85,YN106,85..JPP..T1 BROWN,TRIM4# |
1 | ||
| 71440-8920804 |
LN105,85,YN106,85..JPP..T1 BLUE,TRIM8# |
1 | ||
| 71440-8920906 |
LN105..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),BROWN,TRIM4# |
1 | ||
| 71440-8923004 |
LN105,85,RN106,YN106,85..JPP..T1 BLUE,TRIM8# |
1 | ||
| 71440-8923003 |
LN105,85,RN106,YN106,85..JPP..T1 GRAY,TRIM1# |
1 | ||
| 71440-8923106 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),BROWN,TRIM4# |
1 | ||
| 71440-8923104 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),BLUE,TRIM8# |
1 | ||
| 71440-8923006 |
LN105,85,RN106,YN106,85..JPP..T1 BROWN,TRIM4# |
1 | ||
| 71440-8923103 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71440-35110J0 |
LN105,85,RN106,YN106,85..JPP..T1 BLUE,TRIM8# |
1 | ||
| 71440-35210J0 |
LN85..JPP..T1..CBU;LN105,RN106,YN85..JPP..LHD..T1 W(SEAT HEATER),BLUE,TRIM8# |
1 | ||
| 71440-35210B0 |
LN85..JPP..T1..CBU;LN105,RN106,YN85..JPP..LHD..T1 W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71440-35110B0 |
LN105,85,RN106,YN106,85..JPP..T1 GRAY,TRIM1# |
1 | ||
| 71440-35330B0 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71440-35320B0 |
LN105,85,RN106,YN106,85..JPP..T1 GRAY,TRIM1# |
1 | ||
| 71440-35320J0 |
LN105,85,RN106,YN106,85..JPP..T1 BLUE,TRIM8# |
1 | ||
| 71440-35330J0 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),BLUE,TRIM8# |
1 | ||
| 71440-35530B0 |
LN85..JPP..LHD..T1..CBU;LN105,RN106..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71440-35520B0 |
LN105,85,RN106..JPP..T1 GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-89136 |
RN106..JPP..T1;RN106..JPP..SR5;LN10#,110,130,85,90,RN110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 71511-89136 |
LN105,85,RN106,YN85..JPP..LHD..T1 W(SEPARATE SEAT) |
1 | ||
| 71511-89136 |
LN105,85,RN106,YN85..JPP..LHD..STD W(SEPARATE SEAT) |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-89136 |
LN105,85,RN106,YN85..JPP..LHD..T1 W(SEPARATE SEAT) |
1 | ||
| 71511-89136 |
RN106..JPP..T1;RN106..JPP..SR5;LN10#,110,130,85,90,RN110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 71511-89136 |
LN105,85,RN106,YN85..JPP..LHD..STD W(SEPARATE SEAT) |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-89132 |
LN105,85,RN106,YN106,85..JPP..T1 PLANT NO.A51-A54 |
1 | ||
| 71551-89141 |
LN105,85,RN106,YN106,85..JPP..T1 PLANT NO.P11 |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-89132 |
LN105,85,RN106,YN106,85..JPP..T1 PLANT NO.A51-A54 |
1 | ||
| 71551-89141 |
LN105,85,RN106,YN106,85..JPP..T1 PLANT NO.P11 |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-89103 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE |
2 | ||
| 71587-89103 |
LN105,85,RN106,YN85..JPP..LHD..STD |
2 | ||
| 71587-89103 |
LN105,85,RN106,YN85..JPP..LHD..STD |
2 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-89103 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE |
2 | ||
| 71587-89103 |
LN105,85,RN106,YN85..JPP..LHD..STD |
2 | ||
| 71587-89103 |
LN105,85,RN106,YN85..JPP..LHD..STD |
2 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-35050 |
LN85..JPP..T1..CBU;LN105,RN106,YN85..JPP..LHD..T1 W(SEAT HEATER) |
1 | ||
| 71610-89144 |
LN85..JPP..T1..CBU;LN105,RN106,YN85..JPP..LHD..T1 W(SEPARATE SEAT) |
1 | ||
| 71610-89144 |
LN105,85,RN106,YN85..JPP..LHD W(SEPARATE SEAT) |
1 | ||
| 71610-89144 |
LN105,85,RN106,YN85..JPP..LHD..T1 W(SEPARATE SEAT) |
1 | ||
| 71610-35050 |
LN85..JPP..LHD..T1..CBU;LN105,RN106,YN85..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER) |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71610-89153 |
LN105..JPP..LHD DLX PACKAGE & W(SEAT HEATER) |
1 | ||
| 71610-89144 |
LN105,85,RN106,YN85..JPP..LHD W(SEPARATE SEAT) |
1 | ||
| 71610-89144 |
LN85..JPP..T1..CBU;LN105,RN106,YN85..JPP..LHD..T1 W(SEPARATE SEAT) |
1 | ||
| 71610-89153 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER) |
1 | ||
| 71620-89115 |
RN106..JPP..T1;LN85..JPP..LHD..CBU;LN105,YN85..JPP..LHD DLX PACKAGE & W(SEAT HEATER) |
1 | ||
| 71610-89144 |
LN105,85,RN106,YN85..JPP..LHD..T1 W(SEPARATE SEAT) |
1 | ||
| 71620-89115 |
LN85..JPP..CBU;RN106..JPP..T1;RN106..JPP..SR5;LN10#,110,130,RN110,VZN130,YN85..JPP..LHD W(SEAT HEATER) |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-89162 |
LN105,85,RN106,YN106,85..JPP..T1 PLANT NO.A51-A54 |
1 | ||
| 71630-89162 |
LN85..JPP..T1..CBU;LN105,RN106,YN85..JPP..LHD..T1 W(SEAT HEATER),PLANT NO.A51-A54 |
1 | ||
| 71630-89163 |
LN85..JPP..T1..CBU;LN105,RN106,YN85..JPP..LHD..T1 W(SEAT HEATER),PLANT NO.P11 |
1 | ||
| 71630-89163 |
LN105,85,RN106,YN106,85..JPP..T1 PLANT NO.P11 |
1 | ||
| 71630-35070 |
LN105,85,RN106,YN106,85..JPP..T1 |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-89122 |
LN105,85,RN106,YN106,85..JPP..T1 PLANT NO.P11 |
1 | ||
| 71640-89119 |
LN105,85,RN106,YN106,85..JPP..T1 PLANT NO.A51-A54 |
1 | ||
| 71640-89119 |
LN85..JPP..T1..CBU;LN105,RN106,YN85..JPP..LHD..T1 W(SEAT HEATER),PLANT NO.A51-A54 |
1 | ||
| 71640-89122 |
LN85..JPP..T1..CBU;LN105,RN106,YN85..JPP..LHD..T1 W(SEAT HEATER),PLANT NO.P11 |
1 | ||
| 71640-35020 |
LN105,85,RN106,YN106,85..JPP..T1 |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-8914406 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP BROWN,TRIM4# |
2 | ||
| 71910-8914403 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP GRAY,TRIM1# |
2 | ||
| 71910-8914404 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP BLUE,TRIM8# |
2 | ||
| 71910-89144E1 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP BROWN,TRIM4# |
2 | ||
| 71910-89144B1 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..(DLX,STD) MEDIUM GRAY,TRIM1# |
2 | ||
| 71910-89144J1 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..(DLX,STD) MEDIUM BLUE,TRIM8# |
2 | ||
| 71910-35100J0 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..(DLX,STD) BLUE,TRIM8# |
2 | ||
| 71910-35100B0 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..(DLX,STD) GRAY,TRIM1# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-8914406 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP BROWN,TRIM4# |
2 | ||
| 71910-8914403 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP GRAY,TRIM1# |
2 | ||
| 71910-8914404 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP BLUE,TRIM8# |
2 | ||
| 71910-89144E1 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP BROWN,TRIM4# |
2 | ||
| 71910-89144B1 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..(DLX,STD) MEDIUM GRAY,TRIM1# |
2 | ||
| 71910-89144J1 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..(DLX,STD) MEDIUM BLUE,TRIM8# |
2 | ||
| 71910-35100J0 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..(DLX,STD) BLUE,TRIM8# |
2 | ||
| 71910-35100B0 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..(DLX,STD) GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006057 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP W(LOCK),BROWN,TRIM4# |
2 | ||
| 71930-1006044 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP W(LOCK),DEEP BLUE,TRIM8# |
2 | ||
| 71931-1001057 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP W/O(LOCK),BROWN,TRIM4# |
2 | ||
| 71931-1001020 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-1006020 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1001044 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP W/O(LOCK),DEEP BLUE,TRIM8# |
2 | ||
| 71931-10010B1 |
LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP W/O(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71930-10060E1 |
LN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP W(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71930-10060J1 |
LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP W(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71930-10060B1 |
LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP W(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71931-10010J1 |
LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP W/O(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71931-10010E1 |
LN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP W/O(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71930-10060B1 |
LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP W(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71931-10010J1 |
LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP W/O(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71930-10060J1 |
LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP W(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71931-10010B1 |
LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP W/O(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006057 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP W(LOCK),BROWN,TRIM4# |
2 | ||
| 71930-1006044 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP W(LOCK),DEEP BLUE,TRIM8# |
2 | ||
| 71931-1001057 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP W/O(LOCK),BROWN,TRIM4# |
2 | ||
| 71931-1001020 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-1006020 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1001044 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP W/O(LOCK),DEEP BLUE,TRIM8# |
2 | ||
| 71931-10010B1 |
LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP W/O(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71930-10060E1 |
LN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP W(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71930-10060J1 |
LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP W(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71930-10060B1 |
LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP W(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71931-10010J1 |
LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP W/O(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71931-10010E1 |
LN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP W/O(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71930-10060B1 |
LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP W(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71931-10010J1 |
LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP W/O(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71930-10060J1 |
LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP W(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71931-10010B1 |
LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP W/O(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006057 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP W(LOCK),BROWN,TRIM4# |
2 | ||
| 71930-1006044 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP W(LOCK),DEEP BLUE,TRIM8# |
2 | ||
| 71931-1001057 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP W/O(LOCK),BROWN,TRIM4# |
2 | ||
| 71931-1001020 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-1006020 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1001044 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP W/O(LOCK),DEEP BLUE,TRIM8# |
2 | ||
| 71931-10010B1 |
LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP W/O(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71930-10060E1 |
LN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP W(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71930-10060J1 |
LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP W(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71930-10060B1 |
LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP W(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71931-10010J1 |
LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP W/O(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71931-10010E1 |
LN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP W/O(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71930-10060B1 |
LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP W(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71931-10010J1 |
LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP W/O(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71930-10060J1 |
LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP W(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71931-10010B1 |
LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP W/O(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006057 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP W(LOCK),BROWN,TRIM4# |
2 | ||
| 71930-1006044 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP W(LOCK),DEEP BLUE,TRIM8# |
2 | ||
| 71931-1001057 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP W/O(LOCK),BROWN,TRIM4# |
2 | ||
| 71931-1001020 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-1006020 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1001044 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP W/O(LOCK),DEEP BLUE,TRIM8# |
2 | ||
| 71931-10010B1 |
LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP W/O(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71930-10060E1 |
LN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP W(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71930-10060J1 |
LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP W(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71930-10060B1 |
LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP W(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71931-10010J1 |
LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP W/O(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71931-10010E1 |
LN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP W/O(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71930-10060B1 |
LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP W(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71931-10010J1 |
LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP W/O(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71930-10060J1 |
LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP W(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71931-10010B1 |
LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP W/O(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| Common parts | ||||
| 90468-18071 | ||||
| 90520-01002 | ||||
| 90520-01006 | ||||
ILLUST NO. 1 OF 3(9510-9512)LN85..JPP..TW1 ; (9511-9703)LN108..JPP ; (9607-9701)LN105,85..JPP..LHD..
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-8938604 |
LN105,85,YN106,85..JPP..T1 BLUE,TRIM8# |
1 | ||
| 71071-8938603 |
LN105,85,YN106,85..JPP..T1 GRAY,TRIM1# |
1 | ||
| 71071-8938606 |
LN105,85,YN106,85..JPP..T1 BROWN,TRIM4# |
1 | ||
| 71071-8945406 |
LN105,85,RN106,YN106,85..JPP..T1 BROWN,TRIM4# |
1 | ||
| 71071-8945404 |
LN105,85,RN106,YN106,85..JPP..T1 BLUE,TRIM8# |
1 | ||
| 71071-8945403 |
LN105,85,RN106,YN106,85..JPP..T1 GRAY,TRIM1# |
1 | ||
| 71071-35350B0 |
LN105,85,RN106,YN106,85..JPP..T1 GRAY,TRIM1# |
1 | ||
| 71071-35680J0 |
LN105,85,RN106,YN106,85..JPP..T1 BLUE,TRIM8#,PLANT NO.A51-A54 |
1 | ||
| 71071-35370B0 |
LN85..JPP..T1..CBU;LN105,RN106,YN85..JPP..LHD..T1 W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71071-35350J0 |
LN105,85,RN106,YN106,85..JPP..T1 BLUE,TRIM8# |
1 | ||
| 71071-35370J0 |
LN85..JPP..T1..CBU;LN105,RN106,YN85..JPP..LHD..T1 W(SEAT HEATER),BLUE,TRIM8# |
1 | ||
| 71071-35680B0 |
LN105,85,RN106,YN106,85..JPP..T1 GRAY,TRIM1#,PLANT NO.A51-A54 |
1 | ||
| 71071-35370B0 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71071-35680J1 |
LN105,85,RN106,YN106,85..JPP..T1 LIGHT BLUE,TRIM8#,PLANT NO.A51-A54 |
1 | ||
| 71071-35370J0 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),BLUE,TRIM8# |
1 | ||
| 71071-35350B0 |
LN105,85,RN106,YN106,85..JPP..T1 GRAY,TRIM1#,PLANT NO.P11 |
1 | ||
| 71071-35680B1 |
LN105,85,RN106,YN106,85..JPP..T1 LIGHT GRAY,TRIM1#,PLANT NO.A51-A54 |
1 | ||
| 71071-35350J0 |
LN105,85,RN106,YN106,85..JPP..T1 BLUE,TRIM8#,PLANT NO.P11 |
1 | ||
| 71071-3D150B0 |
LN85..JPP..LHD..T1..CBU;LN105,RN106..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71071-3D330B0 |
RN106..JPP..T1;LN105..JPP..LHD;LN85..JPP..LHD..CBU DLX PACKAGE & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71071-3D130B0 |
LN105,85,RN106..JPP..T1 GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71071-8938606 |
LN105,85,YN106,85..JPP..T1 BROWN,TRIM4# |
1 | ||
| 71071-8938604 |
LN105,85,YN106,85..JPP..T1 BLUE,TRIM8# |
1 | ||
| 71072-8916204 |
LN105..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),BLUE,TRIM8# |
1 | ||
| 71072-8916203 |
LN105..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71071-8938603 |
LN105,85,YN106,85..JPP..T1 GRAY,TRIM1# |
1 | ||
| 71072-8916206 |
LN105..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),BROWN,TRIM4# |
1 | ||
| 71071-8945404 |
LN105,85,RN106,YN106,85..JPP..T1 BLUE,TRIM8# |
1 | ||
| 71071-8945403 |
LN105,85,RN106,YN106,85..JPP..T1 GRAY,TRIM1# |
1 | ||
| 71071-8945406 |
LN105,85,RN106,YN106,85..JPP..T1 BROWN,TRIM4# |
1 | ||
| 71072-8917303 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71072-8917306 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),BROWN,TRIM4# |
1 | ||
| 71072-8917304 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),BLUE,TRIM8# |
1 | ||
| 71071-35350J0 |
LN105,85,RN106,YN106,85..JPP..T1 BLUE,TRIM8# |
1 | ||
| 71071-35350B0 |
LN105,85,RN106,YN106,85..JPP..T1 GRAY,TRIM1# |
1 | ||
| 71071-35680B0 |
LN105,85,RN106,YN106,85..JPP..T1 GRAY,TRIM1#,PLANT NO.A51-A54 |
1 | ||
| 71071-35370J0 |
LN85..JPP..T1..CBU;LN105,RN106,YN85..JPP..LHD..T1 W(SEAT HEATER),BLUE,TRIM8# |
1 | ||
| 71071-35370B0 |
LN85..JPP..T1..CBU;LN105,RN106,YN85..JPP..LHD..T1 W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71071-35680J0 |
LN105,85,RN106,YN106,85..JPP..T1 BLUE,TRIM8#,PLANT NO.A51-A54 |
1 | ||
| 71071-35350B0 |
LN105,85,RN106,YN106,85..JPP..T1 GRAY,TRIM1#,PLANT NO.P11 |
1 | ||
| 71071-35680J1 |
LN105,85,RN106,YN106,85..JPP..T1 LIGHT BLUE,TRIM8#,PLANT NO.A51-A54 |
1 | ||
| 71071-35350J0 |
LN105,85,RN106,YN106,85..JPP..T1 BLUE,TRIM8#,PLANT NO.P11 |
1 | ||
| 71071-35370B0 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71071-35370J0 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),BLUE,TRIM8# |
1 | ||
| 71071-35680B1 |
LN105,85,RN106,YN106,85..JPP..T1 LIGHT GRAY,TRIM1#,PLANT NO.A51-A54 |
1 | ||
| 71071-3D150B0 |
LN85..JPP..LHD..T1..CBU;LN105,RN106..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71071-3D130B0 |
LN105,85,RN106..JPP..T1 GRAY,TRIM1# |
1 | ||
| 71071-3D330B0 |
RN106..JPP..T1;LN105..JPP..LHD;LN85..JPP..LHD..CBU DLX PACKAGE & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-8938504 |
LN105,85,YN106,85..JPP..T1 BLUE,TRIM8# |
1 | ||
| 71073-8938503 |
LN105,85,YN106,85..JPP..T1 GRAY,TRIM1# |
1 | ||
| 71073-8938506 |
LN105,85,YN106,85..JPP..T1 BROWN,TRIM4# |
1 | ||
| 71073-8946606 |
LN105,85,RN106,YN106,85..JPP..T1 BROWN,TRIM4# |
1 | ||
| 71073-8946604 |
LN105,85,RN106,YN106,85..JPP..T1 BLUE,TRIM8# |
1 | ||
| 71073-8946603 |
LN105,85,RN106,YN106,85..JPP..T1 GRAY,TRIM1# |
1 | ||
| 71073-35160B0 |
LN105,85,RN106,YN106,85..JPP..T1 GRAY,TRIM1# |
1 | ||
| 71073-35560J0 |
LN105,85,RN106,YN106,85..JPP..T1 BLUE,TRIM8#,PLANT NO.A51,52 |
1 | ||
| 71073-35160J0 |
LN105,85,RN106,YN106,85..JPP..T1 BLUE,TRIM8# |
1 | ||
| 71073-35390B0 |
LN85..JPP..T1..CBU;LN105,RN106,YN85..JPP..LHD..T1 W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71073-35390J0 |
LN85..JPP..T1..CBU;LN105,RN106,YN85..JPP..LHD..T1 W(SEAT HEATER),BLUE,TRIM8# |
1 | ||
| 71073-35560B0 |
LN105,85,RN106,YN106,85..JPP..T1 GRAY,TRIM1#,PLANT NO.A51,52 |
1 | ||
| 71073-35160B0 |
LN105,85,RN106,YN106,85..JPP..T1 GRAY,TRIM1#,PLANT NO.P11 |
1 | ||
| 71073-35160J0 |
LN105,85,RN106,YN106,85..JPP..T1 BLUE,TRIM8#,PLANT NO.P11 |
1 | ||
| 71073-35390J0 |
LN85..JPP..LHD..T1..CBU;LN105,RN106,YN85..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),BLUE,TRIM8# |
1 | ||
| 71073-35390B0 |
LN85..JPP..LHD..T1..CBU;LN105,RN106,YN85..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71073-35560B1 |
LN105,85,RN106,YN106,85..JPP..T1 LIGHT GRAY,TRIM1#,PLANT NO.A51,52 |
1 | ||
| 71073-35560J1 |
LN105,85,RN106,YN106,85..JPP..T1 LIGHT BLUE,TRIM8#,PLANT NO.A51,52 |
1 | ||
| 71073-3D180B0 |
LN105,85,RN106..JPP..T1 GRAY,TRIM1# |
1 | ||
| 71073-3D190B0 |
LN85..JPP..LHD..T1..CBU;LN105,RN106..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-8938503 |
LN105,85,YN106,85..JPP..T1 GRAY,TRIM1# |
1 | ||
| 71073-8938506 |
LN105,85,YN106,85..JPP..T1 BROWN,TRIM4# |
1 | ||
| 71073-8938504 |
LN105,85,YN106,85..JPP..T1 BLUE,TRIM8# |
1 | ||
| 71074-8917103 |
LN105..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71074-8917104 |
LN105..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),BLUE,TRIM8# |
1 | ||
| 71074-8917106 |
LN105..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),BROWN,TRIM4# |
1 | ||
| 71073-8946603 |
LN105,85,RN106,YN106,85..JPP..T1 GRAY,TRIM1# |
1 | ||
| 71073-8946606 |
LN105,85,RN106,YN106,85..JPP..T1 BROWN,TRIM4# |
1 | ||
| 71074-8919303 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71073-8946604 |
LN105,85,RN106,YN106,85..JPP..T1 BLUE,TRIM8# |
1 | ||
| 71074-8919304 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),BLUE,TRIM8# |
1 | ||
| 71074-8919306 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),BROWN,TRIM4# |
1 | ||
| 71073-35160J0 |
LN105,85,RN106,YN106,85..JPP..T1 BLUE,TRIM8# |
1 | ||
| 71073-35560J0 |
LN105,85,RN106,YN106,85..JPP..T1 BLUE,TRIM8#,PLANT NO.A51,52 |
1 | ||
| 71073-35390B0 |
LN85..JPP..T1..CBU;LN105,RN106,YN85..JPP..LHD..T1 W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71073-35390J0 |
LN85..JPP..T1..CBU;LN105,RN106,YN85..JPP..LHD..T1 W(SEAT HEATER),BLUE,TRIM8# |
1 | ||
| 71073-35160B0 |
LN105,85,RN106,YN106,85..JPP..T1 GRAY,TRIM1# |
1 | ||
| 71073-35560B0 |
LN105,85,RN106,YN106,85..JPP..T1 GRAY,TRIM1#,PLANT NO.A51,52 |
1 | ||
| 71073-35160B0 |
LN105,85,RN106,YN106,85..JPP..T1 GRAY,TRIM1#,PLANT NO.P11 |
1 | ||
| 71073-35560B1 |
LN105,85,RN106,YN106,85..JPP..T1 LIGHT GRAY,TRIM1#,PLANT NO.A51,52 |
1 | ||
| 71073-35160J0 |
LN105,85,RN106,YN106,85..JPP..T1 BLUE,TRIM8#,PLANT NO.P11 |
1 | ||
| 71073-35560J1 |
LN105,85,RN106,YN106,85..JPP..T1 LIGHT BLUE,TRIM8#,PLANT NO.A51,52 |
1 | ||
| 71073-35390B0 |
LN85..JPP..LHD..T1..CBU;LN105,RN106,YN85..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71073-35390J0 |
LN85..JPP..LHD..T1..CBU;LN105,RN106,YN85..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),BLUE,TRIM8# |
1 | ||
| 71073-3D190B0 |
LN85..JPP..LHD..T1..CBU;LN105,RN106..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71073-3D180B0 |
LN105,85,RN106..JPP..T1 GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-89136 |
RN106..JPP..T1;RN106..JPP..SR5;LN10#,110,130,85,90,RN110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 71511-89136 |
LN105,85,RN106,YN85..JPP..LHD..T1 W(SEPARATE SEAT) |
1 | ||
| 71511-89136 |
LN105,85,RN106,YN85..JPP..LHD..STD W(SEPARATE SEAT) |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-89136 |
LN105,85,RN106,YN85..JPP..LHD..T1 W(SEPARATE SEAT) |
1 | ||
| 71511-89136 |
RN106..JPP..T1;RN106..JPP..SR5;LN10#,110,130,85,90,RN110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 71511-89136 |
LN105,85,RN106,YN85..JPP..LHD..STD W(SEPARATE SEAT) |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-89132 |
LN105,85,RN106,YN106,85..JPP..T1 PLANT NO.A51-A54 |
1 | ||
| 71551-89141 |
LN105,85,RN106,YN106,85..JPP..T1 PLANT NO.P11 |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-35050 |
LN85..JPP..T1..CBU;LN105,RN106,YN85..JPP..LHD..T1 W(SEAT HEATER) |
1 | ||
| 71610-89144 |
LN85..JPP..T1..CBU;LN105,RN106,YN85..JPP..LHD..T1 W(SEPARATE SEAT) |
1 | ||
| 71610-89144 |
LN105,85,RN106,YN85..JPP..LHD W(SEPARATE SEAT) |
1 | ||
| 71610-89144 |
LN105,85,RN106,YN85..JPP..LHD..T1 W(SEPARATE SEAT) |
1 | ||
| 71610-35050 |
LN85..JPP..LHD..T1..CBU;LN105,RN106,YN85..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER) |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71610-89153 |
LN105..JPP..LHD DLX PACKAGE & W(SEAT HEATER) |
1 | ||
| 71610-89144 |
LN105,85,RN106,YN85..JPP..LHD W(SEPARATE SEAT) |
1 | ||
| 71610-89144 |
LN85..JPP..T1..CBU;LN105,RN106,YN85..JPP..LHD..T1 W(SEPARATE SEAT) |
1 | ||
| 71610-89153 |
LN105,RN106..JPP..LHD..T1 DLX PACKAGE & W(SEAT HEATER) |
1 | ||
| 71620-89115 |
RN106..JPP..T1;LN85..JPP..LHD..CBU;LN105,YN85..JPP..LHD DLX PACKAGE & W(SEAT HEATER) |
1 | ||
| 71610-89144 |
LN105,85,RN106,YN85..JPP..LHD..T1 W(SEPARATE SEAT) |
1 | ||
| 71620-89115 |
LN85..JPP..CBU;RN106..JPP..T1;RN106..JPP..SR5;LN10#,110,130,RN110,VZN130,YN85..JPP..LHD W(SEAT HEATER) |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-89162 |
LN105,85,RN106,YN106,85..JPP..T1 PLANT NO.A51-A54 |
1 | ||
| 71630-89162 |
LN85..JPP..T1..CBU;LN105,RN106,YN85..JPP..LHD..T1 W(SEAT HEATER),PLANT NO.A51-A54 |
1 | ||
| 71630-89163 |
LN85..JPP..T1..CBU;LN105,RN106,YN85..JPP..LHD..T1 W(SEAT HEATER),PLANT NO.P11 |
1 | ||
| 71630-89163 |
LN105,85,RN106,YN106,85..JPP..T1 PLANT NO.P11 |
1 | ||
| 71630-35070 |
LN105,85,RN106,YN106,85..JPP..T1 |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-89122 |
LN105,85,RN106,YN106,85..JPP..T1 PLANT NO.P11 |
1 | ||
| 71640-89119 |
LN105,85,RN106,YN106,85..JPP..T1 PLANT NO.A51-A54 |
1 | ||
| 71640-89119 |
LN85..JPP..T1..CBU;LN105,RN106,YN85..JPP..LHD..T1 W(SEAT HEATER),PLANT NO.A51-A54 |
1 | ||
| 71640-89122 |
LN85..JPP..T1..CBU;LN105,RN106,YN85..JPP..LHD..T1 W(SEAT HEATER),PLANT NO.P11 |
1 | ||
| 71640-35020 |
LN105,85,RN106,YN106,85..JPP..T1 |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-8914406 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP BROWN,TRIM4# |
2 | ||
| 71910-8914403 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP GRAY,TRIM1# |
2 | ||
| 71910-8914404 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP BLUE,TRIM8# |
2 | ||
| 71910-89144E1 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP BROWN,TRIM4# |
2 | ||
| 71910-89144B1 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..(DLX,STD) MEDIUM GRAY,TRIM1# |
2 | ||
| 71910-89144J1 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..(DLX,STD) MEDIUM BLUE,TRIM8# |
2 | ||
| 71910-35100J0 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..(DLX,STD) BLUE,TRIM8# |
2 | ||
| 71910-35100B0 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..(DLX,STD) GRAY,TRIM1# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-8914406 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP BROWN,TRIM4# |
2 | ||
| 71910-8914403 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP GRAY,TRIM1# |
2 | ||
| 71910-8914404 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP BLUE,TRIM8# |
2 | ||
| 71910-89144E1 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP BROWN,TRIM4# |
2 | ||
| 71910-89144B1 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..(DLX,STD) MEDIUM GRAY,TRIM1# |
2 | ||
| 71910-89144J1 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..(DLX,STD) MEDIUM BLUE,TRIM8# |
2 | ||
| 71910-35100J0 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..(DLX,STD) BLUE,TRIM8# |
2 | ||
| 71910-35100B0 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..(DLX,STD) GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006057 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP W(LOCK),BROWN,TRIM4# |
2 | ||
| 71930-1006044 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP W(LOCK),DEEP BLUE,TRIM8# |
2 | ||
| 71931-1001057 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP W/O(LOCK),BROWN,TRIM4# |
2 | ||
| 71931-1001020 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-1006020 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1001044 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP W/O(LOCK),DEEP BLUE,TRIM8# |
2 | ||
| 71931-10010B1 |
LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP W/O(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71930-10060E1 |
LN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP W(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71930-10060J1 |
LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP W(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71930-10060B1 |
LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP W(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71931-10010J1 |
LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP W/O(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71931-10010E1 |
LN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP W/O(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71930-10060B1 |
LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP W(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71931-10010J1 |
LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP W/O(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71930-10060J1 |
LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP W(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71931-10010B1 |
LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP W/O(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006057 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP W(LOCK),BROWN,TRIM4# |
2 | ||
| 71930-1006044 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP W(LOCK),DEEP BLUE,TRIM8# |
2 | ||
| 71931-1001057 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP W/O(LOCK),BROWN,TRIM4# |
2 | ||
| 71931-1001020 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-1006020 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1001044 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP W/O(LOCK),DEEP BLUE,TRIM8# |
2 | ||
| 71931-10010B1 |
LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP W/O(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71930-10060E1 |
LN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP W(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71930-10060J1 |
LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP W(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71930-10060B1 |
LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP W(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71931-10010J1 |
LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP W/O(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71931-10010E1 |
LN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP W/O(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71930-10060B1 |
LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP W(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71931-10010J1 |
LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP W/O(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71930-10060J1 |
LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP W(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71931-10010B1 |
LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP W/O(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006057 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP W(LOCK),BROWN,TRIM4# |
2 | ||
| 71930-1006044 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP W(LOCK),DEEP BLUE,TRIM8# |
2 | ||
| 71931-1001057 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP W/O(LOCK),BROWN,TRIM4# |
2 | ||
| 71931-1001020 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-1006020 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1001044 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP W/O(LOCK),DEEP BLUE,TRIM8# |
2 | ||
| 71931-10010B1 |
LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP W/O(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71930-10060E1 |
LN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP W(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71930-10060J1 |
LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP W(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71930-10060B1 |
LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP W(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71931-10010J1 |
LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP W/O(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71931-10010E1 |
LN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP W/O(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71930-10060B1 |
LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP W(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71931-10010J1 |
LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP W/O(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71930-10060J1 |
LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP W(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71931-10010B1 |
LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP W/O(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006057 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP W(LOCK),BROWN,TRIM4# |
2 | ||
| 71930-1006044 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP W(LOCK),DEEP BLUE,TRIM8# |
2 | ||
| 71931-1001057 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP W/O(LOCK),BROWN,TRIM4# |
2 | ||
| 71931-1001020 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-1006020 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1001044 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP W/O(LOCK),DEEP BLUE,TRIM8# |
2 | ||
| 71931-10010B1 |
LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP W/O(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71930-10060E1 |
LN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP W(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71930-10060J1 |
LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP W(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71930-10060B1 |
LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP W(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71931-10010J1 |
LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP W/O(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71931-10010E1 |
LN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP W/O(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71930-10060B1 |
LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP W(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71931-10010J1 |
LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP W/O(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71930-10060J1 |
LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP W(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71931-10010B1 |
LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP W/O(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| Common parts | ||||
| 90468-18071 | ||||
| 90520-01002 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
