LN105L-TRMRSW3 (1988)
Toyota Hilux (Jpp)
(8808- )JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64189A - BOLT, REAR BODY MOUNTING | ||||
| 64189-89103 |

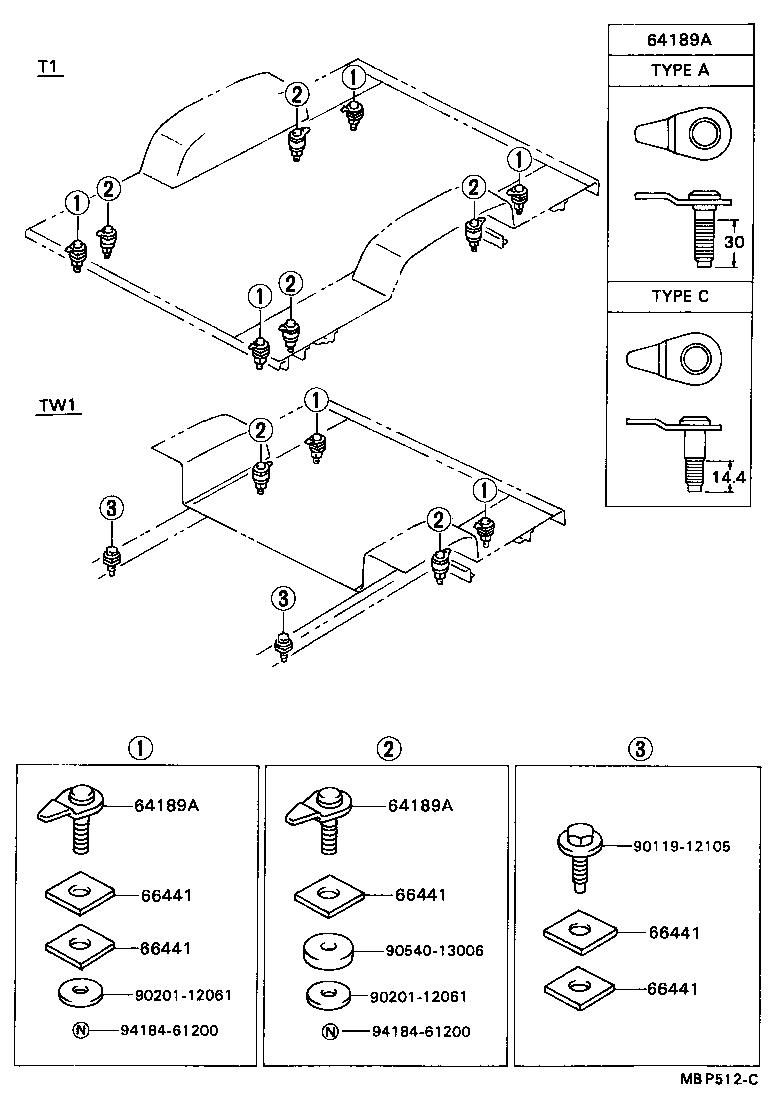

LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..T1 TYPE A:REFER TO ILLUSTRATION |
8 | ||
| 64189-35020 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..T1 TYPE C:REFER TO ILLUSTRATION |
4 | ||
| 64189-35010 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..T1 TYPE A:REFER TO ILLUSTRATION |
4 | ||
| 64189-89103 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..T1 TYPE A |
4 | ||
| 64189-35010 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..T1 TYPE A |
8 | ||
| 64189-89105 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..T1 TYPE C |
4 | ||
| 64189A - BOLT, REAR BODY MOUNTING | ||||
| 64189-89103 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..T1 TYPE A:REFER TO ILLUSTRATION |
8 | ||
| 64189-35020 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..T1 TYPE C:REFER TO ILLUSTRATION |
4 | ||
| 64189-35010 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..T1 TYPE A:REFER TO ILLUSTRATION |
4 | ||
| 64189-89103 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..T1 TYPE A |
4 | ||
| 64189-35010 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..T1 TYPE A |
8 | ||
| 64189-89105 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..T1 TYPE C |
4 | ||
| 64189A - BOLT, REAR BODY MOUNTING | ||||
| 64189-89103 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..T1 TYPE A:REFER TO ILLUSTRATION |
8 | ||
| 64189-35020 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..T1 TYPE C:REFER TO ILLUSTRATION |
4 | ||
| 64189-35010 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..T1 TYPE A:REFER TO ILLUSTRATION |
4 | ||
| 64189-89103 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..T1 TYPE A |
4 | ||
| 64189-35010 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..T1 TYPE A |
8 | ||
| 64189-89105 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..T1 TYPE C |
4 | ||
| 66441 - SHIM, MOUNTING, NO.1 | ||||
| 90950-04026 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..T1 T=3.0 |
1 | ||
| 90950-04025 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..T1 T=3.5 |
12 | ||
| 90950-04026 |
LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP T=3.0 |
1 | ||
| 90950-04019 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP..T1 OD=17 |
12 | ||
| 90950-04020 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP..T1 OD=12 |
12 | ||
| 90950-04027 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..T1 T=5.0 |
1 | ||
| 90950-04028 |
LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP T=3.0 |
1 | ||
| 90950-04027 |
LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP T=5.0 |
1 | ||
| 90950-04029 |
LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP T=5.0 |
1 | ||
| 66441 - SHIM, MOUNTING, NO.1 | ||||
| 90950-04026 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..T1 T=3.0 |
1 | ||
| 90950-04025 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..T1 T=3.5 |
12 | ||
| 90950-04026 |
LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP T=3.0 |
1 | ||
| 90950-04019 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP..T1 OD=17 |
12 | ||
| 90950-04020 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP..T1 OD=12 |
12 | ||
| 90950-04027 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..T1 T=5.0 |
1 | ||
| 90950-04028 |
LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP T=3.0 |
1 | ||
| 90950-04027 |
LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP T=5.0 |
1 | ||
| 90950-04029 |
LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP T=5.0 |
1 | ||
| 66441 - SHIM, MOUNTING, NO.1 | ||||
| 90950-04026 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..T1 T=3.0 |
1 | ||
| 90950-04025 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..T1 T=3.5 |
12 | ||
| 90950-04026 |
LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP T=3.0 |
1 | ||
| 90950-04019 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP..T1 OD=17 |
12 | ||
| 90950-04020 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP..T1 OD=12 |
12 | ||
| 90950-04027 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..T1 T=5.0 |
1 | ||
| 90950-04028 |
LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP T=3.0 |
1 | ||
| 90950-04027 |
LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP T=5.0 |
1 | ||
| 90950-04029 |
LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP T=5.0 |
1 | ||
| 66441 - SHIM, MOUNTING, NO.1 | ||||
| 90950-04026 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..T1 T=3.0 |
1 | ||
| 90950-04025 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..T1 T=3.5 |
12 | ||
| 90950-04026 |
LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP T=3.0 |
1 | ||
| 90950-04019 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP..T1 OD=17 |
12 | ||
| 90950-04020 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP..T1 OD=12 |
12 | ||
| 90950-04027 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..T1 T=5.0 |
1 | ||
| 90950-04028 |
LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP T=3.0 |
1 | ||
| 90950-04027 |
LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP T=5.0 |
1 | ||
| 90950-04029 |
LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP T=5.0 |
1 | ||
| 66441 - SHIM, MOUNTING, NO.1 | ||||
| 90950-04026 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..T1 T=3.0 |
1 | ||
| 90950-04025 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..T1 T=3.5 |
12 | ||
| 90950-04026 |
LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP T=3.0 |
1 | ||
| 90950-04019 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP..T1 OD=17 |
12 | ||
| 90950-04020 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP..T1 OD=12 |
12 | ||
| 90950-04027 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..T1 T=5.0 |
1 | ||
| 90950-04028 |
LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP T=3.0 |
1 | ||
| 90950-04027 |
LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP T=5.0 |
1 | ||
| 90950-04029 |
LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP T=5.0 |
1 | ||
| Common parts | ||||
| 90119-12105 | ||||
| 90201-12061 | ||||
| 90540-13006 | ||||
| 94184-61200 | ||||
