LN105L-TRMRSW3 (1988)
Toyota Hilux (Jpp)

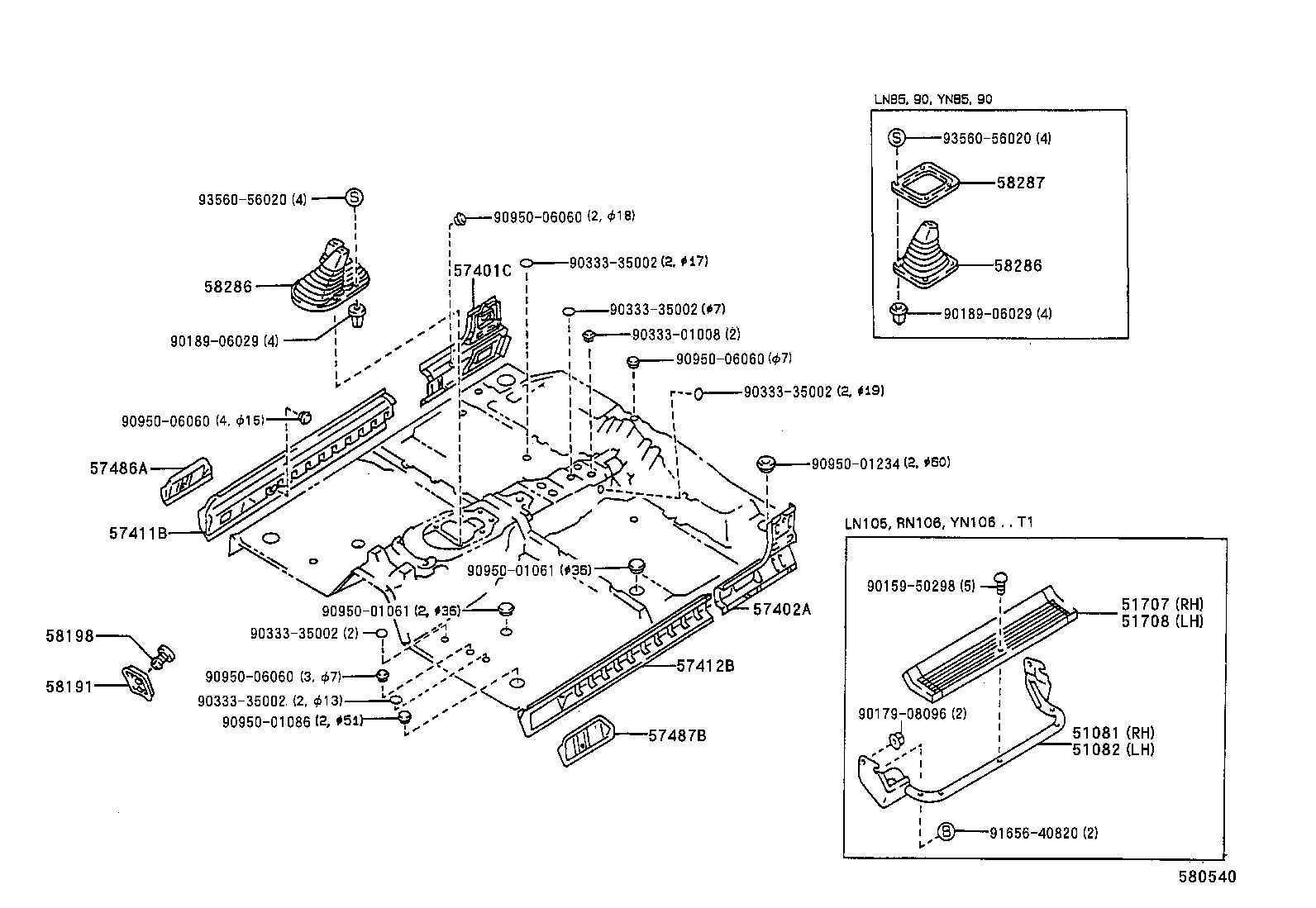

ILLUST NO. 1 OF 2(8808- )LN105,85,RN106,YN106,85..JPP..T1
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51081 - STAY SUB-ASSY, SIDE STEP, NO.1 RH | ||||
| 51081-89101 |
LN105,RN106,YN106..JPP..T1 |
1 | ||
| 51081-89101 |
LN105,RN106..JPP..T1 |
1 | ||
| 51081-89101 |
LN105,110,RN106,YN106..JPP..T1 |
1 | ||
| 51082 - STAY SUB-ASSY, SIDE STEP, NO.1 LH | ||||
| 51082-89101 |
LN105,RN106,YN106..JPP..T1 |
1 | ||
| 51082-89101 |
LN105,RN106..JPP..T1 |
1 | ||
| 51082-89101 |
LN105,110,RN106,YN106..JPP..T1 |
1 | ||
| 51707 - STEP SUB-ASSY, RH | ||||
| 51707-89104 |
LN105,RN106,YN106..JPP..T1 |
1 | ||
| 51770-35010 |
LN105,RN106,YN106..JPP..T1 |
1 | ||
| 51083-35050 |
LN105,110,RN106,YN106..JPP..T1 |
1 | ||
| 51083-35050 |
LN105,RN106,YN106..JPP..T1 |
1 | ||
| 51083-35051 |
LN105,110,RN106,YN106..JPP..T1 |
1 | ||
| 51083-35051 |
LN105,RN106..JPP..T1 |
1 | ||
| 51708 - STEP SUB-ASSY, LH | ||||
| 51707-89104 |
LN105,RN106,YN106..JPP..T1 |
1 | ||
| 51083-35050 |
LN105,RN106,YN106..JPP..T1 |
1 | ||
| 51770-35010 |
LN105,RN106,YN106..JPP..T1 |
1 | ||
| 51083-35050 |
LN105,110,RN106,YN106..JPP..T1 |
1 | ||
| 51083-35051 |
LN105,110,RN106,YN106..JPP..T1 |
1 | ||
| 51083-35051 |
LN105,RN106..JPP..T1 |
1 | ||
| 57401C - MEMBER SUB-ASSY, FLOOR SIDE, INNER RH | ||||
| 57401-89114 |
LN105,85,RN106,YN106,85..JPP..T1 |
1 | ||
| 57402A - MEMBER SUB-ASSY, FLOOR SIDE, INNER LH | ||||
| 57402-89114 |
LN105,85,RN106,YN106,85..JPP..T1 |
1 | ||
| 57411B - MEMBER, FLOOR SIDE, INNER RH | ||||
| 57411-89104 |
LN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 57411-35010 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 57412B - MEMBER, FLOOR SIDE, INNER LH | ||||
| 57412-35010 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 57412-89106 |
LN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 57486A - REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 RH | ||||
| 57486-89104 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 57487B - REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 LH | ||||
| 57487-89102 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 58191 - FOOTREST, FRONT FLOOR | ||||
| 58192-89101 |
KZN130,LN10#,110,130,RN106,110,VZN130,YN110..JPP..LHD |
1 | ||
| 58198 - CLIP, FOOTREST | ||||
| 58198-89101 |
KZN130,LN10#,110,130,RN106,110,VZN130,YN110..JPP..LHD |
2 | ||
| 58286 - BOOT, SHIFT & SELECT LEVER, NO.1 | ||||
| 58280-35060 |
KZN130,LN10#,110..JPP..LHD |
1 | ||
| 58280-89117 |
LN10#,110..JPP..LHD |
1 | ||
| 58286 - BOOT, SHIFT & SELECT LEVER, NO.1 | ||||
| 58280-35060 |
KZN130,LN10#,110..JPP..LHD |
1 | ||
| 58280-89117 |
LN10#,110..JPP..LHD |
1 | ||
| Common parts | ||||
| 90159-50298 | ||||
| 90179-08096 | ||||
| 90189-06029 | ||||
| 90333-01008 | ||||
| 90333-35002 | ||||
| 90950-01061 | ||||
| 90950-01086 | ||||
| 90950-01234 | ||||
| 90950-06060 | ||||
| 91656-40820 | ||||
| 93560-56020 | ||||

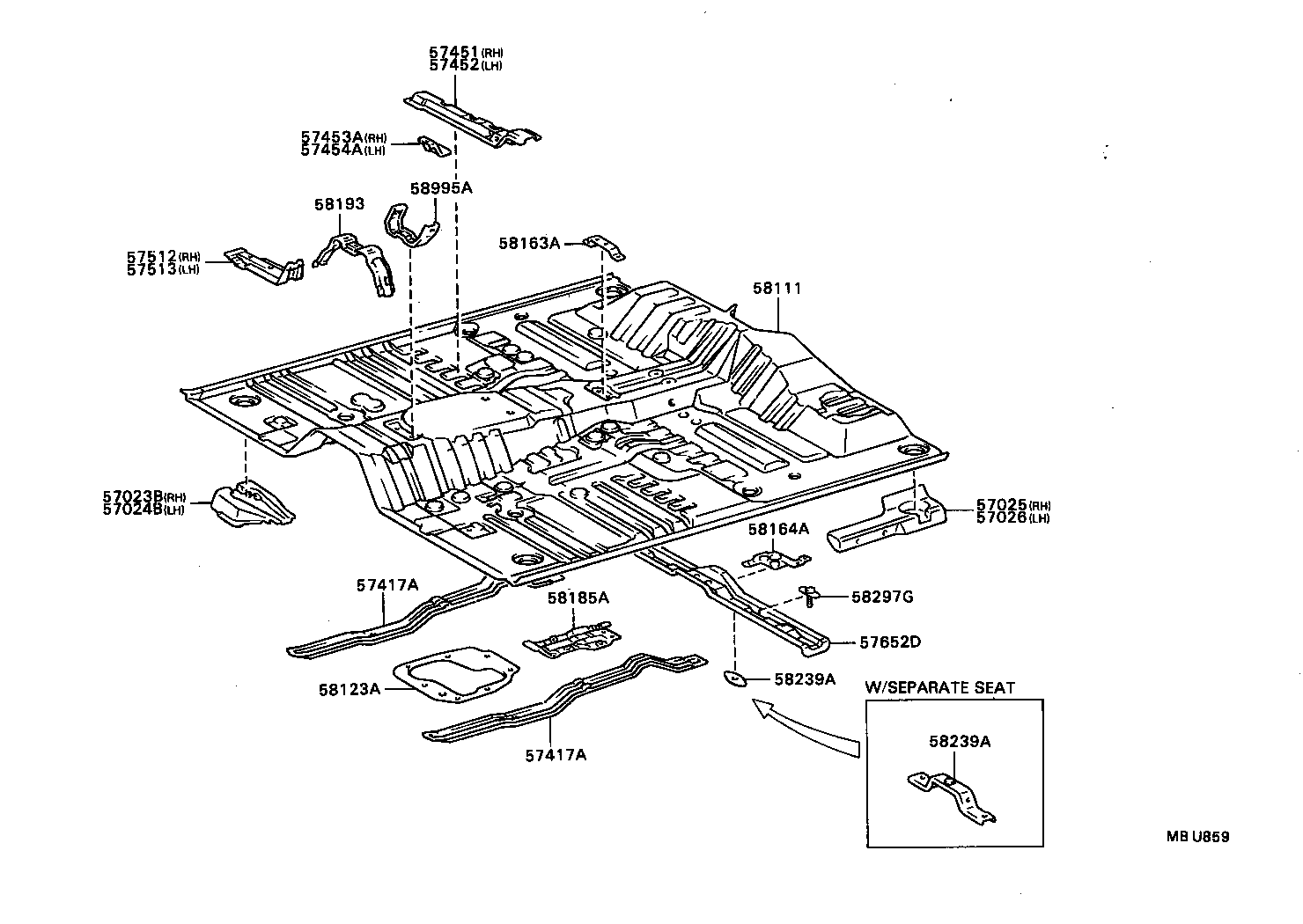

ILLUST NO. 2 OF 2(8912- )JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57023B - BRACKET SUB-ASSY, BODY MOUNTING, NO.2 RH | ||||
| 57023-89101 |
LN105..JPP..IV3 W(SEPARATE SEAT & SEAT HEATER) |
1 | ||
| 57023-89103 |
LN10#,110,RN106,YN106..JPP W(SIDE STEP) |
1 | ||
| 57023-89101 |
LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP |
1 | ||
| 57023-89103 |
LN10#,RN106,YN106..JPP W(SIDE STEP) |
1 | ||
| 57023-89103 |
LN10#,RN106..JPP W(SIDE STEP) |
1 | ||
| 57023-89101 |
RN106..JPP;LN105..JPP..IV3 W(DLX PACKAGE OR SEAT HEATER) & W(SEPARATE SEAT) |
1 | ||
| 57023-89101 |
LN105,RN106..JPP..LHD..STD W(SEPARATE SEAT) |
1 | ||
| 57024B - BRACKET SUB-ASSY, BODY MOUNTING, NO.2 LH | ||||
| 57024-89101 |
RN106..JPP;LN105..JPP..IV3 W(DLX PACKAGE OR SEAT HEATER) & W(SEPARATE SEAT) |
1 | ||
| 57024-89101 |
LN105..JPP..IV3 W(SEPARATE SEAT & SEAT HEATER) |
1 | ||
| 57024-89103 |
LN10#,110,RN106,YN106..JPP W(SIDE STEP) |
1 | ||
| 57024-89101 |
LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP |
1 | ||
| 57024-89103 |
LN10#,RN106..JPP W(SIDE STEP) |
1 | ||
| 57024-89103 |
LN10#,RN106,YN106..JPP W(SIDE STEP) |
1 | ||
| 57024-89101 |
LN105,RN106..JPP..LHD..STD W(SEPARATE SEAT) |
1 | ||
| 57025 - BRACKET SUB-ASSY, BODY MOUNTING, NO.3 RH | ||||
| 57025-89101 |
LN105..JPP..IV3 W(SEPARATE SEAT & SEAT HEATER) |
1 | ||
| 57025-89101 |
LN105,RN106..JPP..LHD..T1 W(SEPARATE SEAT) |
1 | ||
| 57025-89103 |
LN105,RN106,YN106..JPP..T1 W(SIDE STEP) |
1 | ||
| 57025-89101 |
LN105,85,RN106,YN106,85..JPP..T1 |
1 | ||
| 57026 - BRACKET SUB-ASSY, BODY MOUNTING, NO.3 LH | ||||
| 57026-89101 |
LN105..JPP..IV3 W(SEPARATE SEAT & SEAT HEATER) |
1 | ||
| 57026-89103 |
LN105,RN106,YN106..JPP..T1 W(SIDE STEP) |
1 | ||
| 57026-89101 |
LN105,85,RN106,YN106,85..JPP..T1 |
1 | ||
| 57026-89101 |
LN105,RN106..JPP..LHD..T1 W(SEPARATE SEAT) |
1 | ||
| 57417A - REINFORCEMENT, FRONT FLOOR UNDER | ||||
| 57417-89103 |
LN105,85,RN106,YN106,85..JPP..T1 |
2 | ||
| 57417A - REINFORCEMENT, FRONT FLOOR UNDER | ||||
| 57417-89103 |
LN105,85,RN106,YN106,85..JPP..T1 |
2 | ||
| 57451 - MEMBER, FRONT FLOOR CROSS | ||||
| 57451-89108 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 57452 - MEMBER, FRONT FLOOR CROSS, LH | ||||
| 57452-89105 |
LN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 57452-35010 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 57453A - REINFORCEMENT, FRONT FLOOR CROSS MEMBER, RH | ||||
| 57453-89101 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 57454A - REINFORCEMENT, FRONT FLOOR CROSS MEMBER, LH | ||||
| 57454-89101 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 57512 - REINFORCEMENT, FRONT FLOOR, RH | ||||
| 57512-89105 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 57513 - REINFORCEMENT, FRONT FLOOR, LH | ||||
| 57513-89104 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 57652D - MEMBER, REAR FLOOR CROSS, NO.1 | ||||
| 57652-89119 |
LN105,85,RN106,YN85..JPP..LHD..T1 W(SEPARATE SEAT) |
1 | ||
| 57652-89118 |
LN105,85,RN106,YN85..JPP..LHD..T1 |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-89350 |
LN105,RN106,YN106..JPP..T1 |
1 | ||
| 58163A - RETAINER, CONSOLE BOX MOUNTING, NO.1 | ||||
| 58163-89101 |
LN85..JPP..TW1;LN105,110,130,90,RN106,110,VZN130,YN110,90..JPP..LHD |
1 | ||
| 58163-89101 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP..5F |
1 | ||
| 58164A - RETAINER, CONSOLE BOX MOUNTING | ||||
| 58164-89101 |
LN105,85,RN106,YN106,85..JPP..T1 |
1 | ||
| 58193 - BRACKET, INSTRUMENT PANEL BRACE MOUNTING | ||||
| 58193-89102 |
LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 58193-35010 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 58239A - PLATE, BELT ANCHOR NUT | ||||
| 58239-34010 |
LN105,85,RN106,YN85..JPP..LHD..T1 |
2 | ||
| 58239-89111 |
LN105,85,RN106,YN85..JPP..LHD..T1 |
2 | ||
| 58239-89112 |
LN105,85,RN106,YN85..JPP..LHD..T1 W(SEPARATE SEAT) |
1 | ||
| 58239-89112 |
LN105,85,RN106,YN85..JPP..LHD..STD W(SEPARATE SEAT) |
1 | ||
| 58239A - PLATE, BELT ANCHOR NUT | ||||
| 58239-34010 |
LN105,85,RN106,YN85..JPP..LHD..T1 |
2 | ||
| 58239-89111 |
LN105,85,RN106,YN85..JPP..LHD..T1 |
2 | ||
| 58239-89112 |
LN105,85,RN106,YN85..JPP..LHD..T1 W(SEPARATE SEAT) |
1 | ||
| 58239-89112 |
LN105,85,RN106,YN85..JPP..LHD..STD W(SEPARATE SEAT) |
1 | ||
| 58297G - RETAINER, FLOOR CLAMP | ||||
| 58297-89108 |
LN105,85,RN106,YN106,85..JPP..T1 |
1 | ||
| 58297-89108 |
KZN130,LN105,130,85,RN106,VZN130,YN106,85..JPP..(4D,T1) |
1 | ||
| 58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1 | ||||
| 58995-89104 |
LN85..JPP..TW1;LN105,110,130,90,RN106,110,VZN130,YN110,90..JPP..LHD |
1 | ||
| 58995-89104 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
