LN105L-TRMRSW3 (1988)
Toyota Hilux (Jpp)

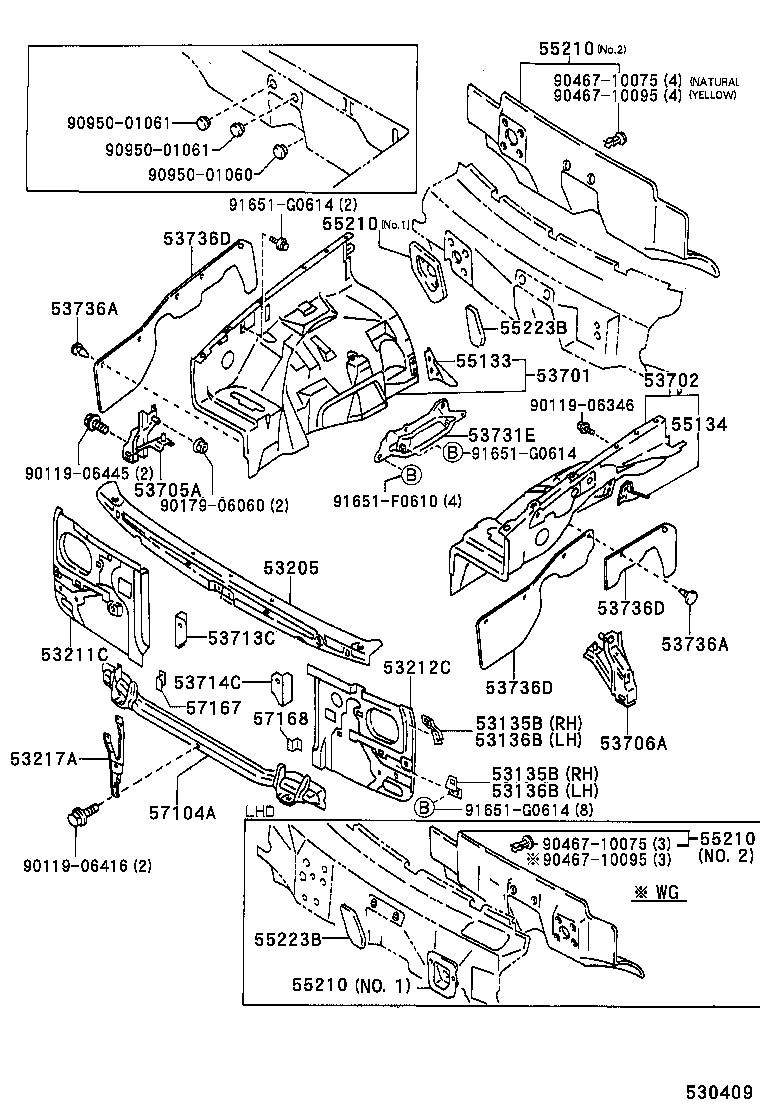

ILLUST NO. 1 OF 3(8808- )JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53216-89110 |
LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP |
1 | ||
| 53216-89110 |
LN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 53211C - SUPPORT, RADIATOR, RH | ||||
| 53211-89123 |
LN105,110,RN110,YN106,110..JPP |
1 | ||
| 53211-89124 |
RN106..JPP..T1;LN105,110,85,90,RN110,YN106,110,85,90..JPP |
1 | ||
| 53211-89123 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP |
1 | ||
| 53211-89124 |
LN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 53212C - SUPPORT, RADIATOR, LH | ||||
| 53212-89120 |
LN105,110,RN110,YN106,110..JPP |
1 | ||
| 53212-89120 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP |
1 | ||
| 53212-89121 |
RN106..JPP..T1;LN105,110,85,90,RN110,YN106,110,85,90..JPP |
1 | ||
| 53212-89121 |
LN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 53217A - BRACE, HOOD LOCK SUPPORT | ||||
| 53217-89108 |
LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-89227 |
LN10#,110..JPP..LHD |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-89260 |
LN105,110..JPP..LHD |
1 | ||
| 53702-89262 |
LN105,110..JPP..LHD COLD SPEC |
1 | ||
| 53702-35280 |
LN10#,110..JPP..LHD COLD SPEC |
1 | ||
| 53702-35270 |
LN10#,110..JPP..LHD |
1 | ||
| 53705A - BRACE SUB-ASSY, FENDER APRON, RH | ||||
| 53705-89103 |
KZN130,LN10#,110,130,RN106,110,VZN130,YN106,110..JPP |
1 | ||
| 53706A - BRACE SUB-ASSY, FENDER APRON, LH | ||||
| 53706-89103 |
KZN130,LN10#,110,130,RN106,110,VZN130,YN106,110..JPP |
1 | ||
| 53713C - EXTENSION, FRONT FENDER APRON, FRONT RH | ||||
| 53713-89104 |
RN106..JPP..T1;KZN130,LN105,110,130,85,90,RN110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 53714C - EXTENSION, FRONT FENDER APRON, FRONT LH | ||||
| 53714-89104 |
RN106..JPP..T1;KZN130,LN105,110,130,85,90,RN110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 53736A - CLIP(FOR FRONT FENDER APRON SEAL) | ||||
| 90467-10107 |
LN105,110,130,RN106,110,VZN130,YN106,110,85,90..JPP |
10 | ||
| 90467-10107 |
LN105,YN106,85,90..JPP |
10 | ||
| 53736A - CLIP(FOR FRONT FENDER APRON SEAL) | ||||
| 90467-10107 |
LN105,110,130,RN106,110,VZN130,YN106,110,85,90..JPP |
10 | ||
| 90467-10107 |
LN105,YN106,85,90..JPP |
10 | ||
| 53736D - SEAL, FENDER APRON | ||||
| 53736-89124 |
LN105..JPP..LHD MARK=DD |
1 | ||
| 53736-89123 |
LN105..JPP MARK=HH |
1 | ||
| 53736-89122 |
YN106..JPP;LN105..JPP..LHD MARK=FF |
1 | ||
| 53736D - SEAL, FENDER APRON | ||||
| 53736-89124 |
LN105..JPP..LHD MARK=DD |
1 | ||
| 53736-89123 |
LN105..JPP MARK=HH |
1 | ||
| 53736-89122 |
YN106..JPP;LN105..JPP..LHD MARK=FF |
1 | ||
| 53736D - SEAL, FENDER APRON | ||||
| 53736-89124 |
LN105..JPP..LHD MARK=DD |
1 | ||
| 53736-89123 |
LN105..JPP MARK=HH |
1 | ||
| 53736-89122 |
YN106..JPP;LN105..JPP..LHD MARK=FF |
1 | ||
| 55133 - PLATE, FRONT FENDER APRON SET, LOWER RH | ||||
| 55133-89103 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 55134 - PLATE, FRONT FENDER APRON SET, LOWER LH | ||||
| 55134-89103 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-89158 |
RN106..JPP..SR5;LN10#,110,130,85,90,VZN130..JPP..LHD NO.2 |
1 | ||
| 55210-35130 |
RN106..JPP..SR5;LN10#,110,130,85,90,VZN130..JPP..LHD NO.2 |
1 | ||
| 55210-89151 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD NO.1 |
1 | ||
| 55210-35131 |
RN106..JPP..SR5;KZN130,LN10#,110,130,85,90,VZN130..JPP..LHD NO.2 |
1 | ||
| 55210-89158 |
LN105,110,130,85,90,VZN130..JPP..LHD NO.2 |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-89158 |
RN106..JPP..SR5;LN10#,110,130,85,90,VZN130..JPP..LHD NO.2 |
1 | ||
| 55210-35130 |
RN106..JPP..SR5;LN10#,110,130,85,90,VZN130..JPP..LHD NO.2 |
1 | ||
| 55210-89151 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD NO.1 |
1 | ||
| 55210-35131 |
RN106..JPP..SR5;KZN130,LN10#,110,130,85,90,VZN130..JPP..LHD NO.2 |
1 | ||
| 55210-89158 |
LN105,110,130,85,90,VZN130..JPP..LHD NO.2 |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-89158 |
RN106..JPP..SR5;LN10#,110,130,85,90,VZN130..JPP..LHD NO.2 |
1 | ||
| 55210-35130 |
RN106..JPP..SR5;LN10#,110,130,85,90,VZN130..JPP..LHD NO.2 |
1 | ||
| 55210-89151 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD NO.1 |
1 | ||
| 55210-35131 |
RN106..JPP..SR5;KZN130,LN10#,110,130,85,90,VZN130..JPP..LHD NO.2 |
1 | ||
| 55210-89158 |
LN105,110,130,85,90,VZN130..JPP..LHD NO.2 |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-89158 |
RN106..JPP..SR5;LN10#,110,130,85,90,VZN130..JPP..LHD NO.2 |
1 | ||
| 55210-35130 |
RN106..JPP..SR5;LN10#,110,130,85,90,VZN130..JPP..LHD NO.2 |
1 | ||
| 55210-89151 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD NO.1 |
1 | ||
| 55210-35131 |
RN106..JPP..SR5;KZN130,LN10#,110,130,85,90,VZN130..JPP..LHD NO.2 |
1 | ||
| 55210-89158 |
LN105,110,130,85,90,VZN130..JPP..LHD NO.2 |
1 | ||
| 55223B - INSULATOR, DASH PANEL HEAT, NO.1 | ||||
| 55225-89103 |
LN10#,110,130,85,90..JPP..LHD |
1 | ||
| 55223B - INSULATOR, DASH PANEL HEAT, NO.1 | ||||
| 55225-89103 |
LN10#,110,130,85,90..JPP..LHD |
1 | ||
| 57104A - MEMBER SUB-ASSY, FRONT CROSS | ||||
| 57104-89109 |
LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP |
1 | ||
| Common parts | ||||
| 90119-06346 | ||||
| 90119-06416 | ||||
| 90119-06445 | ||||
| 90179-06060 | ||||
| 90467-10075 | ||||
| 90467-10095 | ||||
| 90950-01060 | ||||
| 90950-01061 | ||||
| 91651-F0610 | ||||
| 91651-G0614 | ||||

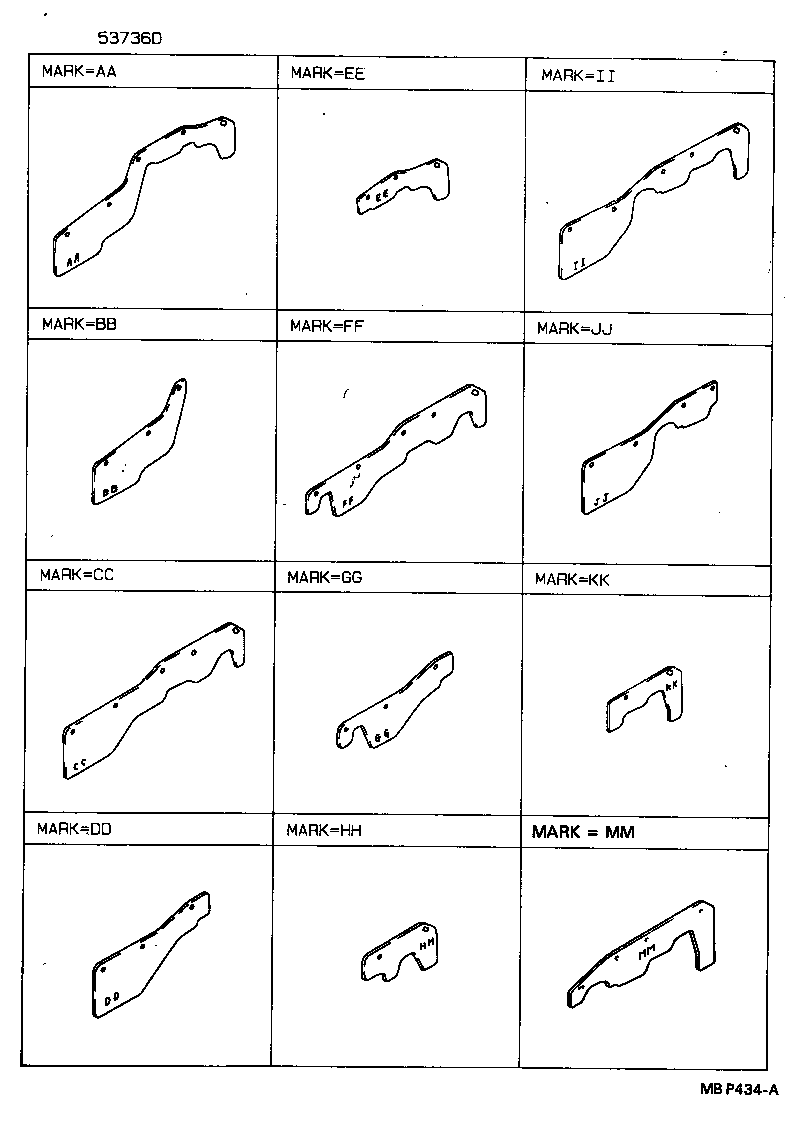

ILLUST NO. 2 OF 3(8808- )JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53736D - SEAL, FENDER APRON | ||||
| 53736-89124 |
LN105..JPP..LHD MARK=DD |
1 | ||
| 53736-89123 |
LN105..JPP MARK=HH |
1 | ||
| 53736-89122 |
YN106..JPP;LN105..JPP..LHD MARK=FF |
1 | ||

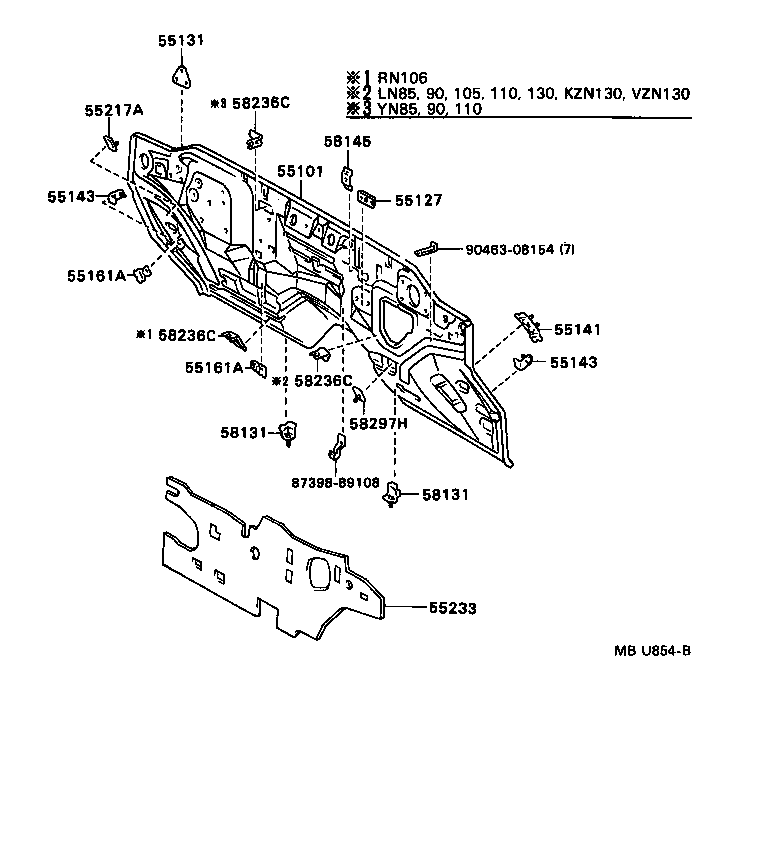

ILLUST NO. 3 OF 3(8912- )JPP..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55111-89236 |
LN10#,110,130,85,90,RN106,110..JPP..LHD |
1 | ||
| 55111-89236 |
LN10#,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD |
1 | ||
| 55127 - REINFORCEMENT, PARKING BRAKE | ||||
| 55127-89102 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD |
1 | ||
| 55141 - BRACKET, FOOT REST MOUNTING | ||||
| 55141-89103 |
KZN130,LN10#,110,130,RN106,110,VZN130,YN110..JPP..LHD |
1 | ||
| 55143 - BRACKET, COWL SIDE TRIM MOUNTING, NO.1 | ||||
| 55143-89102 |
LN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP LH |
1 | ||
| 55143-89103 |
LN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP RH |
1 | ||
| 55143-89102 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP LH |
1 | ||
| 55143-89103 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP RH |
1 | ||
| 55143 - BRACKET, COWL SIDE TRIM MOUNTING, NO.1 | ||||
| 55143-89102 |
LN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP LH |
1 | ||
| 55143-89103 |
LN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP RH |
1 | ||
| 55143-89102 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP LH |
1 | ||
| 55143-89103 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP RH |
1 | ||
| 55161A - BRACKET, HEATER MOUNTING, RH | ||||
| 55161-89107 |
LN10#,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD CTR |
1 | ||
| 55161-89106 |
LN10#,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD RH |
1 | ||
| 55161-89107 |
VZN130..JPP..RHD;KZN130,LN10#,110,130,85,90..JPP..LHD RH |
1 | ||
| 55161-89106 |
VZN130..JPP..RHD;KZN130,LN10#,110,130,85,90..JPP LH |
1 | ||
| 55161A - BRACKET, HEATER MOUNTING, RH | ||||
| 55161-89107 |
LN10#,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD CTR |
1 | ||
| 55161-89106 |
LN10#,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD RH |
1 | ||
| 55161-89107 |
VZN130..JPP..RHD;KZN130,LN10#,110,130,85,90..JPP..LHD RH |
1 | ||
| 55161-89106 |
VZN130..JPP..RHD;KZN130,LN10#,110,130,85,90..JPP LH |
1 | ||
| 55217A - RETAINER, DASH PANEL SILENCER | ||||
| 55217-89103 |
KZN130,LN10#,110,130,85,90,RN106,110,YN110,85,90..JPP..LHD |
3 | ||
| 55217-89103 |
LN105,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD |
3 | ||
| 55233 - SHEET, DASH PANEL INSULATOR | ||||
| 55233-89111 |
LN10#,110,130,85,90,RN106,110,VZN130..JPP..LHD |
1 | ||
| 58131 - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1 | ||||
| 58131-89117 |
KZN130,LN10#,110,130,85,90..JPP |
1 | ||
| 58131 - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1 | ||||
| 58131-89117 |
KZN130,LN10#,110,130,85,90..JPP |
1 | ||
| 58145 - RETAINER, FRONT FLOOR HEAT INSULATOR SUPPORT, NO.1 | ||||
| 58145-89101 |
LN10#,110,85,90..JPP |
1 | ||
| 58236C - BRACKET, CLUTCH TUBE | ||||
| 58236-89104 |
KZN130,LN10#,110,130,85,90..JPP..LHD |
1 | ||
| 58236C - BRACKET, CLUTCH TUBE | ||||
| 58236-89104 |
KZN130,LN10#,110,130,85,90..JPP..LHD |
1 | ||
| 58236C - BRACKET, CLUTCH TUBE | ||||
| 58236-89104 |
KZN130,LN10#,110,130,85,90..JPP..LHD |
1 | ||
| 58297H - RETAINER, FLOOR CLAMP | ||||
| 58297-89107 |
VZN130..JPP..LHD;KZN130,LN10#,110,130,85,90,RN106,110,YN106,110,85,90..JPP |
1 | ||
| Common parts | ||||
| 87398-89108 | ||||
| 90463-08154 | ||||
