LN105L-TRMRSW3 (1988)
Toyota Hilux (Jpp)
(8808-9108)LN105,110,130,RN106,110,VZN130,YN106,110..JPP

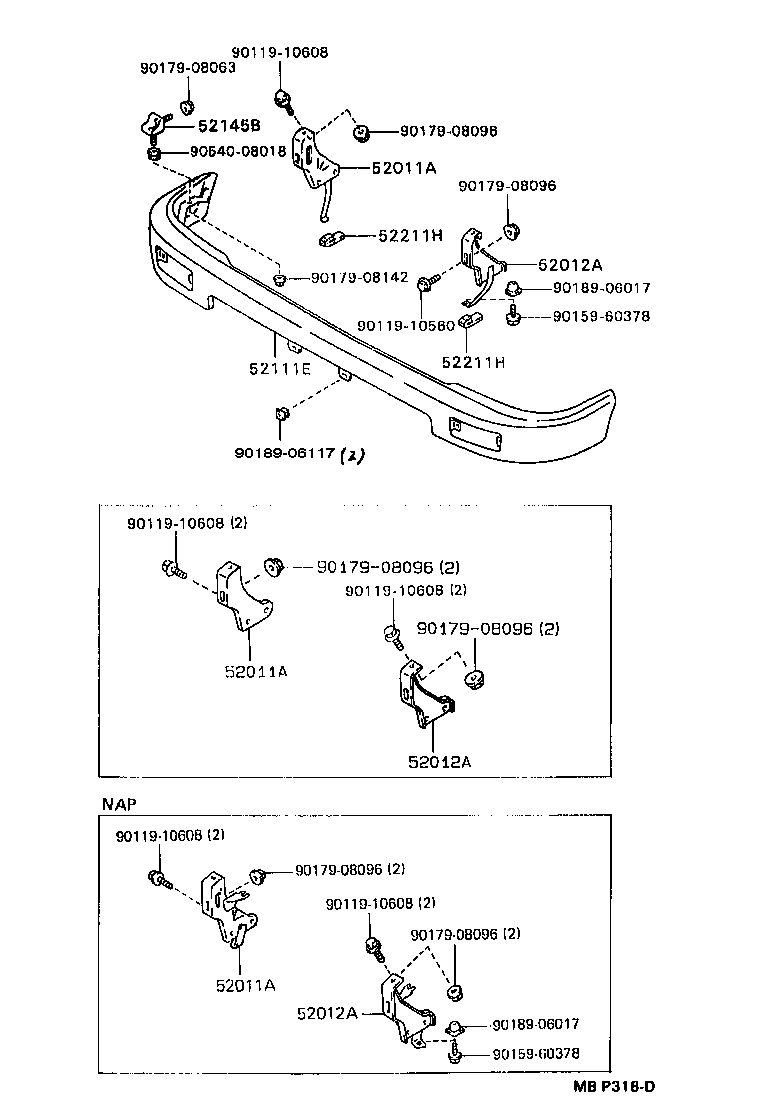

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52011A - ARM SUB-ASSY, FRONT BUMPER, RH | ||||
| 52011-89116 |
LN105,110,RN106,110,YN106,110..JPP |
1 | ||
| 52011-35030 |
LN10#,110,RN106,110,YN106,110..JPP |
1 | ||
| 52012A - ARM SUB-ASSY, FRONT BUMPER, LH | ||||
| 52012-89116 |
LN105,110,RN106,110,YN106,110..JPP |
1 | ||
| 52012-35030 |
LN10#,110,RN106,110,YN106,110..JPP |
1 | ||
| 52111C - BOLT, ROUND HEAD SQUARE NECK(FOR FRONT BUMPER) | ||||
| 90112-08070 |
RN106..JPP;LN105..JPP..IV3;LN105..JPP..TW1 CHROME PLATED PACKAGE & W(HEADLAMP CLEANER) |
6 | ||
| 90112-08070 |
LN105,110,130,RN106,110,VZN130,YN106,110..JPP |
6 | ||
| 90112-08069 |
LN105,110,130,RN106,110,VZN130,YN106,110..JPP CHROME PLATED PACKAGE |
6 | ||
| 52111E - BAR, FRONT BUMPER | ||||
| 52101-89114 |
LN105,110,130,RN106,110,VZN130,YN106,110..JPP PLATED |
1 | ||
| 52101-89113 |
LN105,110,130,RN106,110,VZN130,YN106,110..JPP NO PAINT REQ. |
1 | ||
| 52101-89115 |
LN105,110,130,RN106,110,VZN130,YN110..JPP..LHD NO PAINT REQ.,W(HEADLAMP CLEANER) |
1 | ||
| 52101-35090 |
LN10#,110,RN106,YN106,110..JPP PLATED |
1 | ||
| 52101-35090 |
LN10#,110,RN106,110,YN106,110..JPP PLATED |
1 | ||
| 52101-35080 |
LN10#,110,RN106,110,YN106,110..JPP NO PAINT REQ. |
1 | ||
| 52101-35090 |
LN10#,110,RN106,110..JPP PLATED |
1 | ||
| 52112D - EXTENSION, FRONT BUMPER, RH | ||||
| 52102-89113 |
LN105,110,RN106,110,YN106,110..JPP PLATED |
1 | ||
| 52102-89112 |
RN106..JPP;LN105..JPP..IV3;LN105..JPP..TW1 NO PAINT REQ.,W(HEADLAMP CLEANER) |
1 | ||
| 52102-89112 |
LN105,110,RN106,110,YN106,110..JPP NO PAINT REQ. |
1 | ||
| 52113D - EXTENSION, FRONT BUMPER, LH | ||||
| 52103-89112 |
RN106..JPP;LN105..JPP..IV3;LN105..JPP..TW1 NO PAINT REQ.,W(HEADLAMP CLEANER) |
1 | ||
| 52103-89112 |
LN105,110,RN106,110,YN106,110..JPP NO PAINT REQ. |
1 | ||
| 52103-89113 |
LN105,110,RN106,110,YN106,110..JPP PLATED |
1 | ||
| 52145B - BRACKET, FRONT BUMPER SIDE MOUNTING | ||||
| 52145-89102 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
2 | ||
| 52211H - CUSHION(FOR FRONT BUMPER ARM) | ||||
| 52211-89101 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
2 | ||
| 52211H - CUSHION(FOR FRONT BUMPER ARM) | ||||
| 52211-89101 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
2 | ||
| 52543 - SEAL, FRONT BUMPER SIDE, RH | ||||
| 52543-89101 |
LN105,110,130,RN106,110,VZN130,YN106,110..JPP |
1 | ||
| 52544 - SEAL, FRONT BUMPER SIDE, LH | ||||
| 52544-89101 |
LN105,110,130,RN106,110,VZN130,YN106,110..JPP |
1 | ||
| Common parts | ||||
| 90119-10608 | ||||
| 90159-60378 | ||||
| 90179-08063 | ||||
| 90179-08096 | ||||
| 90179-08142 | ||||
| 90189-06017 | ||||
| 90189-06117 | ||||
| 90540-08018 | ||||
(8808- )LN85,90,YN85,90..JPP ; (9108- )LN10#,110,RN106,110,YN106,110..JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52011A - ARM SUB-ASSY, FRONT BUMPER, RH | ||||
| 52011-89116 |
LN105,110,RN106,110,YN106,110..JPP |
1 | ||
| 52011-35030 |
LN10#,110,RN106,110,YN106,110..JPP |
1 | ||
| 52011A - ARM SUB-ASSY, FRONT BUMPER, RH | ||||
| 52011-89116 |
LN105,110,RN106,110,YN106,110..JPP |
1 | ||
| 52011-35030 |
LN10#,110,RN106,110,YN106,110..JPP |
1 | ||
| 52011A - ARM SUB-ASSY, FRONT BUMPER, RH | ||||
| 52011-89116 |
LN105,110,RN106,110,YN106,110..JPP |
1 | ||
| 52011-35030 |
LN10#,110,RN106,110,YN106,110..JPP |
1 | ||
| 52012A - ARM SUB-ASSY, FRONT BUMPER, LH | ||||
| 52012-89116 |
LN105,110,RN106,110,YN106,110..JPP |
1 | ||
| 52012-35030 |
LN10#,110,RN106,110,YN106,110..JPP |
1 | ||
| 52012A - ARM SUB-ASSY, FRONT BUMPER, LH | ||||
| 52012-89116 |
LN105,110,RN106,110,YN106,110..JPP |
1 | ||
| 52012-35030 |
LN10#,110,RN106,110,YN106,110..JPP |
1 | ||
| 52012A - ARM SUB-ASSY, FRONT BUMPER, LH | ||||
| 52012-89116 |
LN105,110,RN106,110,YN106,110..JPP |
1 | ||
| 52012-35030 |
LN10#,110,RN106,110,YN106,110..JPP |
1 | ||
| 52111E - BAR, FRONT BUMPER | ||||
| 52101-89114 |
LN105,110,130,RN106,110,VZN130,YN106,110..JPP PLATED |
1 | ||
| 52101-89113 |
LN105,110,130,RN106,110,VZN130,YN106,110..JPP NO PAINT REQ. |
1 | ||
| 52101-89115 |
LN105,110,130,RN106,110,VZN130,YN110..JPP..LHD NO PAINT REQ.,W(HEADLAMP CLEANER) |
1 | ||
| 52101-35090 |
LN10#,110,RN106,YN106,110..JPP PLATED |
1 | ||
| 52101-35090 |
LN10#,110,RN106,110,YN106,110..JPP PLATED |
1 | ||
| 52101-35080 |
LN10#,110,RN106,110,YN106,110..JPP NO PAINT REQ. |
1 | ||
| 52101-35090 |
LN10#,110,RN106,110..JPP PLATED |
1 | ||
| 52145B - BRACKET, FRONT BUMPER SIDE MOUNTING | ||||
| 52145-89102 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
2 | ||
| 52211H - CUSHION(FOR FRONT BUMPER ARM) | ||||
| 52211-89101 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
2 | ||
| 52211H - CUSHION(FOR FRONT BUMPER ARM) | ||||
| 52211-89101 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
2 | ||
| Common parts | ||||
| 90119-10560 | ||||
| 90119-10608 | ||||
| 90159-60378 | ||||
| 90179-08063 | ||||
| 90179-08096 | ||||
| 90179-08142 | ||||
| 90189-06017 | ||||
| 90189-06117 | ||||
| 90540-08018 | ||||
