LN105L-TRMRSW3 (1988)

Toyota Hilux (Jpp)

Production Aug 1988 - Aug 1997
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )JPP

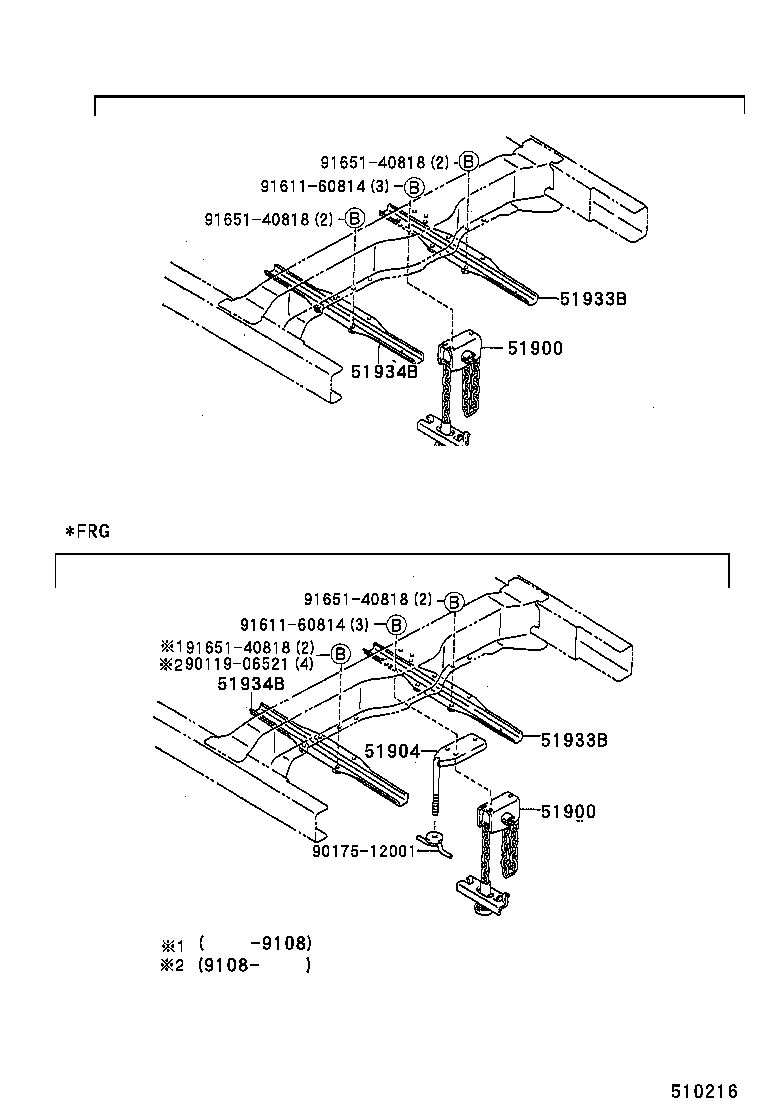

Click highlighted areas on diagram

diagram 51900 51900 51904 51933B 51933B 51934B 51934B 9011906521 9017512001 9161160814 9161160814 9165140818 9165140818 9165140818 9165140818
Part # Description Qty Price
51900 - CARRIER ASSY, SPARE WHEEL
51900-35121

LN105,YN106..JPP;KZN130,LN108,110,130,RN106,110,VZN130,YN110..JPP..LHD

 1
51900 - CARRIER ASSY, SPARE WHEEL
51900-35121

LN105,YN106..JPP;KZN130,LN108,110,130,RN106,110,VZN130,YN110..JPP..LHD

 1
51933B - STOPPER, SPARE WHEEL CARRIER, RH
51933-35040

LN10#,110,RN106,110,YN106,110..JPP

 1
51933-34010

LN10#,110,RN106,110,YN106,110..JPP

 1
51933B - STOPPER, SPARE WHEEL CARRIER, RH
51933-35040

LN10#,110,RN106,110,YN106,110..JPP

 1
51933-34010

LN10#,110,RN106,110,YN106,110..JPP

 1
51934B - STOPPER, SPARE WHEEL CARRIER, LH
51933-35040

LN10#,110,RN106,110,YN106,110..JPP

 1
51933-34010

LN10#,110,RN106,110,YN106,110..JPP

 1
51934B - STOPPER, SPARE WHEEL CARRIER, LH
51933-35040

LN10#,110,RN106,110,YN106,110..JPP

 1
51933-34010

LN10#,110,RN106,110,YN106,110..JPP

 1
Common parts
90119-06521
90175-12001
91611-60814
91651-40818

(9108- )JPP

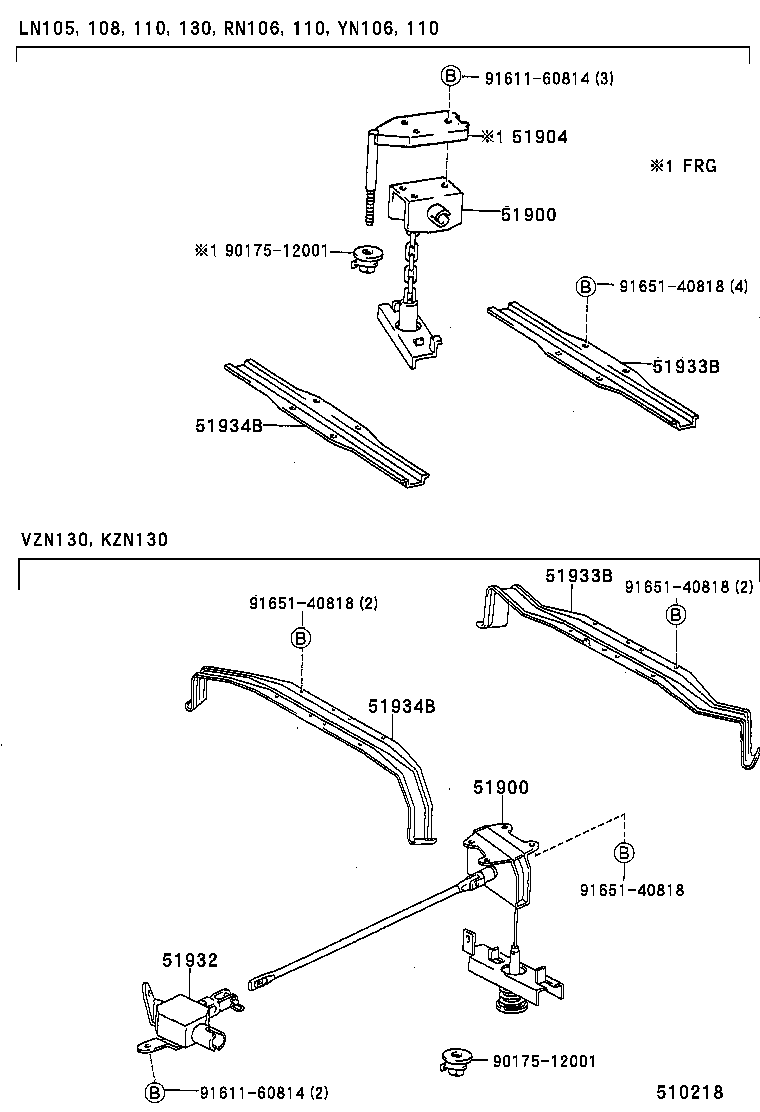

Click highlighted areas on diagram

diagram 51900 51900 51904 51932 51933B 51933B 51934B 51934B 9017512001 9017512001 9161160814 9161160814 9165140818 9165140818 9165140818 9165140818
Part # Description Qty Price
51900 - CARRIER ASSY, SPARE WHEEL
51900-35121

LN105,YN106..JPP;KZN130,LN108,110,130,RN106,110,VZN130,YN110..JPP..LHD

 1
51900 - CARRIER ASSY, SPARE WHEEL
51900-35121

LN105,YN106..JPP;KZN130,LN108,110,130,RN106,110,VZN130,YN110..JPP..LHD

 1
51933B - STOPPER, SPARE WHEEL CARRIER, RH
51933-35040

LN10#,110,RN106,110,YN106,110..JPP

 1
51933-34010

LN10#,110,RN106,110,YN106,110..JPP

 1
51933B - STOPPER, SPARE WHEEL CARRIER, RH
51933-35040

LN10#,110,RN106,110,YN106,110..JPP

 1
51933-34010

LN10#,110,RN106,110,YN106,110..JPP

 1
51934B - STOPPER, SPARE WHEEL CARRIER, LH
51933-35040

LN10#,110,RN106,110,YN106,110..JPP

 1
51933-34010

LN10#,110,RN106,110,YN106,110..JPP

 1
51934B - STOPPER, SPARE WHEEL CARRIER, LH
51933-35040

LN10#,110,RN106,110,YN106,110..JPP

 1
51933-34010

LN10#,110,RN106,110,YN106,110..JPP

 1
Common parts
90175-12001
91611-60814
91651-40818
