LN105L-TRMRSW3 (1988)

Toyota Hilux (Jpp)

Production Aug 1988 - Aug 1997
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )KZN130,LN10#,110,130,RN106,110,VZN130,YN106,110..JPP

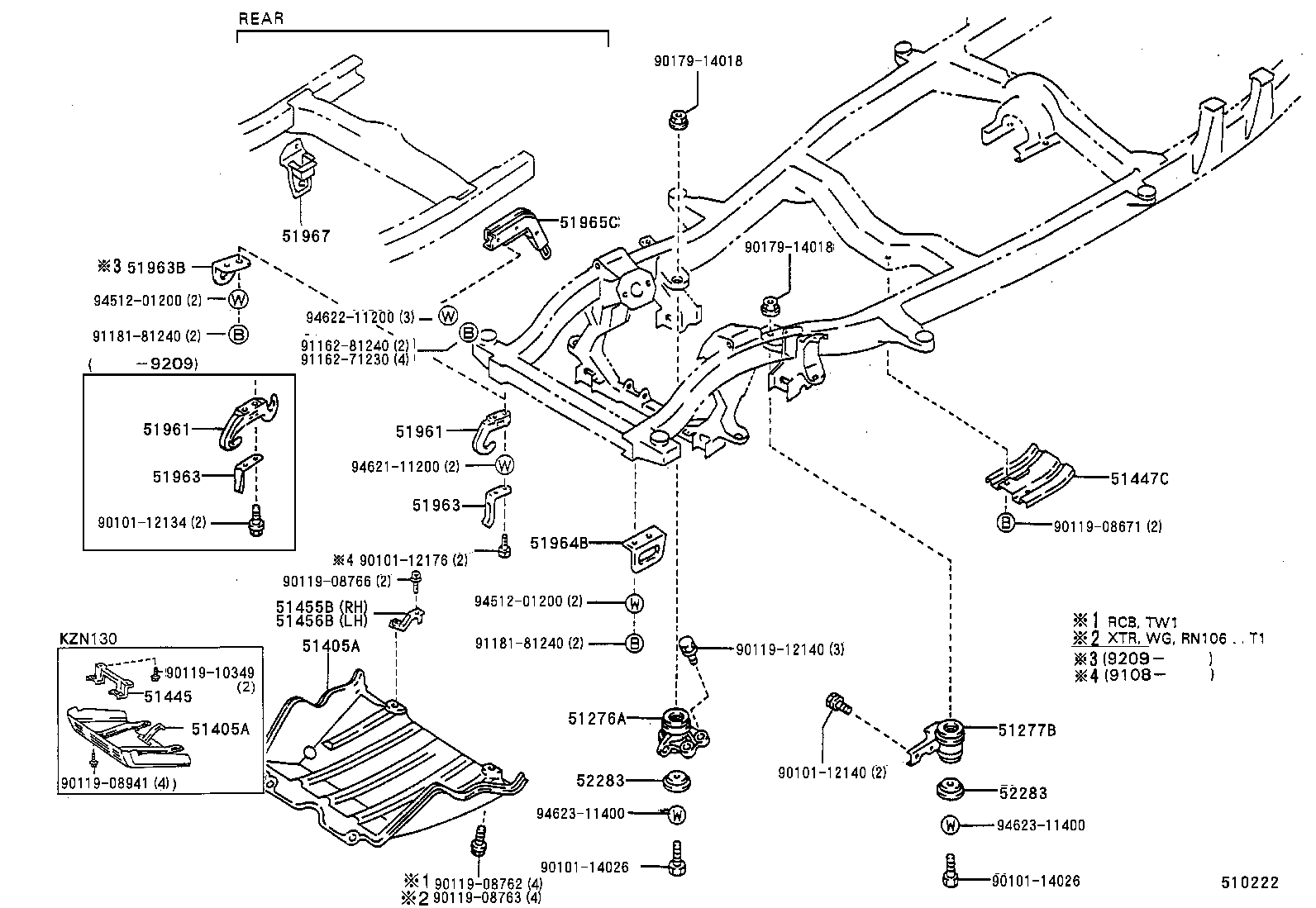

Click highlighted areas on diagram

diagram 51276A 51277B 51405A 51405A 51445 51447C 51455B 51456B 51961 51961 51963 51963 51963B 51964B 51965C 51967 52283 52283 9010112134 9010112140 9010112176 9010114026 9010114026 9011908671 9011908762 9011908763 9011908766 9011908941 9011910349 9011912140 9017914018 9017914018 9116271230 9116281240 9118181240 9118181240 9451201200 9451201200 9462111200 9462211200 9462311400 9462311400
Part # Description Qty Price
51405A - COVER SUB-ASSY, ENGINE UNDER, NO.1
51405-35021

LN105..JPP..LHD

 1
51405-35020

LN105..JPP..LHD

 1
51405A - COVER SUB-ASSY, ENGINE UNDER, NO.1
51405-35021

LN105..JPP..LHD

 1
51405-35020

LN105..JPP..LHD

 1
51447C - PROTECTOR, TRANSFER CASE
51447-35020

LN10#,110,RN106,110,YN106,110..JPP

 1
51961 - HOOK, NO.1
51961-35020

LN105,YN106..JPP

 1
51961-35020

KZN130,LN10#,110,130,RN106,110,VZN130,YN106,110..JPP

 1
51961 - HOOK, NO.1
51961-35020

LN105,YN106..JPP

 1
51961-35020

KZN130,LN10#,110,130,RN106,110,VZN130,YN106,110..JPP

 1
51963 - STOPPER, HOOK WIRE
51963-35060

KZN130,LN10#,110,130,RN106,110,VZN130,YN106,110..JPP

 1
51963 - STOPPER, HOOK WIRE
51963-35060

KZN130,LN10#,110,130,RN106,110,VZN130,YN106,110..JPP

 1
Common parts
90101-12134
90101-12140
90101-12176
90101-14026
90119-08671
90119-08762
90119-08763
90119-08766
90119-08941
90119-10349
90119-12140
90179-14018
91162-71230
91162-81240
91181-81240
94512-01200
94621-11200
94622-11200
94623-11400
