LN105L-TRMRSW3 (1988)

Toyota Hilux (Jpp)

Production Aug 1988 - Aug 1997
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )LN10#,110,RN106,110,YN106,110..JPP

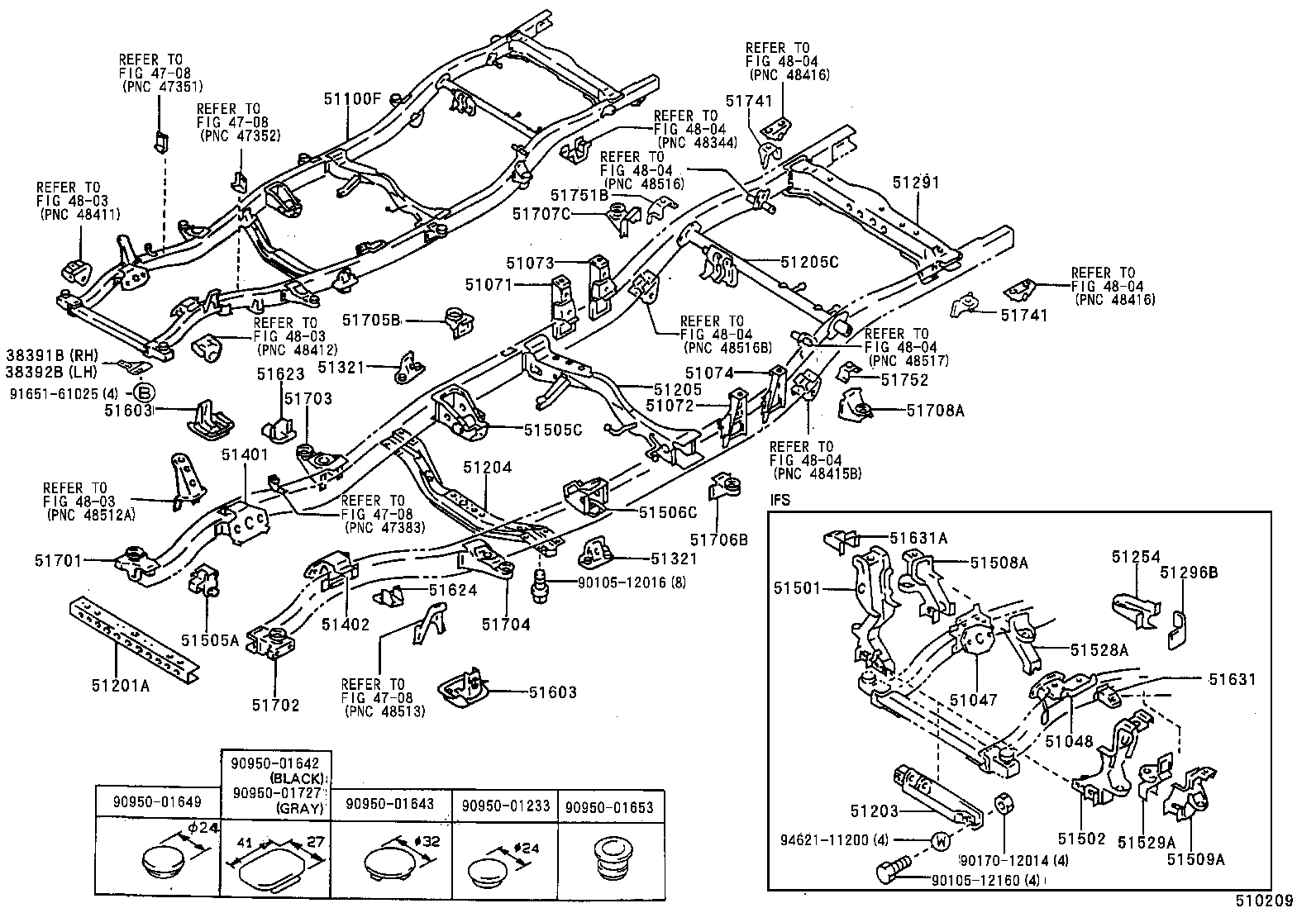

Click highlighted areas on diagram

diagram 38391B 38392B 4708 4708 4708 4708 4803 4803 4803 4804 4804 4804 4804 4804 4804 4804 51047 51048 51071 51072 51073 51074 51100F 51201A 51203 51204 51205 51205C 51254 51291 51296B 51321 51321 51401 51402 51501 51502 51505A 51505C 51506C 51508A 51509A 51528A 51529A 51603 51603 51623 51624 51631 51631A 51701 51702 51703 51704 51705B 51706B 51707C 51708A 51741 51741 51751B 51752 9010512016 9010512160 9017012014 9095001233 9095001642 9095001643 9095001649 9095001653 9095001727 9165161025 9462111200
Part # Description Qty Price
51071 - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.1 RH
51071-35050

LN105,85,RN106,YN106,85..JPP..T1

 1
51072 - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.1 LH
51071-35050

LN105,85,RN106,YN106,85..JPP..T1

 1
51073 - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 RH
51073-35020

LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..T1

 1
51074 - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 LH
51074-35020

LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..T1

 1
51100F - FRAME SUB-ASSY
51003-35350

LN105..JPP..LHD..T1

 1
51002-3D850

LN105..JPP..LHD..T1

W(LSD)

 1
51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT
51201-35200

LN105,110,130,RN106,110,VZN130,YN106,110..JPP

 1
51201-35180

LN105,110,130,RN106,110,VZN130,YN106,110..JPP

 1
51201-35240

VZN130..JPP..4FC;LN10#,110,130,RN106,110..JPP

 1
51201-35240

LN10#,110,130,RN106,110,VZN130..JPP

 1
51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3
51202-35240

LN105,110,RN106,110,YN106,110..JPP

 1
51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4
51204-35400

LN105,YN106..JPP

 1
51205C - CROSSMEMBER SUB-ASSY, FRAME, NO.5
51205-35131

LN10#,110,RN106,110,YN106,110..JPP

 1
51205-35220

LN10#..JPP..LHD

W(LSD)

 1
51291 - CROSSMEMBER, FRAME, REAR
51291-35100

LN105,85,90,YN106,85,90..JPP..T1

 1
51321 - GUSSET, CROSSMEMBER, NO.2 RH
51321-35050

LN105,YN106..JPP

 2
51321 - GUSSET, CROSSMEMBER, NO.2 RH
51321-35050

LN105,YN106..JPP

 2
51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51401-35200

LN105..JPP

 1
51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51402-35190

LN105..JPP

 1
51505A - SUPPORT SUB-ASSY, UPPER CONTROL ARM
51505-35042

LN105..JPP..LHD

 1
51603 - BRACKET SUB-ASSY, FRONT SUSPENSION BOUND
51603-35020

LN105,YN106..JPP

 2
51603-35040

LN105,YN106..JPP

 2
51603 - BRACKET SUB-ASSY, FRONT SUSPENSION BOUND
51603-35020

LN105,YN106..JPP

 2
51603-35040

LN105,YN106..JPP

 2
51623 - BRACKET, FRONT SPRING BOUND STOPPER, RH
51623-35020

LN105,YN106..JPP

 1
51624 - BRACKET, FRONT SPRING BOUND STOPPER, LH
51624-35020

LN105,YN106..JPP

 1
51701 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH
51701-35120

LN105,YN106..JPP

 1
51702 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH
51702-35100

LN105,YN106..JPP

 1
51703 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH
51703-35060

LN105,85,90,YN106,85,90..JPP

 1
51704 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH
51704-35080

LN105,85,90,YN106,85,90..JPP

 1
51705B - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 RH
51705-35090

LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP

 1
51706B - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 LH
51705-35090

LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP

 1
51741 - BRACKET, REAR BODY MOUNTING, NO.1
51741-35050

LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP

 2
51715-35020

LN105,110,85,90,RN110,YN106,110,85,90..JPP

TYPE A

 1
51741-35050

LN105,110,85,90,RN110,YN106,110,85,90..JPP

TYPE B

 2
51741 - BRACKET, REAR BODY MOUNTING, NO.1
51741-35050

LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP

 2
51715-35020

LN105,110,85,90,RN110,YN106,110,85,90..JPP

TYPE A

 1
51741-35050

LN105,110,85,90,RN110,YN106,110,85,90..JPP

TYPE B

 2
Common parts
90105-12016
90105-12160
90170-12014
90950-01233
90950-01642
90950-01643
90950-01649
90950-01653
90950-01727
91651-61025
94621-11200
Linked diagrams
4708
4803
4804
