LN105L-TRMRSW3 (1988)
Toyota Hilux (Jpp)

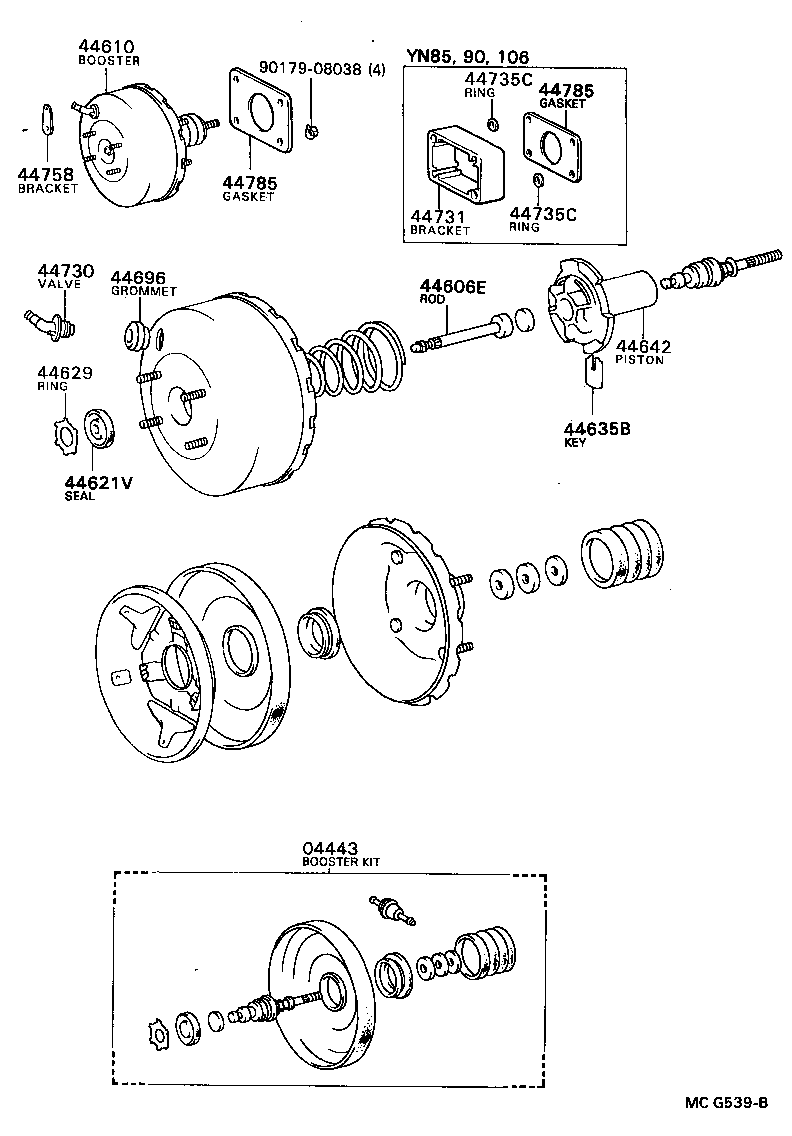

ILLUST NO. 1 OF 2(8808- )LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP
AISIN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-35730 |
LN105,110,85,90..JPP |
1 | ||
| 44606E - ROD SUB-ASSY, BRAKE BOOSTER PISTON | ||||
| 44606-12520 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-3D130 |
LN105,110,85,90..JPP..LHD |
1 | ||
| 44610-3D131 |
LN10#,110,85,90..JPP..LHD |
1 | ||
| 44621V - SEAL, BOOSTER BODY | ||||
| 44621-28120 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP |
1 | ||
| 44629 - RING, CIRCULAR INTERNAL | ||||
| 44628-28120 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP |
1 | ||
| 44635B - KEY, VALVE STOPPER | ||||
| 44635-28120 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-32030 |
LN105,110,85,90,RN106,110,YN106,110,85,90..JPP |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-60050 |
KZN130,LN10#,110,130,85,90..JPP |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-35020 |
LN10#,110,130,85,90,RN106,110,VZN130,YN106,110..JPP |
1 | ||
| 44785-35020 |
LN10#,110,130,85,90,RN106,110,VZN130,YN110..JPP |
1 | ||
| 44785-35020 |
LN10#,110,85,90,RN106,110,VZN130,YN106,110..JPP |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-35020 |
LN10#,110,130,85,90,RN106,110,VZN130,YN106,110..JPP |
1 | ||
| 44785-35020 |
LN10#,110,130,85,90,RN106,110,VZN130,YN110..JPP |
1 | ||
| 44785-35020 |
LN10#,110,85,90,RN106,110,VZN130,YN106,110..JPP |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||

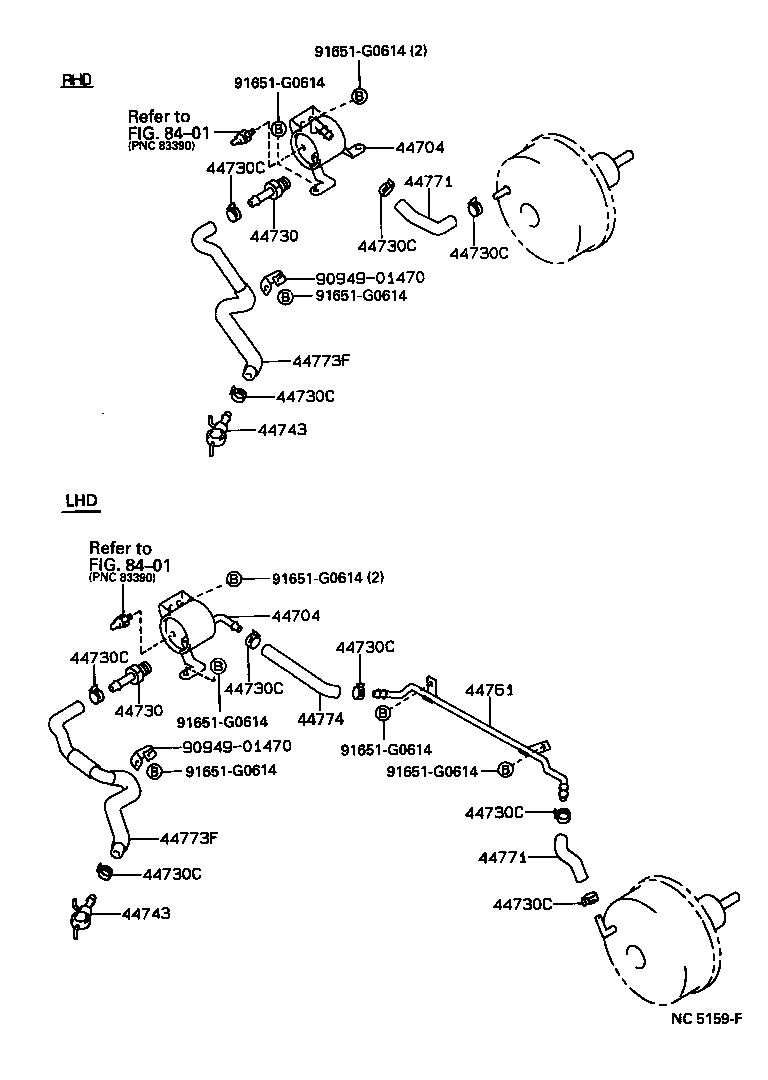

ILLUST NO. 2 OF 2(8808- )LN10#,110,85,90..JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-35060 |
LN10#,110,85,90..JPP..LHD |
1 | ||
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-35060 |
LN10#,110,85,90..JPP..LHD |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-60050 |
KZN130,LN10#,110,130,85,90..JPP |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-60050 |
KZN130,LN10#,110,130,85,90..JPP |
1 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
LN10#,110,130,85,90..JPP..LHD |
6 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
LN10#,110,130,85,90..JPP..LHD |
6 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
LN10#,110,130,85,90..JPP..LHD |
6 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
LN10#,110,130,85,90..JPP..LHD |
6 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
LN10#,110,130,85,90..JPP..LHD |
6 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
LN10#,110,130,85,90..JPP..LHD |
6 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
LN10#,110,130,85,90..JPP..LHD |
6 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
LN10#,110,130,85,90..JPP..LHD |
6 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
LN10#,110,130,85,90..JPP..LHD |
6 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
LN10#,110,130,85,90..JPP..LHD |
6 | ||
| 44743 - UNION(FOR VACUUM PUMP) | ||||
| 90405-09150 |
LN10#,110,85,90..JPP |
1 | ||
| 90405-09128 |
LN105,110,85,90..JPP |
1 | ||
| 90405-09149 |
LN10#,110,85,90..JPP..LHD W(AIR CONDITIONER) |
1 | ||
| 44743 - UNION(FOR VACUUM PUMP) | ||||
| 90405-09150 |
LN10#,110,85,90..JPP |
1 | ||
| 90405-09128 |
LN105,110,85,90..JPP |
1 | ||
| 90405-09149 |
LN10#,110,85,90..JPP..LHD W(AIR CONDITIONER) |
1 | ||
| 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR | ||||
| 44761-35080 |
LN10#,110,85,90..JPP..LHD |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44771-35100 |
LN10#,110,85,90..JPP..LHD |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44771-35100 |
LN10#,110,85,90..JPP..LHD |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-35420 |
LN105,110,85,90..JPP..LHD |
1 | ||
| 44773-35530 |
LN10#,110,85,90..JPP..LHD |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-35420 |
LN105,110,85,90..JPP..LHD |
1 | ||
| 44773-35530 |
LN10#,110,85,90..JPP..LHD |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 95441-09300 |
LN10#,110,85,90..JPP..LHD |
1 | ||
| 95446-09230 |
LN10#,110,85,90..JPP..LHD |
1 | ||
| Common parts | ||||
| 90949-01470 | ||||
| 91651-G0614 | ||||
| Linked diagrams | ||||
| 8401 | ||||
