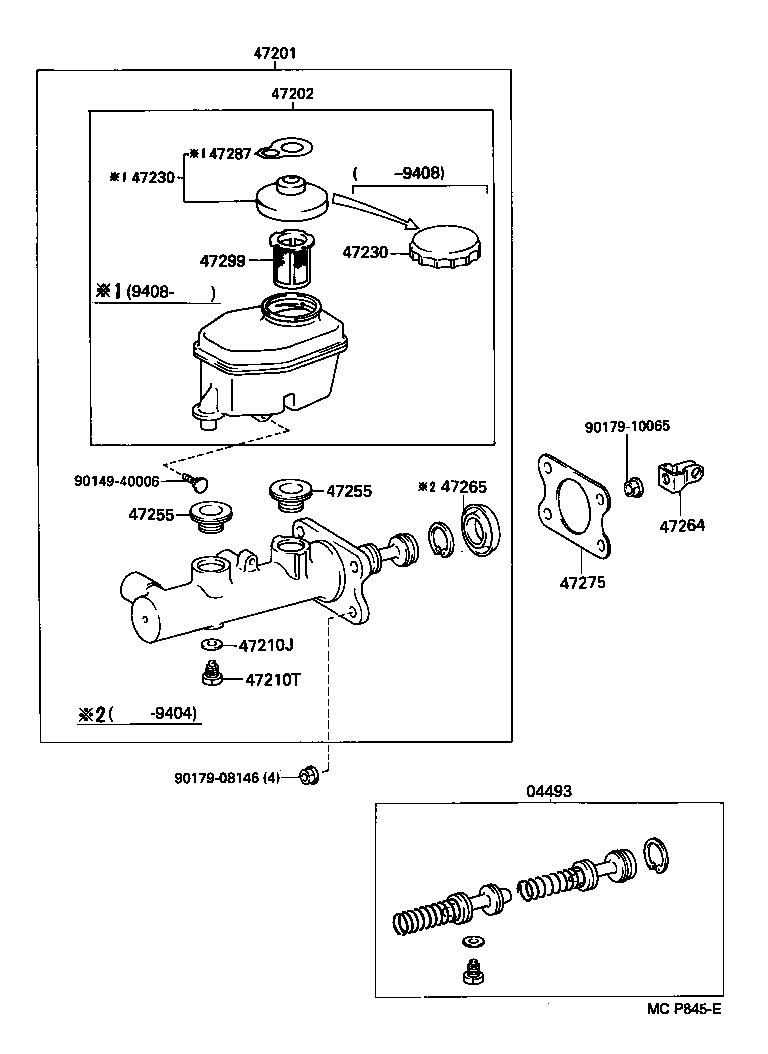

LN105L-TRMRSW3 (1988)
Toyota Hilux (Jpp)
(8808- )JPP
VW BRAND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04493 - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-35280 |
LN105,110,130,RN106,110,VZN130,YN106,110..JPP |
1 | ||
| 04493-25060 |
LN10#,110..JPP..LHD |
1 | ||
| 04493-35320 |
KZN130,LN10#,110,130,RN106,110,VZN130,YN106,110..JPP |
1 | ||
| 04493-25060 |
LN10#,110,RN106,110..JPP |
1 | ||
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-35620 |
YN106..JPP;LN105,110..JPP..LHD |
1 | ||
| 47201-3D040 |
YN106..JPP;LN10#,110,130,RN106,110,VZN130,YN110..JPP..LHD |
1 | ||
| 47201-3D150 |
YN106..JPP;KZN130,LN10#,110,130,RN106,110,VZN130,YN110..JPP..LHD |
1 | ||
| 47201-3D151 |
KZN130,LN10#,110,130,RN106,110,VZN130..JPP..LHD |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47202-35210 |
YN106,85..JPP;LN105,110,85,90,YN90..JPP..LHD |
1 | ||
| 47202-35320 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 47202-35220 |
LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 47202-35321 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130..JPP |
1 | ||
| 47210J - GASKET(FOR MASTER CYLINDER) | ||||
| 90430-06104 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 47210T - BOLT(FOR BRAKE MASTER CYLINDER) | ||||
| 90109-06077 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-20140 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130..JPP |
1 | ||
| 47230-20100 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 84460-35040 |
LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 84460-12070 |
LN105,110,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
2 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
2 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-22010 |
LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP |
1 | ||
| 47264-28010 |
LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP |
1 | ||
| 47265 - BOOT, MASTER CYLINDER | ||||
| 47265-20050 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 47275 - GASKET, BRAKE MASTER CYLINDER | ||||
| 47275-24010 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-24010 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 47299-32010 |
LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| Common parts | ||||
| 90149-40006 | ||||
| 90179-08146 | ||||
| 90179-10065 | ||||
(8808- )JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04493 - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-35280 |
LN105,110,130,RN106,110,VZN130,YN106,110..JPP |
1 | ||
| 04493-25060 |
LN10#,110..JPP..LHD |
1 | ||
| 04493-35320 |
KZN130,LN10#,110,130,RN106,110,VZN130,YN106,110..JPP |
1 | ||
| 04493-25060 |
LN10#,110,RN106,110..JPP |
1 | ||
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-35620 |
YN106..JPP;LN105,110..JPP..LHD |
1 | ||
| 47201-3D040 |
YN106..JPP;LN10#,110,130,RN106,110,VZN130,YN110..JPP..LHD |
1 | ||
| 47201-3D150 |
YN106..JPP;KZN130,LN10#,110,130,RN106,110,VZN130,YN110..JPP..LHD |
1 | ||
| 47201-3D151 |
KZN130,LN10#,110,130,RN106,110,VZN130..JPP..LHD |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47202-35210 |
YN106,85..JPP;LN105,110,85,90,YN90..JPP..LHD |
1 | ||
| 47202-35320 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 47202-35220 |
LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 47202-35321 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130..JPP |
1 | ||
| 47210J - GASKET(FOR MASTER CYLINDER) | ||||
| 90430-06104 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 47210T - BOLT(FOR BRAKE MASTER CYLINDER) | ||||
| 90109-06077 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-20140 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130..JPP |
1 | ||
| 47230-20100 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 84460-35040 |
LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 84460-12070 |
LN105,110,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-20140 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130..JPP |
1 | ||
| 47230-20100 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 84460-35040 |
LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 84460-12070 |
LN105,110,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
2 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
2 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-22010 |
LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP |
1 | ||
| 47264-28010 |
LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP |
1 | ||
| 47265 - BOOT, MASTER CYLINDER | ||||
| 47265-20050 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 47275 - GASKET, BRAKE MASTER CYLINDER | ||||
| 47275-24010 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 47287 - LABEL, BRAKE FLUID INFORMATION | ||||
| 47287-20010 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130..JPP |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-24010 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 47299-32010 |
LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| Common parts | ||||
| 90149-40006 | ||||
| 90179-08146 | ||||
| 90179-10065 | ||||
