Toyota Hilux (jpp) LN105 DISC WHEEL & WHEEL CAP

Manufacturers Home
Toyota
EU
HILUX (JPP)
LN105L-TRMRSW3 (1988)
4103 - DISC WHEEL & WHEEL CAP

LN105L-TRMRSW3 (1988)

Toyota Hilux (Jpp)

Production Aug 1988 - Aug 1997

Engine 2L

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 3 OF 5(8808- )JPP

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price

ILLUST NO. 4 OF 5(9108- )JPP

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price

ILLUST NO. 5 OF 5(8808- )JPP

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price

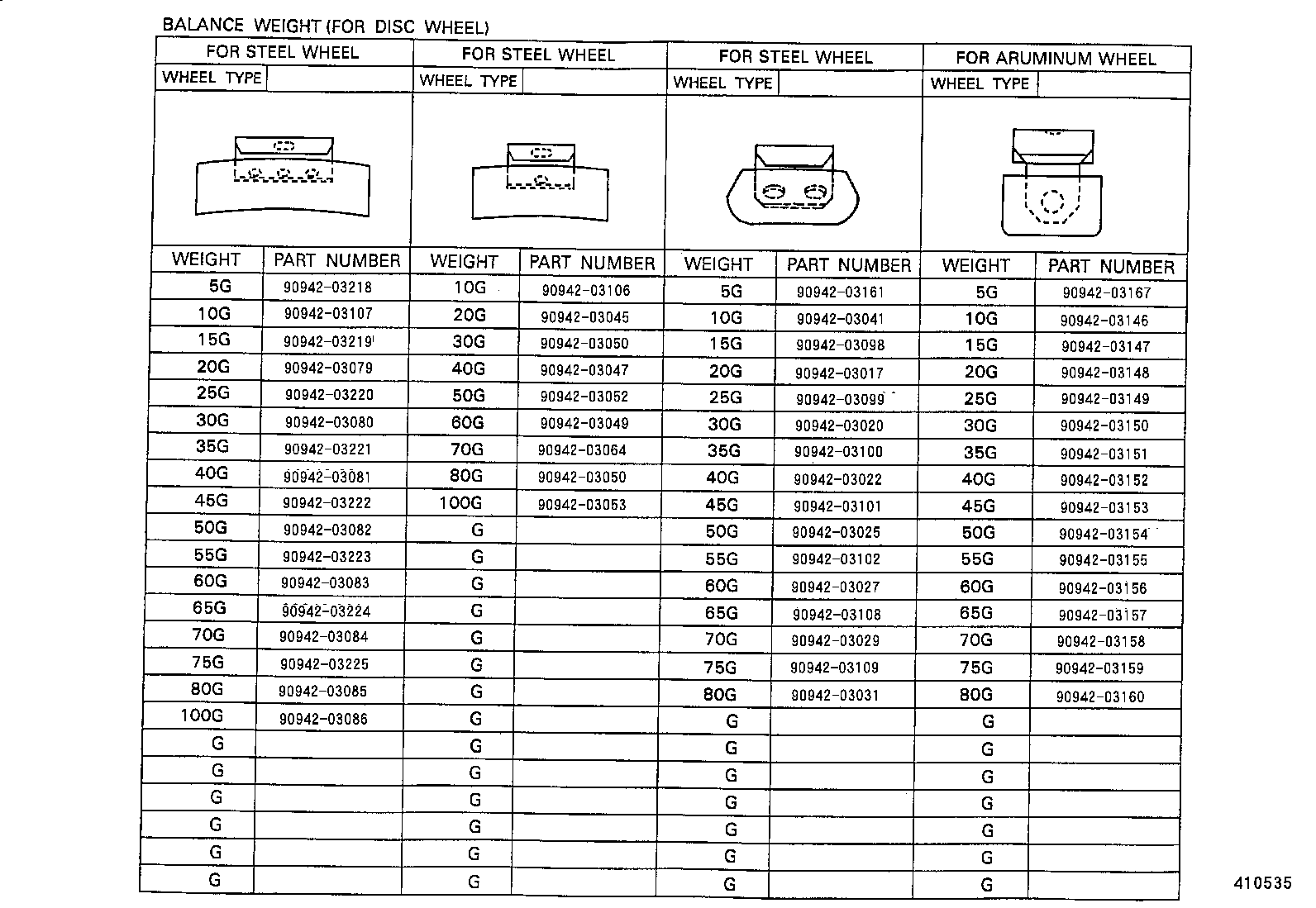

Common parts
90942-03017
90942-03020
90942-03022
90942-03025
90942-03027
90942-03029
90942-03031
90942-03041
90942-03045
90942-03047
90942-03049
90942-03050
90942-03052
90942-03053
90942-03064
90942-03079
90942-03080
90942-03081
90942-03082
90942-03083
90942-03084
90942-03085
90942-03086
90942-03098
90942-03099
90942-03100
90942-03101
90942-03102
90942-03106
90942-03107
90942-03108
90942-03109
90942-03146
90942-03147
90942-03148
90942-03149
90942-03150
90942-03151
90942-03152
90942-03153
90942-03154
90942-03155
90942-03156
90942-03157
90942-03158
90942-03159
90942-03160
90942-03161
90942-03167
90942-03218
90942-03219
90942-03220
90942-03221
90942-03222
90942-03223
90942-03224
90942-03225

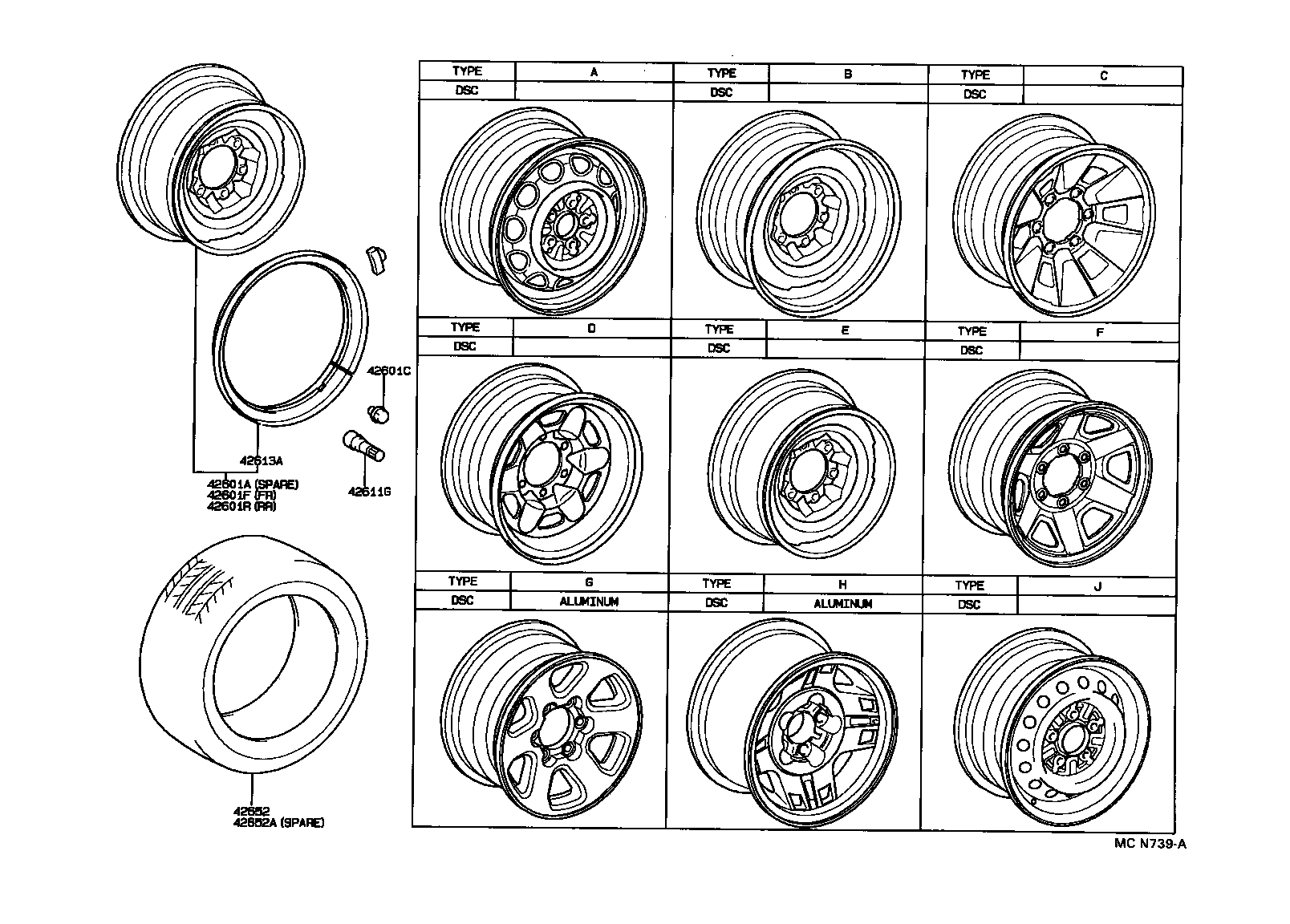

ILLUST NO. 1 OF 5(8808- )JPP

Click highlighted areas on diagram

Part #	Description	Period	Qty
42601A - WHEEL, DISC (FOR SPARE)
42610-60022	LN105,YN106..JPP 5.50F-16,#,TYPE E	08/1988 - 08/1991	1
42601-3555003	LN105,YN106..JPP 6JX16,TYPE D,SILVER M.	08/1988 - 01/1993	1
42610-6011103	LN105,YN106..JPP 5.50F-16,#,TYPE E,GRAY	08/1991 - 12/2999	1
42601-6026203	LN105,YN106..JPP 16X6J,TYPE D,SILVER	01/1993 - 12/2999	1
42601C - NUT, HUB (FOR AXLE)
90942-01048	LN105,YN106..JPP CAP NUT	08/1988 - 02/1989	24
90942-01075	LN105,YN106..JPP;KZN130,LN108,110,130,RN106,110,VZN130,YN110..JPP..LHD CAP NUT	02/1989 - 12/2999	24
90942-01007	LN105,YN106..JPP	08/1988 - 11/1993	24
90942-01051	LN105,YN106..JPP	11/1993 - 12/2999	24
42601F - WHEEL, DISC (FOR FRONT)
42601-3555003	LN105,YN106..JPP 6JX16,TYPE D,SILVER M.	08/1988 - 10/1991	2
42601-3555003	LN105,VZN130,YN106..JPP 6JX16,TYPE D,SILVER M.	10/1991 - 01/1993	2
42610-60022	LN105,YN106..JPP 5.50F-16,#,TYPE E	08/1988 - 08/1991	2
42610-6011103	LN105,YN106..JPP 5.50F-16,#,TYPE E,GRAY	08/1991 - 12/2999	2
42601-6026203	LN105,YN106..JPP 16X6J,TYPE D,SILVER	01/1993 - 12/2999	2
42601R - WHEEL, DISC (FOR REAR)
42610-60022	LN105,YN106..JPP 5.50F-16,#,TYPE E	08/1988 - 08/1991	2
42601-3555003	LN105,YN106..JPP 6JX16,TYPE D,SILVER M.	08/1988 - 10/1991	2
42601-6026203	LN105,YN106..JPP 16X6J,TYPE D,SILVER	01/1993 - 12/2999	2
42601-3555003	LN105,VZN130,YN106..JPP 6JX16,TYPE D,SILVER M.	10/1991 - 01/1993	2
42610-6011103	LN105,YN106..JPP 5.50F-16,#,TYPE E,GRAY	08/1991 - 12/2999	2
42613A - RING, DISC WHEEL SIDE
42613-36020	LN105,YN106..JPP	08/1988 - 01/1993	5
42613-60080	LN105,YN106..JPP	01/1993 - 12/2999	5
42652 - TIRE
42605-35230	LN105,YN106..JPP 205R16C-104R	08/1988 - 12/2999	4
42605-35210	LN105,YN106..JPP 205R16C-104R,W(6JX16 WHEEL)	08/1988 - 12/2999	4
42652A - TIRE (FOR SPARE)
42605-35210	LN105,YN106..JPP 205R16C-104R,W(6JX16 WHEEL)	08/1988 - 12/2999	1
42605-35230	LN105,YN106..JPP 205R16C-104R	08/1988 - 12/2999	1

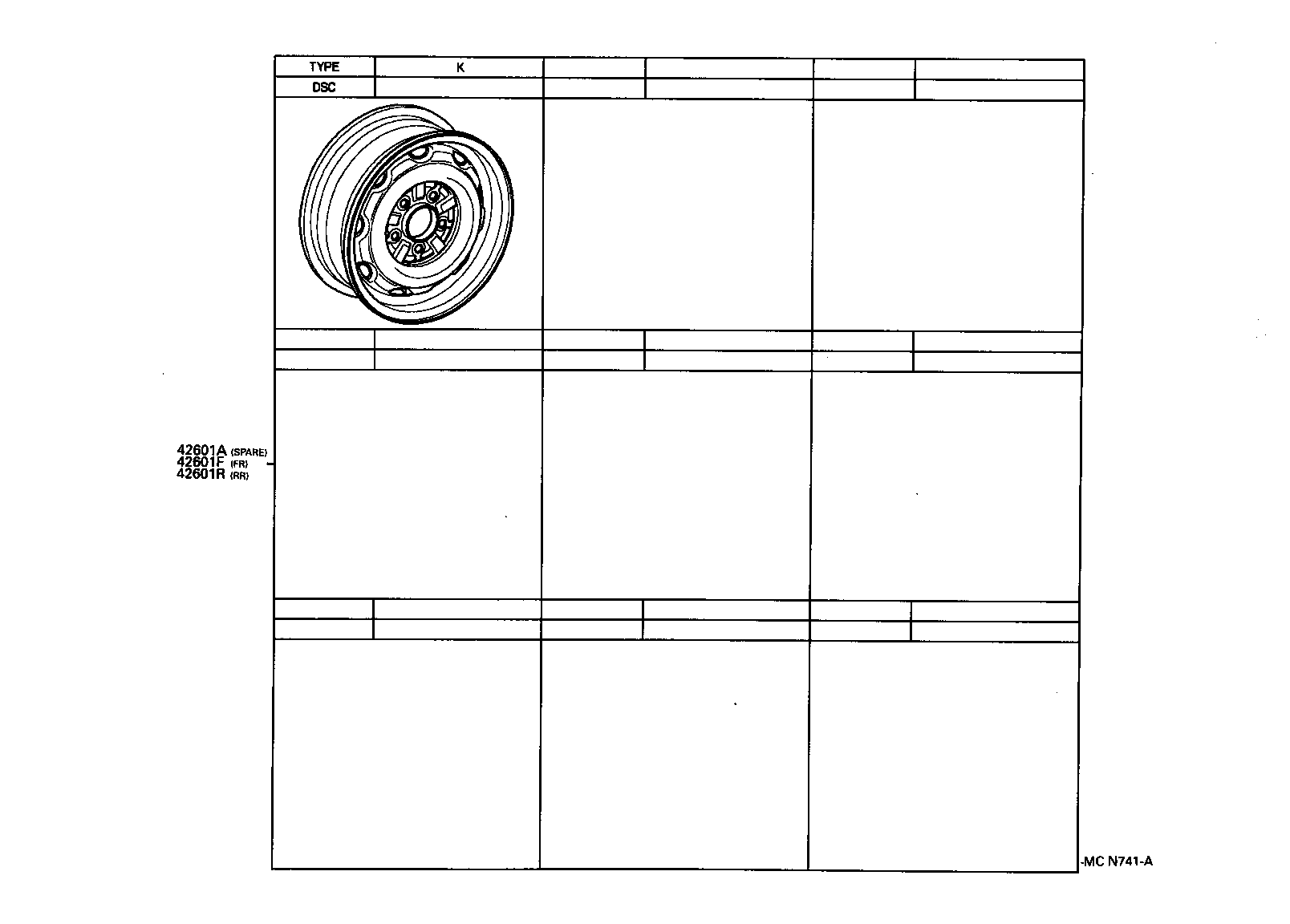

ILLUST NO. 2 OF 5(8808- )JPP

Click highlighted areas on diagram

Part #	Description	Period	Qty
42601A - WHEEL, DISC (FOR SPARE)
42610-60022	LN105,YN106..JPP 5.50F-16,#,TYPE E	08/1988 - 08/1991	1
42601-3555003	LN105,YN106..JPP 6JX16,TYPE D,SILVER M.	08/1988 - 01/1993	1
42610-6011103	LN105,YN106..JPP 5.50F-16,#,TYPE E,GRAY	08/1991 - 12/2999	1
42601-6026203	LN105,YN106..JPP 16X6J,TYPE D,SILVER	01/1993 - 12/2999	1
42601F - WHEEL, DISC (FOR FRONT)
42601-3555003	LN105,YN106..JPP 6JX16,TYPE D,SILVER M.	08/1988 - 10/1991	2
42601-3555003	LN105,VZN130,YN106..JPP 6JX16,TYPE D,SILVER M.	10/1991 - 01/1993	2
42610-60022	LN105,YN106..JPP 5.50F-16,#,TYPE E	08/1988 - 08/1991	2
42610-6011103	LN105,YN106..JPP 5.50F-16,#,TYPE E,GRAY	08/1991 - 12/2999	2
42601-6026203	LN105,YN106..JPP 16X6J,TYPE D,SILVER	01/1993 - 12/2999	2
42601R - WHEEL, DISC (FOR REAR)
42610-60022	LN105,YN106..JPP 5.50F-16,#,TYPE E	08/1988 - 08/1991	2
42601-3555003	LN105,YN106..JPP 6JX16,TYPE D,SILVER M.	08/1988 - 10/1991	2
42601-6026203	LN105,YN106..JPP 16X6J,TYPE D,SILVER	01/1993 - 12/2999	2
42601-3555003	LN105,VZN130,YN106..JPP 6JX16,TYPE D,SILVER M.	10/1991 - 01/1993	2
42610-6011103	LN105,YN106..JPP 5.50F-16,#,TYPE E,GRAY	08/1991 - 12/2999	2

LN105L-TRMRSW3 (1988)

ILLUST NO. 3 OF 5(8808- )JPP

ILLUST NO. 4 OF 5(9108- )JPP

ILLUST NO. 5 OF 5(8808- )JPP

ILLUST NO. 1 OF 5(8808- )JPP

ILLUST NO. 2 OF 5(8808- )JPP
