LN105L-TRMRSW3 (1988)
Toyota Hilux (Jpp)

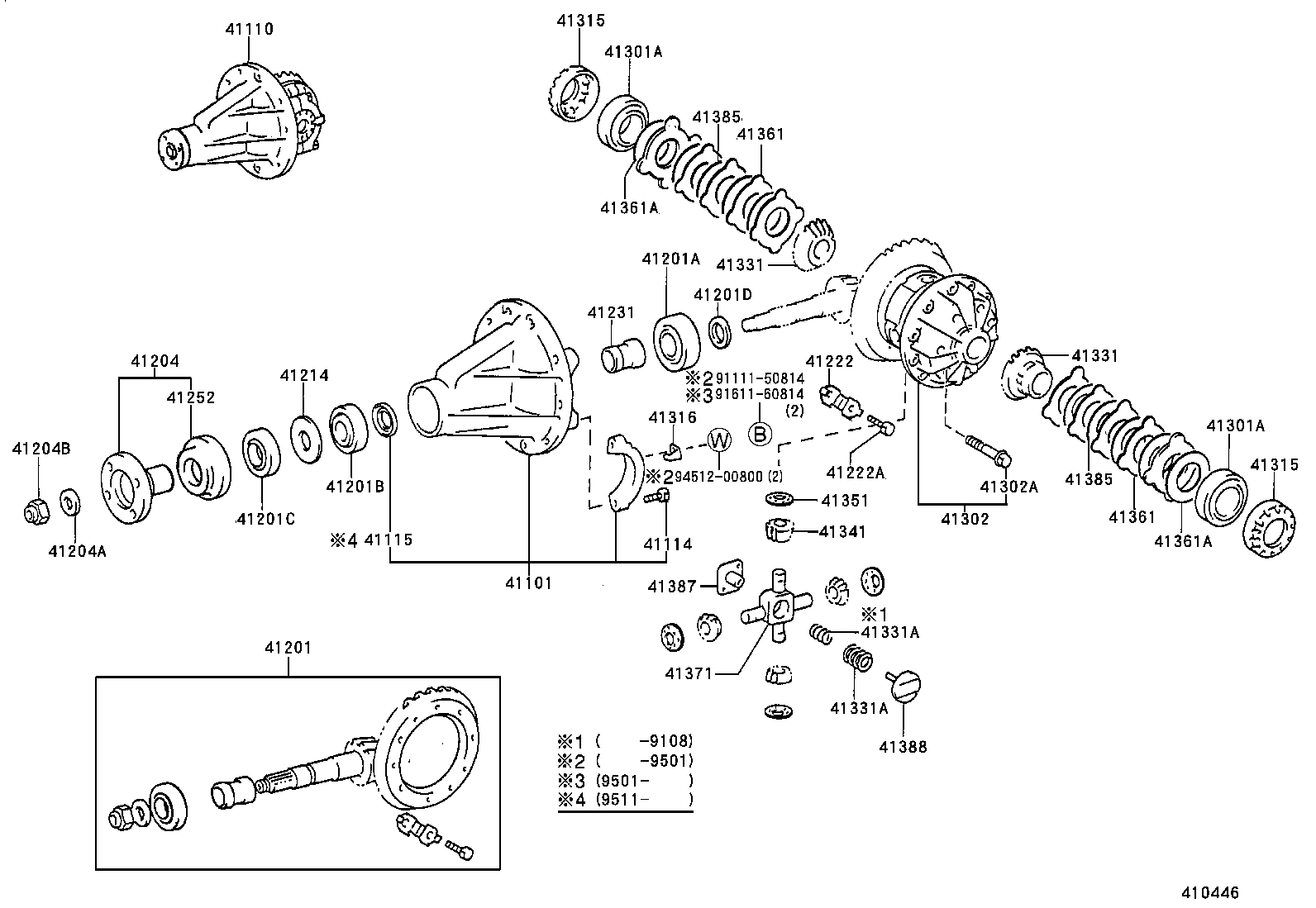

ILLUST NO. 1 OF 2(8808- )LN10#,110,130,85,90,RN106,110,YN106,110,85,90..JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-60140 |
LN10#..JPP..LHD W(*RDL) |
1 | ||
| 41101-35031 |
LN10#,110,130,85,90,RN106,110,YN106,110,85,90..JPP |
1 | ||
| 41101-35030 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP |
1 | ||
| 41101-35150 |
LN10#..JPP..LHD W(*RDL) |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-35301 |
LN105,110..JPP..LHD *FGR=43:10=4.300,W(LSD) |
1 | ||
| 41110-35211 |
LN105,110..JPP *FGR=43:10=4.300 |
1 | ||
| 41110-35302 |
LN105,110..JPP..LHD *FGR=43:10=4.300,W(LSD) |
1 | ||
| 41110-35212 |
LN105,110..JPP *FGR=43:10=4.300 |
1 | ||
| 41110-35222 |
LN10#,110,130,YN106,110,85,90..JPP *FGR=41:9=4.555 |
1 | ||
| 41110-35650 |
LN105..JPP..LHD *FGR=43:10=4.300,W(*RDL) |
1 | ||
| 41110-35312 |
LN10#,110,130,YN110,85,90..JPP..LHD *FGR=41:9=4.555,W(LSD) |
1 | ||
| 41110-35222 |
LN10#,110,130,RN106,110..JPP *FGR=41:9=4.555 |
1 | ||
| 41110-60570 |
LN10#..JPP..LHD *FGR=41:9=4.555,W(*RDL) |
1 | ||
| 41110-35312 |
LN10#,110,130,RN106,110..JPP..LHD *FGR=41:9=4.555,W(LSD) |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90105-12053 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
4 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-69415 |
LN10#..JPP..LHD *FGR=41:9=4.556,W(*RDL) |
1 | ||
| 41201-29795 |
LN105..JPP..LHD *FGR=43:10=4.300,W(*RDL) |
1 | ||
| 41201-29536 |
LN10#,110,130,YN106,110,85,90..JPP *FGR=41:9=4.556 |
1 | ||
| 41201-69455 |
LN10#..JPP..LHD *FGR=41:9=4.556,W(*RDL) |
1 | ||
| 41201-29536 |
LN10#,110,130,RN106,110..JPP *FGR=41:9=4.556 |
1 | ||
| 41201-29526 |
LN105,110..JPP *FGR=43:10=4.300 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-35028 |
LN10#..JPP..LHD W(*RDL) |
1 | ||
| 90366-35044 |
LN10#,110,130,85,90,RN106,110,YN106,110,85,90..JPP |
1 | ||
| 90366-35087 |
LN10#..JPP..LHD W(*RDL) |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-30022 |
LN10#,110,130,85,90,RN106,110,YN106,110,85,90..JPP |
1 | ||
| 90366-30025 |
LN10#..JPP..LHD W(*RDL) |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-38047 |
LN10#,110,85,90,RN106,110..JPP |
1 | ||
| 90311-38035 |
LN10#,110,130,85,90,RN106,110,YN106,110,85,90..JPP |
1 | ||
| 90311-38047 |
LN10#..JPP..LHD W(LSD) |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90201-35499 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP OD=47,T=1.76 |
1 | ||
| 90201-35498 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP OD=47,T=1.73 |
1 | ||
| 90201-35500 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP OD=47,T=1.79 |
1 | ||
| 90201-35503 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP OD=47,T=1.88 |
1 | ||
| 90201-35504 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP OD=47,T=1.91 |
1 | ||
| 90201-35507 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP OD=47,T=2.00 |
1 | ||
| 90201-35512 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP OD=47,T=2.15 |
1 | ||
| 90201-35509 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP OD=47,T=2.06 |
1 | ||
| 90201-35505 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP OD=47,T=1.94 |
1 | ||
| 90201-35510 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP OD=47,T=2.09 |
1 | ||
| 90201-35514 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP OD=47,T=2.21 |
1 | ||
| 90201-35513 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP OD=47,T=2.18 |
1 | ||
| 90201-35506 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP OD=47,T=1.97 |
1 | ||
| 90201-35511 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP OD=47,T=2.12 |
1 | ||
| 90201-35502 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP OD=47,T=1.85 |
1 | ||
| 90201-35501 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP OD=47,T=1.82 |
1 | ||
| 90201-35516 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP OD=47,T=2.27,MARK 02 |
1 | ||
| 90201-35518 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP OD=47,T=2.33,MARK 04 |
1 | ||
| 90201-35497 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP OD=47,T=1.70 |
1 | ||
| 90201-35508 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP OD=47,T=2.03 |
1 | ||
| 90201-35515 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP OD=47,T=2.24,MARK 01 |
1 | ||
| 90201-35517 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP OD=47,T=2.30,MARK 03 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-35080 |
LN10#..JPP..LHD W(*RDL) |
1 | ||
| 41204-35040 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 41204A - WASHER, PLATE (FOR REAR DRIVE PINION) | ||||
| 90201-20005 |
LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-20001 |
LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 90179-20018 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-20001 |
LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 90179-20018 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-26010 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-35020 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
5 | ||
| 41222-60010 |
LN10#..JPP..LHD W(*RDL) |
5 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11353 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
10 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-24010 |
LN10#..JPP..LHD W(*RDL) |
1 | ||
| 41231-40011 |
LN10#,110,130,85,90,RN106,110,YN106,110,85,90..JPP |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-35020 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 41252-35010 |
LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 41252-35040 |
LN10#..JPP..LHD W(LSD) |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-45066 |
LN10#,110,130,85,90,RN106,110,YN106,110,85,90..JPP |
2 | ||
| 90366-50007 |
LN10#..JPP..LHD W(*RDL),RH |
1 | ||
| 90368-50024 |
LN10#,110,130,85,90,RN106,110,YN110,85,90..JPP..LHD W(LSD) |
2 | ||
| 90366-75001 |
LN10#..JPP..LHD W(*RDL),LH |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-45066 |
LN10#,110,130,85,90,RN106,110,YN106,110,85,90..JPP |
2 | ||
| 90366-50007 |
LN10#..JPP..LHD W(*RDL),RH |
1 | ||
| 90368-50024 |
LN10#,110,130,85,90,RN106,110,YN110,85,90..JPP..LHD W(LSD) |
2 | ||
| 90366-75001 |
LN10#..JPP..LHD W(*RDL),LH |
1 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41302-35010 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD W(LSD) |
1 | ||
| 41301-60060 |
LN10#..JPP..LHD W(*RDL) |
1 | ||
| 41311-40020 |
LN10#,110,130,85,90,RN106,110,YN106,110,85,90..JPP |
1 | ||
| 41302-35040 |
LN10#,110,85,90,RN106,110..JPP..LHD W(LSD) |
1 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-35020 |
LN10#..JPP..LHD W(*RDL),RH |
1 | ||
| 41315-35010 |
LN10#,110,130,85,90,RN106,110,YN106,110,85,90..JPP |
2 | ||
| 41315-60010 |
LN10#..JPP..LHD W(*RDL),LH |
1 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-35020 |
LN10#..JPP..LHD W(*RDL),RH |
1 | ||
| 41315-35010 |
LN10#,110,130,85,90,RN106,110,YN106,110,85,90..JPP |
2 | ||
| 41315-60010 |
LN10#..JPP..LHD W(*RDL),LH |
1 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-35010 |
LN10#..JPP..LHD W(*RDL) |
2 | ||
| 41316-30010 |
LN10#,110,130,85,90,RN106,110,YN106,110,85,90..JPP |
2 | ||
| 41316-35010 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-35030 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD W(LSD) |
2 | ||
| 41331-60040 |
LN10#..JPP..LHD W(*RDL),LH |
1 | ||
| 41331-35040 |
LN10#..JPP..LHD W(*RDL),RH |
1 | ||
| 41331-35011 |
LN10#,110,130,85,90,RN106,110,YN106,110,85,90..JPP |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-35030 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD W(LSD) |
2 | ||
| 41331-60040 |
LN10#..JPP..LHD W(*RDL),LH |
1 | ||
| 41331-35040 |
LN10#..JPP..LHD W(*RDL),RH |
1 | ||
| 41331-35011 |
LN10#,110,130,85,90,RN106,110,YN106,110,85,90..JPP |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-35010 |
LN10#,110,130,85,90,RN106,110,YN110,85,90..JPP..LHD W(*RDL) |
4 | ||
| 41341-35020 |
LN10#,110,130,85,90,RN106,110,YN106,110,85,90..JPP |
2 | ||
| 41341-30020 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130..JPP..LHD W(*RDL) |
8 | ||
| 41341-30020 |
LN10#..JPP..LHD W(LSD) |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-35010 |
LN10#,110,130,85,90,RN106,110,YN110,85,90..JPP..LHD W(*RDL) |
4 | ||
| 41341-35020 |
LN10#,110,130,85,90,RN106,110,YN106,110,85,90..JPP |
2 | ||
| 41341-30020 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130..JPP..LHD W(*RDL) |
8 | ||
| 41341-30020 |
LN10#..JPP..LHD W(LSD) |
4 | ||
| 41342 - SHAFT, REAR DIFFERENTIAL PINION | ||||
| 41342-39610 |
LN10#,110,130,85,90,RN106,110,YN106,110,85,90..JPP |
1 | ||
| 41343 - PIN, REAR DIFFERENTIAL PINION SHAFT | ||||
| 90250-06085 |
LN10#,110,130,85,90,RN106,110,YN106,110,85,90..JPP |
1 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
LN105,110,130,85,90,RN106,110,YN110,85,90..JPP..LHD W(LSD) |
4 | ||
| 41351-30060 |
LN10#..JPP..LHD W(LSD OR *RDL) |
4 | ||
| 41351-30052 |
LN10#,110,130,85,90,RN106,110,YN106,110,85,90..JPP |
2 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
LN105,110,130,85,90,RN106,110,YN110,85,90..JPP..LHD W(LSD) |
4 | ||
| 41351-30060 |
LN10#..JPP..LHD W(LSD OR *RDL) |
4 | ||
| 41351-30052 |
LN10#,110,130,85,90,RN106,110,YN106,110,85,90..JPP |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-35020 |
LN105,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD T=1.8,W(LSD) |
10 | ||
| 41361-60310 |
LN10#..JPP..LHD T=1.10,W(*RDL) |
2 | ||
| 41361-60300 |
LN10#..JPP..LHD T=1.00,W(*RDL) |
2 | ||
| 41361-40021 |
LN10#,110,130,85,90,RN106,110,YN106,110,85,90..JPP T=1.6 |
2 | ||
| 41361-60320 |
LN10#..JPP..LHD T=1.20,W(*RDL) |
2 | ||
| 41361-60290 |
LN10#..JPP..LHD T=0.90,W(*RDL) |
2 | ||
| 41361-35290 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD T=1.70,MARK N,W(LSD) |
2 | ||
| 41363-40021 |
LN10#,110,130,85,90,RN106,110,YN106,110,85,90..JPP T=1.8 |
2 | ||
| 41361-35160 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD T=1.8,W(LSD) |
8 | ||
| 41361-60330 |
LN10#..JPP..LHD T=1.30,W(*RDL) |
2 | ||
| 41362-40021 |
LN10#,110,130,85,90,RN106,110,YN106,110,85,90..JPP T=1.7 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-35020 |
LN105,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD T=1.8,W(LSD) |
10 | ||
| 41361-60310 |
LN10#..JPP..LHD T=1.10,W(*RDL) |
2 | ||
| 41361-60300 |
LN10#..JPP..LHD T=1.00,W(*RDL) |
2 | ||
| 41361-40021 |
LN10#,110,130,85,90,RN106,110,YN106,110,85,90..JPP T=1.6 |
2 | ||
| 41361-60320 |
LN10#..JPP..LHD T=1.20,W(*RDL) |
2 | ||
| 41361-60290 |
LN10#..JPP..LHD T=0.90,W(*RDL) |
2 | ||
| 41361-35290 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD T=1.70,MARK N,W(LSD) |
2 | ||
| 41363-40021 |
LN10#,110,130,85,90,RN106,110,YN106,110,85,90..JPP T=1.8 |
2 | ||
| 41361-35160 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD T=1.8,W(LSD) |
8 | ||
| 41361-60330 |
LN10#..JPP..LHD T=1.30,W(*RDL) |
2 | ||
| 41362-40021 |
LN10#,110,130,85,90,RN106,110,YN106,110,85,90..JPP T=1.7 |
2 | ||
| Common parts | ||||
| 91111-50814 | ||||
| 91611-60814 | ||||
| 94512-00800 | ||||
| 94531-01200 | ||||

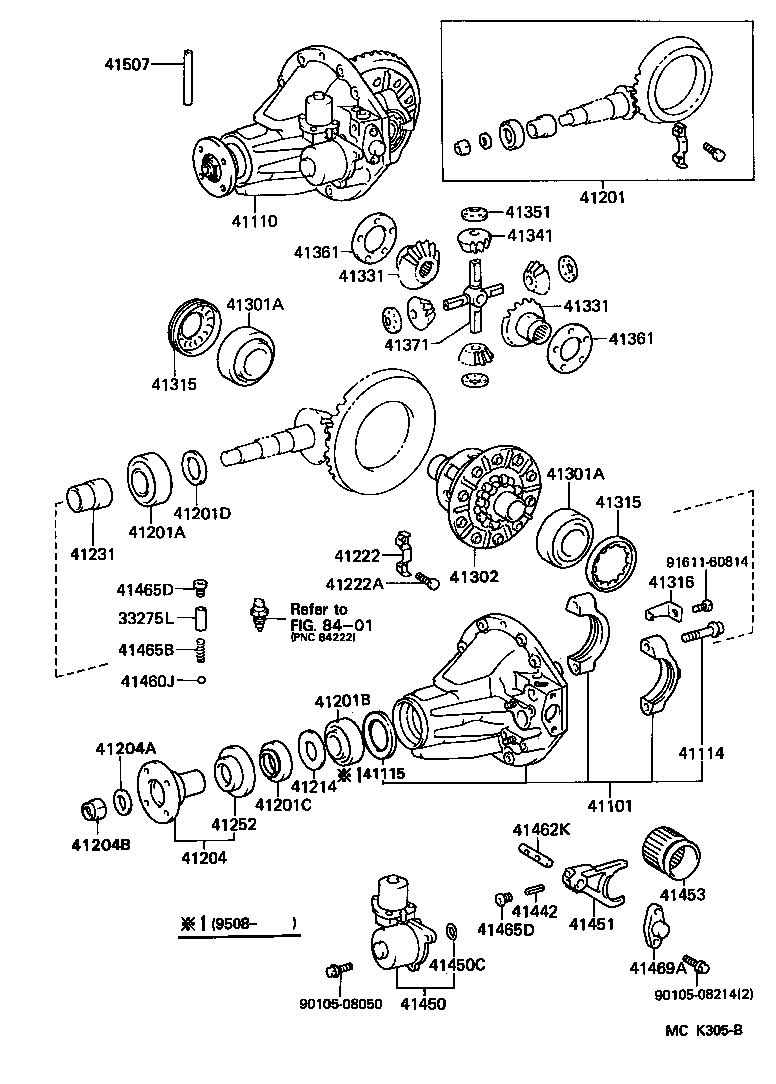

ILLUST NO. 1 OF 2(8808- )JPP
LIMITED SLIP DIFFERENTIAL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-60140 |
LN10#..JPP..LHD W(*RDL) |
1 | ||
| 41101-35031 |
LN10#,110,130,85,90,RN106,110,YN106,110,85,90..JPP |
1 | ||
| 41101-35030 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP |
1 | ||
| 41101-35150 |
LN10#..JPP..LHD W(*RDL) |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-35301 |
LN105,110..JPP..LHD *FGR=43:10=4.300,W(LSD) |
1 | ||
| 41110-35211 |
LN105,110..JPP *FGR=43:10=4.300 |
1 | ||
| 41110-35302 |
LN105,110..JPP..LHD *FGR=43:10=4.300,W(LSD) |
1 | ||
| 41110-35212 |
LN105,110..JPP *FGR=43:10=4.300 |
1 | ||
| 41110-35222 |
LN10#,110,130,YN106,110,85,90..JPP *FGR=41:9=4.555 |
1 | ||
| 41110-35650 |
LN105..JPP..LHD *FGR=43:10=4.300,W(*RDL) |
1 | ||
| 41110-35312 |
LN10#,110,130,YN110,85,90..JPP..LHD *FGR=41:9=4.555,W(LSD) |
1 | ||
| 41110-35222 |
LN10#,110,130,RN106,110..JPP *FGR=41:9=4.555 |
1 | ||
| 41110-60570 |
LN10#..JPP..LHD *FGR=41:9=4.555,W(*RDL) |
1 | ||
| 41110-35312 |
LN10#,110,130,RN106,110..JPP..LHD *FGR=41:9=4.555,W(LSD) |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90105-12053 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
4 | ||
| 41115 - RING, DIFFERENTIAL OIL STORAGE | ||||
| 41115-35010 |
LN10#..JPP..LHD |
1 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-69415 |
LN10#..JPP..LHD *FGR=41:9=4.556,W(*RDL) |
1 | ||
| 41201-29795 |
LN105..JPP..LHD *FGR=43:10=4.300,W(*RDL) |
1 | ||
| 41201-29536 |
LN10#,110,130,YN106,110,85,90..JPP *FGR=41:9=4.556 |
1 | ||
| 41201-69455 |
LN10#..JPP..LHD *FGR=41:9=4.556,W(*RDL) |
1 | ||
| 41201-29536 |
LN10#,110,130,RN106,110..JPP *FGR=41:9=4.556 |
1 | ||
| 41201-29526 |
LN105,110..JPP *FGR=43:10=4.300 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-35028 |
LN10#..JPP..LHD W(*RDL) |
1 | ||
| 90366-35044 |
LN10#,110,130,85,90,RN106,110,YN106,110,85,90..JPP |
1 | ||
| 90366-35087 |
LN10#..JPP..LHD W(*RDL) |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-30022 |
LN10#,110,130,85,90,RN106,110,YN106,110,85,90..JPP |
1 | ||
| 90366-30025 |
LN10#..JPP..LHD W(*RDL) |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-38047 |
LN10#,110,85,90,RN106,110..JPP |
1 | ||
| 90311-38035 |
LN10#,110,130,85,90,RN106,110,YN106,110,85,90..JPP |
1 | ||
| 90311-38047 |
LN10#..JPP..LHD W(LSD) |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90201-35499 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP OD=47,T=1.76 |
1 | ||
| 90201-35498 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP OD=47,T=1.73 |
1 | ||
| 90201-35500 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP OD=47,T=1.79 |
1 | ||
| 90201-35503 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP OD=47,T=1.88 |
1 | ||
| 90201-35504 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP OD=47,T=1.91 |
1 | ||
| 90201-35507 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP OD=47,T=2.00 |
1 | ||
| 90201-35512 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP OD=47,T=2.15 |
1 | ||
| 90201-35509 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP OD=47,T=2.06 |
1 | ||
| 90201-35505 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP OD=47,T=1.94 |
1 | ||
| 90201-35510 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP OD=47,T=2.09 |
1 | ||
| 90201-35514 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP OD=47,T=2.21 |
1 | ||
| 90201-35513 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP OD=47,T=2.18 |
1 | ||
| 90201-35506 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP OD=47,T=1.97 |
1 | ||
| 90201-35511 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP OD=47,T=2.12 |
1 | ||
| 90201-35502 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP OD=47,T=1.85 |
1 | ||
| 90201-35501 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP OD=47,T=1.82 |
1 | ||
| 90201-35516 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP OD=47,T=2.27,MARK 02 |
1 | ||
| 90201-35518 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP OD=47,T=2.33,MARK 04 |
1 | ||
| 90201-35497 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP OD=47,T=1.70 |
1 | ||
| 90201-35508 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP OD=47,T=2.03 |
1 | ||
| 90201-35515 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP OD=47,T=2.24,MARK 01 |
1 | ||
| 90201-35517 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP OD=47,T=2.30,MARK 03 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-35080 |
LN10#..JPP..LHD W(*RDL) |
1 | ||
| 41204-35040 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 41204A - WASHER, PLATE (FOR REAR DRIVE PINION) | ||||
| 90201-20005 |
LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-20001 |
LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 90179-20018 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-26010 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-35020 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
5 | ||
| 41222-60010 |
LN10#..JPP..LHD W(*RDL) |
5 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11353 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
10 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-24010 |
LN10#..JPP..LHD W(*RDL) |
1 | ||
| 41231-40011 |
LN10#,110,130,85,90,RN106,110,YN106,110,85,90..JPP |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-35020 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 41252-35010 |
LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 41252-35040 |
LN10#..JPP..LHD W(LSD) |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-45066 |
LN10#,110,130,85,90,RN106,110,YN106,110,85,90..JPP |
2 | ||
| 90366-50007 |
LN10#..JPP..LHD W(*RDL),RH |
1 | ||
| 90368-50024 |
LN10#,110,130,85,90,RN106,110,YN110,85,90..JPP..LHD W(LSD) |
2 | ||
| 90366-75001 |
LN10#..JPP..LHD W(*RDL),LH |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-45066 |
LN10#,110,130,85,90,RN106,110,YN106,110,85,90..JPP |
2 | ||
| 90366-50007 |
LN10#..JPP..LHD W(*RDL),RH |
1 | ||
| 90368-50024 |
LN10#,110,130,85,90,RN106,110,YN110,85,90..JPP..LHD W(LSD) |
2 | ||
| 90366-75001 |
LN10#..JPP..LHD W(*RDL),LH |
1 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41302-35010 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD W(LSD) |
1 | ||
| 41301-60060 |
LN10#..JPP..LHD W(*RDL) |
1 | ||
| 41311-40020 |
LN10#,110,130,85,90,RN106,110,YN106,110,85,90..JPP |
1 | ||
| 41302-35040 |
LN10#,110,85,90,RN106,110..JPP..LHD W(LSD) |
1 | ||
| 41302A - BOLT(FOR REAR DIFFERENTIAL CASE) | ||||
| 90105-10084 |
LN105,85,YN85..JPP..LHD;KZN130,LN108,110,130,90,RN106,110,VZN130,YN110,90..JPP |
8 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-35020 |
LN10#..JPP..LHD W(*RDL),RH |
1 | ||
| 41315-35010 |
LN10#,110,130,85,90,RN106,110,YN106,110,85,90..JPP |
2 | ||
| 41315-60010 |
LN10#..JPP..LHD W(*RDL),LH |
1 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-35020 |
LN10#..JPP..LHD W(*RDL),RH |
1 | ||
| 41315-35010 |
LN10#,110,130,85,90,RN106,110,YN106,110,85,90..JPP |
2 | ||
| 41315-60010 |
LN10#..JPP..LHD W(*RDL),LH |
1 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-35010 |
LN10#..JPP..LHD W(*RDL) |
2 | ||
| 41316-30010 |
LN10#,110,130,85,90,RN106,110,YN106,110,85,90..JPP |
2 | ||
| 41316-35010 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-35030 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD W(LSD) |
2 | ||
| 41331-60040 |
LN10#..JPP..LHD W(*RDL),LH |
1 | ||
| 41331-35040 |
LN10#..JPP..LHD W(*RDL),RH |
1 | ||
| 41331-35011 |
LN10#,110,130,85,90,RN106,110,YN106,110,85,90..JPP |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-35030 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD W(LSD) |
2 | ||
| 41331-60040 |
LN10#..JPP..LHD W(*RDL),LH |
1 | ||
| 41331-35040 |
LN10#..JPP..LHD W(*RDL),RH |
1 | ||
| 41331-35011 |
LN10#,110,130,85,90,RN106,110,YN106,110,85,90..JPP |
2 | ||
| 41331A - SPRING, COMPRESSION | ||||
| 90501-07112 |
LN10#,110,85,90,RN106,110..JPP..LHD |
1 | ||
| 90501-35008 |
LN105,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD INNER |
1 | ||
| 90501-70001 |
LN105,85,YN85..JPP..LHD;KZN130,LN108,110,130,90,RN106,110,VZN130,YN110,90..JPP |
1 | ||
| 90501-75001 |
LN105,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD OUTER |
1 | ||
| 41331A - SPRING, COMPRESSION | ||||
| 90501-07112 |
LN10#,110,85,90,RN106,110..JPP..LHD |
1 | ||
| 90501-35008 |
LN105,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD INNER |
1 | ||
| 90501-70001 |
LN105,85,YN85..JPP..LHD;KZN130,LN108,110,130,90,RN106,110,VZN130,YN110,90..JPP |
1 | ||
| 90501-75001 |
LN105,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD OUTER |
1 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-35010 |
LN10#,110,130,85,90,RN106,110,YN110,85,90..JPP..LHD W(*RDL) |
4 | ||
| 41341-35020 |
LN10#,110,130,85,90,RN106,110,YN106,110,85,90..JPP |
2 | ||
| 41341-30020 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130..JPP..LHD W(*RDL) |
8 | ||
| 41341-30020 |
LN10#..JPP..LHD W(LSD) |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
LN105,110,130,85,90,RN106,110,YN110,85,90..JPP..LHD W(LSD) |
4 | ||
| 41351-30060 |
LN10#..JPP..LHD W(LSD OR *RDL) |
4 | ||
| 41351-30052 |
LN10#,110,130,85,90,RN106,110,YN106,110,85,90..JPP |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-35020 |
LN105,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD T=1.8,W(LSD) |
10 | ||
| 41361-60310 |
LN10#..JPP..LHD T=1.10,W(*RDL) |
2 | ||
| 41361-60300 |
LN10#..JPP..LHD T=1.00,W(*RDL) |
2 | ||
| 41361-40021 |
LN10#,110,130,85,90,RN106,110,YN106,110,85,90..JPP T=1.6 |
2 | ||
| 41361-60320 |
LN10#..JPP..LHD T=1.20,W(*RDL) |
2 | ||
| 41361-60290 |
LN10#..JPP..LHD T=0.90,W(*RDL) |
2 | ||
| 41361-35290 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD T=1.70,MARK N,W(LSD) |
2 | ||
| 41363-40021 |
LN10#,110,130,85,90,RN106,110,YN106,110,85,90..JPP T=1.8 |
2 | ||
| 41361-35160 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD T=1.8,W(LSD) |
8 | ||
| 41361-60330 |
LN10#..JPP..LHD T=1.30,W(*RDL) |
2 | ||
| 41362-40021 |
LN10#,110,130,85,90,RN106,110,YN106,110,85,90..JPP T=1.7 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-35020 |
LN105,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD T=1.8,W(LSD) |
10 | ||
| 41361-60310 |
LN10#..JPP..LHD T=1.10,W(*RDL) |
2 | ||
| 41361-60300 |
LN10#..JPP..LHD T=1.00,W(*RDL) |
2 | ||
| 41361-40021 |
LN10#,110,130,85,90,RN106,110,YN106,110,85,90..JPP T=1.6 |
2 | ||
| 41361-60320 |
LN10#..JPP..LHD T=1.20,W(*RDL) |
2 | ||
| 41361-60290 |
LN10#..JPP..LHD T=0.90,W(*RDL) |
2 | ||
| 41361-35290 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD T=1.70,MARK N,W(LSD) |
2 | ||
| 41363-40021 |
LN10#,110,130,85,90,RN106,110,YN106,110,85,90..JPP T=1.8 |
2 | ||
| 41361-35160 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD T=1.8,W(LSD) |
8 | ||
| 41361-60330 |
LN10#..JPP..LHD T=1.30,W(*RDL) |
2 | ||
| 41362-40021 |
LN10#,110,130,85,90,RN106,110,YN106,110,85,90..JPP T=1.7 |
2 | ||
| 41361A - SHIM(FOR REAR DIFFERENTIAL SIDE GEAR THRUST) | ||||
| 90564-50001 |
LN105,85,YN85..JPP..LHD;KZN130,LN108,110,130,90,RN106,110,VZN130,YN110,90..JPP T=0.15 |
1 | ||
| 90564-50004 |
LN105,85,YN85..JPP..LHD;KZN130,LN108,110,130,90,RN106,110,VZN130,YN110,90..JPP T=0.30 |
1 | ||
| 90564-50003 |
LN105,85,YN85..JPP..LHD;KZN130,LN108,110,130,90,RN106,110,VZN130,YN110,90..JPP T=0.25 |
1 | ||
| 90564-50002 |
LN105,85,YN85..JPP..LHD;KZN130,LN108,110,130,90,RN106,110,VZN130,YN110,90..JPP T=0.20 |
1 | ||
| 90564-50005 |
LN105,85,YN85..JPP..LHD;KZN130,LN108,110,130,90,RN106,110,VZN130,YN110,90..JPP T=0.35 |
1 | ||
| 41361A - SHIM(FOR REAR DIFFERENTIAL SIDE GEAR THRUST) | ||||
| 90564-50001 |
LN105,85,YN85..JPP..LHD;KZN130,LN108,110,130,90,RN106,110,VZN130,YN110,90..JPP T=0.15 |
1 | ||
| 90564-50004 |
LN105,85,YN85..JPP..LHD;KZN130,LN108,110,130,90,RN106,110,VZN130,YN110,90..JPP T=0.30 |
1 | ||
| 90564-50003 |
LN105,85,YN85..JPP..LHD;KZN130,LN108,110,130,90,RN106,110,VZN130,YN110,90..JPP T=0.25 |
1 | ||
| 90564-50002 |
LN105,85,YN85..JPP..LHD;KZN130,LN108,110,130,90,RN106,110,VZN130,YN110,90..JPP T=0.20 |
1 | ||
| 90564-50005 |
LN105,85,YN85..JPP..LHD;KZN130,LN108,110,130,90,RN106,110,VZN130,YN110,90..JPP T=0.35 |
1 | ||
| 41371 - SPIDER, REAR DIFFERENTIAL | ||||
| 41306-35010 |
LN105,110,130,85,90,RN106,110,YN110,85,90..JPP..LHD |
1 | ||
| 41371-35020 |
LN10#..JPP..LHD W(*RDL) |
1 | ||
| 41306-35040 |
LN10#..JPP..LHD W(LSD) |
1 | ||
| 41306-35010 |
KZN130,LN10#,VZN130..JPP..LHD W(LSD) |
1 | ||
| 41385 - PLATE, CLUTCH | ||||
| 41385-22020 |
LN105,85,YN85..JPP..LHD;KZN130,LN108,110,130,90,RN106,110,VZN130,YN110,90..JPP |
8 | ||
| 41385-35010 |
LN105,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD |
8 | ||
| 41385 - PLATE, CLUTCH | ||||
| 41385-22020 |
LN105,85,YN85..JPP..LHD;KZN130,LN108,110,130,90,RN106,110,VZN130,YN110,90..JPP |
8 | ||
| 41385-35010 |
LN105,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD |
8 | ||
| 41387 - RETAINER, SPRING, RH | ||||
| 41308-35010 |
LN10#,110,85,90,RN106,110..JPP..LHD |
1 | ||
| 41387-35010 |
LN105,85,YN85..JPP..LHD;KZN130,LN108,110,130,90,RN106,110,VZN130,YN110,90..JPP |
1 | ||
| 41388 - RETAINER, SPRING, LH | ||||
| 41388-35020 |
LN10#,110,85,90,RN106,110..JPP..LHD |
1 | ||
| 41388-35010 |
LN105,85,YN85..JPP..LHD;KZN130,LN108,110,130,90,RN106,110,VZN130,YN110,90..JPP |
1 | ||
| Common parts | ||||
| 91111-50814 | ||||
| 91611-60814 | ||||
| 94512-00800 | ||||
(9008- )JPP
DIFFERENTIAL LOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33275L - SEAT, REAR DIFFERENTIAL LOCK SHIFT DETENT BALL SPRING | ||||
| 33275-16010 |
LN10#..JPP..LHD |
1 | ||
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-60140 |
LN10#..JPP..LHD W(*RDL) |
1 | ||
| 41101-35031 |
LN10#,110,130,85,90,RN106,110,YN106,110,85,90..JPP |
1 | ||
| 41101-35030 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP |
1 | ||
| 41101-35150 |
LN10#..JPP..LHD W(*RDL) |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-35301 |
LN105,110..JPP..LHD *FGR=43:10=4.300,W(LSD) |
1 | ||
| 41110-35211 |
LN105,110..JPP *FGR=43:10=4.300 |
1 | ||
| 41110-35302 |
LN105,110..JPP..LHD *FGR=43:10=4.300,W(LSD) |
1 | ||
| 41110-35212 |
LN105,110..JPP *FGR=43:10=4.300 |
1 | ||
| 41110-35222 |
LN10#,110,130,YN106,110,85,90..JPP *FGR=41:9=4.555 |
1 | ||
| 41110-35650 |
LN105..JPP..LHD *FGR=43:10=4.300,W(*RDL) |
1 | ||
| 41110-35312 |
LN10#,110,130,YN110,85,90..JPP..LHD *FGR=41:9=4.555,W(LSD) |
1 | ||
| 41110-35222 |
LN10#,110,130,RN106,110..JPP *FGR=41:9=4.555 |
1 | ||
| 41110-60570 |
LN10#..JPP..LHD *FGR=41:9=4.555,W(*RDL) |
1 | ||
| 41110-35312 |
LN10#,110,130,RN106,110..JPP..LHD *FGR=41:9=4.555,W(LSD) |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90105-12053 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
4 | ||
| 41115 - RING, DIFFERENTIAL OIL STORAGE | ||||
| 41115-35010 |
LN10#..JPP..LHD |
1 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-69415 |
LN10#..JPP..LHD *FGR=41:9=4.556,W(*RDL) |
1 | ||
| 41201-29795 |
LN105..JPP..LHD *FGR=43:10=4.300,W(*RDL) |
1 | ||
| 41201-29536 |
LN10#,110,130,YN106,110,85,90..JPP *FGR=41:9=4.556 |
1 | ||
| 41201-69455 |
LN10#..JPP..LHD *FGR=41:9=4.556,W(*RDL) |
1 | ||
| 41201-29536 |
LN10#,110,130,RN106,110..JPP *FGR=41:9=4.556 |
1 | ||
| 41201-29526 |
LN105,110..JPP *FGR=43:10=4.300 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-35028 |
LN10#..JPP..LHD W(*RDL) |
1 | ||
| 90366-35044 |
LN10#,110,130,85,90,RN106,110,YN106,110,85,90..JPP |
1 | ||
| 90366-35087 |
LN10#..JPP..LHD W(*RDL) |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-30022 |
LN10#,110,130,85,90,RN106,110,YN106,110,85,90..JPP |
1 | ||
| 90366-30025 |
LN10#..JPP..LHD W(*RDL) |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-38047 |
LN10#,110,85,90,RN106,110..JPP |
1 | ||
| 90311-38035 |
LN10#,110,130,85,90,RN106,110,YN106,110,85,90..JPP |
1 | ||
| 90311-38047 |
LN10#..JPP..LHD W(LSD) |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90201-35499 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP OD=47,T=1.76 |
1 | ||
| 90201-35498 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP OD=47,T=1.73 |
1 | ||
| 90201-35500 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP OD=47,T=1.79 |
1 | ||
| 90201-35503 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP OD=47,T=1.88 |
1 | ||
| 90201-35504 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP OD=47,T=1.91 |
1 | ||
| 90201-35507 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP OD=47,T=2.00 |
1 | ||
| 90201-35512 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP OD=47,T=2.15 |
1 | ||
| 90201-35509 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP OD=47,T=2.06 |
1 | ||
| 90201-35505 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP OD=47,T=1.94 |
1 | ||
| 90201-35510 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP OD=47,T=2.09 |
1 | ||
| 90201-35514 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP OD=47,T=2.21 |
1 | ||
| 90201-35513 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP OD=47,T=2.18 |
1 | ||
| 90201-35506 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP OD=47,T=1.97 |
1 | ||
| 90201-35511 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP OD=47,T=2.12 |
1 | ||
| 90201-35502 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP OD=47,T=1.85 |
1 | ||
| 90201-35501 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP OD=47,T=1.82 |
1 | ||
| 90201-35516 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP OD=47,T=2.27,MARK 02 |
1 | ||
| 90201-35518 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP OD=47,T=2.33,MARK 04 |
1 | ||
| 90201-35497 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP OD=47,T=1.70 |
1 | ||
| 90201-35508 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP OD=47,T=2.03 |
1 | ||
| 90201-35515 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP OD=47,T=2.24,MARK 01 |
1 | ||
| 90201-35517 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP OD=47,T=2.30,MARK 03 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-35080 |
LN10#..JPP..LHD W(*RDL) |
1 | ||
| 41204-35040 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 41204A - WASHER, PLATE (FOR REAR DRIVE PINION) | ||||
| 90201-20005 |
LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-20001 |
LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 90179-20018 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-26010 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-35020 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
5 | ||
| 41222-60010 |
LN10#..JPP..LHD W(*RDL) |
5 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11353 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
10 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-24010 |
LN10#..JPP..LHD W(*RDL) |
1 | ||
| 41231-40011 |
LN10#,110,130,85,90,RN106,110,YN106,110,85,90..JPP |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-35020 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 41252-35010 |
LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 41252-35040 |
LN10#..JPP..LHD W(LSD) |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-45066 |
LN10#,110,130,85,90,RN106,110,YN106,110,85,90..JPP |
2 | ||
| 90366-50007 |
LN10#..JPP..LHD W(*RDL),RH |
1 | ||
| 90368-50024 |
LN10#,110,130,85,90,RN106,110,YN110,85,90..JPP..LHD W(LSD) |
2 | ||
| 90366-75001 |
LN10#..JPP..LHD W(*RDL),LH |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-45066 |
LN10#,110,130,85,90,RN106,110,YN106,110,85,90..JPP |
2 | ||
| 90366-50007 |
LN10#..JPP..LHD W(*RDL),RH |
1 | ||
| 90368-50024 |
LN10#,110,130,85,90,RN106,110,YN110,85,90..JPP..LHD W(LSD) |
2 | ||
| 90366-75001 |
LN10#..JPP..LHD W(*RDL),LH |
1 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41302-35010 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD W(LSD) |
1 | ||
| 41301-60060 |
LN10#..JPP..LHD W(*RDL) |
1 | ||
| 41311-40020 |
LN10#,110,130,85,90,RN106,110,YN106,110,85,90..JPP |
1 | ||
| 41302-35040 |
LN10#,110,85,90,RN106,110..JPP..LHD W(LSD) |
1 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-35020 |
LN10#..JPP..LHD W(*RDL),RH |
1 | ||
| 41315-35010 |
LN10#,110,130,85,90,RN106,110,YN106,110,85,90..JPP |
2 | ||
| 41315-60010 |
LN10#..JPP..LHD W(*RDL),LH |
1 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-35020 |
LN10#..JPP..LHD W(*RDL),RH |
1 | ||
| 41315-35010 |
LN10#,110,130,85,90,RN106,110,YN106,110,85,90..JPP |
2 | ||
| 41315-60010 |
LN10#..JPP..LHD W(*RDL),LH |
1 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-35010 |
LN10#..JPP..LHD W(*RDL) |
2 | ||
| 41316-30010 |
LN10#,110,130,85,90,RN106,110,YN106,110,85,90..JPP |
2 | ||
| 41316-35010 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-35030 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD W(LSD) |
2 | ||
| 41331-60040 |
LN10#..JPP..LHD W(*RDL),LH |
1 | ||
| 41331-35040 |
LN10#..JPP..LHD W(*RDL),RH |
1 | ||
| 41331-35011 |
LN10#,110,130,85,90,RN106,110,YN106,110,85,90..JPP |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-35030 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD W(LSD) |
2 | ||
| 41331-60040 |
LN10#..JPP..LHD W(*RDL),LH |
1 | ||
| 41331-35040 |
LN10#..JPP..LHD W(*RDL),RH |
1 | ||
| 41331-35011 |
LN10#,110,130,85,90,RN106,110,YN106,110,85,90..JPP |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-35010 |
LN10#,110,130,85,90,RN106,110,YN110,85,90..JPP..LHD W(*RDL) |
4 | ||
| 41341-35020 |
LN10#,110,130,85,90,RN106,110,YN106,110,85,90..JPP |
2 | ||
| 41341-30020 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130..JPP..LHD W(*RDL) |
8 | ||
| 41341-30020 |
LN10#..JPP..LHD W(LSD) |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
LN105,110,130,85,90,RN106,110,YN110,85,90..JPP..LHD W(LSD) |
4 | ||
| 41351-30060 |
LN10#..JPP..LHD W(LSD OR *RDL) |
4 | ||
| 41351-30052 |
LN10#,110,130,85,90,RN106,110,YN106,110,85,90..JPP |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-35020 |
LN105,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD T=1.8,W(LSD) |
10 | ||
| 41361-60310 |
LN10#..JPP..LHD T=1.10,W(*RDL) |
2 | ||
| 41361-60300 |
LN10#..JPP..LHD T=1.00,W(*RDL) |
2 | ||
| 41361-40021 |
LN10#,110,130,85,90,RN106,110,YN106,110,85,90..JPP T=1.6 |
2 | ||
| 41361-60320 |
LN10#..JPP..LHD T=1.20,W(*RDL) |
2 | ||
| 41361-60290 |
LN10#..JPP..LHD T=0.90,W(*RDL) |
2 | ||
| 41361-35290 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD T=1.70,MARK N,W(LSD) |
2 | ||
| 41363-40021 |
LN10#,110,130,85,90,RN106,110,YN106,110,85,90..JPP T=1.8 |
2 | ||
| 41361-35160 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD T=1.8,W(LSD) |
8 | ||
| 41361-60330 |
LN10#..JPP..LHD T=1.30,W(*RDL) |
2 | ||
| 41362-40021 |
LN10#,110,130,85,90,RN106,110,YN106,110,85,90..JPP T=1.7 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-35020 |
LN105,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD T=1.8,W(LSD) |
10 | ||
| 41361-60310 |
LN10#..JPP..LHD T=1.10,W(*RDL) |
2 | ||
| 41361-60300 |
LN10#..JPP..LHD T=1.00,W(*RDL) |
2 | ||
| 41361-40021 |
LN10#,110,130,85,90,RN106,110,YN106,110,85,90..JPP T=1.6 |
2 | ||
| 41361-60320 |
LN10#..JPP..LHD T=1.20,W(*RDL) |
2 | ||
| 41361-60290 |
LN10#..JPP..LHD T=0.90,W(*RDL) |
2 | ||
| 41361-35290 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD T=1.70,MARK N,W(LSD) |
2 | ||
| 41363-40021 |
LN10#,110,130,85,90,RN106,110,YN106,110,85,90..JPP T=1.8 |
2 | ||
| 41361-35160 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD T=1.8,W(LSD) |
8 | ||
| 41361-60330 |
LN10#..JPP..LHD T=1.30,W(*RDL) |
2 | ||
| 41362-40021 |
LN10#,110,130,85,90,RN106,110,YN106,110,85,90..JPP T=1.7 |
2 | ||
| 41371 - SPIDER, REAR DIFFERENTIAL | ||||
| 41306-35010 |
LN105,110,130,85,90,RN106,110,YN110,85,90..JPP..LHD |
1 | ||
| 41371-35020 |
LN10#..JPP..LHD W(*RDL) |
1 | ||
| 41306-35040 |
LN10#..JPP..LHD W(LSD) |
1 | ||
| 41306-35010 |
KZN130,LN10#,VZN130..JPP..LHD W(LSD) |
1 | ||
| 41442 - BOLT OR PIN, SHIFT FORK LOCK | ||||
| 90254-05016 |
LN10#..JPP..LHD |
1 | ||
| 41450 - ACTUATOR, DIFFERENTIAL LOCK SHIFT | ||||
| 41450-35020 |
LN10#..JPP..LHD |
1 | ||
| 41450-60030 |
LN10#..JPP..LHD |
1 | ||
| 41450C - RING, O (FOR REAR DIFFERENTIAL LOCK SHIFT ACTUATOR) | ||||
| 90301-20005 |
LN10#..JPP..LHD |
1 | ||
| 41451 - FORK, REAR DIFFERENTIAL LOCK SHIFT | ||||
| 41451-60020 |
LN10#..JPP..LHD |
1 | ||
| 41453 - SLEEVE, REAR DIFFERENTIAL LOCK | ||||
| 41453-60020 |
LN10#..JPP..LHD |
1 | ||
| 41460J - BALL (FOR REAR DIFFERENTIAL LOCK CYLINDER) | ||||
| 90360-08009 |
LN10#..JPP..LHD |
1 | ||
| 41462K - SHAFT, REAR DIFFERENTIAL LOCK SHIFT FORK | ||||
| 41462-60020 |
LN10#..JPP..LHD |
1 | ||
| 41465B - SPRING, COMPRESSION (FOR REAR DIFFERENTIAL LOCK RETAINE | ||||
| 90501-12110 |
LN10#..JPP..LHD |
1 | ||
| 41465D - PLUG (FOR REAR DIFFERENTIAL LOCK CYLINDER) | ||||
| 90341-10065 |
LN10#..JPP..LHD |
2 | ||
| 41465D - PLUG (FOR REAR DIFFERENTIAL LOCK CYLINDER) | ||||
| 90341-10065 |
LN10#..JPP..LHD |
2 | ||
| 41469A - RETAINER, REAR DIFFERENTIAL LOCK SHAFT | ||||
| 41469-60010 |
LN10#..JPP..LHD |
1 | ||
| 41507 - TUBE, REAR DIFFERENTIAL LOCK ACTUATOR BREATHER | ||||
| 41507-60050 |
LN10#..JPP..LHD |
1 | ||
| Common parts | ||||
| 90105-08050 | ||||
| 90105-08214 | ||||
| 91611-60814 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(8808- )JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04412 - GASKET KIT, REAR DIFFERENTIAL CARRIER | ||||
| 04412-25060 |
LN105,110,130,RN106,110,VZN130,YN106,110..JPP |
1 | ||
| 04412-35120 |
KZN130,LN10#,110,130,RN106,110,VZN130,YN106,110..JPP |
1 | ||
| 04412-35150 |
LN10#..JPP..LHD W(*RDL) |
1 | ||
| 04412-35100 |
LN105..JPP..LHD W(*RDL) |
1 | ||
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-08235 |
LN105,110,85,90,RN110,YN106,110,85,90..JPP S=12 & 15,L=34 |
8 | ||
| 90116-08233 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP S=14 & 14,L=42 |
2 | ||
| 90116-08330 |
LN10#..JPP..LHD S=17 & 12,L=111,W(*RDL) |
2 | ||
| 90116-08329 |
LN10#..JPP..LHD S=17 & 12,L=37,W(*RDL) |
6 | ||
| 90116-08354 |
LN10#..JPP..LHD S=12 & 27,L=47,W(*RDL) |
1 | ||
| 90116-08329 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP S=17 & 12,L=37 |
8 | ||
| 41991 - CAUTION PLATE, REAR DIFFERENTIAL | ||||
| 41991-60010 |
LN105,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD |
1 | ||
| 41991-22010 |
LN10#,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD |
1 | ||
| 41991-22010 |
LN105,85,YN85..JPP..LHD;KZN130,LN108,110,130,90,RN106,110,VZN130,YN110,90..JPP |
1 | ||
| 41991-60010 |
LN105,85,YN85..JPP..LHD;KZN130,LN108,110,130,90,RN106,110,VZN130,YN110,90..JPP |
1 | ||
| 42110 - HOUSING ASSY, REAR AXLE | ||||
| 42110-35490 |
LN105..JPP..LHD W(*RDL) |
1 | ||
| 42110-35410 |
LN105,YN106..JPP |
1 | ||
| 42110A - PLUG (FOR REAR AXLE HOUSING FILLER) | ||||
| 90341-18049 |
KZN130,LN10#,110,130,RN106,110,VZN130,YN106,110..JPP |
1 | ||
| 90341-18006 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 12157-10010 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING) | ||||
| 90930-03031 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG) | ||||
| 12157-10010 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 42110E - PLUG (FOR REAR AXLE HOUSING DRAIN) | ||||
| 90341-18057 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 42139 - DEFLECTOR, REAR AXLE HOUSING OIL | ||||
| 42139-40010 |
KZN130,LN10#,110,130,RN106,110,VZN130,YN106,110..JPP |
2 | ||
| 42181 - GASKET, REAR DIFFERENTIAL CARRIER | ||||
| 42181-60020 |
KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
1 | ||
| 42181-60050 |
LN10#..JPP..LHD W(*RDL) |
1 | ||
| Common parts | ||||
| 90170-08204 | ||||
| 94512-00800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
