KZN130R-GKMSXW (1993)
Toyota Hilux (Jpp)
(9308- )KZN130..JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-3D640 |
KZN130..JPP..RHD |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-3D640 |
KZN130..JPP..RHD |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-60050 |
KZN130,LN10#,110,130,85,90..JPP |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-60050 |
KZN130,LN10#,110,130,85,90..JPP |
1 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
KZN130..JPP..RHD |
8 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
KZN130..JPP..RHD |
8 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
KZN130..JPP..RHD |
8 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
KZN130..JPP..RHD |
8 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
KZN130..JPP..RHD |
8 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
KZN130..JPP..RHD |
8 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
KZN130..JPP..RHD |
8 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
KZN130..JPP..RHD |
8 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
KZN130..JPP..RHD |
8 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
KZN130..JPP..RHD |
8 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
KZN130..JPP..RHD |
8 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
KZN130..JPP..RHD |
8 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
KZN130..JPP..RHD |
8 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
KZN130..JPP..RHD |
8 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
KZN130..JPP..RHD |
8 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
KZN130..JPP..RHD |
8 | ||
| 44743 - UNION(FOR VACUUM PUMP) | ||||
| 90405-09175 |
KZN130..JPP |
1 | ||
| 44743 - UNION(FOR VACUUM PUMP) | ||||
| 90405-09175 |
KZN130..JPP |
1 | ||
| 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR | ||||
| 44761-35110 |
KZN130..JPP |
1 | ||
| 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR | ||||
| 44761-35110 |
KZN130..JPP |
1 | ||
| 44763A - TUBE, HOSE TO HOSE, NO.1 | ||||
| 44763-35010 |
KZN130..JPP..RHD |
1 | ||
| 44763A - TUBE, HOSE TO HOSE, NO.1 | ||||
| 44763-35010 |
KZN130..JPP..RHD |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44771-35090 |
KZN130,LN105,85..JPP..RHD |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44771-35090 |
KZN130,LN105,85..JPP..RHD |
1 | ||
| 44771D - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44771-35170 |
KZN130..JPP |
1 | ||
| 44771D - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44771-35170 |
KZN130..JPP |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-35040 |
KZN130..JPP |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-35040 |
KZN130..JPP |
1 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 44778-35020 |
KZN130..JPP..RHD |
1 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 44778-35020 |
KZN130..JPP..RHD |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-35020 |
LN10#,110,130,85,90,RN106,110,VZN130,YN110..JPP |
1 | ||
| 44785-35030 |
KZN130,LN130..JPP |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-35020 |
LN10#,110,130,85,90,RN106,110,VZN130,YN110..JPP |
1 | ||
| 44785-35030 |
KZN130,LN130..JPP |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
| 91651-G0614 | ||||

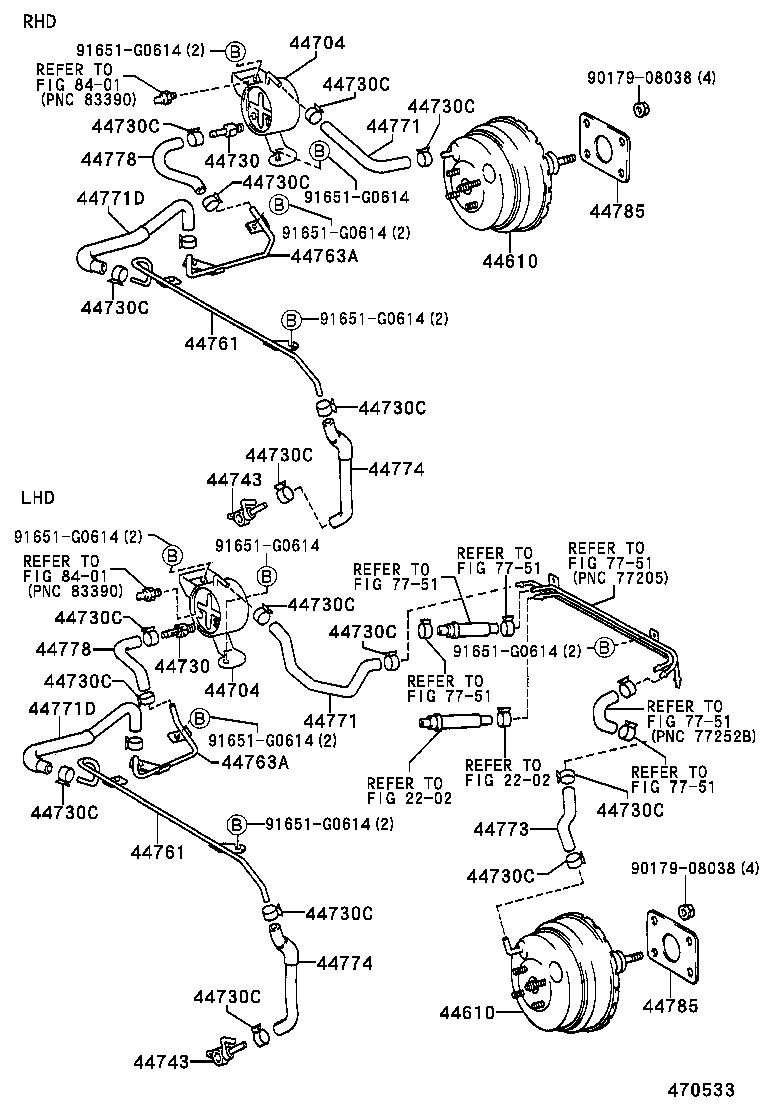

| Linked diagrams | ||||
| 2202 | ||||
| 7751 | ||||
| 8401 | ||||
