KZN130R-GKMSXW (1993)

Toyota Hilux (Jpp)

Production Aug 1993 - Nov 1995
Engine 1KZT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9308- )KZN130..JPP..RHD

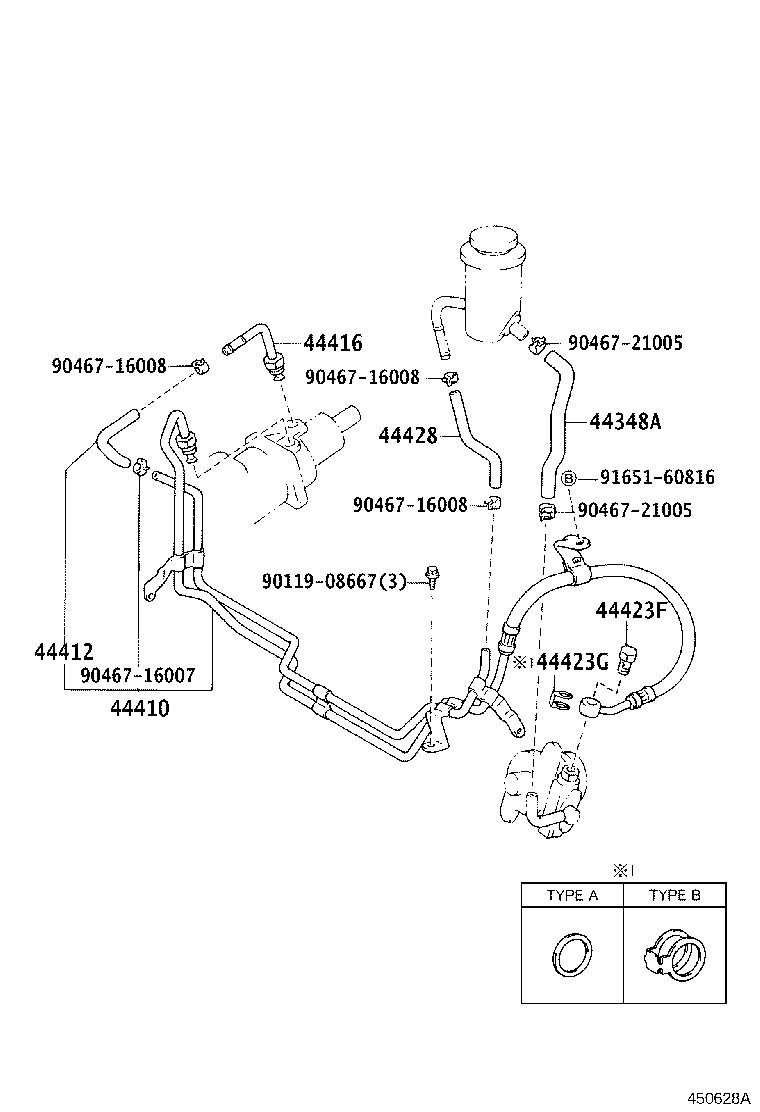

Click highlighted areas on diagram

diagram 44348A 44410 44412 44416 44423F 44423G 44428 9011908667 9046716007 9046716008 9046716008 9046716008 9046721005 9046721005 9165160816
Part # Description Qty Price
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-35150

KZN130..JPP

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-35320

KZN130..JPP..RHD

 1
44410-35210

LN108,110,130..JPP

 1
44412 - HOSE, RETURN
44412-35100

LN108,110,130..JPP

 1
44412-35250

KZN130..JPP..RHD

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-35020

LN108,110,130,RN106,110,YN110..JPP

 1
44416-35100

KZN130,VZN130..JPP..RHD

 1
44423F - BOLT, UNION
96341-41603

KZN130,VZN130,YN106..JPP

 1
44423G - GASKET, UNION BOLT
44327-12010

KZN130,VZN130,YN106..JPP

TYPE B:REFER ILLUST.

 1
44428 - HOSE, RETURN, NO.2
44428-35060

KZN130..JPP..RHD

 1
Common parts
90119-08667
90467-16007
90467-16008
90467-21005
91651-60816
