KZN130L-GKMSXW (1993)

Toyota Hilux (Jpp)

Production Aug 1993 - Nov 1995
Engine 1KZT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9308-9511)KZN130..JPP

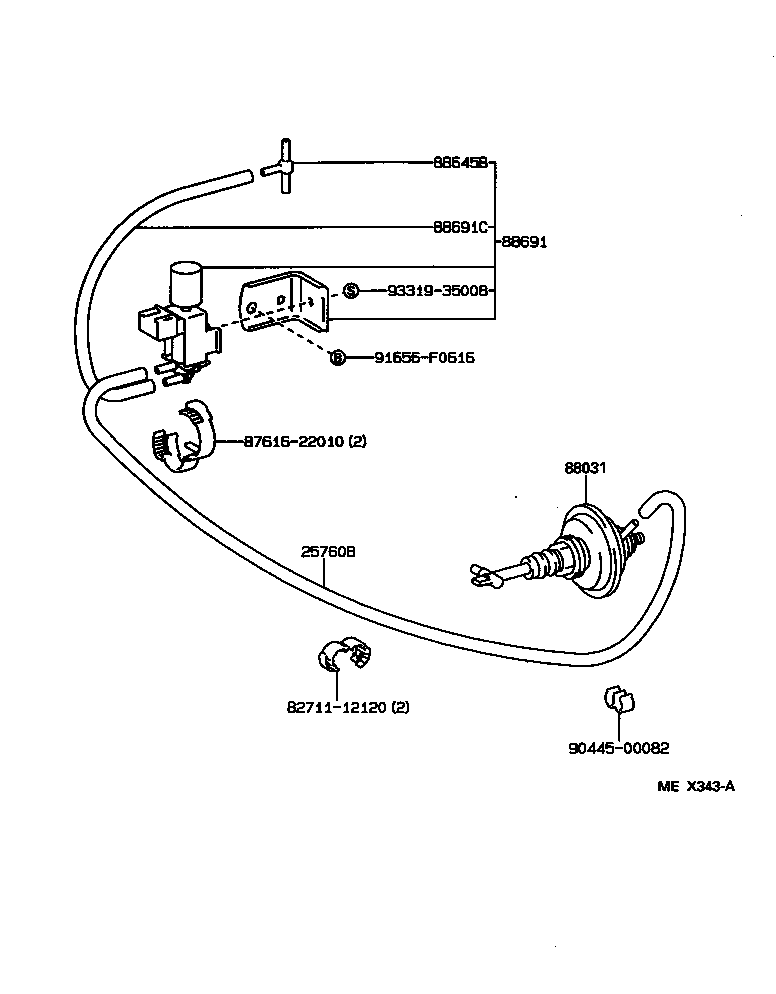

Click highlighted areas on diagram

diagram 25760B 8271112120 8761622010 88031 88645B 88691 88691C 9044500082 91656F0616 9331935008
Part # Description Qty Price
25760B - HOSE ASSY, VACUUM TRANSMITTING
25760-67010

1KZT..KZN130..JPP

 1
88031 - ACTUATOR SET, IDLE-UP
88031-25020

LN110,130,85,90..JPP;LN105..JPP..LHD..CBU

 1
88031-25020

KZN130..JPP

 1
88031-35100

LN10#,110,130,85,90..JPP..LHD

 1
88645B - JOINT, NO.1 (FOR IDLE UP DIVICE)
90413-04001

VZN130..JPP..LHD;KZN130,LN130..JPP

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10025

KZN130,LN130..JPP

*H,L=250,MARK=#0

 1
90999-92006

KZN130..JPP

L=1070,MARK=#*

 1
90999-92006

KZN130..JPP..LHD

L=1070,MARK=#*

 1
Common parts
82711-12120
87616-22010
90445-00082
91656-F0616
93319-35008
