KZN130L-GKMSXW (1993)

Toyota Hilux (Jpp)

Production Aug 1993 - Nov 1995
Engine 1KZT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9308-9511)KZN130..JPP

Click highlighted areas on diagram

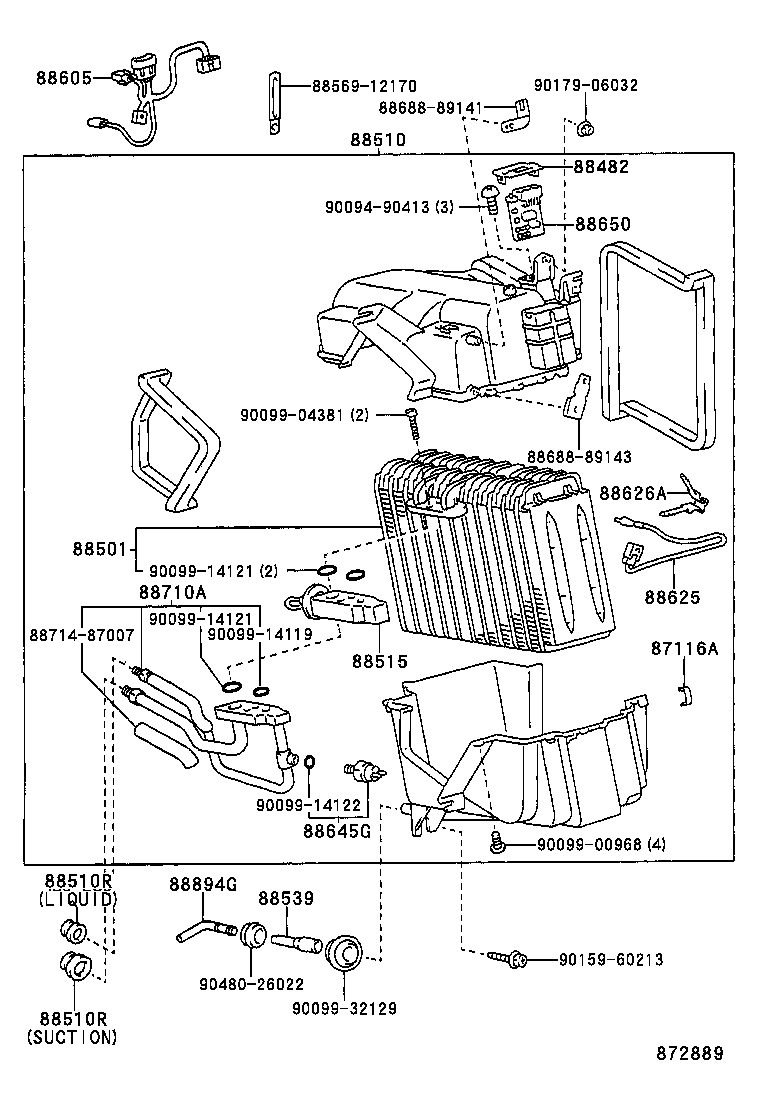

diagram 87116A 88482 88501 88510 88510R 88510R 88515 88539 8856912170 88605 88625 88626A 88645G 88650 8868889141 8868889143 88710A 8871487007 88894G 9009490413 9009900968 9009904381 9009914119 9009914121 9009914121 9009914122 9009932129 9015960213 9017906032 9048026022
Part # Description Qty Price
87116A - SPRING, HOLDING (FOR COOLER UNIT CASE)
87116-14010

KZN130,LN130,VZN130..JPP

 3
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-35010

KZN130,LN130,VZN130..JPP..LHD

 1
88501-35010

KZN130,LN130,VZN130..JPP..LHD

DEALER OPTION

 1
88501-35011

KZN130,LN130,VZN130..JPP..LHD

MAKER OPTION

 1
88510 - UNIT ASSY, COOLER
88510-35170

KZN130..JPP..LHD

MAKER OPTION

 1
88510-35280

KZN130..JPP..LHD

DEALER OPTION

 1
88510R - GROMMET (FOR COOLER UNIT)
90480-26027

KZN130,LN130,VZN130..JPP

LIQUID

 1
90480-36019

KZN130,LN130,VZN130..JPP

SUCTION

 1
88510R - GROMMET (FOR COOLER UNIT)
90480-26027

KZN130,LN130,VZN130..JPP

LIQUID

 1
90480-36019

KZN130,LN130,VZN130..JPP

SUCTION

 1
88515 - VALVE, COOLER EXPANSION
88515-20100

KZN130,LN130,VZN130..JPP

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-89113

LN105..JPP..LHD..CBU;LN110,130,85,90,VZN130,YN110,85,90..JPP..LHD

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-35140

KZN130..JPP..LHD

 1
88625 - THERMISTOR, COOLER, NO.1
88625-35020

KZN130,LN130,VZN130..JPP..LHD

 1
88626A - HOLDER, THERMISTOR
88626-33010

KZN130,LN130,VZN130..JPP

 1
88645G - SWITCH, PRESSURE
88645-20050

KZN130,LN130,VZN130..JPP

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-35030

KZN130..JPP

 1
88650-89109

LN110,130,85,90..JPP;LN105..JPP..LHD..CBU

 1
88710A - TUBE ASSY, AIR CONDITIONER
88710-35100

KZN130,LN130,VZN130..JPP..LHD

 1
88894G - CONNECTOR, DRAIN HOSE
88894-89109

LN110,130,85,90..JPP;LN105..JPP..LHD..CBU

 1
88894-35020

KZN130..JPP..LHD

 1
Common parts
88569-12170
88688-89141
88688-89143
88714-87007
90094-90413
90099-00968
90099-04381
90099-14119
90099-14121
90099-14122
90099-32129
90159-60213
90179-06032
90480-26022
