KZN130L-GKMSXW (1993)

Toyota Hilux (Jpp)

Production Aug 1993 - Nov 1995
Engine 1KZT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9308-9511)1KZT..JPP

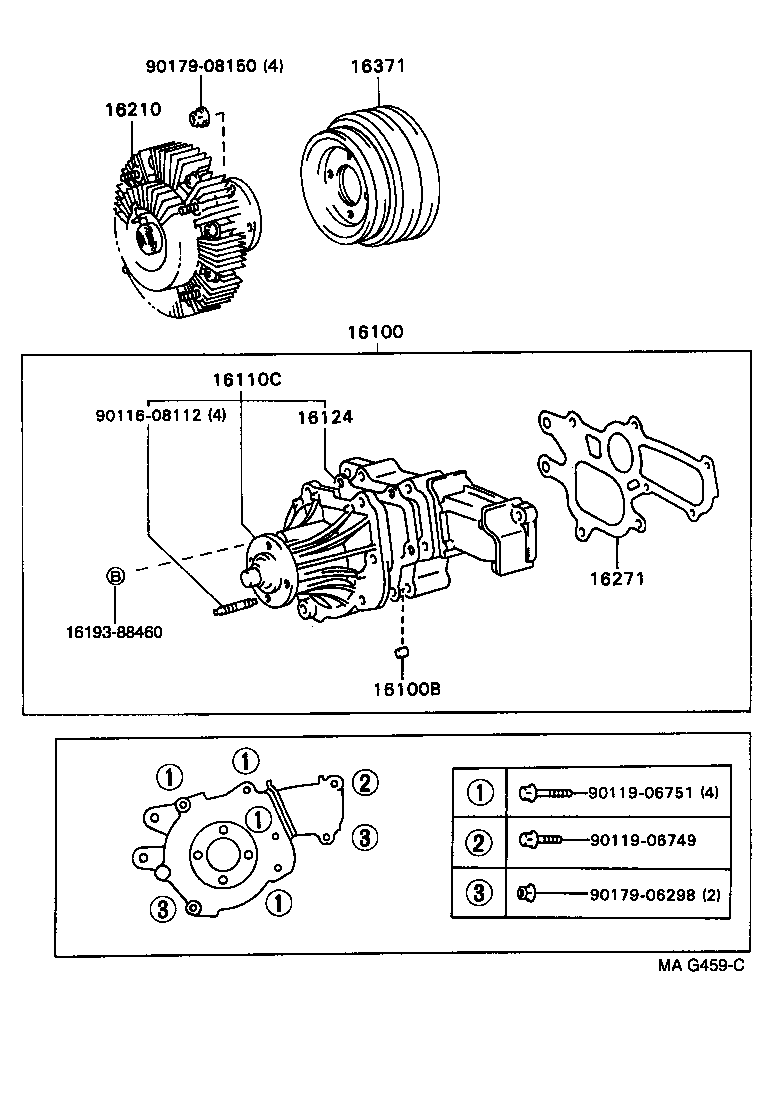

Click highlighted areas on diagram

diagram 16100 16100B 16110C 16124 1619388460 16210 16271 16371 9011608112 9011906749 9011906751 9017906298 9017908150
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-69355

1KZT..KZN130..JPP

 1
16100B - PIN, RING(FOR WATER PUMP SET)
16159-70040

1KZT..KZN130..JPP

 2
16110C - PUMP ASSY, WATER, W/O COVER
16110-69045

1KZT..KZN130..JPP

 1
16124 - GASKET, WATER PUMP COVER
16124-67010

1KZT..KZN130..JPP

 1
16210 - COUPLING ASSY, FLUID
16210-67010

1KZT..KZN130..JPP

 1
16271 - GASKET, WATER PUMP
16271-67020

1KZT..KZN130..JPP

 1
16371 - PULLEY, FAN
16371-67020

1KZT..KZN130..JPP

 1
Common parts
16193-88460
90116-08112
90119-06749
90119-06751
90179-06298
90179-08150
