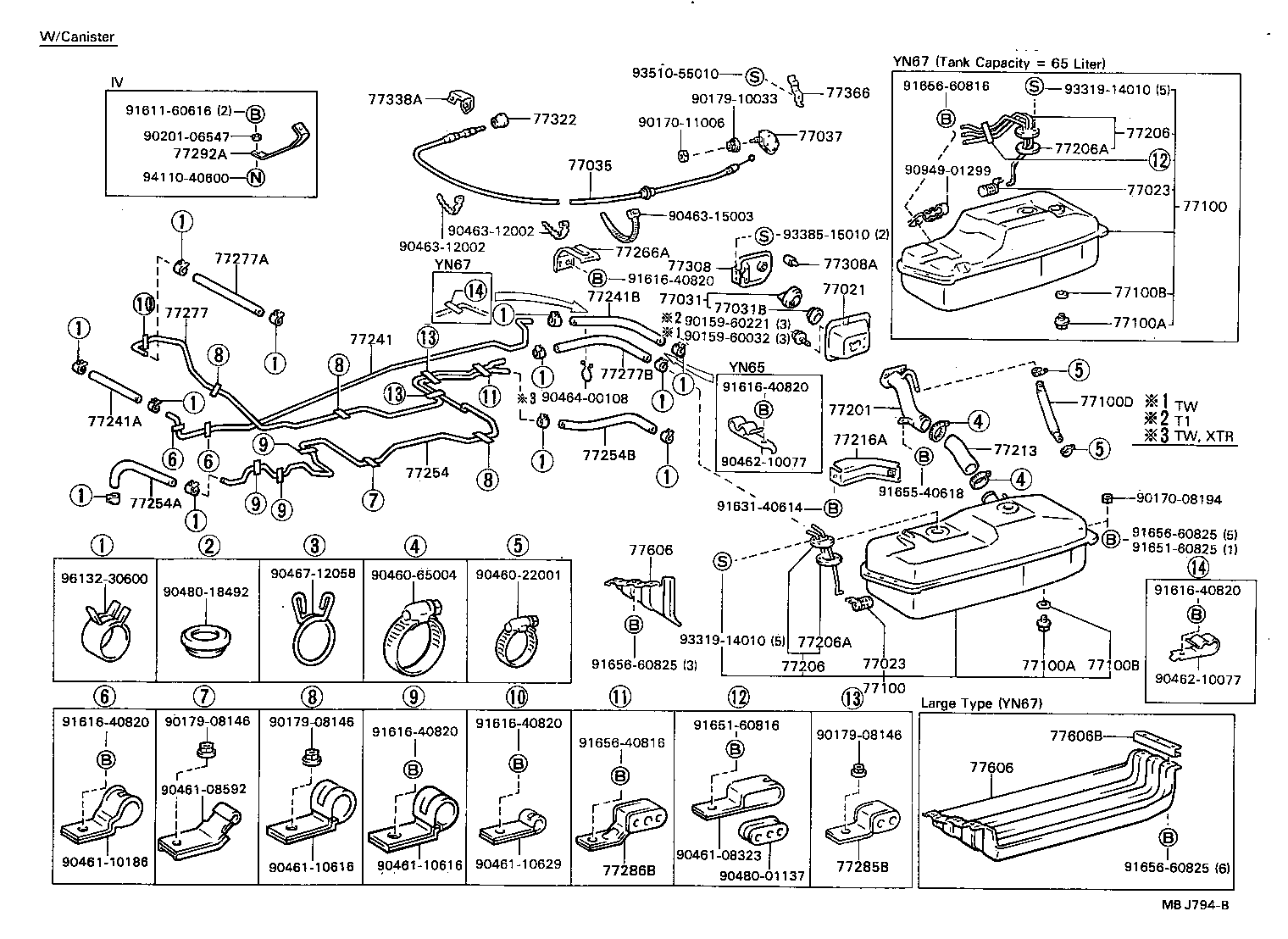

YN67R-MRQ (1985)
Toyota Hilux
(8308-8708)YN57,65,67..ARL ; (8308- )RN67,YN50,52,55,57,60,62,65,67..T1,T3,TW..E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77021 - BOX ASSY, FUEL TANK INLET | ||||
| 61709-89102 |
LN60,65,67,YN60,62,65,67..T1..CBU |
1 | ||
| 61709-89101 |
LN50,51,55,56,RN5#,67,YN50,52,55,56,57..T1..CBU |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-12050 |
RN58..SR5;LN50,51,55,56,RN50,55,67,YN5# |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-12050 |
RN58..SR5;LN50,51,55,56,RN50,55,67,YN5# |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-12100 |
YN6#..(T1,WG)..(ARL,EUR,GEN,ME)..CBU |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12050 |
LN6#,YN6#..(T1,WG)..(ARL,EUR,GEN,ME)..CBU |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77100-35310 |
YN6#..T1 65LITER |
1 | ||
| 77100-35331 |
YN67..T1..(ARL,SA) 73LITER |
1 | ||
| 77100-35311 |
YN60,62,67..T1 65LITER |
1 | ||
| 77001-35934 |
LN65,YN67..T1..(ARL,SA) 73LITER |
1 | ||
| 77001-35933 |
LN65,YN62,65,67..T1 65LITER |
1 | ||
| 77001-35955 |
LN65,YN67..T1 65LITER |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77100-35310 |
YN6#..T1 65LITER |
1 | ||
| 77100-35331 |
YN67..T1..(ARL,SA) 73LITER |
1 | ||
| 77100-35311 |
YN60,62,67..T1 65LITER |
1 | ||
| 77001-35934 |
LN65,YN67..T1..(ARL,SA) 73LITER |
1 | ||
| 77001-35933 |
LN65,YN62,65,67..T1 65LITER |
1 | ||
| 77001-35955 |
LN65,YN67..T1 65LITER |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12018 |
RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6# |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12018 |
RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6# |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6# |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6# |
1 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 77408-35020 |
LN5#,60,65,67,RN5#,67,YN5#,60,62,65,67..T1 L=340 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-35300 |
YN67..T1..ARL |
1 | ||
| 77201-35230 |
LN6#,YN6#..T1 |
1 | ||
| 77206 - TUBE SUB-ASSY, FUEL TANK SUCTION | ||||
| 77203-35270 |
YN6#..T1 TANK CAPACITY=65LITER |
1 | ||
| 77206 - TUBE SUB-ASSY, FUEL TANK SUCTION | ||||
| 77203-35270 |
YN6#..T1 TANK CAPACITY=65LITER |
1 | ||
| 77206A - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-14020 |
RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,67,YN5#,6# |
1 | ||
| 77206A - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-14020 |
RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,67,YN5#,6# |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-35150 |
LN60,65,67,RN67,YN60,62,65,67..T1 |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-89102 |
LN60,65,RN67,YN60,62,65,67..T1..CBU |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-35290 |
RN67,YN65,67..T1 |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08030 |
LN5#,6#..RHD *H,L=260,ID=7.6 |
1 | ||
| 95332-06040 |
YN5#,6# *H,L=340 |
1 | ||
| 95333-06040 |
YN57,6#..5F..ARL *H,L=340 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06040 |
YN60,62,65,67..T1 *H,L=380 |
1 | ||
| 95333-06040 |
YN67..ARL *H,L=400,TANK CAPACITY,73LITER,L=400 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-35030 |
LN60,65,YN60,62,65,67..T1,TW |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 90447-12034 |
LN5#,6# |
1 | ||
| 95332-06040 |
YN50,52,55,56,57,6# *H,L=400 |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 90445-12140 |
LN6#,YN6#..T1 |
1 | ||
| 90445-12140 |
LN65,YN60,62,65,67..T1 |
1 | ||
| 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 | ||||
| 77285-35050 |
RN55,58,67,YN55,56,57,58,65..RCB,XTR |
1 | ||
| 77308 - COVER SUB-ASSY, FUEL INLET BOX | ||||
| 77305-89104 |
LN60,65,67,YN60,62,65,67..T1..CBU |
1 | ||
| 77308A - CUSHION(FOR FUEL INLET BOX COVER) | ||||
| 90541-08003 |
LN50,51,55,56,60,65,RN5#,67,YN5#,60,62,65,67..T1..CBU |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77161-35080 |
LN65,RN67,YN65,67..ARL,SA L=952 |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77161-35080 |
LN65,RN67,YN65,67..ARL,SA L=952 |
1 | ||
| 77606B - BRACKET, FUEL TANK PROTECTOR, SIDE | ||||
| 77162-35020 |
LN65,67,RN67,YN65,67..ARL,SA |
1 | ||
| 77701A - HOSE, FUEL, NO.1 (FOR BREATHER VALVE) | ||||
| 90446-12006 |
LN60,65,YN60,62,65,67..(T1,TW)..(ARL,GEN,ME,SA) L=256 |
1 | ||
| 90446-12006 |
LN55,56,57,67..ARL,GEN,SA L=256 |
1 | ||
| 77701B - HOSE, FUEL, NO.2 (FOR BREATHER VALVE) | ||||
| 95332-06020 |
YN60,62,65,67..T1..(ARL,GEN,ME,SA) *H,L=120 |
1 | ||
| 95333-06020 |
YN67..T1..(ARL,GEN,ME,SA) *H,L=120 |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10054 |
LN55,56,57,6#,RN67,YN60,65 |
1 | ||
| Common parts | ||||
| 90119-08667 | ||||
| 90119-08668 | ||||
| 90159-60032 | ||||
| 90159-60221 | ||||
| 90168-50041 | ||||
| 90170-08204 | ||||
| 90170-11006 | ||||
| 90179-08146 | ||||
| 90179-10033 | ||||
| 90201-06547 | ||||
| 90460-13081 | ||||
| 90460-22001 | ||||
| 90460-65004 | ||||
| 90461-08323 | ||||
| 90461-10186 | ||||
| 90461-10616 | ||||
| 90461-10629 | ||||
| 90461-12284 | ||||
| 90462-10077 | ||||
| 90463-12002 | ||||
| 90463-15003 | ||||
| 90464-00108 | ||||
| 90480-01137 | ||||
| 90480-28006 | ||||
| 90949-01299 | ||||
| 91611-60616 | ||||
| 91616-40816 | ||||
| 91616-40820 | ||||
| 91626-40618 | ||||
| 91631-40614 | ||||
| 91631-40616 | ||||
| 91651-40614 | ||||
| 91651-60816 | ||||
| 91656-40816 | ||||
| 91656-60816 | ||||
| 91656-60825 | ||||
| 93319-14010 | ||||
| 93385-15010 | ||||
| 93510-55010 | ||||
| 94110-40600 | ||||
| 96132-30600 | ||||
ILLUST NO. 1 OF 2(8508-8808)YN55,56,57,58,67..ARL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77021 - BOX ASSY, FUEL TANK INLET | ||||
| 61709-89102 |
LN60,65,67,YN60,62,65,67..T1..CBU |
1 | ||
| 61709-89101 |
LN50,51,55,56,RN5#,67,YN50,52,55,56,57..T1..CBU |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-12050 |
RN58..SR5;LN50,51,55,56,RN50,55,67,YN5# |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-12050 |
RN58..SR5;LN50,51,55,56,RN50,55,67,YN5# |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-12100 |
YN6#..(T1,WG)..(ARL,EUR,GEN,ME)..CBU |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12050 |
LN6#,YN6#..(T1,WG)..(ARL,EUR,GEN,ME)..CBU |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77100-35310 |
YN6#..T1 65LITER |
1 | ||
| 77100-35331 |
YN67..T1..(ARL,SA) 73LITER |
1 | ||
| 77100-35311 |
YN60,62,67..T1 65LITER |
1 | ||
| 77001-35934 |
LN65,YN67..T1..(ARL,SA) 73LITER |
1 | ||
| 77001-35933 |
LN65,YN62,65,67..T1 65LITER |
1 | ||
| 77001-35955 |
LN65,YN67..T1 65LITER |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77100-35310 |
YN6#..T1 65LITER |
1 | ||
| 77100-35331 |
YN67..T1..(ARL,SA) 73LITER |
1 | ||
| 77100-35311 |
YN60,62,67..T1 65LITER |
1 | ||
| 77001-35934 |
LN65,YN67..T1..(ARL,SA) 73LITER |
1 | ||
| 77001-35933 |
LN65,YN62,65,67..T1 65LITER |
1 | ||
| 77001-35955 |
LN65,YN67..T1 65LITER |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12018 |
RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6# |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12018 |
RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6# |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6# |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6# |
1 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 77408-35020 |
LN5#,60,65,67,RN5#,67,YN5#,60,62,65,67..T1 L=340 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-35300 |
YN67..T1..ARL |
1 | ||
| 77201-35230 |
LN6#,YN6#..T1 |
1 | ||
| 77206 - TUBE SUB-ASSY, FUEL TANK SUCTION | ||||
| 77203-35270 |
YN6#..T1 TANK CAPACITY=65LITER |
1 | ||
| 77206 - TUBE SUB-ASSY, FUEL TANK SUCTION | ||||
| 77203-35270 |
YN6#..T1 TANK CAPACITY=65LITER |
1 | ||
| 77206A - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-14020 |
RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,67,YN5#,6# |
1 | ||
| 77206A - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-14020 |
RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,67,YN5#,6# |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-35150 |
LN60,65,67,RN67,YN60,62,65,67..T1 |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-89102 |
LN60,65,RN67,YN60,62,65,67..T1..CBU |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-35290 |
RN67,YN65,67..T1 |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08030 |
LN5#,6#..RHD *H,L=260,ID=7.6 |
1 | ||
| 95332-06040 |
YN5#,6# *H,L=340 |
1 | ||
| 95333-06040 |
YN57,6#..5F..ARL *H,L=340 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06040 |
YN60,62,65,67..T1 *H,L=380 |
1 | ||
| 95333-06040 |
YN67..ARL *H,L=400,TANK CAPACITY,73LITER,L=400 |
1 | ||
| 77254 - TUBE, FUEL EMISSION, NO.1 | ||||
| 77261-35261 |
YN67..ARL *NSW |
1 | ||
| 77261-35290 |
YN67..ARL *NSW |
1 | ||
| 77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1) | ||||
| 90447-12033 |
YN6#..ARL L=350,*NSW |
1 | ||
| 95333-06030 |
YN57,67..5F..ARL *H,L=300,*NSW |
1 | ||
| 95332-06030 |
YN55,57,67..ARL *H,L=300 |
1 | ||
| 95332-06030 |
YN55,57,63,67..ARL *H,L=300 |
1 | ||
| 77254B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1) | ||||
| 90445-12179 |
YN67..T1..ARL L=645,*NSW |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-35030 |
LN60,65,YN60,62,65,67..T1,TW |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 90447-12034 |
LN5#,6# |
1 | ||
| 95332-06040 |
YN50,52,55,56,57,6# *H,L=400 |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 90445-12140 |
LN6#,YN6#..T1 |
1 | ||
| 90445-12140 |
LN65,YN60,62,65,67..T1 |
1 | ||
| 77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1 | ||||
| 77285-35030 |
YN57,58,65,67..ARL *NSW |
2 | ||
| 77285-35040 |
LN5#,60,65,67..T1,T3,TW |
6 | ||
| 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 | ||||
| 77285-35050 |
RN55,58,67,YN55,56,57,58,65..RCB,XTR |
1 | ||
| 77308 - COVER SUB-ASSY, FUEL INLET BOX | ||||
| 77305-89104 |
LN60,65,67,YN60,62,65,67..T1..CBU |
1 | ||
| 77308A - CUSHION(FOR FUEL INLET BOX COVER) | ||||
| 90541-08003 |
LN50,51,55,56,60,65,RN5#,67,YN5#,60,62,65,67..T1..CBU |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77161-35080 |
LN65,RN67,YN65,67..ARL,SA L=952 |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77161-35080 |
LN65,RN67,YN65,67..ARL,SA L=952 |
1 | ||
| 77606B - BRACKET, FUEL TANK PROTECTOR, SIDE | ||||
| 77162-35020 |
LN65,67,RN67,YN65,67..ARL,SA |
1 | ||
| Common parts | ||||
| 90159-60032 | ||||
| 90159-60221 | ||||
| 90170-08194 | ||||
| 90170-11006 | ||||
| 90179-08146 | ||||
| 90179-10033 | ||||
| 90201-06547 | ||||
| 90460-22001 | ||||
| 90460-65004 | ||||
| 90461-08323 | ||||
| 90461-08592 | ||||
| 90461-10186 | ||||
| 90461-10616 | ||||
| 90461-10629 | ||||
| 90462-10077 | ||||
| 90463-12002 | ||||
| 90463-15003 | ||||
| 90464-00108 | ||||
| 90467-12058 | ||||
| 90480-01137 | ||||
| 90480-18492 | ||||
| 90949-01299 | ||||
| 91611-60616 | ||||
| 91616-40820 | ||||
| 91631-40614 | ||||
| 91651-60816 | ||||
| 91651-60825 | ||||
| 91655-40618 | ||||
| 91656-40816 | ||||
| 91656-60816 | ||||
| 91656-60825 | ||||
| 93319-14010 | ||||
| 93385-15010 | ||||
| 93510-55010 | ||||
| 94110-40600 | ||||
| 96132-30600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
