YN67R-MRP (1985)

Toyota Hilux

Production Aug 1985 - Dec 1990
Engine 4Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8708)YN57,65,67..ARL ; (8308- )RN67,YN50,52,55,57,60,62,65,67..T1,T3,TW..E

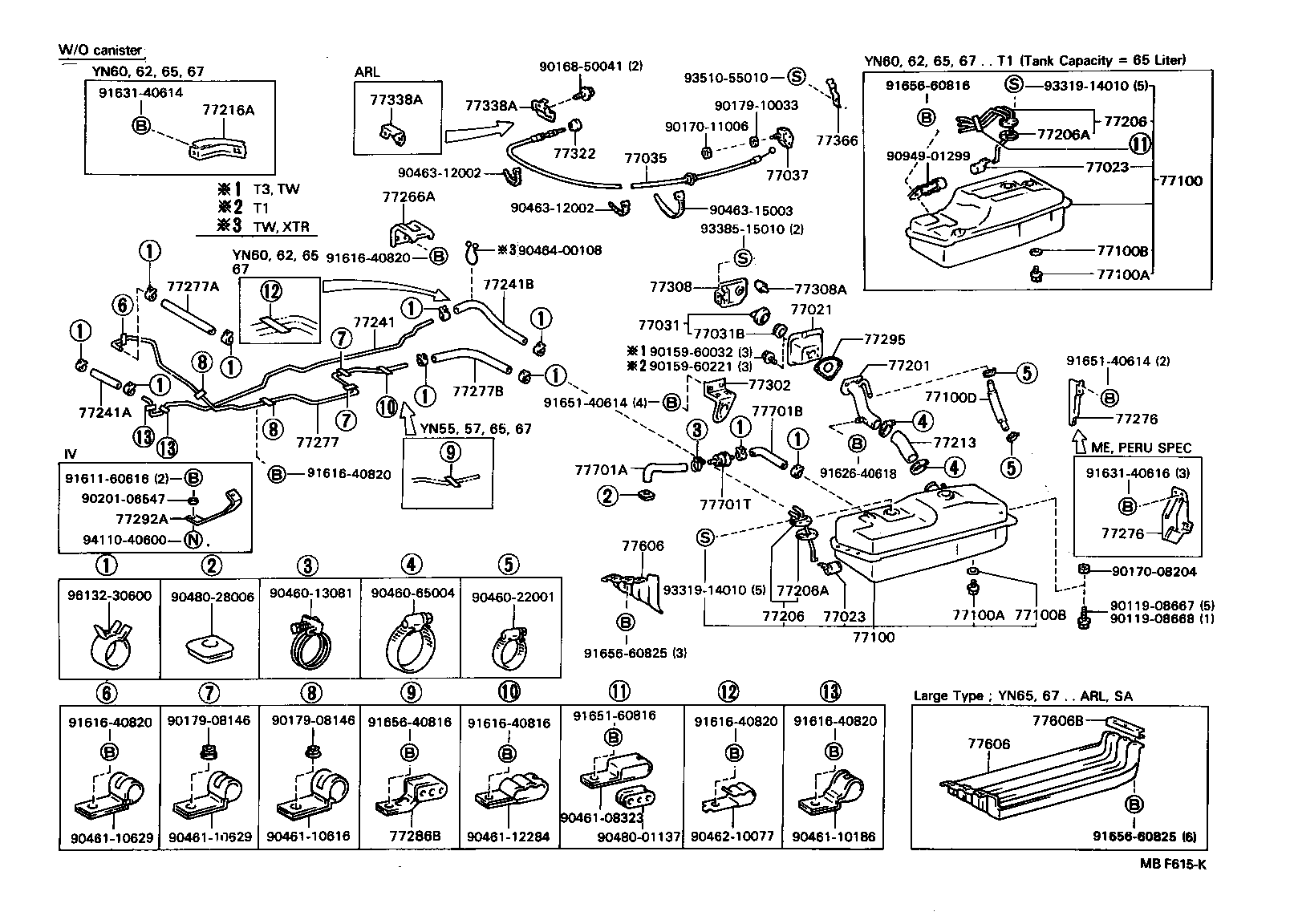

Click highlighted areas on diagram

diagram 77021 77023 77023 77031 77031B 77035 77037 77100 77100 77100A 77100A 77100B 77100B 77100D 77201 77206 77206 77206A 77206A 77213 77216A 77241 77241A 77241B 77266A 77276 77276 77277 77277A 77277B 77286B 77292A 77295 77302 77308 77308A 77322 77338A 77338A 77366 77606 77606 77606B 77701A 77701B 77701T 9011908667 9011908668 9015960032 9015960221 9016850041 9017008204 9017011006 9017908146 9017908146 9017910033 9020106547 9046013081 9046022001 9046065004 9046108323 9046110186 9046110616 9046110629 9046110629 9046112284 9046210077 9046312002 9046312002 9046315003 9046400108 9048001137 9048028006 9094901299 9161160616 9161640816 9161640820 9161640820 9161640820 9161640820 9161640820 9162640618 9163140614 9163140616 9165140614 9165140614 9165160816 9165640816 9165660816 9165660825 9165660825 9331914010 9331914010 9338515010 9351055010 9411040600 9613230600
Part # Description Qty Price
77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE
77023-12050

RN58..SR5;LN50,51,55,56,RN50,55,67,YN5#

 1
77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE
77023-12050

RN58..SR5;LN50,51,55,56,RN50,55,67,YN5#

 1
77100 - TANK ASSY, FUEL
77001-35935

LN65,YN67..TW..(ARL,GEN,ME,SA)

65LITER

 1
77100-35461

YN67..TW

65LITER

 1
77100 - TANK ASSY, FUEL
77001-35935

LN65,YN67..TW..(ARL,GEN,ME,SA)

65LITER

 1
77100-35461

YN67..TW

65LITER

 1
77100A - PLUG(FOR FUEL TANK)
90105-12018

RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#

 1
77100A - PLUG(FOR FUEL TANK)
90105-12018

RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#

 1
77100B - GASKET(FOR FUEL TANK)
90430-12245

RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#

 1
77100B - GASKET(FOR FUEL TANK)
90430-12245

RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#

 1
77206A - GASKET (FOR FUEL TANK SUCTION TUBE)
77169-14020

RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,67,YN5#,6#

 1
77206A - GASKET (FOR FUEL TANK SUCTION TUBE)
77169-14020

RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,67,YN5#,6#

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95332-08030

LN5#,6#..RHD

*H,L=260,ID=7.6

 1
95332-06040

YN5#,6#

*H,L=340

 1
77266A - PROTECTOR, FUEL TUBE, NO.1
77266-35030

LN60,65,YN60,62,65,67..T1,TW

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
90447-12034

LN5#,6#

 1
95332-06040

YN50,52,55,56,57,6#

*H,L=400

 1
77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77161-35070

LN60,65,YN60,62,65,67..(DLX,STD)..(EUR,GEN,ME)

L=318

 1
77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77161-35070

LN60,65,YN60,62,65,67..(DLX,STD)..(EUR,GEN,ME)

L=318

 1
77701A - HOSE, FUEL, NO.1 (FOR BREATHER VALVE)
90446-12006

LN60,65,YN60,62,65,67..(T1,TW)..(ARL,GEN,ME,SA)

L=256

 1
90446-12006

LN55,56,57,67..ARL,GEN,SA

L=256

 1
77701T - VALVE, CHECK (FOR MAIN FUEL TANK)
90917-10054

LN55,56,57,6#,RN67,YN60,65

 1
Common parts
90119-08667
90119-08668
90159-60032
90159-60221
90168-50041
90170-08204
90170-11006
90179-08146
90179-10033
90201-06547
90460-13081
90460-22001
90460-65004
90461-08323
90461-10186
90461-10616
90461-10629
90461-12284
90462-10077
90463-12002
90463-15003
90464-00108
90480-01137
90480-28006
90949-01299
91611-60616
91616-40816
91616-40820
91626-40618
91631-40614
91631-40616
91651-40614
91651-60816
91656-40816
91656-60816
91656-60825
93319-14010
93385-15010
93510-55010
94110-40600
96132-30600
