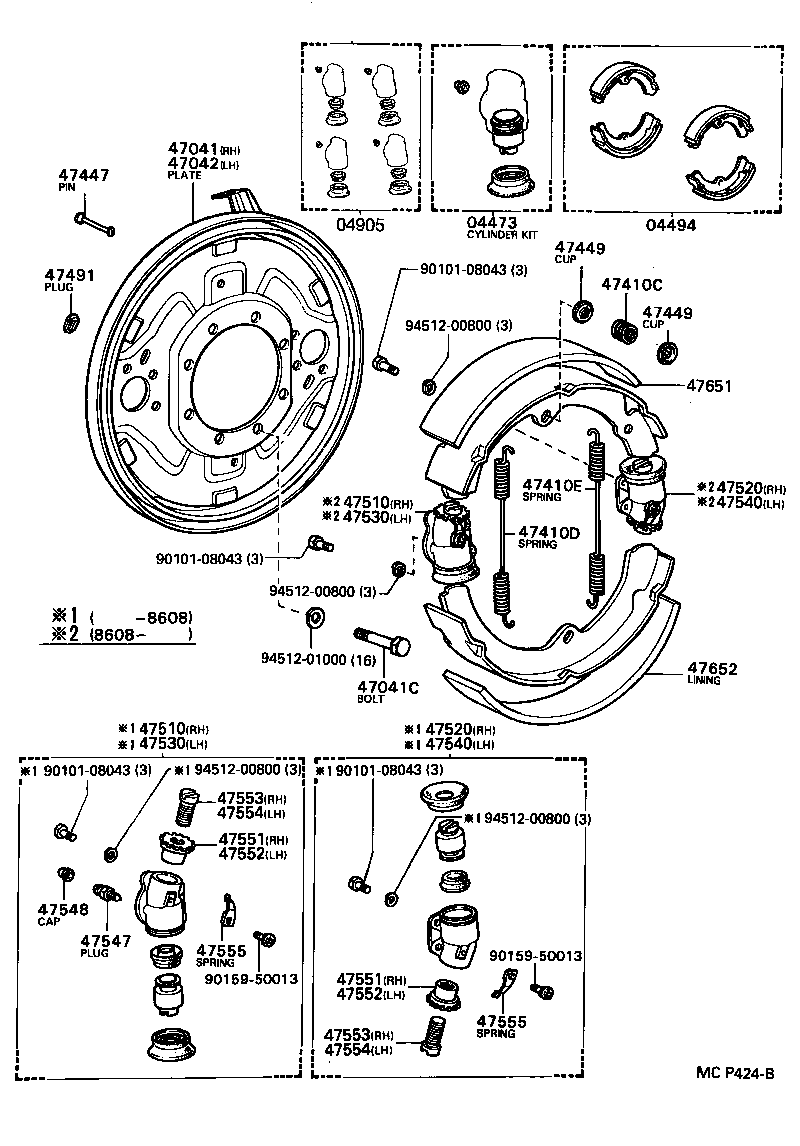

YN67L-MRP3 (1986)
Toyota Hilux
(8308-9201)LN6#,YN6#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04473 - CYLINDER KIT, FRONT WHEEL | ||||
| 04473-26010 |
LN50,55,6#,YN50,52,55,57,6#..(T1,T3,TW)..(GEN,ME) |
4 | ||
| 04494 - SHOE KIT, FRONT BRAKE | ||||
| 04494-35060 |
LN6#,YN6#..(DLX,STD)..(GEN,ME) |
1 | ||
| 47041 - PLATE SUB-ASSY, BRAKE BACKING, FRONT RH | ||||
| 47041-35050 |
LN6#,YN6#..(DLX,STD)..(GEN,ME) |
1 | ||
| 47041C - BOLT(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING) | ||||
| 91112-71028 |
LN6#,YN6#..(DLX,STD)..(GEN,ME) |
16 | ||
| 47042 - PLATE SUB-ASSY, BRAKE BACKING, FRONT LH | ||||
| 47042-35040 |
LN6#,YN6#..(DLX,STD)..(GEN,ME) |
1 | ||
| 47410C - SPRING(FOR FRONT BRAKE SHOE HOLD DOWN) | ||||
| 90501-20756 |
LN50,55,6#,YN50,52,55,57,6#..(T1,T3,TW)..(GEN,ME) |
4 | ||
| 47410D - SPRING, TENSION(FOR FRONT BRAKE SHOE RETURN) | ||||
| 90506-23011 |
LN6#,YN6#..(DLX,STD)..(GEN,ME) |
2 | ||
| 47410E - SPRING, TENSION(FOR FRONT BRAKE SHOE RETURN) | ||||
| 90506-23011 |
LN6#,YN6#..(DLX,STD)..(GEN,ME) |
2 | ||
| 47447 - PIN, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) | ||||
| 47447-20030 |
LN6#,YN6#..(DLX,STD)..(GEN,ME) |
4 | ||
| 47449 - CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) | ||||
| 47449-30020 |
LN50,55,6#,YN50,52,55,57,6#..(T1,T3,TW)..(GEN,ME) |
8 | ||
| 47449 - CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) | ||||
| 47449-30020 |
LN50,55,6#,YN50,52,55,57,6#..(T1,T3,TW)..(GEN,ME) |
8 | ||
| 47491 - PLUG, HOLE(FOR FRONT BRAKE) | ||||
| 47491-36010 |
LN50,55,6#,YN50,52,55,57,6#..(T1,T3,TW)..(GEN,ME) |
21 | ||
| 47510 - CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER | ||||
| 47510-39165 |
LN6#,YN6#..(DLX,STD)..(GEN,ME) |
1 | ||
| 47510 - CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER | ||||
| 47510-39165 |
LN6#,YN6#..(DLX,STD)..(GEN,ME) |
1 | ||
| 47520 - CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER) | ||||
| 47520-39125 |
LN6#,YN6#..(DLX,STD)..(GEN,ME) |
1 | ||
| 47520 - CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER) | ||||
| 47520-39125 |
LN6#,YN6#..(DLX,STD)..(GEN,ME) |
1 | ||
| 47530 - CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER | ||||
| 47530-39165 |
LN6#,YN6#..(DLX,STD)..(GEN,ME) |
1 | ||
| 47530 - CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER | ||||
| 47530-39165 |
LN6#,YN6#..(DLX,STD)..(GEN,ME) |
1 | ||
| 47540 - CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER) | ||||
| 47540-39125 |
LN6#,YN6#..(DLX,STD)..(GEN,ME) |
1 | ||
| 47540 - CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER) | ||||
| 47540-39125 |
LN6#,YN6#..(DLX,STD)..(GEN,ME) |
1 | ||
| 47547 - PLUG, BLEEDER(FOR FRONT DRUM BRAKE) | ||||
| 47547-12010 |
LN50,55,6#,YN50,52,55,57,6#..(T1,T3,TW)..(GEN,ME) |
2 | ||
| 47548 - CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT) | ||||
| 31478-30010 |
LN50,55,6#,YN50,52,55,57,6#..(T1,T3,TW)..(GEN,ME) |
2 | ||
| 47551 - NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE | ||||
| 47551-26020 |
LN50,55,6#,YN50,52,55,57,6#..(T1,T3,TW)..(GEN,ME) |
1 | ||
| 47551 - NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE | ||||
| 47551-26020 |
LN50,55,6#,YN50,52,55,57,6#..(T1,T3,TW)..(GEN,ME) |
1 | ||
| 47552 - NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE | ||||
| 47552-26020 |
LN50,55,6#,YN50,52,55,57,6#..(T1,T3,TW)..(GEN,ME) |
1 | ||
| 47552 - NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE | ||||
| 47552-26020 |
LN50,55,6#,YN50,52,55,57,6#..(T1,T3,TW)..(GEN,ME) |
1 | ||
| 47553 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAK | ||||
| 47553-30051 |
LN50,55,6#,YN50,52,55,57,6#..(T1,T3,TW)..(GEN,ME) |
1 | ||
| 47553 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAK | ||||
| 47553-30051 |
LN50,55,6#,YN50,52,55,57,6#..(T1,T3,TW)..(GEN,ME) |
1 | ||
| 47554 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAK | ||||
| 47554-30051 |
LN50,55,6#,YN50,52,55,57,6#..(T1,T3,TW)..(GEN,ME) |
1 | ||
| 47554 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAK | ||||
| 47554-30051 |
LN50,55,6#,YN50,52,55,57,6#..(T1,T3,TW)..(GEN,ME) |
1 | ||
| 47555 - SPRING, ADJUSTER LOCK(FOR FRONT BRAKE) | ||||
| 47555-26030 |
LN50,55,6#,YN50,52,55,57,6#..(T1,T3,TW)..(GEN,ME) |
2 | ||
| 47555 - SPRING, ADJUSTER LOCK(FOR FRONT BRAKE) | ||||
| 47555-26030 |
LN50,55,6#,YN50,52,55,57,6#..(T1,T3,TW)..(GEN,ME) |
2 | ||
| 47651 - LINING, FRONT BRAKE SHOE(FOR FRONT OR UPPER) | ||||
| 47651-35060 |
LN6#,YN6#..(DLX,STD)..(GEN,ME) |
2 | ||
| 47652 - LINING, FRONT BRAKE SHOE(FOR REAR OR LOWER) | ||||
| 47651-35060 |
LN6#,YN6#..(DLX,STD)..(GEN,ME) |
2 | ||
| Common parts | ||||
| 90101-08043 | ||||
| 90159-50013 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
