YN67L-MRP (1985)

Toyota Hilux

Production Aug 1985 - Jan 1992
Engine 4Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8601-8903)RN5#,61 ; (9407- )RN58,67

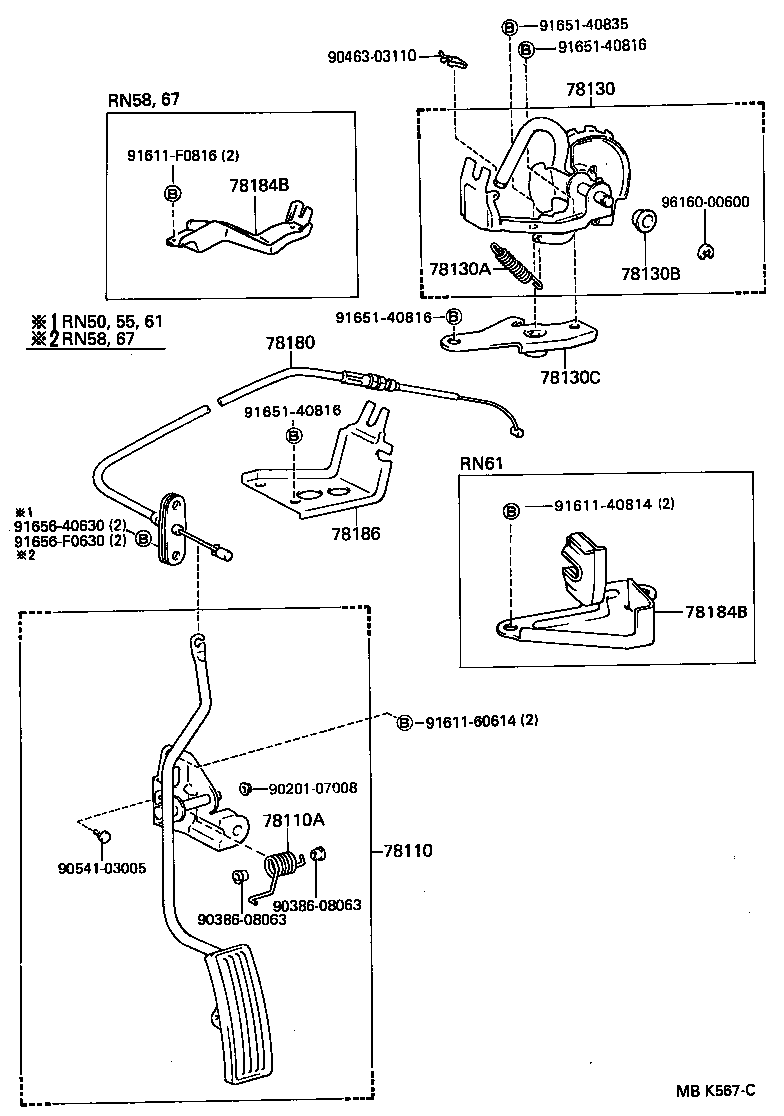

Click highlighted areas on diagram

diagram 78110 78110A 78130 78130A 78130B 78130C 78180 78184B 78184B 78186 9020107008 9038608063 9038608063 9046303110 9054103005 9161140814 9161160614 91611F0816 9165140816 9165140816 9165140816 9165140835 9165640630 91656F0630 9616000600
Part # Description Qty Price
78110 - ROD ASSY, ACCELERATOR PEDAL
78120-89126

YN6#..LHD..GEN

W/THROTTLE BUTTON

 1
78120-89122

YN6#..LHD

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-14075

YN50,52,55,56,57,6#..LHD

 1
78130B - BUSH, ACCELERATOR BELLCRANK
90386-08003

YN58..4F;YN58..SR5,STD;YN50,51,52,55,56,57,6#..4F,4FC,4H,5F

 2
78180 - WIRE ASSY, ACCELERATOR
78180-89144

YN50,52,55,56,57,67..LHD

 1
78180-89130

YN50,52,55,56,57,60,62,65,67..LHD..(T1,TW)

 1
Common parts
90201-07008
90386-08063
90463-03110
90541-03005
91611-40814
91611-60614
91611-F0816
91651-40816
91651-40835
91656-40630
91656-F0630
96160-00600
