YN67L-MRP (1985)
Toyota Hilux

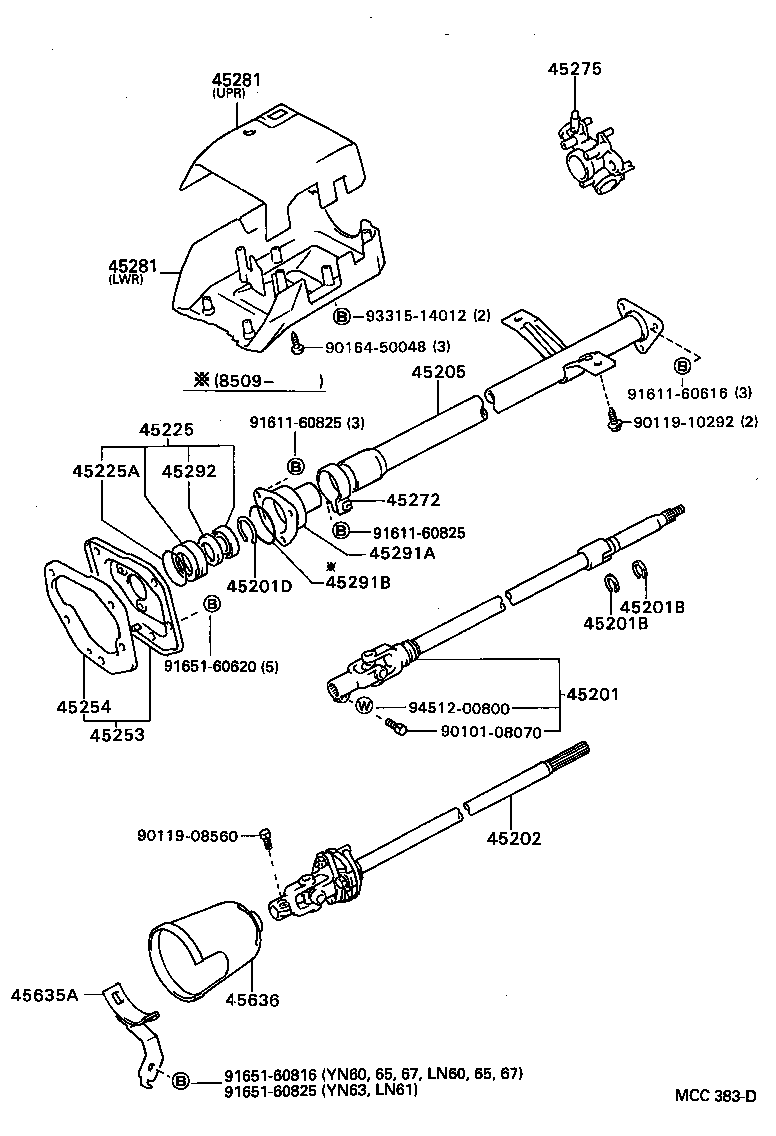

(8308-8608)LN5#,YN5# ; (8608-9201)LN5#,YN50,51,55,56,57..ARL,EUR,GEN,SA ; (9201-
RIGID STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45210-35111 |
YN67;LN6#,YN62,63,65..ARL,EUR,GEN RIGID STRG,W/O TILT STRG |
1 | ||
| 45210-22050 |
LN5#,65,YN50,55,57,60,62,65,67..LHD..GEN W/TILT STRG |
1 | ||
| 45210-35111 |
LN65,YN67..ARL,EUR,GEN,SA RIGID STRG,W/O TILT STRG |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6# T=1.20,LWR |
1 | ||
| 90520-17269 |
LN5#,6#,RN5#,6#,YN5#,6# T=1.20,UPR |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6# T=1.20,LWR |
1 | ||
| 90520-17269 |
LN5#,6#,RN5#,6#,YN5#,6# T=1.20,UPR |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-35210 |
LN65,YN6#..LHD..GEN W/TILT & RIGID STRG |
1 | ||
| 45205-35211 |
LN65,YN62,67..LHD..GEN W/TILT & RIGID STRG |
1 | ||
| 45205-35201 |
YN63..ARL;LN6#,YN60,62,65,67 RIGID STRG |
1 | ||
| 45205-35201 |
LN6#,YN6#..ARL,EUR,GEN,SA RIGID STRG |
1 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-35040 |
LN6#,YN6# |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45025-35050 |
LN65,YN6#..LHD RIGID STRG |
1 | ||
| 45025-35051 |
LN65,YN6#..LHD RIGID STRG |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-35010 |
LN65,RN61,YN6#..LHD |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45280-28060 |
LN50,55,65,YN50,55,57,6#..LHD..GEN W/TILT STRG |
1 | ||
| 45280-35140 |
LN5#,65,RN5#,YN5#,60,62,65,67..LHD |
1 | ||
| 45280-35140 |
LN65,YN67..LHD..(EUR,GEN) |
1 | ||
| 45280-28061 |
LN5#,65,YN50,55,57,67..LHD..GEN W/TILT STRG |
1 | ||
| 45280-35141 |
LN65,YN67..LHD..(EUR,GEN) |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-35230 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) UPR,W/TILT STRG |
1 | ||
| 45287-35180 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) LWR,W/TILT STRG |
1 | ||
| 45286-35220 |
LN5#,65,RN5#,YN5#,6#..LHD UPR |
1 | ||
| 45286-3522003 |
LN5#,65,RN5#,YN50,52,55,56,57,6#..LHD UPR,GRAY,GRAY,TRIM1# |
1 | ||
| 45287-35170 |
LN5#,65,RN5#,YN5#,6#..LHD LWR |
1 | ||
| 45286-3523004 |
LN5#,65,RN5#,YN50,52,55,57,67..LHD..(GEN,ME) UPR,W/TILT STRG,BLUE,BLUE,TRIM8# |
1 | ||
| 45286-3523003 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) UPR,W/TILT STRG,GRAY,GRAY,TRIM1# |
1 | ||
| 45286-3522004 |
LN5#,65,RN5#,YN50,52,55,56,57,67..LHD UPR,BLUE,BLUE,TRIM8# |
1 | ||
| 45286-3523005 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) UPR,W/TILT STRG,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45286-3522005 |
LN5#,65,RN5#,YN50,52,55,56,57,6#..LHD UPR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45287-3517004 |
LN5#,65,RN5#,YN50,52,55,56,57,67..LHD LWR,BLUE,BLUE,TRIM8# |
1 | ||
| 45287-3517003 |
LN5#,65,RN5#,YN50,52,55,56,57,6#..LHD LWR,GRAY,GRAY,TRIM1# |
1 | ||
| 45287-3518003 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) LWR,W/TILT STRG,GRAY,GRAY,TRIM1# |
1 | ||
| 45287-3517005 |
LN5#,65,RN5#,YN50,52,55,56,57,6#..LHD LWR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45287-3518005 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) LWR,W/TILT STRG,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45287-3518004 |
LN5#,65,RN5#,YN50,52,55,57,67..LHD..(GEN,ME) LWR,W/TILT STRG,BLUE,BLUE,TRIM8# |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-35230 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) UPR,W/TILT STRG |
1 | ||
| 45287-35180 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) LWR,W/TILT STRG |
1 | ||
| 45286-35220 |
LN5#,65,RN5#,YN5#,6#..LHD UPR |
1 | ||
| 45286-3522003 |
LN5#,65,RN5#,YN50,52,55,56,57,6#..LHD UPR,GRAY,GRAY,TRIM1# |
1 | ||
| 45287-35170 |
LN5#,65,RN5#,YN5#,6#..LHD LWR |
1 | ||
| 45286-3523004 |
LN5#,65,RN5#,YN50,52,55,57,67..LHD..(GEN,ME) UPR,W/TILT STRG,BLUE,BLUE,TRIM8# |
1 | ||
| 45286-3523003 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) UPR,W/TILT STRG,GRAY,GRAY,TRIM1# |
1 | ||
| 45286-3522004 |
LN5#,65,RN5#,YN50,52,55,56,57,67..LHD UPR,BLUE,BLUE,TRIM8# |
1 | ||
| 45286-3523005 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) UPR,W/TILT STRG,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45286-3522005 |
LN5#,65,RN5#,YN50,52,55,56,57,6#..LHD UPR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45287-3517004 |
LN5#,65,RN5#,YN50,52,55,56,57,67..LHD LWR,BLUE,BLUE,TRIM8# |
1 | ||
| 45287-3517003 |
LN5#,65,RN5#,YN50,52,55,56,57,6#..LHD LWR,GRAY,GRAY,TRIM1# |
1 | ||
| 45287-3518003 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) LWR,W/TILT STRG,GRAY,GRAY,TRIM1# |
1 | ||
| 45287-3517005 |
LN5#,65,RN5#,YN50,52,55,56,57,6#..LHD LWR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45287-3518005 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) LWR,W/TILT STRG,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45287-3518004 |
LN5#,65,RN5#,YN50,52,55,57,67..LHD..(GEN,ME) LWR,W/TILT STRG,BLUE,BLUE,TRIM8# |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-35030 |
LN6#,YN6# RIGID STRG |
1 | ||
| 45292-60050 |
YN63..ARL;LN6#,YN60,62,65,67 RIGID STRG |
1 | ||
| Common parts | ||||
| 90119-06065 | ||||
| 90119-08560 | ||||
| 90119-10292 | ||||
| 90164-50048 | ||||
| 90170-08008 | ||||
| 91611-60616 | ||||
| 91651-60616 | ||||
| 93315-14012 | ||||
| 94512-00800 | ||||

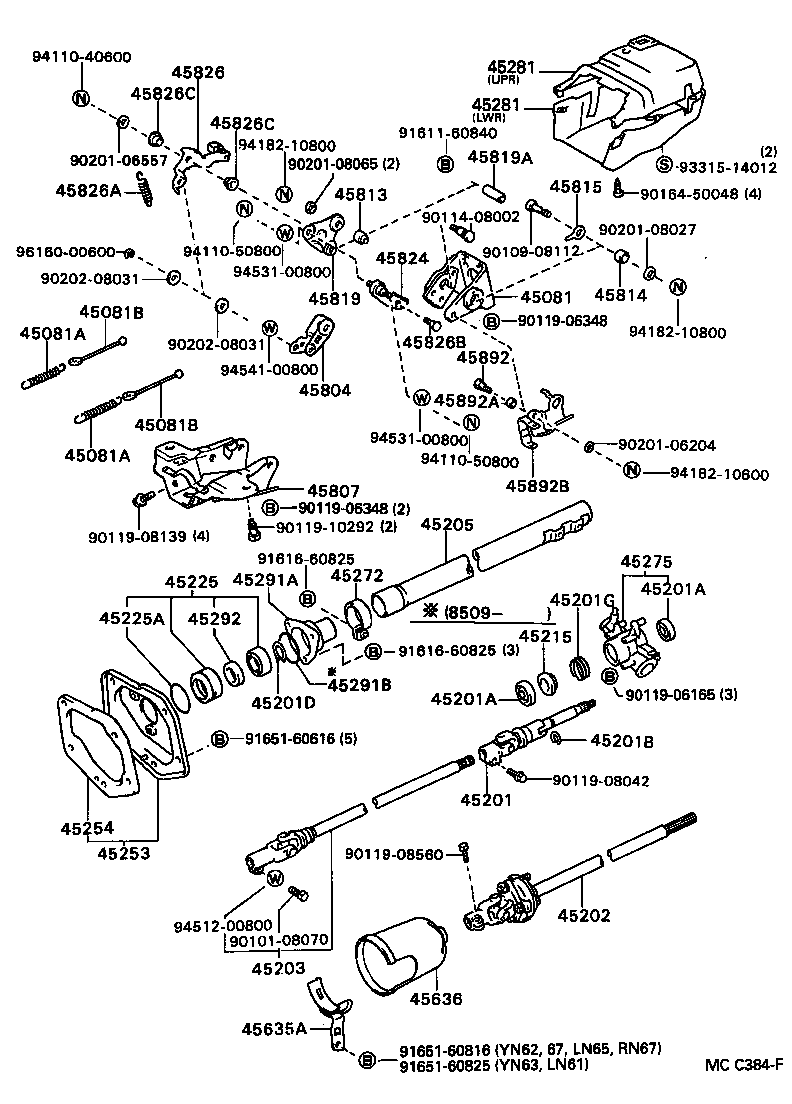

(8508-8608)LN6#,YN6# ; (8608-9201)LN6#,YN6#..ARL,EUR,GEN,SA ; (9201- )LN6#,YN67
RIGID STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45210-35111 |
YN67;LN6#,YN62,63,65..ARL,EUR,GEN RIGID STRG,W/O TILT STRG |
1 | ||
| 45210-22050 |
LN5#,65,YN50,55,57,60,62,65,67..LHD..GEN W/TILT STRG |
1 | ||
| 45210-35111 |
LN65,YN67..ARL,EUR,GEN,SA RIGID STRG,W/O TILT STRG |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6# T=1.20,LWR |
1 | ||
| 90520-17269 |
LN5#,6#,RN5#,6#,YN5#,6# T=1.20,UPR |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6# T=1.20,LWR |
1 | ||
| 90520-17269 |
LN5#,6#,RN5#,6#,YN5#,6# T=1.20,UPR |
1 | ||
| 45201D - RING(FOR STEERING MAIN SHAFT) | ||||
| 96151-04700 |
LN6#,YN6# RIGID STRG |
1 | ||
| 45202 - SHAFT SUB-ASSY, STEERING INTERMEDIATE | ||||
| 45220-35150 |
LN65,YN62,65,67 |
1 | ||
| 45220-35150 |
LN65,YN67..ARL,EUR,GEN,SA |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-35210 |
LN65,YN6#..LHD..GEN W/TILT & RIGID STRG |
1 | ||
| 45205-35211 |
LN65,YN62,67..LHD..GEN W/TILT & RIGID STRG |
1 | ||
| 45205-35201 |
YN63..ARL;LN6#,YN60,62,65,67 RIGID STRG |
1 | ||
| 45205-35201 |
LN6#,YN6#..ARL,EUR,GEN,SA RIGID STRG |
1 | ||
| 45225 - BLOCK, BEARING | ||||
| 45225-60010 |
YN63..ARL;LN6#,YN60,62,65,67 |
1 | ||
| 45225A - RING, O(FOR BEARING BLOCK) | ||||
| 96711-24053 |
YN63..ARL;LN6#,YN60,62,65,67 |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45025-35050 |
LN65,YN6#..LHD RIGID STRG |
1 | ||
| 45025-35051 |
LN65,YN6#..LHD RIGID STRG |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-35010 |
LN65,RN61,YN6#..LHD |
1 | ||
| 45272 - CLAMP, STEERING COLUMN, LOWER | ||||
| 45272-35020 |
YN65,67;YN60..DLX;LN6#,YN60,62,63..ARL,EUR,GEN |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45280-28060 |
LN50,55,65,YN50,55,57,6#..LHD..GEN W/TILT STRG |
1 | ||
| 45280-35140 |
LN5#,65,RN5#,YN5#,60,62,65,67..LHD |
1 | ||
| 45280-35140 |
LN65,YN67..LHD..(EUR,GEN) |
1 | ||
| 45280-28061 |
LN5#,65,YN50,55,57,67..LHD..GEN W/TILT STRG |
1 | ||
| 45280-35141 |
LN65,YN67..LHD..(EUR,GEN) |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-35230 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) UPR,W/TILT STRG |
1 | ||
| 45287-35180 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) LWR,W/TILT STRG |
1 | ||
| 45286-35220 |
LN5#,65,RN5#,YN5#,6#..LHD UPR |
1 | ||
| 45286-3522003 |
LN5#,65,RN5#,YN50,52,55,56,57,6#..LHD UPR,GRAY,GRAY,TRIM1# |
1 | ||
| 45287-35170 |
LN5#,65,RN5#,YN5#,6#..LHD LWR |
1 | ||
| 45286-3523004 |
LN5#,65,RN5#,YN50,52,55,57,67..LHD..(GEN,ME) UPR,W/TILT STRG,BLUE,BLUE,TRIM8# |
1 | ||
| 45286-3523003 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) UPR,W/TILT STRG,GRAY,GRAY,TRIM1# |
1 | ||
| 45286-3522004 |
LN5#,65,RN5#,YN50,52,55,56,57,67..LHD UPR,BLUE,BLUE,TRIM8# |
1 | ||
| 45286-3523005 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) UPR,W/TILT STRG,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45286-3522005 |
LN5#,65,RN5#,YN50,52,55,56,57,6#..LHD UPR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45287-3517004 |
LN5#,65,RN5#,YN50,52,55,56,57,67..LHD LWR,BLUE,BLUE,TRIM8# |
1 | ||
| 45287-3517003 |
LN5#,65,RN5#,YN50,52,55,56,57,6#..LHD LWR,GRAY,GRAY,TRIM1# |
1 | ||
| 45287-3518003 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) LWR,W/TILT STRG,GRAY,GRAY,TRIM1# |
1 | ||
| 45287-3517005 |
LN5#,65,RN5#,YN50,52,55,56,57,6#..LHD LWR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45287-3518005 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) LWR,W/TILT STRG,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45287-3518004 |
LN5#,65,RN5#,YN50,52,55,57,67..LHD..(GEN,ME) LWR,W/TILT STRG,BLUE,BLUE,TRIM8# |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-35230 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) UPR,W/TILT STRG |
1 | ||
| 45287-35180 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) LWR,W/TILT STRG |
1 | ||
| 45286-35220 |
LN5#,65,RN5#,YN5#,6#..LHD UPR |
1 | ||
| 45286-3522003 |
LN5#,65,RN5#,YN50,52,55,56,57,6#..LHD UPR,GRAY,GRAY,TRIM1# |
1 | ||
| 45287-35170 |
LN5#,65,RN5#,YN5#,6#..LHD LWR |
1 | ||
| 45286-3523004 |
LN5#,65,RN5#,YN50,52,55,57,67..LHD..(GEN,ME) UPR,W/TILT STRG,BLUE,BLUE,TRIM8# |
1 | ||
| 45286-3523003 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) UPR,W/TILT STRG,GRAY,GRAY,TRIM1# |
1 | ||
| 45286-3522004 |
LN5#,65,RN5#,YN50,52,55,56,57,67..LHD UPR,BLUE,BLUE,TRIM8# |
1 | ||
| 45286-3523005 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) UPR,W/TILT STRG,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45286-3522005 |
LN5#,65,RN5#,YN50,52,55,56,57,6#..LHD UPR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45287-3517004 |
LN5#,65,RN5#,YN50,52,55,56,57,67..LHD LWR,BLUE,BLUE,TRIM8# |
1 | ||
| 45287-3517003 |
LN5#,65,RN5#,YN50,52,55,56,57,6#..LHD LWR,GRAY,GRAY,TRIM1# |
1 | ||
| 45287-3518003 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) LWR,W/TILT STRG,GRAY,GRAY,TRIM1# |
1 | ||
| 45287-3517005 |
LN5#,65,RN5#,YN50,52,55,56,57,6#..LHD LWR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45287-3518005 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) LWR,W/TILT STRG,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45287-3518004 |
LN5#,65,RN5#,YN50,52,55,57,67..LHD..(GEN,ME) LWR,W/TILT STRG,BLUE,BLUE,TRIM8# |
1 | ||
| 45291A - SUPPORT, STEERING COLUMN TUBE | ||||
| 45291-60041 |
YN63..ARL;LN6#,YN60,62,65,67 |
1 | ||
| 45291-60040 |
YN63..ARL;LN6#,YN60,62,65,67 |
1 | ||
| 45291B - RING, O(FOR STEERING COLUMN TUBE SUPPORT) | ||||
| 90301-61002 |
YN63..ARL;LN6#,YN60,62,65,67 |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-35030 |
LN6#,YN6# RIGID STRG |
1 | ||
| 45292-60050 |
YN63..ARL;LN6#,YN60,62,65,67 RIGID STRG |
1 | ||
| 45635A - SUPPORT, INTER LINK JOINT PROTECTOR | ||||
| 45635-35021 |
LN65,YN6#..LHD |
1 | ||
| 45635-35060 |
LN65,YN60,62,65,67..LHD |
1 | ||
| 45636 - PROTECTOR, INTERMEDIATE LINK JOINT, UPPER | ||||
| 45636-35011 |
LN6#,YN6# |
1 | ||
| Common parts | ||||
| 90101-08070 | ||||
| 90119-08560 | ||||
| 90119-10292 | ||||
| 90164-50048 | ||||
| 91611-60616 | ||||
| 91611-60825 | ||||
| 91651-60620 | ||||
| 91651-60816 | ||||
| 91651-60825 | ||||
| 93315-14012 | ||||
| 94512-00800 | ||||
(8508-9201)LN65,YN67..ARL,SA ; (8508-9201)LN65,YN67..LHD..GEN ; (8508-9201)LN61,YN6
TILT STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45081 - SUPPORT SUB-ASSY, TILT STEERING | ||||
| 45081-35010 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) |
1 | ||
| 45081A - SPRING, TENSION(FOR TILT STEERING) | ||||
| 90506-23009 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) |
2 | ||
| 45081A - SPRING, TENSION(FOR TILT STEERING) | ||||
| 90506-23009 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) |
2 | ||
| 45081B - CORD(FOR TILT STEERING) | ||||
| 90945-02034 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) L=107.5 |
2 | ||
| 45081B - CORD(FOR TILT STEERING) | ||||
| 90945-02034 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) L=107.5 |
2 | ||
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45210-35111 |
YN67;LN6#,YN62,63,65..ARL,EUR,GEN RIGID STRG,W/O TILT STRG |
1 | ||
| 45210-22050 |
LN5#,65,YN50,55,57,60,62,65,67..LHD..GEN W/TILT STRG |
1 | ||
| 45210-35111 |
LN65,YN67..ARL,EUR,GEN,SA RIGID STRG,W/O TILT STRG |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18001 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) UPR,W/TILT STRG |
1 | ||
| 90363-28001 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) CTR,W/TILT STRG |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18001 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) UPR,W/TILT STRG |
1 | ||
| 90363-28001 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) CTR,W/TILT STRG |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6# T=1.20,LWR |
1 | ||
| 90520-17269 |
LN5#,6#,RN5#,6#,YN5#,6# T=1.20,UPR |
1 | ||
| 45201D - RING(FOR STEERING MAIN SHAFT) | ||||
| 96151-04700 |
LN6#,YN6# RIGID STRG |
1 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-45011 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) W/TILT STRG |
1 | ||
| 45202 - SHAFT SUB-ASSY, STEERING INTERMEDIATE | ||||
| 45220-35150 |
LN65,YN62,65,67 |
1 | ||
| 45220-35150 |
LN65,YN67..ARL,EUR,GEN,SA |
1 | ||
| 45203 - SHAFT SUB-ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45860-35020 |
LN65,YN6#..LHD..GEN |
1 | ||
| 45860-35021 |
LN65,YN62,67..LHD..GEN |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-35210 |
LN65,YN6#..LHD..GEN W/TILT & RIGID STRG |
1 | ||
| 45205-35211 |
LN65,YN62,67..LHD..GEN W/TILT & RIGID STRG |
1 | ||
| 45205-35201 |
YN63..ARL;LN6#,YN60,62,65,67 RIGID STRG |
1 | ||
| 45205-35201 |
LN6#,YN6#..ARL,EUR,GEN,SA RIGID STRG |
1 | ||
| 45215 - COLLAR, MAIN SHAFT BEARING THRUST | ||||
| 45215-22011 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) |
1 | ||
| 45225 - BLOCK, BEARING | ||||
| 45225-60010 |
YN63..ARL;LN6#,YN60,62,65,67 |
1 | ||
| 45225A - RING, O(FOR BEARING BLOCK) | ||||
| 96711-24053 |
YN63..ARL;LN6#,YN60,62,65,67 |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45025-35050 |
LN65,YN6#..LHD RIGID STRG |
1 | ||
| 45025-35051 |
LN65,YN6#..LHD RIGID STRG |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-35010 |
LN65,RN61,YN6#..LHD |
1 | ||
| 45272 - CLAMP, STEERING COLUMN, LOWER | ||||
| 45272-35020 |
YN65,67;YN60..DLX;LN6#,YN60,62,63..ARL,EUR,GEN |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45280-28060 |
LN50,55,65,YN50,55,57,6#..LHD..GEN W/TILT STRG |
1 | ||
| 45280-35140 |
LN5#,65,RN5#,YN5#,60,62,65,67..LHD |
1 | ||
| 45280-35140 |
LN65,YN67..LHD..(EUR,GEN) |
1 | ||
| 45280-28061 |
LN5#,65,YN50,55,57,67..LHD..GEN W/TILT STRG |
1 | ||
| 45280-35141 |
LN65,YN67..LHD..(EUR,GEN) |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-35230 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) UPR,W/TILT STRG |
1 | ||
| 45287-35180 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) LWR,W/TILT STRG |
1 | ||
| 45286-35220 |
LN5#,65,RN5#,YN5#,6#..LHD UPR |
1 | ||
| 45286-3522003 |
LN5#,65,RN5#,YN50,52,55,56,57,6#..LHD UPR,GRAY,GRAY,TRIM1# |
1 | ||
| 45287-35170 |
LN5#,65,RN5#,YN5#,6#..LHD LWR |
1 | ||
| 45286-3523004 |
LN5#,65,RN5#,YN50,52,55,57,67..LHD..(GEN,ME) UPR,W/TILT STRG,BLUE,BLUE,TRIM8# |
1 | ||
| 45286-3523003 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) UPR,W/TILT STRG,GRAY,GRAY,TRIM1# |
1 | ||
| 45286-3522004 |
LN5#,65,RN5#,YN50,52,55,56,57,67..LHD UPR,BLUE,BLUE,TRIM8# |
1 | ||
| 45286-3523005 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) UPR,W/TILT STRG,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45286-3522005 |
LN5#,65,RN5#,YN50,52,55,56,57,6#..LHD UPR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45287-3517004 |
LN5#,65,RN5#,YN50,52,55,56,57,67..LHD LWR,BLUE,BLUE,TRIM8# |
1 | ||
| 45287-3517003 |
LN5#,65,RN5#,YN50,52,55,56,57,6#..LHD LWR,GRAY,GRAY,TRIM1# |
1 | ||
| 45287-3518003 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) LWR,W/TILT STRG,GRAY,GRAY,TRIM1# |
1 | ||
| 45287-3517005 |
LN5#,65,RN5#,YN50,52,55,56,57,6#..LHD LWR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45287-3518005 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) LWR,W/TILT STRG,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45287-3518004 |
LN5#,65,RN5#,YN50,52,55,57,67..LHD..(GEN,ME) LWR,W/TILT STRG,BLUE,BLUE,TRIM8# |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-35230 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) UPR,W/TILT STRG |
1 | ||
| 45287-35180 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) LWR,W/TILT STRG |
1 | ||
| 45286-35220 |
LN5#,65,RN5#,YN5#,6#..LHD UPR |
1 | ||
| 45286-3522003 |
LN5#,65,RN5#,YN50,52,55,56,57,6#..LHD UPR,GRAY,GRAY,TRIM1# |
1 | ||
| 45287-35170 |
LN5#,65,RN5#,YN5#,6#..LHD LWR |
1 | ||
| 45286-3523004 |
LN5#,65,RN5#,YN50,52,55,57,67..LHD..(GEN,ME) UPR,W/TILT STRG,BLUE,BLUE,TRIM8# |
1 | ||
| 45286-3523003 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) UPR,W/TILT STRG,GRAY,GRAY,TRIM1# |
1 | ||
| 45286-3522004 |
LN5#,65,RN5#,YN50,52,55,56,57,67..LHD UPR,BLUE,BLUE,TRIM8# |
1 | ||
| 45286-3523005 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) UPR,W/TILT STRG,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45286-3522005 |
LN5#,65,RN5#,YN50,52,55,56,57,6#..LHD UPR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45287-3517004 |
LN5#,65,RN5#,YN50,52,55,56,57,67..LHD LWR,BLUE,BLUE,TRIM8# |
1 | ||
| 45287-3517003 |
LN5#,65,RN5#,YN50,52,55,56,57,6#..LHD LWR,GRAY,GRAY,TRIM1# |
1 | ||
| 45287-3518003 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) LWR,W/TILT STRG,GRAY,GRAY,TRIM1# |
1 | ||
| 45287-3517005 |
LN5#,65,RN5#,YN50,52,55,56,57,6#..LHD LWR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45287-3518005 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) LWR,W/TILT STRG,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45287-3518004 |
LN5#,65,RN5#,YN50,52,55,57,67..LHD..(GEN,ME) LWR,W/TILT STRG,BLUE,BLUE,TRIM8# |
1 | ||
| 45291A - SUPPORT, STEERING COLUMN TUBE | ||||
| 45291-60041 |
YN63..ARL;LN6#,YN60,62,65,67 |
1 | ||
| 45291-60040 |
YN63..ARL;LN6#,YN60,62,65,67 |
1 | ||
| 45291B - RING, O(FOR STEERING COLUMN TUBE SUPPORT) | ||||
| 90301-61002 |
YN63..ARL;LN6#,YN60,62,65,67 |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-35030 |
LN6#,YN6# RIGID STRG |
1 | ||
| 45292-60050 |
YN63..ARL;LN6#,YN60,62,65,67 RIGID STRG |
1 | ||
| 45635A - SUPPORT, INTER LINK JOINT PROTECTOR | ||||
| 45635-35021 |
LN65,YN6#..LHD |
1 | ||
| 45635-35060 |
LN65,YN60,62,65,67..LHD |
1 | ||
| 45636 - PROTECTOR, INTERMEDIATE LINK JOINT, UPPER | ||||
| 45636-35011 |
LN6#,YN6# |
1 | ||
| 45804 - LEVER SUB-ASSY, STEERING TILT | ||||
| 45804-30010 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) |
1 | ||
| 45807 - BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT | ||||
| 45807-35080 |
LN5#,65,YN50,55,57,6#..LHD..GEN |
1 | ||
| 45813 - COLLAR, TILT STEERING SUPPORT, NO.1 | ||||
| 45813-22010 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) OD=17.996-18.003,OD=17.996-18.003 |
1 | ||
| 45813-22020 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) OD=18.003-18.010,OD=18.003-18.010 |
1 | ||
| 45813-22030 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) OD=18.010-18.017,OD=18.010-18.017 |
1 | ||
| 45813-22040 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) OD=18.017-18.024,OD=18.017-18.024 |
1 | ||
| 45813-22050 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) OD=17.989-17.996,OD=17.989-17.996 |
1 | ||
| 45814 - COLLAR, TILT STEERING SUPPORT, NO.2 | ||||
| 45814-22020 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) OD=18.000-18.018,OD=18.000-18.018 |
1 | ||
| 45814-22010 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) OD=17.982-18.000,OD=17.982-18.000 |
1 | ||
| 45815 - SHIM, TILT STEERING SUPPORT | ||||
| 45815-22060 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) T=0.2,T=0.2 |
2 | ||
| 45815-22090 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) T=1.4,T=1.4 |
2 | ||
| 45815-22080 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) T=0.8,T=0.8 |
2 | ||
| 45815-22100 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) T=1.8,T=1.8 |
2 | ||
| 45815-22070 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) T=0.5,T=0.5 |
2 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45809-30021 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) |
1 | ||
| 45819A - COLLAR(FOR TILT LEVER RETAINER) | ||||
| 90387-08002 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) |
1 | ||
| 45824 - PAWL, TILT STEERING | ||||
| 45890-30020 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) |
1 | ||
| 45826 - LEVER, STEERING TILT | ||||
| 45826-35010 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) |
1 | ||
| 45826A - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90507-14001 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) |
1 | ||
| 45826B - PIN(FOR STEERING TILT LEVER) | ||||
| 72538-12010 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) |
1 | ||
| 45826C - BUSH(FOR STEERING TILT LEVER) | ||||
| 90386-08123 |
LN5#,65,YN50,52,55,57,6#..LHD..(GEN,ME) |
2 | ||
| 90386-08123 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) |
2 | ||
| 45826C - BUSH(FOR STEERING TILT LEVER) | ||||
| 90386-08123 |
LN5#,65,YN50,52,55,57,6#..LHD..(GEN,ME) |
2 | ||
| 90386-08123 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) |
2 | ||
| 45892 - BOLT, TILT STEERING SUPPORT STOPPER | ||||
| 45898-22010 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) |
1 | ||
| 45892A - COVER, TILT STEERING SUPPORT STOPPER | ||||
| 45899-22020 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) |
1 | ||
| 45892B - SUPPORT, TILT STEERING COLUMN COVER | ||||
| 45289-35020 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) |
1 | ||
| Common parts | ||||
| 90101-08070 | ||||
| 90109-08112 | ||||
| 90114-08002 | ||||
| 90119-06165 | ||||
| 90119-06348 | ||||
| 90119-08042 | ||||
| 90119-08139 | ||||
| 90119-08560 | ||||
| 90119-10292 | ||||
| 90164-50048 | ||||
| 90201-06204 | ||||
| 90201-06557 | ||||
| 90201-08027 | ||||
| 90201-08065 | ||||
| 90202-08031 | ||||
| 91611-60840 | ||||
| 91616-60825 | ||||
| 91651-60616 | ||||
| 91651-60816 | ||||
| 91651-60825 | ||||
| 93315-14012 | ||||
| 94110-40600 | ||||
| 94110-50800 | ||||
| 94182-10600 | ||||
| 94182-10800 | ||||
| 94512-00800 | ||||
| 94531-00800 | ||||
| 94541-00800 | ||||
| 96160-00600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
