YN65R-MRW (1983)

Toyota Hilux

Production Aug 1983 - Aug 1986
Engine 3Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )1Y#,2Y#,3Y,4Y#

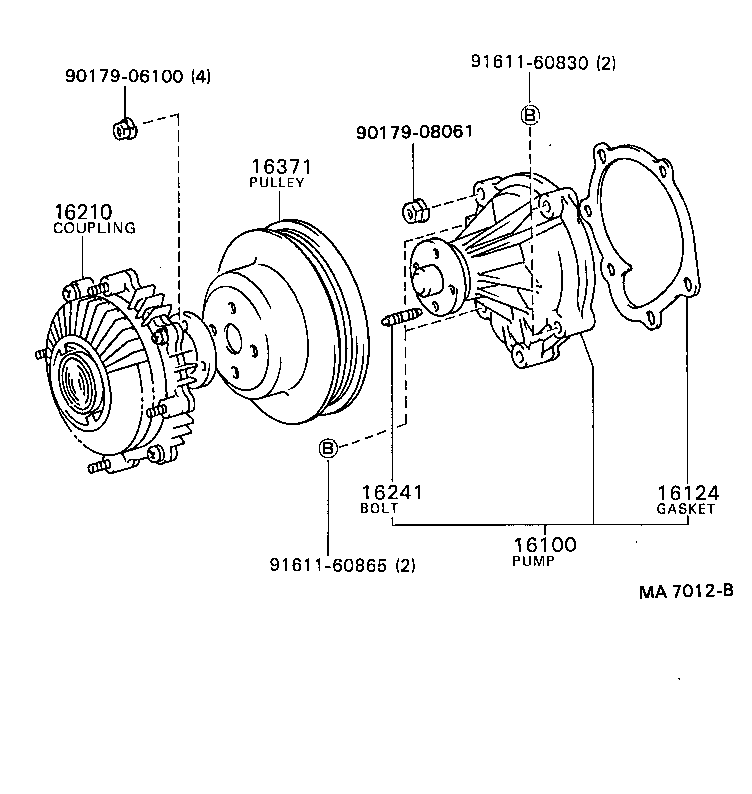

Click highlighted areas on diagram

diagram 16100 16124 16210 16241 16371 9017906100 9017908061 9161160830 9161160865
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-79035

1Y#,2Y,3Y,4Y#..YN5#,6#

 1
16124 - GASKET, WATER PUMP COVER
16124-71010

4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC,4YE..YN5#,60,63,65..4F,4FC,4H,5F

 1
16210 - COUPLING ASSY, FLUID
16210-31010

1YC,2Y#,3Y,4Y,4YC..YN55,56,57,58,60,63,65,67..ARL,EUR

 1
16241 - BOLT, STUD(FOR WATER PUMP COUPLING)
16192-70010

4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC,4YE..YN5#,60,63,65..4F,4FC,4H,5F

 4
16371 - PULLEY, FAN
16371-71010

4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC..YN5#,60,65..4F,4FC,4H,5F

 1
Common parts
90179-06100
90179-08061
91611-60830
91611-60865
