YN65R-KR3 (1983)
Toyota Hilux
ILLUST NO. 1 OF 2(8308- )MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-35120 |
RN58..SR5;LN50,51,55,56,60,61,65,RN67,YN50,51,55,56,57,58,60,63,65,67..RHD..MTM |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90507-14013 |
RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#..MTM |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06008 |
RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#..MTM |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13007 |
RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#..MTM |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13007 |
RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#..MTM |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90101-10369 |
RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#..MTM |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-14020 |
RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#..MTM |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 91121-51060 |
RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#..MTM |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10003 |
RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#..MTM |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90249-08018 |
RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#..MTM L=29.5 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08002 |
RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#..MTM |
1 | ||
| Common parts | ||||
| 90468-16012 | ||||
| 94110-41000 | ||||
| 94120-40800 | ||||
| 94512-01000 | ||||

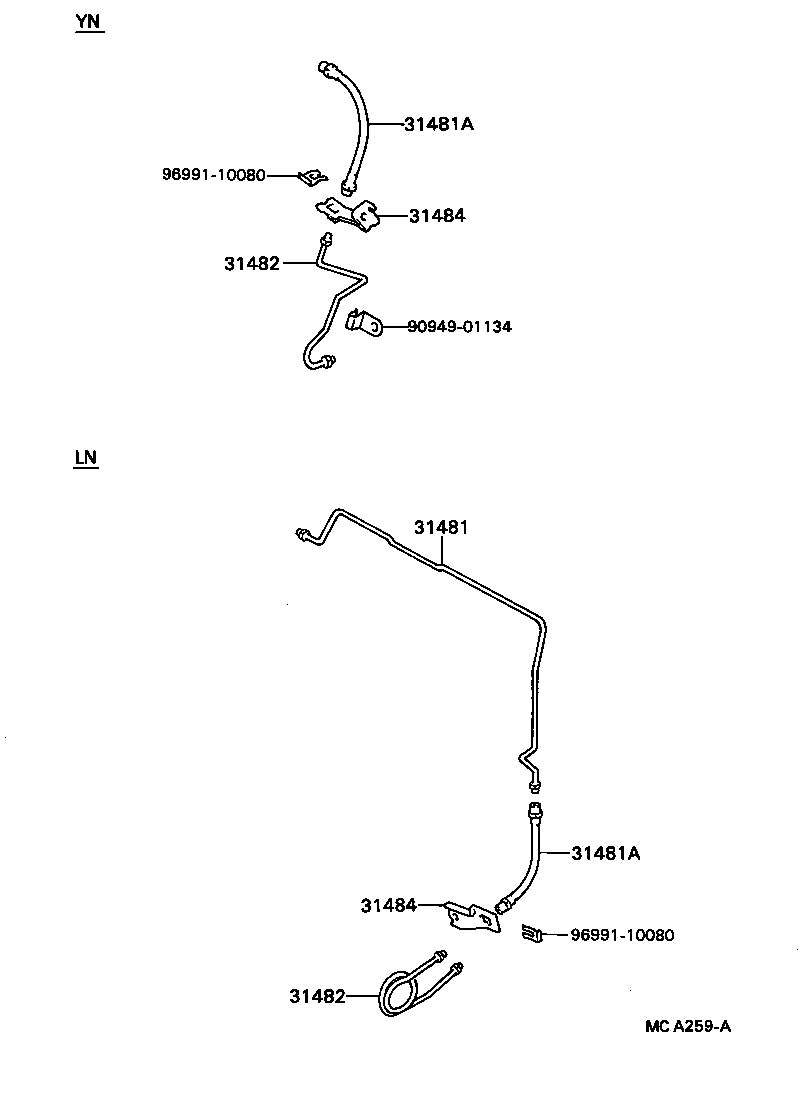

ILLUST NO. 2 OF 2(8308- )YN57,58..RHD..MTM ; (8308- )LN5#,6#,YN50,51,55,56,60,63,65,67..RHD..C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-35220 |
LN50,51,55,56,60,61,65..RHD..MTM |
1 | ||
| 31481A - HOSE, CLUTCH, NO.1 | ||||
| 96812-50220 |
YN57,65..RHD..MTM |
1 | ||
| 96812-50260 |
LN5#,6#..MTM |
1 | ||
| 31481A - HOSE, CLUTCH, NO.1 | ||||
| 96812-50220 |
YN57,65..RHD..MTM |
1 | ||
| 96812-50260 |
LN5#,6#..MTM |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-35180 |
YN58..4F;YN58..5F..(SR5,STD);YN52,57,60,63,65,67..MTM |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-35180 |
YN58..4F;YN58..5F..(SR5,STD);YN52,57,60,63,65,67..MTM |
1 | ||
| 31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH) | ||||
| 31484-35130 |
YN58..4F;YN58..5F..(SR5,STD);YN50,51,52,55,56,57,6#..4F,4H,5F |
1 | ||
| 31484-35121 |
LN50,51,55,56,60,61,65 |
1 | ||
| 31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH) | ||||
| 31484-35130 |
YN58..4F;YN58..5F..(SR5,STD);YN50,51,52,55,56,57,6#..4F,4H,5F |
1 | ||
| 31484-35121 |
LN50,51,55,56,60,61,65 |
1 | ||
| Common parts | ||||
| 90949-01134 | ||||
| 96991-10080 | ||||
