YN65L-MRW (1983)
Toyota Hilux
Production
Aug 1983
-
Aug 1986
Engine
3Y
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8308-8608)2Y,3Y..YN56,65..EUR

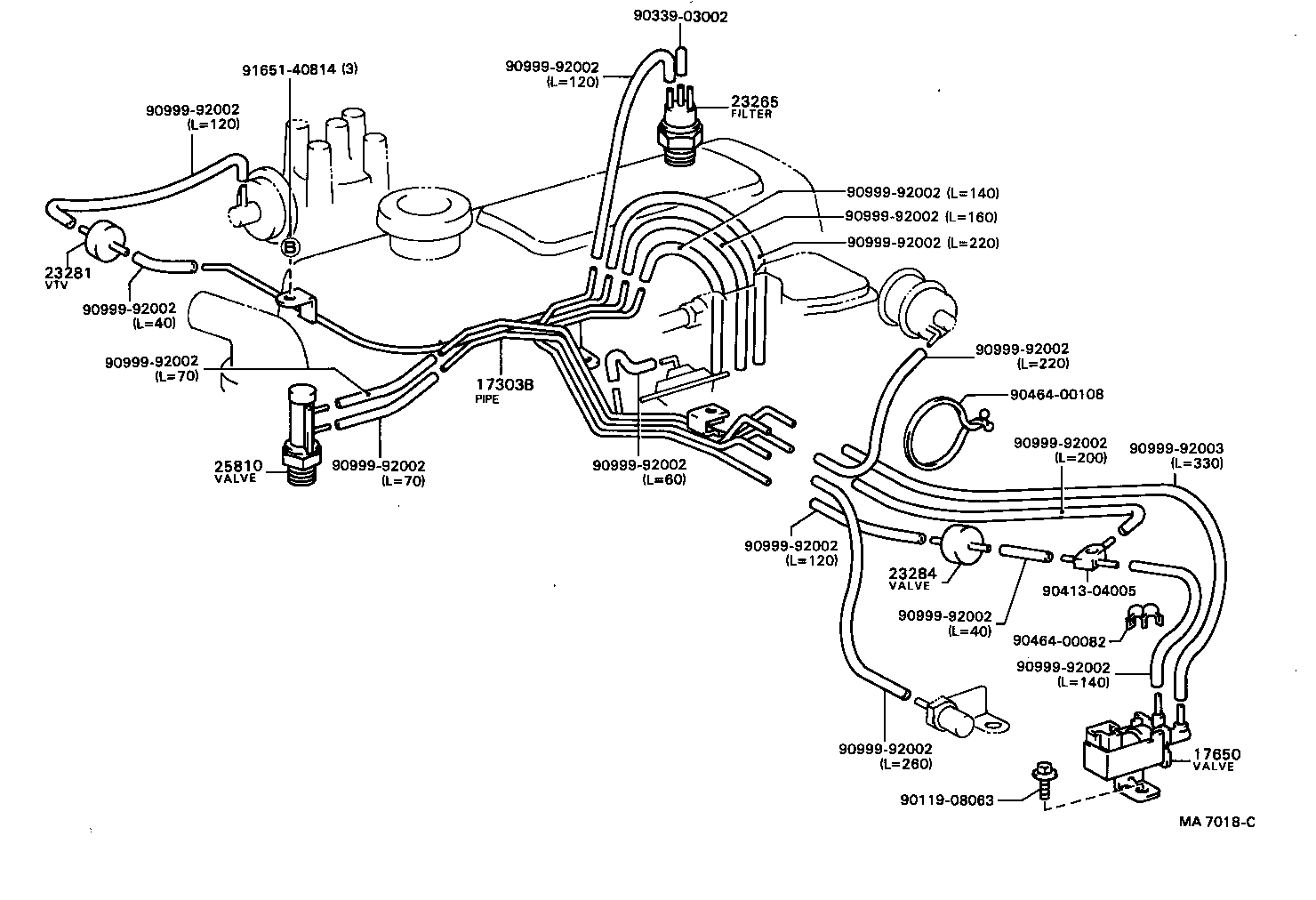

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-71070 |
2Y,3Y..YN56,65..EUR |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-35180 |
2Y,3Y..YN56,65..EUR |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11024 |
2Y,3Y..YN56,65..EUR |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01014 |
2Y,3Y..YN56,65..EUR |
1 | ||
| 23284 - VALVE, VACUUM TRANSMITTING, NO.4 | ||||
| 90925-01021 |
2Y,3Y..YN56,65..EUR |
1 | ||
| 25810 - VALVE ASSY, BIMETAL | ||||
| 25820-37010 |
2Y,3Y,4Y..YN56,65,67..EUR |
1 | ||
| Common parts | ||||
| 90119-08063 | ||||
| 90339-03002 | ||||
| 90413-04005 | ||||
| 90464-00082 | ||||
| 90464-00108 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 91651-40814 | ||||
(8308- )1Y#,2Y#,3Y,4Y#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 90999-92004 | ||||
| 90999-92006 | ||||
| 90999-92007 | ||||
| 90999-92008 | ||||
