YN65L-KRP (1983)

Toyota Hilux

Production Dec 1983 - Aug 1985
Engine 3Y
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8312- )TW

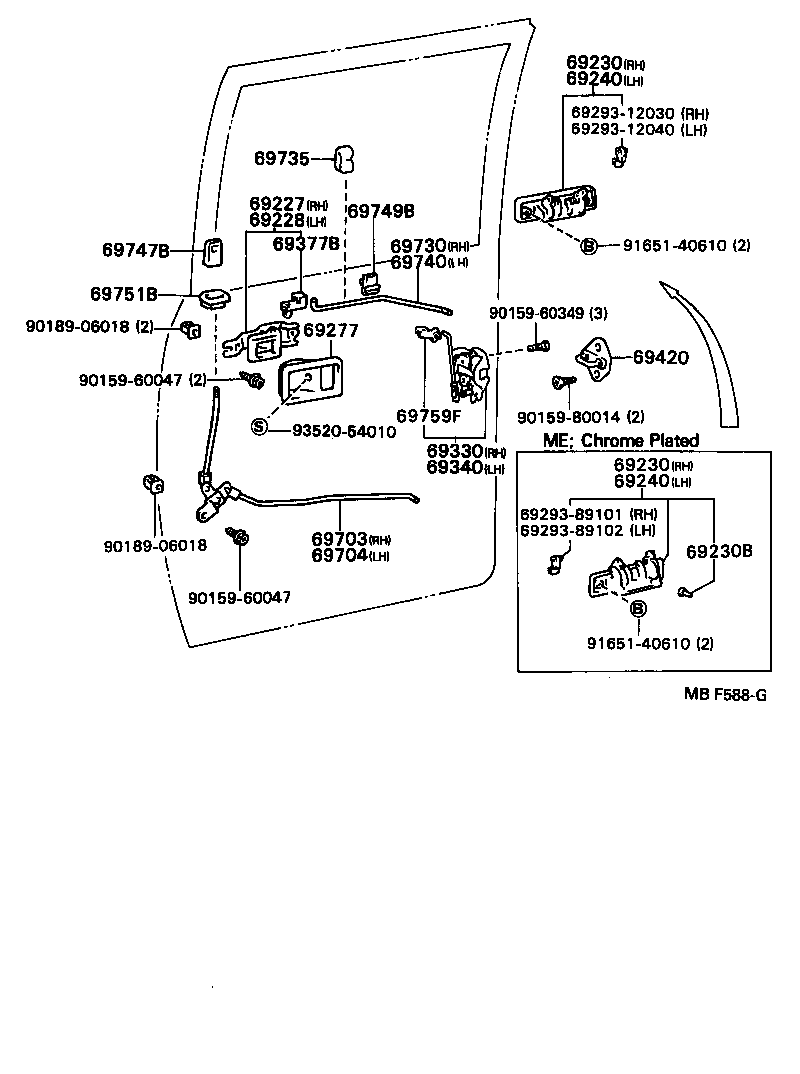

Click highlighted areas on diagram

diagram 69227 69228 69230 69230 69230B 69240 69240 69277 6929312030 6929312040 6929389101 6929389102 69330 69340 69377B 69420 69703 69704 69730 69735 69740 69747B 69749B 69751B 69759F 9015960047 9015960047 9015960349 9015980014 9018906018 9018906018 9165140610 9165140610 9352054010
Part # Description Qty Price
69227 - HANDLE, REAR DOOR INSIDE, RH
69206-1207006

LN55,56,65,YN55,57,65..TW

BROWN,BROWN,TRIM4#

 1
69206-1207024

LN55,56,65,YN55,57,65..TW

BLUE,BLUE,TRIM8#

 1
69206-1207023

LN55,56,65,YN55,57,65..TW

GRAY,GRAY,TRIM1#

 1
69228 - HANDLE, REAR DOOR INSIDE, LH
69205-1207006

LN55,56,65,YN55,57,65..TW

BROWN,BROWN,TRIM4#

 1
69205-1207024

LN55,56,65,YN55,57,65..TW

BLUE,BLUE,TRIM8#

 1
69205-1207023

LN55,56,65,YN55,57,65..TW

GRAY,GRAY,TRIM1#

 1
69230B - CUSHION(FOR REAR DOOR OUTSIDE HANDLE)
90541-03021

LN55,65,YN55,57,65..TW..STD

CHROME PLATED

 4
69277 - BEZEL, REAR DOOR INSIDE HANDLE
69277-8910406

LN55,56,65,YN55,57,65..TW

BROWN,BROWN,TRIM4#

 2
69277-8910403

LN55,56,65,YN55,57,65..TW

GRAY,GRAY,TRIM1#

 2
69277-8910404

LN55,56,65,YN55,57,65..TW

BLUE,BLUE,TRIM8#

 2
69377B - SNAP, REAR DOOR LOCK CONTROL ROD
69759-20070

LN55,56,65,YN55,57,65..TW

STD PACKAGE,LH

 1
69759-20060

LN55,56,65,YN55,57,65..TW

STD PACKAGE,RH

 1
69747B - BUTTON, DOOR LOCKING(FOR REAR DOOR)
69741-3201026

LN55,56,65,YN55,57,65..TW

BROWN,BROWN,TRIM4#

 2
69741-3201033

LN55,56,65,YN55,57,65..TW

GRAY,GRAY,TRIM1#

 2
69741-90K0016

LN56,65,YN55,57,65..TW

BROWN,BROWN,TRIM4#

 2
69741-3201014

LN55,56,65,YN55,57,65..TW

BLUE,BLUE,TRIM8#

 2
69741-90K0013

LN56,65,YN55,57,65..TW

GRAY,GRAY,TRIM1#

 2
69741-90K0004

LN56,65,YN55,57,65..TW

BLUE,BLUE,TRIM8#

 2
Common parts
69293-12030
69293-12040
69293-89101
69293-89102
90159-60047
90159-60349
90159-80014
90189-06018
91651-40610
93520-54010
