YN65L-KDV (1983)
Toyota Hilux
(8308-8608)LN5#,YN5# ; (8608-9201)LN5#,YN50,51,55,56,57..ARL,EUR,GEN,SA ; (9201-
RIGID STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45210-35110 |
LN6#,YN65;YN60..DLX;YN60..ARL,GEN RIGID STRG,W/O TILT STRG |
1 | ||
| 45210-22050 |
LN6#,YN60,63,65,67..ARL,ME,SA W/TILT STRG |
1 | ||
| 45210-35100 |
YN6#..ME COLLAPSIBLE STRG,W/O TILT STRG |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6# T=1.20,LWR |
1 | ||
| 90520-17269 |
LN5#,6#,RN5#,6#,YN5#,6# T=1.20,UPR |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6# T=1.20,LWR |
1 | ||
| 90520-17269 |
LN5#,6#,RN5#,6#,YN5#,6# T=1.20,UPR |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-35200 |
LN6#,YN65;YN60..DLX;YN60..ARL,GEN RIGID STRG |
1 | ||
| 45870-35090 |
YN6#..ME COLLAPSIBLE STRG |
1 | ||
| 45870-35080 |
YN6#..ME W/TILT & COLLAPSIBLE STRG |
1 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-35040 |
LN6#,YN6# |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45025-35050 |
LN65,YN6#..LHD RIGID STRG |
1 | ||
| 45025-35070 |
YN6#..ME COLLAPSIBLE STRG |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-35010 |
LN65,RN61,YN6#..LHD |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45280-35160 |
YN60,63,65,67..ME W/COLLAPSIBLE STRG |
1 | ||
| 45280-35170 |
RN5#,YN50,52,55,57,60,63,65,67..ME W/TILT & COLLAPSIBLE STRG |
1 | ||
| 45280-35140 |
LN5#,65,RN5#,YN5#,60,62,65,67..LHD |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-35230 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) UPR,W/TILT STRG |
1 | ||
| 45287-35180 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) LWR,W/TILT STRG |
1 | ||
| 45286-35220 |
LN5#,65,RN5#,YN5#,6#..LHD UPR |
1 | ||
| 45287-35170 |
LN5#,65,RN5#,YN5#,6#..LHD LWR |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-35230 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) UPR,W/TILT STRG |
1 | ||
| 45287-35180 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) LWR,W/TILT STRG |
1 | ||
| 45286-35220 |
LN5#,65,RN5#,YN5#,6#..LHD UPR |
1 | ||
| 45287-35170 |
LN5#,65,RN5#,YN5#,6#..LHD LWR |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-35030 |
LN6#,YN6# RIGID STRG |
1 | ||
| 45292-60030 |
YN6#..ME COLLAPSIBLE STRG |
1 | ||
| Common parts | ||||
| 90119-06065 | ||||
| 90119-08560 | ||||
| 90119-10292 | ||||
| 90164-50048 | ||||
| 90170-08008 | ||||
| 91611-60616 | ||||
| 91651-60616 | ||||
| 93315-14012 | ||||
| 94512-00800 | ||||

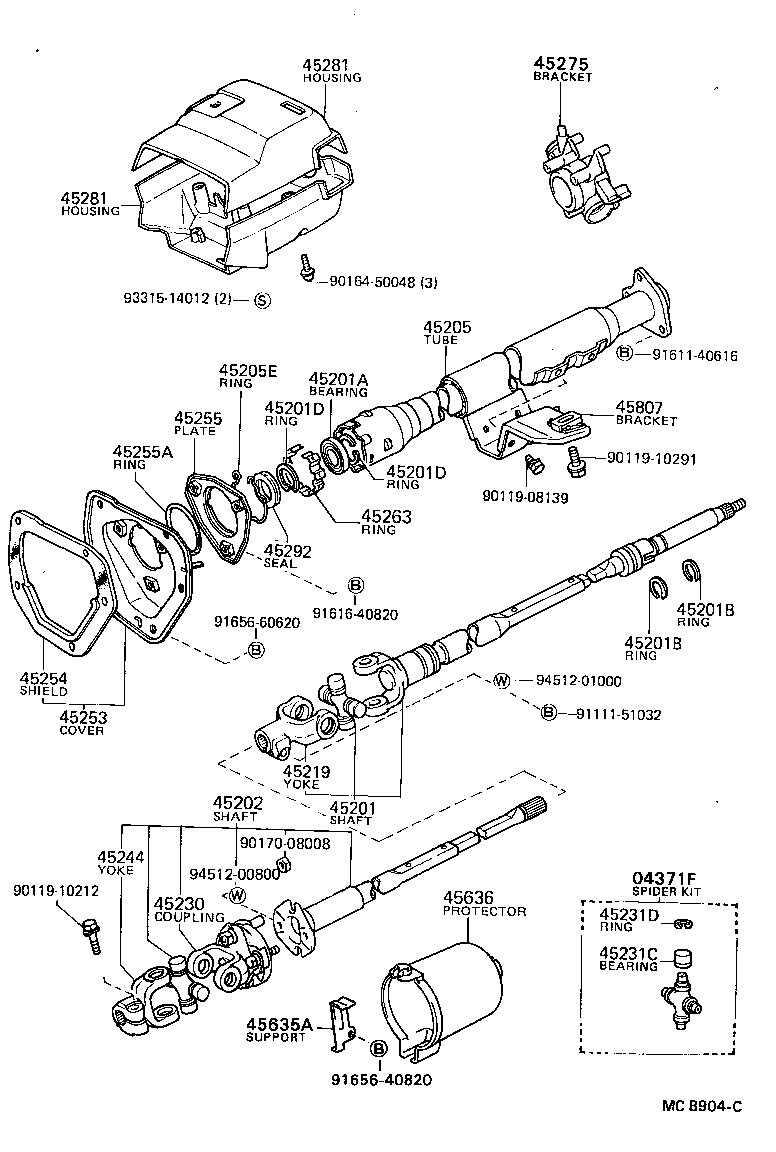

(8308-8508)LN6#,YN6#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371F - SPIDER KIT, UNIVERSAL JOINT(FOR STEERING MAIN SHAFT) | ||||
| 04371-10011 |
LN6#,YN6# |
2 | ||
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45210-35110 |
LN6#,YN65;YN60..DLX;YN60..ARL,GEN RIGID STRG,W/O TILT STRG |
1 | ||
| 45210-22050 |
LN6#,YN60,63,65,67..ARL,ME,SA W/TILT STRG |
1 | ||
| 45210-35100 |
YN6#..ME COLLAPSIBLE STRG,W/O TILT STRG |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 45225-35010 |
YN6#..ME LWR,COLLAPSIBLE STRG |
1 | ||
| 90363-18001 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) UPR,W/TILT STRG |
1 | ||
| 90363-28001 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) CTR,W/TILT STRG |
1 | ||
| 90363-30007 |
LN60,65,YN60,65 LWR,RIGID STRG |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6# T=1.20,LWR |
1 | ||
| 90520-17269 |
LN5#,6#,RN5#,6#,YN5#,6# T=1.20,UPR |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6# T=1.20,LWR |
1 | ||
| 90520-17269 |
LN5#,6#,RN5#,6#,YN5#,6# T=1.20,UPR |
1 | ||
| 45201D - RING(FOR STEERING MAIN SHAFT) | ||||
| 96151-04700 |
LN6#,YN6# RIGID STRG |
1 | ||
| 96152-00300 |
YN60,63,65,67..ME COLLAPSIBLE STRG |
1 | ||
| 45202 - SHAFT SUB-ASSY, STEERING INTERMEDIATE | ||||
| 45220-35080 |
LN6#,YN65;YN60..DLX;YN60..ARL,GEN RIGID STRG,W/O POWER STRG |
1 | ||
| 45220-35100 |
YN6#..ME COLLAPSIBLE STRG,W/OPOWER STRG |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-35200 |
LN6#,YN65;YN60..DLX;YN60..ARL,GEN RIGID STRG |
1 | ||
| 45870-35090 |
YN6#..ME COLLAPSIBLE STRG |
1 | ||
| 45870-35080 |
YN6#..ME W/TILT & COLLAPSIBLE STRG |
1 | ||
| 45219 - YOKE, STEERING SLIDING | ||||
| 45219-35010 |
LN6#,YN6# |
1 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-35040 |
LN6#,YN6# |
1 | ||
| 45231C - BEARING, UNIVERSAL JOINT SPIDER(FOR STEERING MAIN SHAFT | ||||
| 37402-10020 |
LN6#,YN6# |
8 | ||
| 45231D - RING, HOLE SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90521-22011 |
LN6#,YN6# T=1.20 |
4 | ||
| 90521-22013 |
LN6#,YN6# T=1.30 |
4 | ||
| 90521-22012 |
LN6#,YN6# T=1.25 |
4 | ||
| 45244 - YOKE, STEERING WORM | ||||
| 45244-60020 |
LN6#,YN6# |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45025-35050 |
LN65,YN6#..LHD RIGID STRG |
1 | ||
| 45025-35070 |
YN6#..ME COLLAPSIBLE STRG |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-35010 |
LN65,RN61,YN6#..LHD |
1 | ||
| 45272 - CLAMP, STEERING COLUMN, LOWER | ||||
| 45272-35020 |
YN65,67;YN60..DLX;LN6#,YN60,62,63..ARL,EUR,GEN |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45280-35160 |
YN60,63,65,67..ME W/COLLAPSIBLE STRG |
1 | ||
| 45280-35170 |
RN5#,YN50,52,55,57,60,63,65,67..ME W/TILT & COLLAPSIBLE STRG |
1 | ||
| 45280-35140 |
LN5#,65,RN5#,YN5#,60,62,65,67..LHD |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-35230 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) UPR,W/TILT STRG |
1 | ||
| 45287-35180 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) LWR,W/TILT STRG |
1 | ||
| 45286-35220 |
LN5#,65,RN5#,YN5#,6#..LHD UPR |
1 | ||
| 45287-35170 |
LN5#,65,RN5#,YN5#,6#..LHD LWR |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-35230 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) UPR,W/TILT STRG |
1 | ||
| 45287-35180 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) LWR,W/TILT STRG |
1 | ||
| 45286-35220 |
LN5#,65,RN5#,YN5#,6#..LHD UPR |
1 | ||
| 45287-35170 |
LN5#,65,RN5#,YN5#,6#..LHD LWR |
1 | ||
| 45291A - SUPPORT, STEERING COLUMN TUBE | ||||
| 45291-35020 |
LN6#,YN65;YN60..DLX;YN60..ARL,GEN |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-35030 |
LN6#,YN6# RIGID STRG |
1 | ||
| 45292-60030 |
YN6#..ME COLLAPSIBLE STRG |
1 | ||
| 45635A - SUPPORT, INTER LINK JOINT PROTECTOR | ||||
| 45635-35021 |
LN65,YN6#..LHD |
1 | ||
| 45636 - PROTECTOR, INTERMEDIATE LINK JOINT, UPPER | ||||
| 45636-35011 |
LN6#,YN6# |
1 | ||
| Common parts | ||||
| 90119-08042 | ||||
| 90119-10212 | ||||
| 90119-10292 | ||||
| 90164-50048 | ||||
| 90170-08008 | ||||
| 91611-40616 | ||||
| 91616-60825 | ||||
| 91656-40820 | ||||
| 91656-60620 | ||||
| 93315-14012 | ||||
| 94512-00800 | ||||

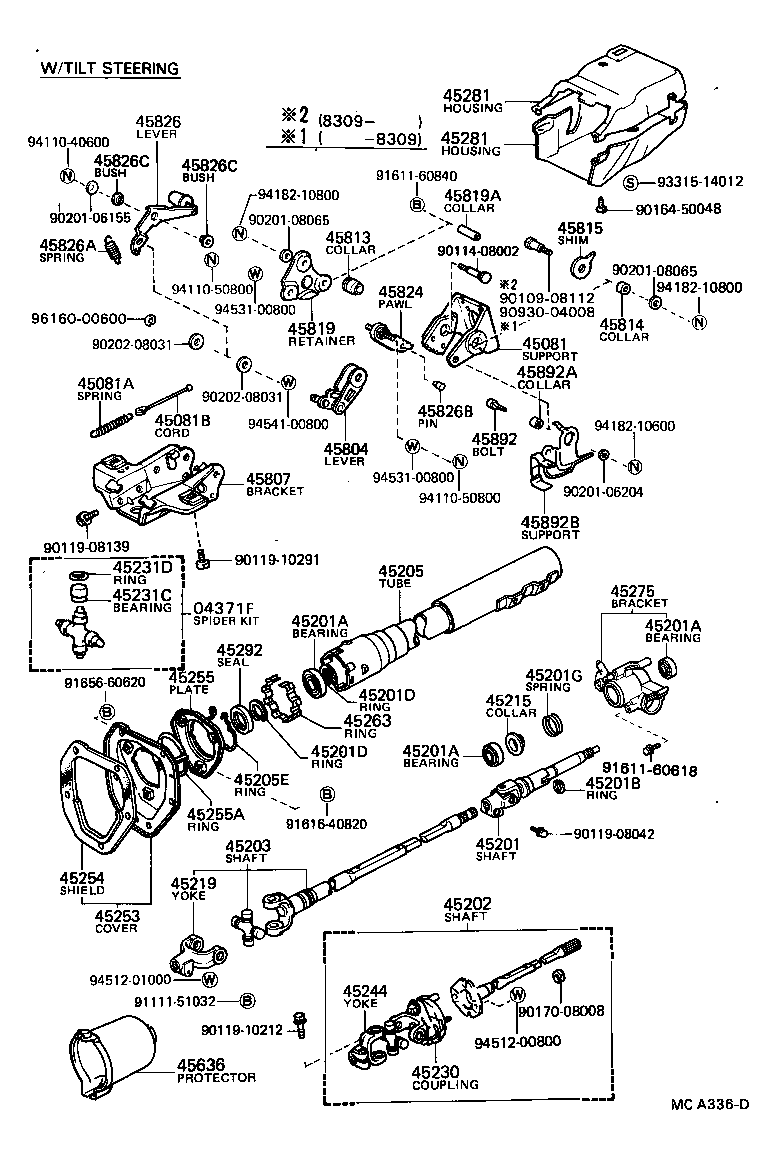

(8308-8508)YN6#..ME
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371F - SPIDER KIT, UNIVERSAL JOINT(FOR STEERING MAIN SHAFT) | ||||
| 04371-10011 |
LN6#,YN6# |
2 | ||
| 45081 - SUPPORT SUB-ASSY, TILT STEERING | ||||
| 45081-35010 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) |
1 | ||
| 45081A - SPRING, TENSION(FOR TILT STEERING) | ||||
| 90506-23009 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) |
2 | ||
| 45081B - CORD(FOR TILT STEERING) | ||||
| 90945-02034 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) L=107.5 |
2 | ||
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45210-35110 |
LN6#,YN65;YN60..DLX;YN60..ARL,GEN RIGID STRG,W/O TILT STRG |
1 | ||
| 45210-22050 |
LN6#,YN60,63,65,67..ARL,ME,SA W/TILT STRG |
1 | ||
| 45210-35100 |
YN6#..ME COLLAPSIBLE STRG,W/O TILT STRG |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 45225-35010 |
YN6#..ME LWR,COLLAPSIBLE STRG |
1 | ||
| 90363-18001 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) UPR,W/TILT STRG |
1 | ||
| 90363-28001 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) CTR,W/TILT STRG |
1 | ||
| 90363-30007 |
LN60,65,YN60,65 LWR,RIGID STRG |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 45225-35010 |
YN6#..ME LWR,COLLAPSIBLE STRG |
1 | ||
| 90363-18001 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) UPR,W/TILT STRG |
1 | ||
| 90363-28001 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) CTR,W/TILT STRG |
1 | ||
| 90363-30007 |
LN60,65,YN60,65 LWR,RIGID STRG |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 45225-35010 |
YN6#..ME LWR,COLLAPSIBLE STRG |
1 | ||
| 90363-18001 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) UPR,W/TILT STRG |
1 | ||
| 90363-28001 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) CTR,W/TILT STRG |
1 | ||
| 90363-30007 |
LN60,65,YN60,65 LWR,RIGID STRG |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6# T=1.20,LWR |
1 | ||
| 90520-17269 |
LN5#,6#,RN5#,6#,YN5#,6# T=1.20,UPR |
1 | ||
| 45201D - RING(FOR STEERING MAIN SHAFT) | ||||
| 96151-04700 |
LN6#,YN6# RIGID STRG |
1 | ||
| 96152-00300 |
YN60,63,65,67..ME COLLAPSIBLE STRG |
1 | ||
| 45201D - RING(FOR STEERING MAIN SHAFT) | ||||
| 96151-04700 |
LN6#,YN6# RIGID STRG |
1 | ||
| 96152-00300 |
YN60,63,65,67..ME COLLAPSIBLE STRG |
1 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-45011 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) W/TILT STRG |
1 | ||
| 45202 - SHAFT SUB-ASSY, STEERING INTERMEDIATE | ||||
| 45220-35080 |
LN6#,YN65;YN60..DLX;YN60..ARL,GEN RIGID STRG,W/O POWER STRG |
1 | ||
| 45220-35100 |
YN6#..ME COLLAPSIBLE STRG,W/OPOWER STRG |
1 | ||
| 45203 - SHAFT SUB-ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-35040 |
YN6#..ME |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-35200 |
LN6#,YN65;YN60..DLX;YN60..ARL,GEN RIGID STRG |
1 | ||
| 45870-35090 |
YN6#..ME COLLAPSIBLE STRG |
1 | ||
| 45870-35080 |
YN6#..ME W/TILT & COLLAPSIBLE STRG |
1 | ||
| 45205E - RING, SNAP(FOR STEERING COLUMN TUBE) | ||||
| 90521-01002 |
YN50,52,55,57,6#..ME |
1 | ||
| 45215 - COLLAR, MAIN SHAFT BEARING THRUST | ||||
| 45215-22011 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) |
1 | ||
| 45219 - YOKE, STEERING SLIDING | ||||
| 45219-35010 |
LN6#,YN6# |
1 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-35040 |
LN6#,YN6# |
1 | ||
| 45231C - BEARING, UNIVERSAL JOINT SPIDER(FOR STEERING MAIN SHAFT | ||||
| 37402-10020 |
LN6#,YN6# |
8 | ||
| 45231D - RING, HOLE SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90521-22011 |
LN6#,YN6# T=1.20 |
4 | ||
| 90521-22013 |
LN6#,YN6# T=1.30 |
4 | ||
| 90521-22012 |
LN6#,YN6# T=1.25 |
4 | ||
| 45244 - YOKE, STEERING WORM | ||||
| 45244-60020 |
LN6#,YN6# |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45025-35050 |
LN65,YN6#..LHD RIGID STRG |
1 | ||
| 45025-35070 |
YN6#..ME COLLAPSIBLE STRG |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-35010 |
LN65,RN61,YN6#..LHD |
1 | ||
| 45255 - PLATE, STEERING COLUMN HOLE COVER | ||||
| 45255-35020 |
YN6#..ME |
1 | ||
| 45255A - GROMMET OR RING, O(FOR STEERING COLUMN CLAMP) | ||||
| 90301-60122 |
RN5#,YN50,52,55,57,60,63,65,67..ME |
1 | ||
| 45263 - RING, STEERING COLUMN, NO.1 | ||||
| 45263-32010 |
YN6#..ME |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45280-35160 |
YN60,63,65,67..ME W/COLLAPSIBLE STRG |
1 | ||
| 45280-35170 |
RN5#,YN50,52,55,57,60,63,65,67..ME W/TILT & COLLAPSIBLE STRG |
1 | ||
| 45280-35140 |
LN5#,65,RN5#,YN5#,60,62,65,67..LHD |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-35230 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) UPR,W/TILT STRG |
1 | ||
| 45287-35180 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) LWR,W/TILT STRG |
1 | ||
| 45286-35220 |
LN5#,65,RN5#,YN5#,6#..LHD UPR |
1 | ||
| 45287-35170 |
LN5#,65,RN5#,YN5#,6#..LHD LWR |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-35230 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) UPR,W/TILT STRG |
1 | ||
| 45287-35180 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) LWR,W/TILT STRG |
1 | ||
| 45286-35220 |
LN5#,65,RN5#,YN5#,6#..LHD UPR |
1 | ||
| 45287-35170 |
LN5#,65,RN5#,YN5#,6#..LHD LWR |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-35030 |
LN6#,YN6# RIGID STRG |
1 | ||
| 45292-60030 |
YN6#..ME COLLAPSIBLE STRG |
1 | ||
| 45636 - PROTECTOR, INTERMEDIATE LINK JOINT, UPPER | ||||
| 45636-35011 |
LN6#,YN6# |
1 | ||
| 45804 - LEVER SUB-ASSY, STEERING TILT | ||||
| 45804-30010 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) |
1 | ||
| 45807 - BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT | ||||
| 45807-35070 |
RN5#,YN50,52,55,57,60,63,65,67..ME |
1 | ||
| 45082-35030 |
YN50,52,55,57,6#..ME W/TILT STRG |
1 | ||
| 45813 - COLLAR, TILT STEERING SUPPORT, NO.1 | ||||
| 45813-22010 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) OD=17.996-18.003,OD=17.996-18.003 |
1 | ||
| 45813-22020 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) OD=18.003-18.010,OD=18.003-18.010 |
1 | ||
| 45813-22030 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) OD=18.010-18.017,OD=18.010-18.017 |
1 | ||
| 45813-22040 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) OD=18.017-18.024,OD=18.017-18.024 |
1 | ||
| 45813-22050 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) OD=17.989-17.996,OD=17.989-17.996 |
1 | ||
| 45814 - COLLAR, TILT STEERING SUPPORT, NO.2 | ||||
| 45814-22020 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) OD=18.000-18.018,OD=18.000-18.018 |
1 | ||
| 45814-22010 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) OD=17.982-18.000,OD=17.982-18.000 |
1 | ||
| 45815 - SHIM, TILT STEERING SUPPORT | ||||
| 45815-22060 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) T=0.2,T=0.2 |
2 | ||
| 45815-22090 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) T=1.4,T=1.4 |
2 | ||
| 45815-22080 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) T=0.8,T=0.8 |
2 | ||
| 45815-22100 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) T=1.8,T=1.8 |
2 | ||
| 45815-22070 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) T=0.5,T=0.5 |
2 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45809-30021 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) |
1 | ||
| 45819A - COLLAR(FOR TILT LEVER RETAINER) | ||||
| 90387-08002 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) |
1 | ||
| 45824 - PAWL, TILT STEERING | ||||
| 45890-30020 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) |
1 | ||
| 45826 - LEVER, STEERING TILT | ||||
| 45826-35010 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) |
1 | ||
| 45826A - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90507-14001 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) |
1 | ||
| 45826B - PIN(FOR STEERING TILT LEVER) | ||||
| 72538-12010 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) |
1 | ||
| 45826C - BUSH(FOR STEERING TILT LEVER) | ||||
| 90386-08123 |
LN5#,65,YN50,52,55,57,6#..LHD..(GEN,ME) |
2 | ||
| 90386-08123 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) |
2 | ||
| 45826C - BUSH(FOR STEERING TILT LEVER) | ||||
| 90386-08123 |
LN5#,65,YN50,52,55,57,6#..LHD..(GEN,ME) |
2 | ||
| 90386-08123 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) |
2 | ||
| 45892 - BOLT, TILT STEERING SUPPORT STOPPER | ||||
| 45898-22010 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) |
1 | ||
| 45892A - COVER, TILT STEERING SUPPORT STOPPER | ||||
| 45899-22020 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) |
1 | ||
| 45892B - SUPPORT, TILT STEERING COLUMN COVER | ||||
| 45289-35020 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) |
1 | ||
| Common parts | ||||
| 90109-08112 | ||||
| 90114-08002 | ||||
| 90119-08042 | ||||
| 90119-08139 | ||||
| 90119-10212 | ||||
| 90119-10291 | ||||
| 90164-50048 | ||||
| 90170-08008 | ||||
| 90201-06155 | ||||
| 90201-06204 | ||||
| 90201-08065 | ||||
| 90202-08031 | ||||
| 90930-04008 | ||||
| 91111-51032 | ||||
| 91611-60618 | ||||
| 91611-60840 | ||||
| 91616-40820 | ||||
| 91656-60620 | ||||
| 93315-14012 | ||||
| 94110-40600 | ||||
| 94110-50800 | ||||
| 94182-10600 | ||||
| 94182-10800 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 94531-00800 | ||||
| 94541-00800 | ||||
| 96160-00600 | ||||
(8308-9508)YN60,63,65,67..ME
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371F - SPIDER KIT, UNIVERSAL JOINT(FOR STEERING MAIN SHAFT) | ||||
| 04371-10011 |
LN6#,YN6# |
2 | ||
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45210-35110 |
LN6#,YN65;YN60..DLX;YN60..ARL,GEN RIGID STRG,W/O TILT STRG |
1 | ||
| 45210-22050 |
LN6#,YN60,63,65,67..ARL,ME,SA W/TILT STRG |
1 | ||
| 45210-35100 |
YN6#..ME COLLAPSIBLE STRG,W/O TILT STRG |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 45225-35010 |
YN6#..ME LWR,COLLAPSIBLE STRG |
1 | ||
| 90363-18001 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) UPR,W/TILT STRG |
1 | ||
| 90363-28001 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) CTR,W/TILT STRG |
1 | ||
| 90363-30007 |
LN60,65,YN60,65 LWR,RIGID STRG |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6# T=1.20,LWR |
1 | ||
| 90520-17269 |
LN5#,6#,RN5#,6#,YN5#,6# T=1.20,UPR |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6# T=1.20,LWR |
1 | ||
| 90520-17269 |
LN5#,6#,RN5#,6#,YN5#,6# T=1.20,UPR |
1 | ||
| 45201D - RING(FOR STEERING MAIN SHAFT) | ||||
| 96151-04700 |
LN6#,YN6# RIGID STRG |
1 | ||
| 96152-00300 |
YN60,63,65,67..ME COLLAPSIBLE STRG |
1 | ||
| 45201D - RING(FOR STEERING MAIN SHAFT) | ||||
| 96151-04700 |
LN6#,YN6# RIGID STRG |
1 | ||
| 96152-00300 |
YN60,63,65,67..ME COLLAPSIBLE STRG |
1 | ||
| 45202 - SHAFT SUB-ASSY, STEERING INTERMEDIATE | ||||
| 45220-35080 |
LN6#,YN65;YN60..DLX;YN60..ARL,GEN RIGID STRG,W/O POWER STRG |
1 | ||
| 45220-35100 |
YN6#..ME COLLAPSIBLE STRG,W/OPOWER STRG |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-35200 |
LN6#,YN65;YN60..DLX;YN60..ARL,GEN RIGID STRG |
1 | ||
| 45870-35090 |
YN6#..ME COLLAPSIBLE STRG |
1 | ||
| 45870-35080 |
YN6#..ME W/TILT & COLLAPSIBLE STRG |
1 | ||
| 45205E - RING, SNAP(FOR STEERING COLUMN TUBE) | ||||
| 90521-01002 |
YN50,52,55,57,6#..ME |
1 | ||
| 45219 - YOKE, STEERING SLIDING | ||||
| 45219-35010 |
LN6#,YN6# |
1 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-35040 |
LN6#,YN6# |
1 | ||
| 45231C - BEARING, UNIVERSAL JOINT SPIDER(FOR STEERING MAIN SHAFT | ||||
| 37402-10020 |
LN6#,YN6# |
8 | ||
| 45231D - RING, HOLE SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90521-22011 |
LN6#,YN6# T=1.20 |
4 | ||
| 90521-22013 |
LN6#,YN6# T=1.30 |
4 | ||
| 90521-22012 |
LN6#,YN6# T=1.25 |
4 | ||
| 45244 - YOKE, STEERING WORM | ||||
| 45244-60020 |
LN6#,YN6# |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45025-35050 |
LN65,YN6#..LHD RIGID STRG |
1 | ||
| 45025-35070 |
YN6#..ME COLLAPSIBLE STRG |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-35010 |
LN65,RN61,YN6#..LHD |
1 | ||
| 45255 - PLATE, STEERING COLUMN HOLE COVER | ||||
| 45255-35020 |
YN6#..ME |
1 | ||
| 45255A - GROMMET OR RING, O(FOR STEERING COLUMN CLAMP) | ||||
| 90301-60122 |
RN5#,YN50,52,55,57,60,63,65,67..ME |
1 | ||
| 45263 - RING, STEERING COLUMN, NO.1 | ||||
| 45263-32010 |
YN6#..ME |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45280-35160 |
YN60,63,65,67..ME W/COLLAPSIBLE STRG |
1 | ||
| 45280-35170 |
RN5#,YN50,52,55,57,60,63,65,67..ME W/TILT & COLLAPSIBLE STRG |
1 | ||
| 45280-35140 |
LN5#,65,RN5#,YN5#,60,62,65,67..LHD |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-35230 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) UPR,W/TILT STRG |
1 | ||
| 45287-35180 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) LWR,W/TILT STRG |
1 | ||
| 45286-35220 |
LN5#,65,RN5#,YN5#,6#..LHD UPR |
1 | ||
| 45287-35170 |
LN5#,65,RN5#,YN5#,6#..LHD LWR |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-35230 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) UPR,W/TILT STRG |
1 | ||
| 45287-35180 |
LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME) LWR,W/TILT STRG |
1 | ||
| 45286-35220 |
LN5#,65,RN5#,YN5#,6#..LHD UPR |
1 | ||
| 45287-35170 |
LN5#,65,RN5#,YN5#,6#..LHD LWR |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-35030 |
LN6#,YN6# RIGID STRG |
1 | ||
| 45292-60030 |
YN6#..ME COLLAPSIBLE STRG |
1 | ||
| 45635A - SUPPORT, INTER LINK JOINT PROTECTOR | ||||
| 45635-35021 |
LN65,YN6#..LHD |
1 | ||
| 45636 - PROTECTOR, INTERMEDIATE LINK JOINT, UPPER | ||||
| 45636-35011 |
LN6#,YN6# |
1 | ||
| 45807 - BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT | ||||
| 45807-35070 |
RN5#,YN50,52,55,57,60,63,65,67..ME |
1 | ||
| 45082-35030 |
YN50,52,55,57,6#..ME W/TILT STRG |
1 | ||
| Common parts | ||||
| 90119-08139 | ||||
| 90119-10212 | ||||
| 90119-10291 | ||||
| 90164-50048 | ||||
| 90170-08008 | ||||
| 91111-51032 | ||||
| 91611-40616 | ||||
| 91616-40820 | ||||
| 91656-40820 | ||||
| 91656-60620 | ||||
| 93315-14012 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
