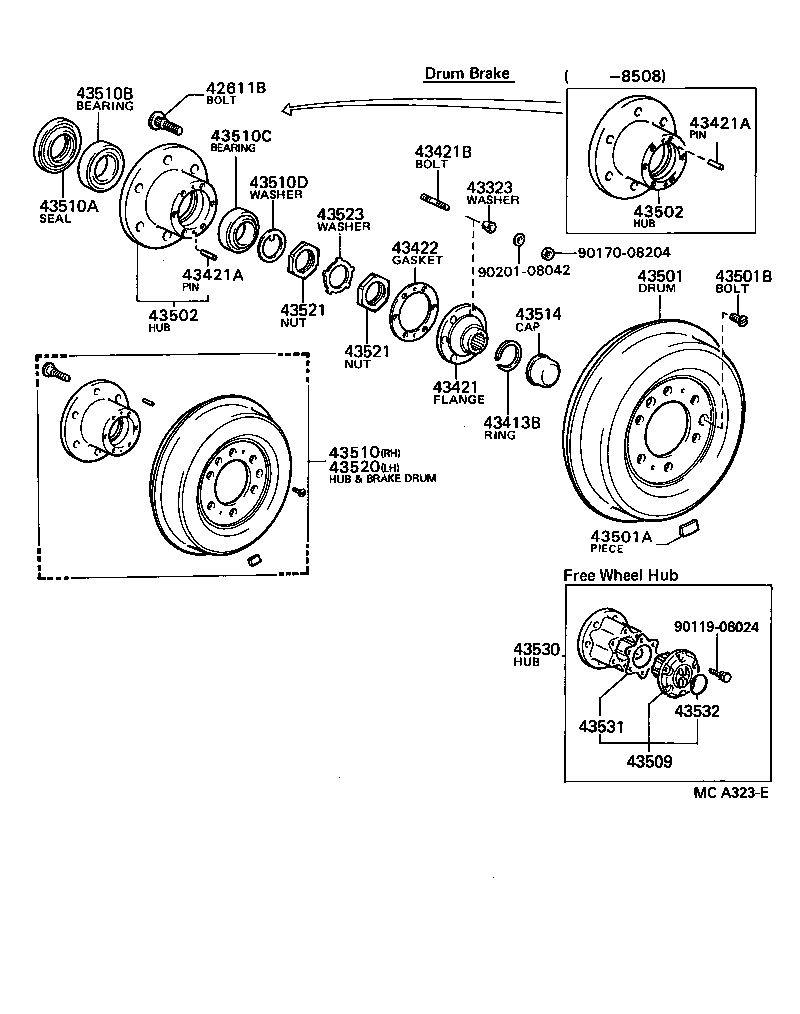

YN65L-KDV (1983)
Toyota Hilux
(8308- )LN6#,YN6#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42611B - BOLT, HUB (FOR FRONT AXLE) | ||||
| 90942-02034 |
LN50,55,6#,YN50,52,55,57,6#..GEN,ME FR DRUM BRAKE |
12 | ||
| 90942-02052 |
LN5#,6#,YN50,52,55,57,6#..(T1,T3,TW)..(GEN,ME) FR DRUM BRAKE |
12 | ||
| 90942-02034 |
LN5#,6#,YN50,52,55,57,6#..(T1,T3,TW)..(GEN,ME) FR DRUM BRAKE |
12 | ||
| 90942-02044 |
LN6#,YN6# FR DISC BRAKE |
12 | ||
| 43323 - WASHER, CONE (FOR FRONT AXLE SHAFT) | ||||
| 42323-60010 |
LN60,61,65,RN6#,YN6# |
12 | ||
| 43413B - RING, DRIVE SHAFT SNAP | ||||
| 90520-31001 |
LN60,65,67,RN67,YN60,62,65,67 |
2 | ||
| 43421 - FLANGE, FRONT AXLE OUTER SHAFT | ||||
| 43421-60013 |
LN60,65,YN60,62,65,67..ARL,EUR,GEN,ME |
2 | ||
| 43421A - PIN, STRAIGHT (FOR FRONT AXLE OUTER SHAFT FLANGE) | ||||
| 90250-07057 |
LN60,61,65,RN6#,YN6# |
4 | ||
| 43421A - PIN, STRAIGHT (FOR FRONT AXLE OUTER SHAFT FLANGE) | ||||
| 90250-07057 |
LN60,61,65,RN6#,YN6# |
4 | ||
| 43421B - BOLT, STUD (FOR FRONT AXLE OUTER SHAFT FLANGE) | ||||
| 90116-08325 |
LN60,61,65,RN6#,YN6# |
12 | ||
| 43422 - GASKET, FRONT AXLE OUTER SHAFT FLANGE | ||||
| 43422-60010 |
LN6#,YN6# |
2 | ||
| 43501 - DRUM SUB-ASSY, FRONT BRAKE | ||||
| 43512-35050 |
LN6#,YN6#..(DLX,STD)..(GEN,ME) |
2 | ||
| 43501A - PIECE, BALANCE (FOR FRONT BRAKE DRUM) | ||||
| 90937-01119 |
LN50,55,6#,YN50,52,55,57,6#..(T1,T3,TW)..(GEN,ME) 30G,30G |
1 | ||
| 90937-01117 |
LN5#,6#,YN50,52,55,57,6#..(T1,T3,TW)..(GEN,ME) 10G,10G |
1 | ||
| 90937-01119 |
LN5#,6#,YN50,52,55,57,6#..(T1,T3,TW)..(GEN,ME) 30G,30G |
1 | ||
| 90937-01121 |
LN6#,YN6#..(DLX,STD)..(GEN,ME) 50G,50G |
1 | ||
| 90937-01118 |
LN50,55,6#,YN50,52,55,57,6#..(T1,T3,TW)..(GEN,ME) 20G,20G |
1 | ||
| 90937-01118 |
LN5#,6#,YN50,52,55,57,6#..(T1,T3,TW)..(GEN,ME) 20G,20G |
1 | ||
| 90937-01120 |
LN6#,YN6#..(DLX,STD)..(GEN,ME) 40G,40G |
1 | ||
| 90937-01122 |
LN60,65,YN60,62,65,67..(DLX,STD)..(GEN,ME) 60G,60G |
1 | ||
| 90937-01117 |
LN50,55,6#,YN50,52,55,57,6#..(T1,T3,TW)..(GEN,ME) 10G,10G |
1 | ||
| 43501B - BOLT, SET (FOR FRONT BRAKE DRUM SETTING) | ||||
| 90113-10035 |
LN50,55,6#,YN50,52,55,57,6#..(T1,T3,TW)..(GEN,ME) |
2 | ||
| 90113-10035 |
LN5#,6#,YN50,52,55,57,6#..(T1,T3,TW)..(GEN,ME) |
2 | ||
| 43502 - HUB SUB-ASSY, FRONT AXLE | ||||
| 43511-60013 |
LN6#,YN6#..4F FR DRUM BRAKE |
2 | ||
| 43511-60012 |
LN6#,YN6#..(DLX,STD)..(GEN,ME) FR DRUM BRAKE |
2 | ||
| 43502-60020 |
LN60,65,67,RN67,YN60,62,65,67 FR DISC BRAKE |
2 | ||
| 43502 - HUB SUB-ASSY, FRONT AXLE | ||||
| 43511-60013 |
LN6#,YN6#..4F FR DRUM BRAKE |
2 | ||
| 43511-60012 |
LN6#,YN6#..(DLX,STD)..(GEN,ME) FR DRUM BRAKE |
2 | ||
| 43502-60020 |
LN60,65,67,RN67,YN60,62,65,67 FR DISC BRAKE |
2 | ||
| 43510 - HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH | ||||
| 43510-60080 |
LN6#,YN6#..(DLX,STD)..(GEN,ME) |
1 | ||
| 43510-60081 |
LN6#,YN6#..4F |
1 | ||
| 43510-35071 |
LN6#,YN6#..(DLX,STD)..(GEN,ME) |
1 | ||
| 43510A - SEAL, OIL (FOR FRONT AXLE HUB) | ||||
| 90311-62001 |
LN60,65,67,RN67,YN60,62,65,67 |
2 | ||
| 43510B - BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING) | ||||
| 90368-49084 |
LN60,61,65,RN6#,YN6# |
2 | ||
| 43510C - BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING) | ||||
| 90368-45087 |
LN60,61,65,RN6#,YN6# |
2 | ||
| 43510D - WASHER, CLAW (FOR STEERING KNUCKLE WASHER) | ||||
| 90214-42030 |
LN60,61,65,RN67,YN6# |
2 | ||
| 43514 - CAP, FRONT HUB GREASE | ||||
| 43423-60011 |
LN60,65,YN60,62,65,67..ARL,EUR,GEN,ME |
2 | ||
| 43520 - HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH | ||||
| 43510-35071 |
LN6#,YN6#..(DLX,STD)..(GEN,ME) |
1 | ||
| 43510-60081 |
LN6#,YN6#..4F |
1 | ||
| 43510-60080 |
LN6#,YN6#..(DLX,STD)..(GEN,ME) |
1 | ||
| 43521 - NUT, FRONT WHEEL ADJUSTING | ||||
| 43521-60011 |
LN60,61,65,RN6#,YN6# |
4 | ||
| 43521 - NUT, FRONT WHEEL ADJUSTING | ||||
| 43521-60011 |
LN60,61,65,RN6#,YN6# |
4 | ||
| 43523 - WASHER, FRONT WHEEL ADJUSTING LOCK | ||||
| 90215-42025 |
LN60,61,65,RN6#,YN6# |
2 | ||
| Common parts | ||||
| 90119-06024 | ||||
| 90170-08204 | ||||
| 90201-08042 | ||||

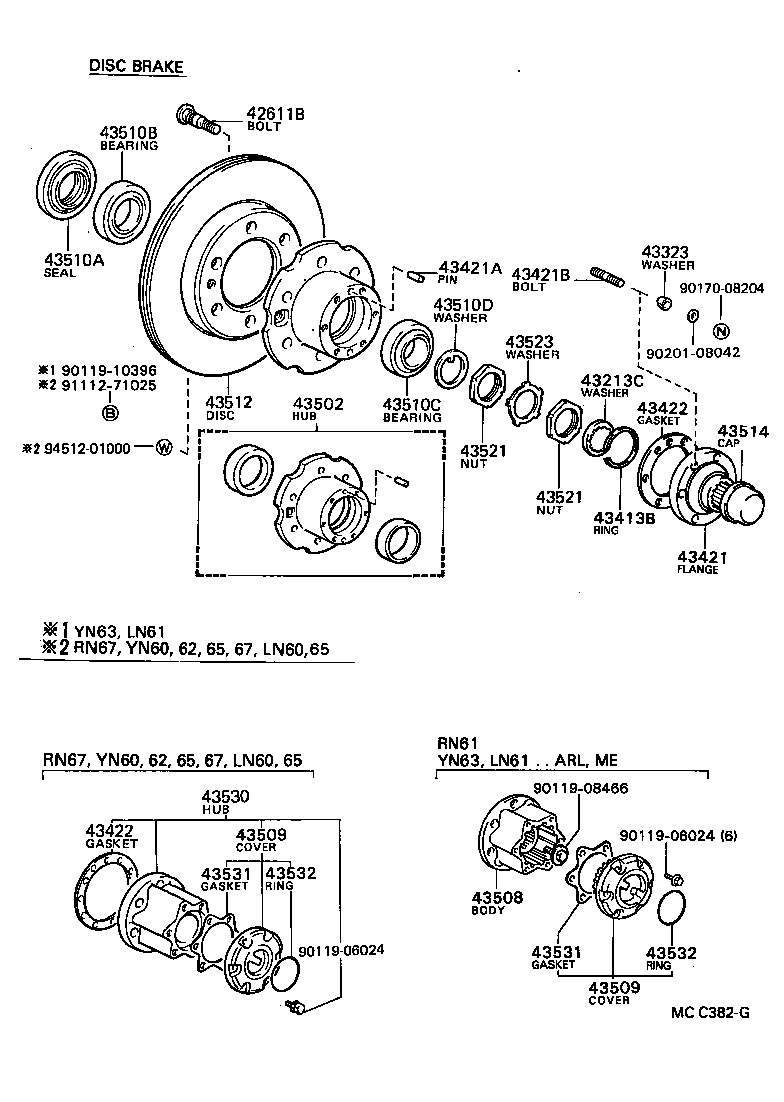

(8308- )LN6#,RN6#,YN6#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42611B - BOLT, HUB (FOR FRONT AXLE) | ||||
| 90942-02034 |
LN50,55,6#,YN50,52,55,57,6#..GEN,ME FR DRUM BRAKE |
12 | ||
| 90942-02052 |
LN5#,6#,YN50,52,55,57,6#..(T1,T3,TW)..(GEN,ME) FR DRUM BRAKE |
12 | ||
| 90942-02034 |
LN5#,6#,YN50,52,55,57,6#..(T1,T3,TW)..(GEN,ME) FR DRUM BRAKE |
12 | ||
| 90942-02044 |
LN6#,YN6# FR DISC BRAKE |
12 | ||
| 43323 - WASHER, CONE (FOR FRONT AXLE SHAFT) | ||||
| 42323-60010 |
LN60,61,65,RN6#,YN6# |
12 | ||
| 43413B - RING, DRIVE SHAFT SNAP | ||||
| 90520-31001 |
LN60,65,67,RN67,YN60,62,65,67 |
2 | ||
| 43421 - FLANGE, FRONT AXLE OUTER SHAFT | ||||
| 43421-60013 |
LN60,65,YN60,62,65,67..ARL,EUR,GEN,ME |
2 | ||
| 43421A - PIN, STRAIGHT (FOR FRONT AXLE OUTER SHAFT FLANGE) | ||||
| 90250-07057 |
LN60,61,65,RN6#,YN6# |
4 | ||
| 43421B - BOLT, STUD (FOR FRONT AXLE OUTER SHAFT FLANGE) | ||||
| 90116-08325 |
LN60,61,65,RN6#,YN6# |
12 | ||
| 43422 - GASKET, FRONT AXLE OUTER SHAFT FLANGE | ||||
| 43422-60010 |
LN6#,YN6# |
2 | ||
| 43422 - GASKET, FRONT AXLE OUTER SHAFT FLANGE | ||||
| 43422-60010 |
LN6#,YN6# |
2 | ||
| 43502 - HUB SUB-ASSY, FRONT AXLE | ||||
| 43511-60013 |
LN6#,YN6#..4F FR DRUM BRAKE |
2 | ||
| 43511-60012 |
LN6#,YN6#..(DLX,STD)..(GEN,ME) FR DRUM BRAKE |
2 | ||
| 43502-60020 |
LN60,65,67,RN67,YN60,62,65,67 FR DISC BRAKE |
2 | ||
| 43510A - SEAL, OIL (FOR FRONT AXLE HUB) | ||||
| 90311-62001 |
LN60,65,67,RN67,YN60,62,65,67 |
2 | ||
| 43510B - BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING) | ||||
| 90368-49084 |
LN60,61,65,RN6#,YN6# |
2 | ||
| 43510C - BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING) | ||||
| 90368-45087 |
LN60,61,65,RN6#,YN6# |
2 | ||
| 43510D - WASHER, CLAW (FOR STEERING KNUCKLE WASHER) | ||||
| 90214-42030 |
LN60,61,65,RN67,YN6# |
2 | ||
| 43512 - DISC, FRONT | ||||
| 43512-35070 |
LN60,65,RN67,YN60,62,65,67 |
2 | ||
| 43514 - CAP, FRONT HUB GREASE | ||||
| 43423-60011 |
LN60,65,YN60,62,65,67..ARL,EUR,GEN,ME |
2 | ||
| 43521 - NUT, FRONT WHEEL ADJUSTING | ||||
| 43521-60011 |
LN60,61,65,RN6#,YN6# |
4 | ||
| 43521 - NUT, FRONT WHEEL ADJUSTING | ||||
| 43521-60011 |
LN60,61,65,RN6#,YN6# |
4 | ||
| 43523 - WASHER, FRONT WHEEL ADJUSTING LOCK | ||||
| 90215-42025 |
LN60,61,65,RN6#,YN6# |
2 | ||
| Common parts | ||||
| 90119-06024 | ||||
| 90119-08466 | ||||
| 90119-10396 | ||||
| 90170-08204 | ||||
| 90201-08042 | ||||
| 91112-71025 | ||||
| 94512-01000 | ||||
