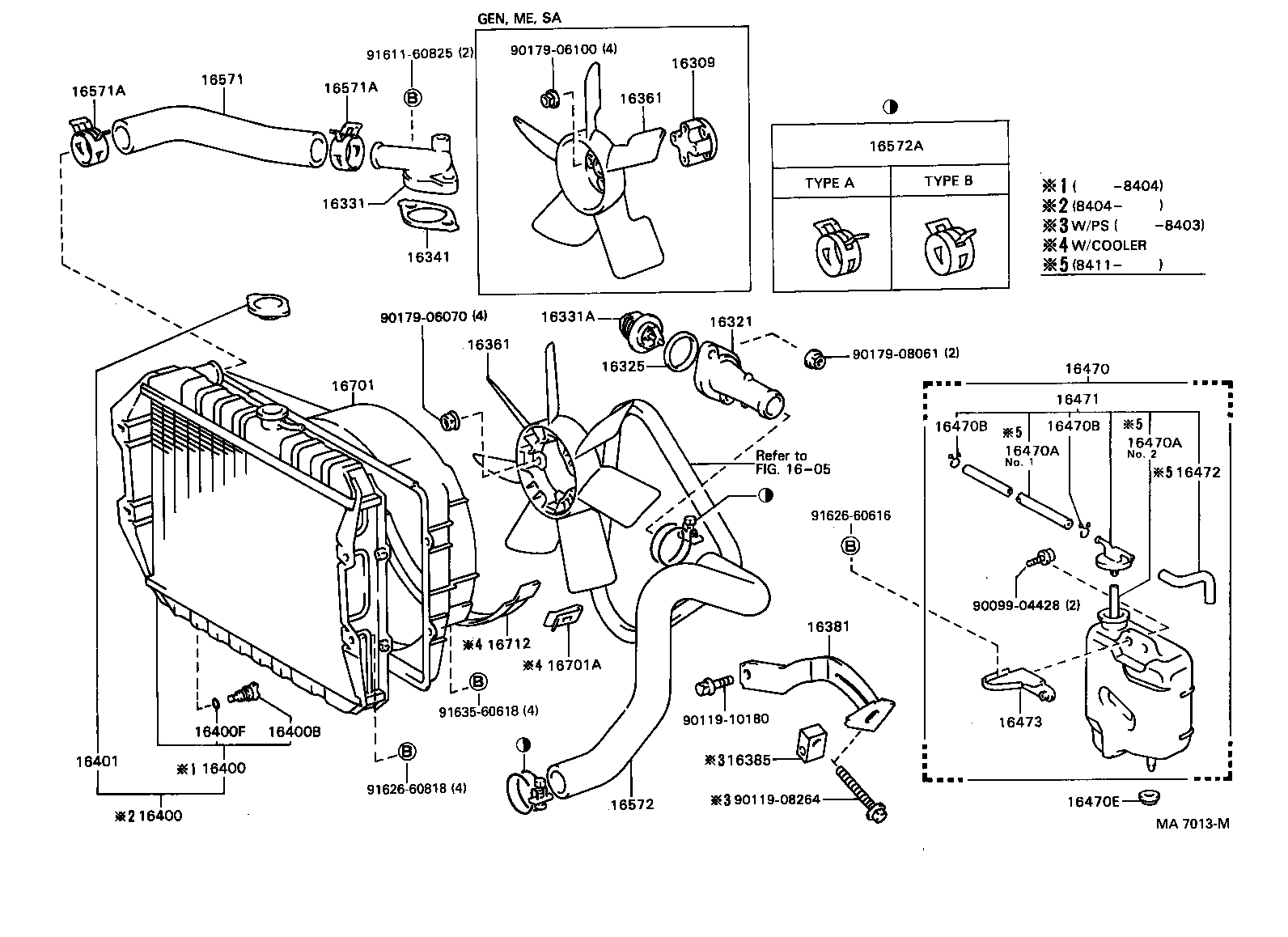

YN65L-KDV (1983)
Toyota Hilux
(8308- )1Y#,2Y#,3Y,4Y,4YC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16309 - SHAFT SUB-ASSY, FAN DRIVE | ||||
| 16309-71010 |
1Y,3Y,4Y..YN50,52,55,57,6#..GEN,ME,SA |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-71010 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC,4YE..YN5#,60,63,65..4F,4FC,4H,5F |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-63010 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC,4YE..YN5#,60,63,65..4F,4FC,4H,5F |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-71010 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC..YN5#,60,65..4F,4FC,4H,5F |
1 | ||
| 16331-54030 |
L,2L..LN5#,6# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03062 |
L,2L..LN5#,6# *WAX 88-100 |
1 | ||
| 90916-03046 |
1Y#,2Y,3Y..YN5#,6# *WAX 82-95 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-54011 |
L,2L..LN5#,6# |
1 | ||
| 16341-71010 |
1Y#,2Y#,3Y,4Y#..YN5#,6# |
1 | ||
| 16361 - FAN | ||||
| 16361-44032 |
1Y,3Y,4Y..YN50,52,55,57,6#..GEN,ME,SA |
1 | ||
| 16361 - FAN | ||||
| 16361-44032 |
1Y,3Y,4Y..YN50,52,55,57,6#..GEN,ME,SA |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-71010 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC..YN5#,60,65..4F,4FC,4H,5F |
1 | ||
| 16381-54011 |
L,2L..LN5#,6# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16410-71050 |
1Y,3Y..YN50,52,55,57,6#..ME |
1 | ||
| 16400-71080 |
1Y,3Y..YN50,52,55,57,6#..ME |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16410-71050 |
1Y,3Y..YN50,52,55,57,6#..ME |
1 | ||
| 16400-71080 |
1Y,3Y..YN50,52,55,57,6#..ME |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 90910-09054 |
L,2L,3L..LN5#,6# |
1 | ||
| 90910-09054 |
1Y#,2Y#,3Y,4Y#..YN5#,6# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96711-19007 |
L,2L,3L..LN5#,6# |
1 | ||
| 96711-19007 |
1Y#,2Y#,3Y,4Y#..YN5#,6# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-36011 |
1Y#,2Y,3Y..YN5#,6# |
1 | ||
| 16401-36011 |
L,2L..LN5#,6# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-71030 |
1Y#,2Y#,3Y,4Y#..YN5#,6# |
1 | ||
| 16470-54060 |
L,2L..LN5#,6# |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12049 |
L,2L..LN5#,6# NO.1 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12049 |
L,2L..LN5#,6# NO.1 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
L,2L,3L..LN5#,6# |
2 | ||
| 90467-11085 |
1Y#,2Y#,3Y,4Y#..YN5#,6# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
L,2L,3L..LN5#,6# |
2 | ||
| 90467-11085 |
1Y#,2Y#,3Y,4Y#..YN5#,6# |
2 | ||
| 16470E - GROMMET, RADIATOR RESERVE TANK HOSE | ||||
| 90480-25025 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC,4YE..YN5#,60,63,65..4F,4FC,4H,5F |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-71010 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC,4YE..YN5#,60,63,65..4F,4FC,4H,5F |
1 | ||
| 16405-54070 |
L,2L..LN5#,6# |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-71030 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC,4YE..YN5#,60,63,65..4F,4FC,4H,5F |
1 | ||
| 16571-54130 |
L,2L..LN5#,6# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
1Y#,2Y#,3Y,4Y#..YN5#,6# |
2 | ||
| 90467-37001 |
L,2L..LN5#,6# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
1Y#,2Y#,3Y,4Y#..YN5#,6# |
2 | ||
| 90467-37001 |
L,2L..LN5#,6# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-71030 |
1Y#,2Y,3Y..YN5#,6# |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10460 |
L,2L..LN5#,6# RADIATOR SIDE |
1 | ||
| 90467-37001 |
1Y#,2Y#,3Y,4Y#..YN5#,6# TYPE A |
2 | ||
| 96111-10500 |
L,2L..LN5#,6# WATER PUMP SIDE |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-71030 |
1Y#,2Y,3Y..YN5#,6# |
1 | ||
| 16701A - CLIP(FOR FAN SHROUD) | ||||
| 90468-06013 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67..ARL,GEN,ME,SA;1Y#,2Y,3Y,4YC,4YE..YN5#,60,63,65..(4F,4FC,4H,5F)..(ARL,GEN,ME,SA) W/COOLER OR THAILAND SPEC |
2 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-54050 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67..ARL,GEN,ME,SA;1Y#,2Y,3Y,4YC,4YE..YN5#,60,63,65..(4F,4FC,4H,5F)..(ARL,GEN,ME,SA) W/COOLER OR THAILAND SPEC |
1 | ||
| Common parts | ||||
| 90099-04428 | ||||
| 90119-08264 | ||||
| 90119-10180 | ||||
| 90179-06070 | ||||
| 90179-06100 | ||||
| 90179-08061 | ||||
| 91611-60825 | ||||
| 91626-60616 | ||||
| 91626-60818 | ||||
| 91635-60618 | ||||
| Linked diagrams | ||||
| 1605 | ||||
(8308-9508)L,2L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16331 - OUTLET, WATER | ||||
| 16331-71010 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC..YN5#,60,65..4F,4FC,4H,5F |
1 | ||
| 16331-54030 |
L,2L..LN5#,6# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03062 |
L,2L..LN5#,6# *WAX 88-100 |
1 | ||
| 90916-03046 |
1Y#,2Y,3Y..YN5#,6# *WAX 82-95 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16333-54050 |
L,2L..LN5#,6# |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-54011 |
L,2L..LN5#,6# |
1 | ||
| 16341-71010 |
1Y#,2Y#,3Y,4Y#..YN5#,6# |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-54011 |
L,2L..LN5#,6# |
1 | ||
| 16361 - FAN | ||||
| 16361-44032 |
1Y,3Y,4Y..YN50,52,55,57,6#..GEN,ME,SA |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-71010 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC..YN5#,60,65..4F,4FC,4H,5F |
1 | ||
| 16381-54011 |
L,2L..LN5#,6# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16410-71050 |
1Y,3Y..YN50,52,55,57,6#..ME |
1 | ||
| 16400-71080 |
1Y,3Y..YN50,52,55,57,6#..ME |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16410-71050 |
1Y,3Y..YN50,52,55,57,6#..ME |
1 | ||
| 16400-71080 |
1Y,3Y..YN50,52,55,57,6#..ME |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 90910-09054 |
L,2L,3L..LN5#,6# |
1 | ||
| 90910-09054 |
1Y#,2Y#,3Y,4Y#..YN5#,6# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96711-19007 |
L,2L,3L..LN5#,6# |
1 | ||
| 96711-19007 |
1Y#,2Y#,3Y,4Y#..YN5#,6# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-36011 |
1Y#,2Y,3Y..YN5#,6# |
1 | ||
| 16401-36011 |
L,2L..LN5#,6# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-71030 |
1Y#,2Y#,3Y,4Y#..YN5#,6# |
1 | ||
| 16470-54060 |
L,2L..LN5#,6# |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12049 |
L,2L..LN5#,6# NO.1 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12049 |
L,2L..LN5#,6# NO.1 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
L,2L,3L..LN5#,6# |
2 | ||
| 90467-11085 |
1Y#,2Y#,3Y,4Y#..YN5#,6# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
L,2L,3L..LN5#,6# |
2 | ||
| 90467-11085 |
1Y#,2Y#,3Y,4Y#..YN5#,6# |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-71010 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC,4YE..YN5#,60,63,65..4F,4FC,4H,5F |
1 | ||
| 16405-54070 |
L,2L..LN5#,6# |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-71030 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC,4YE..YN5#,60,63,65..4F,4FC,4H,5F |
1 | ||
| 16571-54130 |
L,2L..LN5#,6# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
1Y#,2Y#,3Y,4Y#..YN5#,6# |
2 | ||
| 90467-37001 |
L,2L..LN5#,6# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
1Y#,2Y#,3Y,4Y#..YN5#,6# |
2 | ||
| 90467-37001 |
L,2L..LN5#,6# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-71030 |
1Y#,2Y,3Y..YN5#,6# |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-71030 |
1Y#,2Y,3Y..YN5#,6# |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-71030 |
1Y#,2Y,3Y..YN5#,6# |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10460 |
L,2L..LN5#,6# RADIATOR SIDE |
1 | ||
| 90467-37001 |
1Y#,2Y#,3Y,4Y#..YN5#,6# TYPE A |
2 | ||
| 96111-10500 |
L,2L..LN5#,6# WATER PUMP SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10460 |
L,2L..LN5#,6# RADIATOR SIDE |
1 | ||
| 90467-37001 |
1Y#,2Y#,3Y,4Y#..YN5#,6# TYPE A |
2 | ||
| 96111-10500 |
L,2L..LN5#,6# WATER PUMP SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10460 |
L,2L..LN5#,6# RADIATOR SIDE |
1 | ||
| 90467-37001 |
1Y#,2Y#,3Y,4Y#..YN5#,6# TYPE A |
2 | ||
| 96111-10500 |
L,2L..LN5#,6# WATER PUMP SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10460 |
L,2L..LN5#,6# RADIATOR SIDE |
1 | ||
| 90467-37001 |
1Y#,2Y#,3Y,4Y#..YN5#,6# TYPE A |
2 | ||
| 96111-10500 |
L,2L..LN5#,6# WATER PUMP SIDE |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-71030 |
1Y#,2Y,3Y..YN5#,6# |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-54050 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67..ARL,GEN,ME,SA;1Y#,2Y,3Y,4YC,4YE..YN5#,60,63,65..(4F,4FC,4H,5F)..(ARL,GEN,ME,SA) W/COOLER OR THAILAND SPEC |
1 | ||
| Common parts | ||||
| 16473-71030 | ||||
| 90099-04428 | ||||
| 90116-08366 | ||||
| 90119-08108 | ||||
| 90119-08689 | ||||
| 90119-12224 | ||||
| 90179-06100 | ||||
| 90179-08150 | ||||
| 90480-25025 | ||||
| 91611-60840 | ||||
| 91656-40616 | ||||
| 91656-40818 | ||||
| 91666-60618 | ||||
| 93385-18016 | ||||
| 94180-40600 | ||||
| Linked diagrams | ||||
| 1605 | ||||
