YN65L-KDPV (1984)
Toyota Hilux
(8308-8508)LN6#,YN6#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

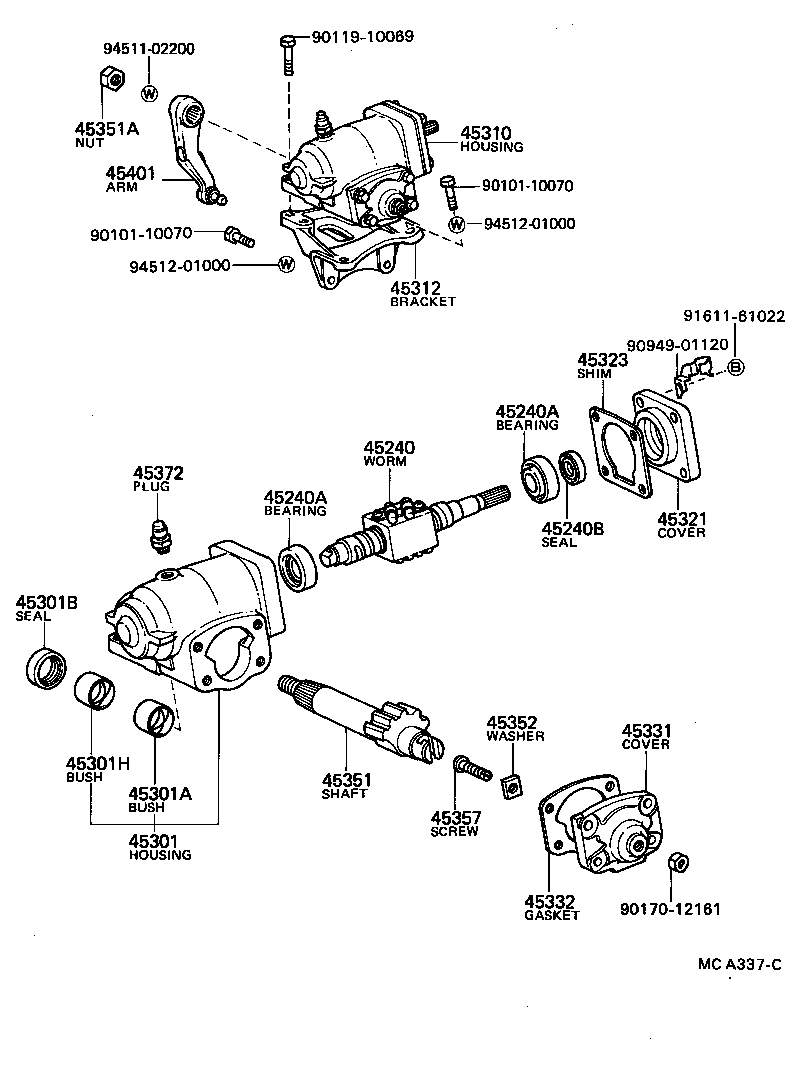

| 45240 - WORM ASSY, STEERING | ||||
| 45240-36041 |
LN65,YN6#..LHD |
1 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90363-20003 |
LN6#,YN6# |
2 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90363-20003 |
LN6#,YN6# |
2 | ||
| 45240B - SEAL, OIL(FOR STEERING WORM) | ||||
| 90311-18001 |
LN6#,YN6# |
1 | ||
| 45301 - HOUSING SUB-ASSY, STEERING GEAR | ||||
| 45301-35120 |
LN65,YN6#..LHD |
1 | ||
| 45301A - BUSH OR BEARING, SECTOR SHAFT, NO.1 | ||||
| 90999-73061 |
LN60,65,YN60,62,65,67 |
1 | ||
| 45301B - SEAL, OIL(FOR SECTOR SHAFT) | ||||
| 90310-32024 |
LN60,65,YN60,62,65,67 |
1 | ||
| 45301H - BUSH OR BEARING, SECTOR SHAFT, NO.2 | ||||
| 90999-73061 |
LN60,65,YN60,62,65,67 |
1 | ||
| 45310 - HOUSING ASSY, STEERING GEAR | ||||
| 45310-35180 |
LN65,YN6#..LHD |
1 | ||
| 45312 - BRACKET, STEERING GEAR HOUSING | ||||
| 45312-35100 |
LN65,YN60,62,65,67..LHD |
1 | ||
| 45321 - COVER, GEAR HOUSING END | ||||
| 45321-36020 |
LN6#,YN6# |
1 | ||
| 45323 - SHIM, GEAR HOUSING END COVER | ||||
| 45323-36010 |
LN6#,YN6# T=0.045-0.055,T=0.05 |
1 | ||
| 45323-36030 |
LN6#,YN6# T=0.072-0.088,T=0.08 |
1 | ||
| 45323-36080 |
LN6#,YN6# T=0.082-0.098,T=0.09 |
1 | ||
| 45323-36060 |
LN6#,YN6# T=0.485-0.515,T=0.50 |
1 | ||
| 45323-36040 |
LN6#,YN6# T=0.092-0.108,T=0.10 |
1 | ||
| 45323-36020 |
LN6#,YN6# T=0.065-0.075,T=0.07 |
1 | ||
| 45323-36070 |
LN6#,YN6# T=0.055-0.065,T=0.06 |
1 | ||
| 45323-36050 |
LN6#,YN6# T=0.185-0.215,T=0.20 |
1 | ||
| 45331 - COVER, SECTOR SHAFT END | ||||
| 45304-36020 |
LN6#,YN6# |
1 | ||
| 45332 - GASKET, SECTOR SHAFT END COVER | ||||
| 45332-36010 |
LN6#,YN6# |
1 | ||
| 45351 - SHAFT, STEERING SECTOR | ||||
| 45351-36020 |
LN6#,YN6# |
1 | ||
| 45351A - NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING) | ||||
| 90170-22058 |
LN6#,YN6# |
1 | ||
| 45352 - WASHER, SECTOR SHAFT THRUST | ||||
| 45352-36010 |
LN6#,YN6# T=2.00,T=2.00 |
1 | ||
| 45354-36010 |
LN6#,YN6# T=2.10,T=2.10 |
1 | ||
| 45353-36010 |
LN6#,YN6# T=2.05,T=2.05 |
1 | ||
| 45356-36010 |
LN6#,YN6# T=2.20,T=2.20 |
1 | ||
| 45355-36010 |
LN6#,YN6# T=2.15,T=2.15 |
1 | ||
| 45357 - SCREW, SECTOR SHAFT ADJUSTING | ||||
| 45357-36020 |
LN6#,YN6# |
1 | ||
| 45372 - PLUG, STEERING GEAR HOUSING OIL | ||||
| 90930-03058 |
LN6#,YN6# |
1 | ||
| 45401 - ARM SUB-ASSY, PITMAN | ||||
| 45401-35130 |
LN65,YN6#..LHD |
1 | ||
| Common parts | ||||
| 90101-10070 | ||||
| 90119-10069 | ||||
| 90170-12161 | ||||
| 90949-01120 | ||||
| 91611-61022 | ||||
| 94511-02200 | ||||
| 94512-01000 | ||||
(8308-9201)LN65,YN60,62,65,67..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

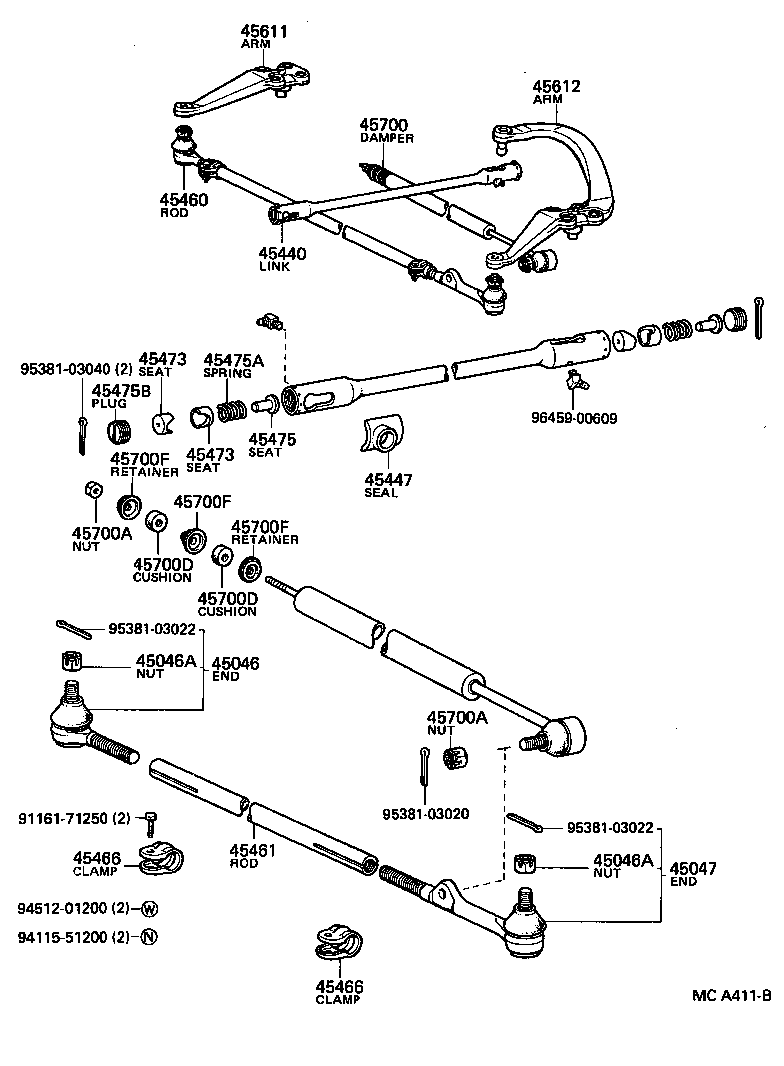

| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-35080 |
LN6#,YN6# |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-14042 |
LN5#,6#,RN5#,6#,YN5#,6# |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-14042 |
LN5#,6#,RN5#,6#,YN5#,6# |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45047-35050 |
LN6#,YN6# |
1 | ||
| 45440 - LINK ASSY, STEERING DRAG | ||||
| 45440-35080 |
LN65,YN60,62,65,67..LHD |
1 | ||
| 45447 - SEAL, DRAG LINK DUST | ||||
| 45447-35020 |
LN6#,RN67,YN6# |
2 | ||
| 45460 - ROD ASSY, TIE, RH | ||||
| 45460-39205 |
LN60,65,YN60,62,65,67 |
1 | ||
| 45461 - ROD, STEERING TIE | ||||
| 45461-35100 |
LN60,65,YN60,62,65,67 |
1 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-55010 |
LN60,65,YN60,62,65,67 |
2 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-55010 |
LN60,65,YN60,62,65,67 |
2 | ||
| 45473 - SEAT, BALL STUD | ||||
| 45473-35010 |
LN6#,RN67,YN6# |
4 | ||
| 45473 - SEAT, BALL STUD | ||||
| 45473-35010 |
LN6#,RN67,YN6# |
4 | ||
| 45475 - SEAT, STEERING LINK JOINT SPRING | ||||
| 45475-35010 |
LN6#,RN67,YN6# |
2 | ||
| 45475A - SPRING, COMPRESSION(FOR STEERING LINK JOINT) | ||||
| 90501-45114 |
LN6#,RN67,YN6# |
2 | ||
| 45475B - PLUG, STRAIGHT SCREW(FOR STEERING LINK JOINT) | ||||
| 90340-25001 |
LN6#,RN67,YN6# |
2 | ||
| 45611 - ARM, STEERING KNUCKLE, RH | ||||
| 45612-35140 |
LN65,YN60,62,65,67..LHD |
1 | ||
| 45612 - ARM, STEERING KNUCKLE, LH | ||||
| 45601-35081 |
LN65,YN60,62,65,67..LHD |
1 | ||
| 45700 - DAMPER ASSY, STEERING | ||||
| 45700-39035 |
LN6#,RN67,YN6# |
1 | ||
| 45700A - NUT(FOR STEERING DAMPER) | ||||
| 94182-10800 |
LN6#,RN67,YN6# HOUSING X DAMPER |
1 | ||
| 90171-12028 |
LN60,61,65,RN6#,YN6# RELAY ROD OR TIE RODXDAMPER |
1 | ||
| 45700A - NUT(FOR STEERING DAMPER) | ||||
| 94182-10800 |
LN6#,RN67,YN6# HOUSING X DAMPER |
1 | ||
| 90171-12028 |
LN60,61,65,RN6#,YN6# RELAY ROD OR TIE RODXDAMPER |
1 | ||
| 45700D - CUSHION, STEERING DAMPER | ||||
| 90948-01001 |
LN6#,RN67,YN6# |
2 | ||
| 45700D - CUSHION, STEERING DAMPER | ||||
| 90948-01001 |
LN6#,RN67,YN6# |
2 | ||
| 45700F - RETAINER, STEERING DAMPER CUSHION | ||||
| 90948-02003 |
LN6#,RN67,YN6# OD=28 |
2 | ||
| 90948-02006 |
LN6#,RN67,YN6# OD=26 |
1 | ||
| 45700F - RETAINER, STEERING DAMPER CUSHION | ||||
| 90948-02003 |
LN6#,RN67,YN6# OD=28 |
2 | ||
| 90948-02006 |
LN6#,RN67,YN6# OD=26 |
1 | ||
| 45700F - RETAINER, STEERING DAMPER CUSHION | ||||
| 90948-02003 |
LN6#,RN67,YN6# OD=28 |
2 | ||
| 90948-02006 |
LN6#,RN67,YN6# OD=26 |
1 | ||
| Common parts | ||||
| 91161-71250 | ||||
| 94115-51200 | ||||
| 94512-01200 | ||||
| 95381-03020 | ||||
| 95381-03022 | ||||
| 95381-03040 | ||||
| 96459-00609 | ||||
