YN63RG-MSQ (1985)

Toyota Hilux

Production Aug 1985 - Mar 1989
Engine 4Y 4YC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8608)

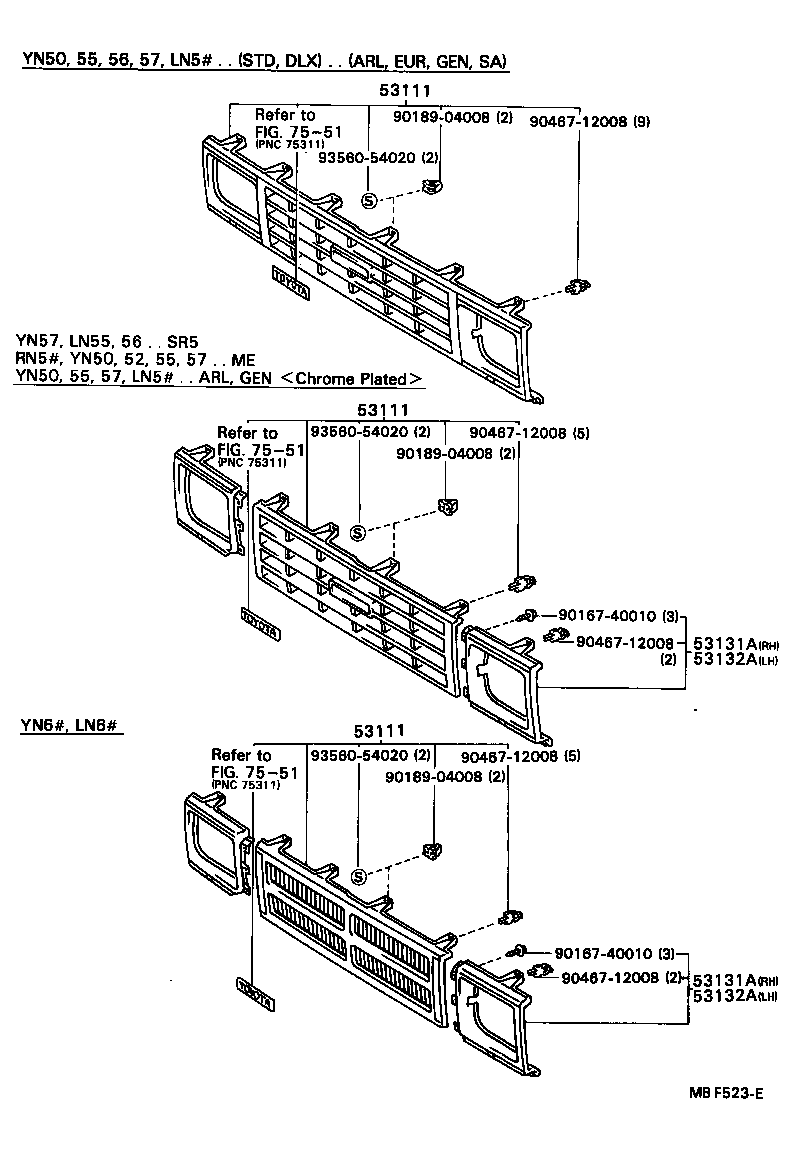

Click highlighted areas on diagram

diagram 53111 53111 53111 53131A 53131A 53132A 53132A 7551 7551 7551 9016740010 9016740010 9018904008 9018904008 9018904008 9046712008 9046712008 9046712008 9046712008 9046712008 9356054020 9356054020 9356054020
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53111-39095

LN6#,YN6#..ARL,GEN

CHROME PLATED

 1
53111-39085

LN60,61,YN60,63,65,67..SR5..ARL

 1
53111 - GRILLE, RADIATOR
53111-39095

LN6#,YN6#..ARL,GEN

CHROME PLATED

 1
53111-39085

LN60,61,YN60,63,65,67..SR5..ARL

 1
53111 - GRILLE, RADIATOR
53111-39095

LN6#,YN6#..ARL,GEN

CHROME PLATED

 1
53111-39085

LN60,61,YN60,63,65,67..SR5..ARL

 1
53131A - DOOR, HEADLAMP, RH
53131-39165

LN55,56,6#,YN55,57,6#..ARL

CHROME PLATED

 1
53131-39195

LN55,56,60,61,YN57,60,63,65,67..SR5..(ARL,GEN)

 1
53131-89113

LN6#,YN6#..SR5..ARL

 1
53131A - DOOR, HEADLAMP, RH
53131-39165

LN55,56,6#,YN55,57,6#..ARL

CHROME PLATED

 1
53131-39195

LN55,56,60,61,YN57,60,63,65,67..SR5..(ARL,GEN)

 1
53131-89113

LN6#,YN6#..SR5..ARL

 1
53132A - DOOR, HEADLAMP, LH
53132-39165

LN55,56,6#,YN55,57,6#..ARL

CHROME PLATED

 1
53132-39195

LN55,56,60,61,YN57,60,63,65,67..SR5..(ARL,GEN)

 1
53132-89112

LN6#,YN6#..SR5..ARL

 1
53132A - DOOR, HEADLAMP, LH
53132-39165

LN55,56,6#,YN55,57,6#..ARL

CHROME PLATED

 1
53132-39195

LN55,56,60,61,YN57,60,63,65,67..SR5..(ARL,GEN)

 1
53132-89112

LN6#,YN6#..SR5..ARL

 1
Common parts
90167-40010
90189-04008
90467-12008
93560-54020
Linked diagrams
7551
