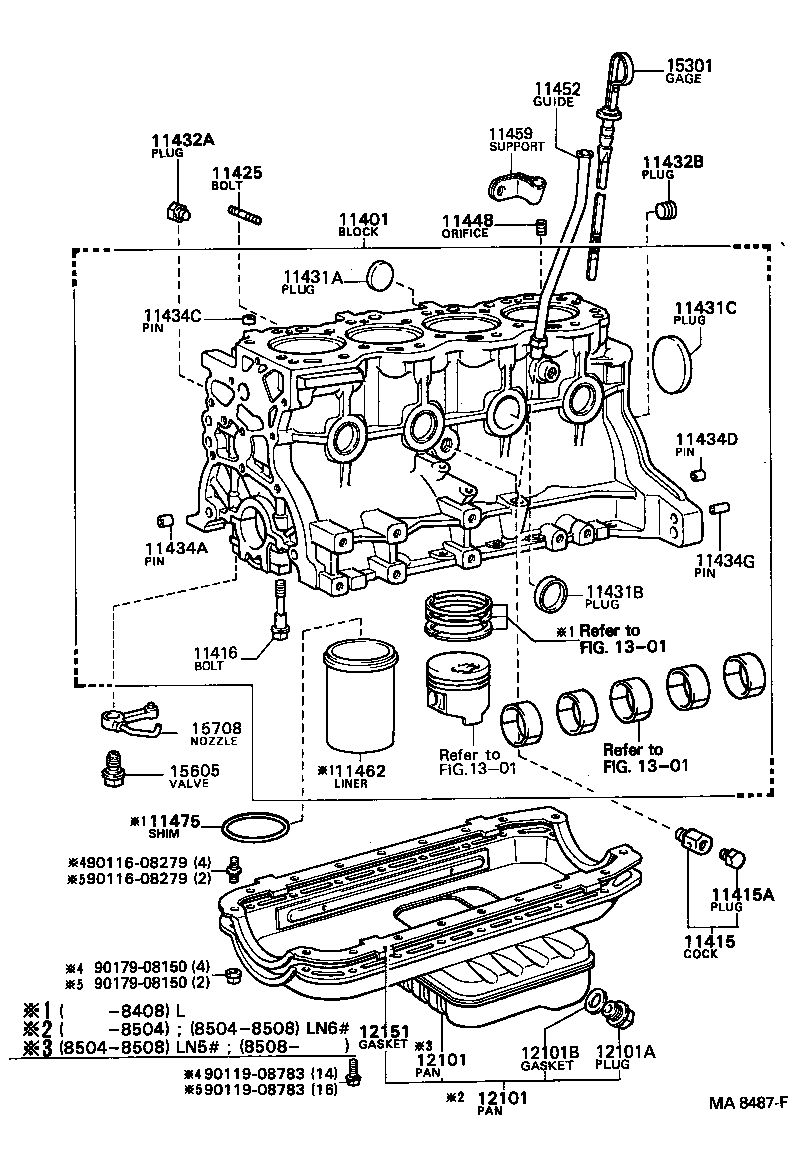

YN63RG-MSQ (1985)
Toyota Hilux
(8308-9508)L,2L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) | ||||
| 96431-03833 |
L,2L..LN5#,6# |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 96431-23814 |
L,2L..LN5#,6# |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02032 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC,4YE..YN5#,60,63,65..4F,4FC,4H,5F |
10 | ||
| 90910-02061 |
L,2L,3L..LN5#,6# *12-1.25PX80-24 |
10 | ||
| 11425 - BOLT, STUD(FOR OIL FILTER) | ||||
| 90116-08157 |
L,2L..LN5#,6# |
3 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-42500 |
L,2L,3L..LN5#,6# OD=25 |
2 | ||
| 96411-01800 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC,4YE..YN5#,60,63,65..4F,4FC,4H,5F |
1 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 96411-43500 |
L,2L..LN5#,6# OD=35 |
5 | ||
| 96411-43500 |
1Y#,2Y#,3Y,4Y#..YN5#,6# OD=35 |
5 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| 96411-45000 |
L,2L,3L..LN5#,6# OD=50 |
1 | ||
| 96411-45000 |
1Y#,2Y#,3Y,4Y#..YN5#,6# OD=50 |
1 | ||
| 11432A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90345-51006 |
L,2L..LN5#,6# |
1 | ||
| 11432B - PLUG, W/HEAD TAPER SCREW, NO.2 | ||||
| 90344-53002 |
L,2L..LN5#,6# |
1 | ||
| 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) | ||||
| 90250-08120 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC,4YE..YN5#,60,63,65..4F,4FC,4H,5F L=18,OD=8,L=18,OD=8 |
2 | ||
| 90253-11001 |
L,2L..LN5#,6# L=11,OD=11,L=11,OD=11 |
2 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90253-15005 |
L,2L,3L..LN5#,6# L=7,OD=14.5,L=7,OD=14.5 |
2 | ||
| 11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) | ||||
| 90253-11001 |
L,2L..LN5#,6# L=11,OD=11,L=11,OD=11 |
2 | ||
| 11434G - PIN, STRAIGHT(FOR END PLATE) | ||||
| 90250-10192 |
L,2L..LN5#,6# L=22,OD=10 |
2 | ||
| 11448 - ORIFICE, CYLINDER BLOCK OIL | ||||
| 11448-54020 |
L,2L..LN5#,6# |
1 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-40010 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC..YN5#,60,65..4F,4FC,4H,5F |
1 | ||
| 11452-54010 |
L,2L..LN5#,6# |
1 | ||
| 11459 - SUPPORT, OIL LEVEL GAGE GUIDE | ||||
| 90461-10271 |
L,2L..LN5#,6# |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-18089 |
L,2L..LN5#,6# |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-18244 |
L,2L..LN5#,6# |
1 | ||
| 12151 - GASKET, OIL PAN | ||||
| 12151-54020 |
L,2L..LN5#,6# |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-54030 |
L,2L..LN5#,6# |
1 | ||
| 15301-72010 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC..YN5#,60,65..4F,4FC,4H,5F |
1 | ||
| 15605 - VALVE SUB-ASSY, OIL CHECK | ||||
| 15605-54010 |
L,2L,3L..LN5#,6# |
4 | ||
| 15708 - NOZZLE SUB-ASSY, OIL, NO.1 | ||||
| 15708-54010 |
L,2L..LN5#,6# |
4 | ||
| Common parts | ||||
| 90116-08279 | ||||
| 90119-08783 | ||||
| 90179-08150 | ||||
| Linked diagrams | ||||
| 1301 | ||||
