YN63LG-MSV (1985)
Toyota Hilux
Production
Aug 1985
-
Mar 1989
Engine
4Y
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8608-8903)YN63..ME ; (8712-8903)RN61

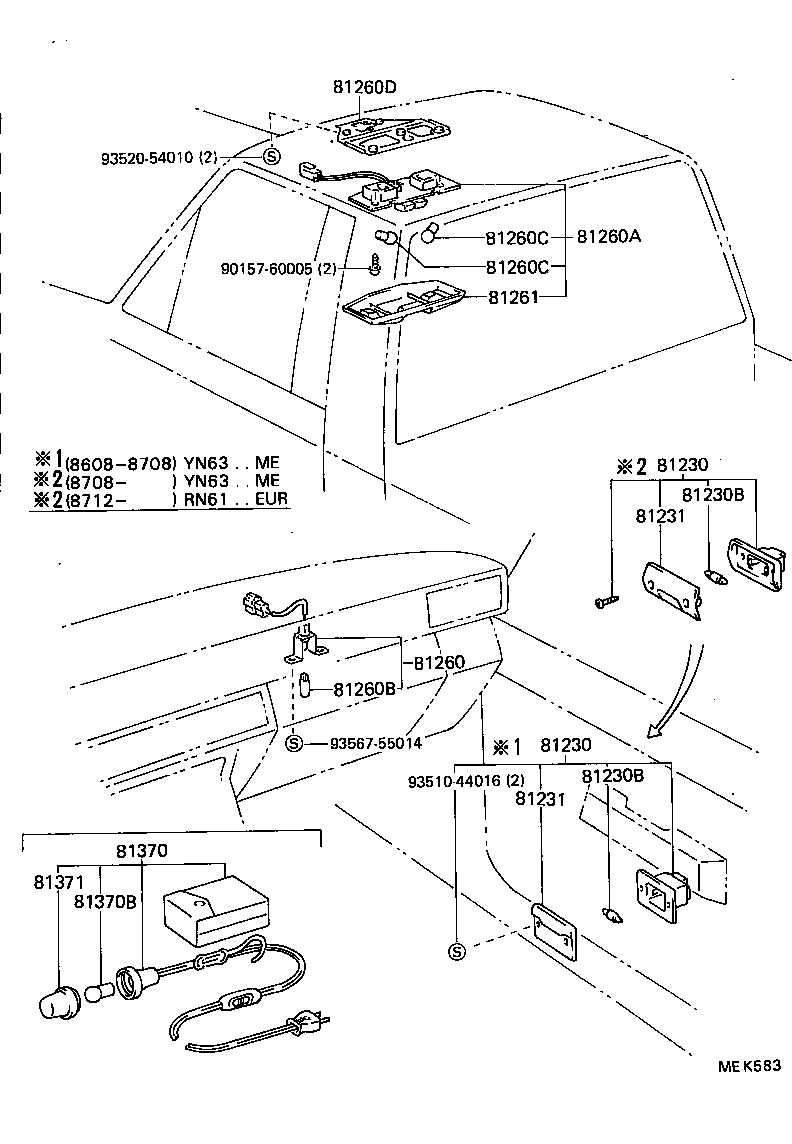

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81230 - LAMP ASSY, COURTESY | ||||
| 81230-89101 |
YN63..ME |
2 | ||
| 81230-89102 |
YN63..ME |
2 | ||
| 81230 - LAMP ASSY, COURTESY | ||||
| 81230-89101 |
YN63..ME |
2 | ||
| 81230-89102 |
YN63..ME |
2 | ||
| 81230B - BULB(FOR COURTESY LAMP) | ||||
| 90981-14001 |
RN61,YN63..LHD 12V 3W,12V 3W |
2 | ||
| 81230B - BULB(FOR COURTESY LAMP) | ||||
| 90981-14001 |
RN61,YN63..LHD 12V 3W,12V 3W |
2 | ||
| 81231 - LENS, COURTESY LAMP | ||||
| 81231-89101 |
YN63..ME |
2 | ||
| 81231-89102 |
YN63..ME |
2 | ||
| 81231 - LENS, COURTESY LAMP | ||||
| 81231-89101 |
YN63..ME |
2 | ||
| 81231-89102 |
YN63..ME |
2 | ||
| Common parts | ||||
| 90157-60005 | ||||
| 93510-44016 | ||||
| 93520-54010 | ||||
| 93567-55014 | ||||
