YN63LG-MSV (1985)
Toyota Hilux
Production
Aug 1985
-
Mar 1989
Engine
4Y
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8508-8903)LN61,RN61,YN63

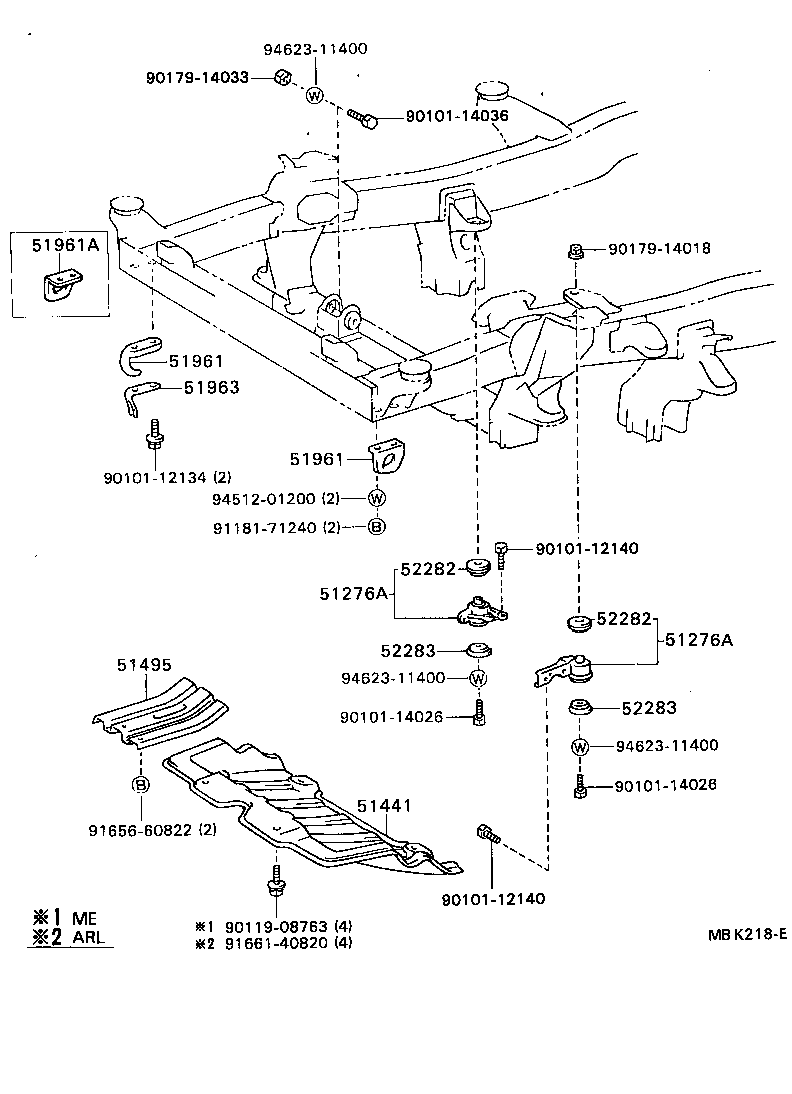

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51276A - BRACKET, DIFFERENTIAL SUPPORT | ||||
| 51260-35010 |
LN61,RN61,YN63 LH |
1 | ||
| 51276A - BRACKET, DIFFERENTIAL SUPPORT | ||||
| 51260-35010 |
LN61,RN61,YN63 LH |
1 | ||
| 51961 - HOOK, NO.1 | ||||
| 51961-60010 |
LN61,RN61,YN63 RH |
1 | ||
| 51964-35040 |
LN61,RN61,YN63 LH |
1 | ||
| 51961-35030 |
LN61,RN61,YN63 RH |
1 | ||
| 51964-35050 |
LN61,RN61,YN63 LH |
1 | ||
| 51961 - HOOK, NO.1 | ||||
| 51961-60010 |
LN61,RN61,YN63 RH |
1 | ||
| 51964-35040 |
LN61,RN61,YN63 LH |
1 | ||
| 51961-35030 |
LN61,RN61,YN63 RH |
1 | ||
| 51964-35050 |
LN61,RN61,YN63 LH |
1 | ||
| 51963 - STOPPER, HOOK WIRE | ||||
| 51963-35010 |
LN61,RN61,YN63 |
1 | ||
| 52282 - STOPPER, DIFFERENTIAL SUPPORT MEMBER, UPPER | ||||
| 52282-35010 |
LN61,RN61,YN63 LH |
1 | ||
| 52292-35010 |
LN61,RN61,YN63 RH |
1 | ||
| 52282 - STOPPER, DIFFERENTIAL SUPPORT MEMBER, UPPER | ||||
| 52282-35010 |
LN61,RN61,YN63 LH |
1 | ||
| 52292-35010 |
LN61,RN61,YN63 RH |
1 | ||
| 52283 - STOPPER, DIFFERENTIAL SUPPORT MEMBER, LOWER | ||||
| 52283-35010 |
LN61,RN61,YN63 |
2 | ||
| 52283 - STOPPER, DIFFERENTIAL SUPPORT MEMBER, LOWER | ||||
| 52283-35010 |
LN61,RN61,YN63 |
2 | ||
| Common parts | ||||
| 90101-12134 | ||||
| 90101-12140 | ||||
| 90101-14026 | ||||
| 90101-14036 | ||||
| 90119-08763 | ||||
| 90179-14018 | ||||
| 90179-14033 | ||||
| 91181-71240 | ||||
| 91656-60822 | ||||
| 91661-40820 | ||||
| 94512-01200 | ||||
| 94623-11400 | ||||
