YN63LG-MSV (1985)

Toyota Hilux

Production Aug 1985 - Mar 1989
Engine 4Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508-8903)LN61,RN61,YN63

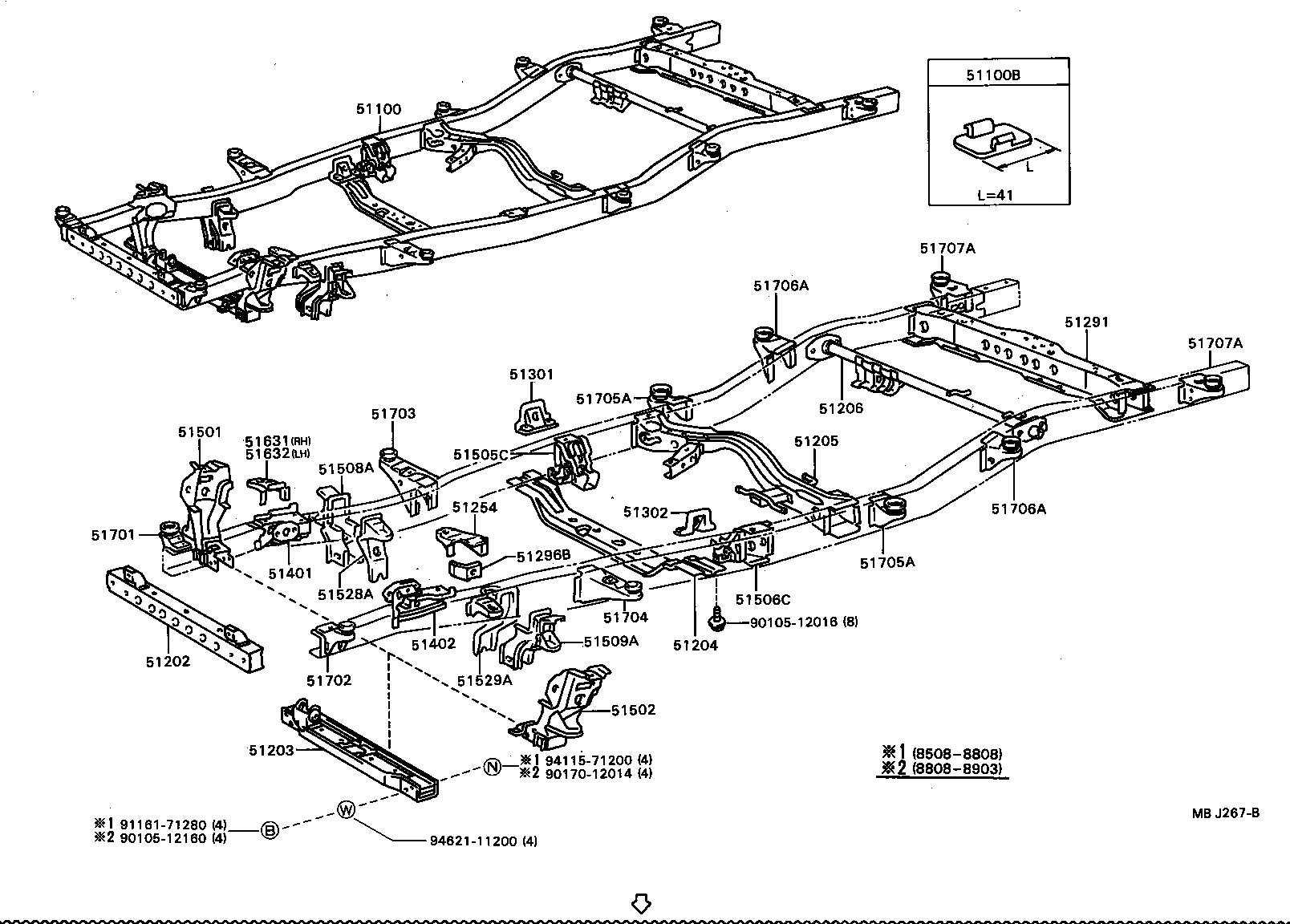

Click highlighted areas on diagram

diagram 51100 51100B 51202 51203 51204 51205 51206 51254 51291 51296B 51301 51302 51401 51402 51501 51502 51505C 51506C 51508A 51509A 51528A 51529A 51631 51632 51701 51702 51703 51704 51705A 51705A 51706A 51706A 51707A 51707A 9010512016 9010512160 9017012014 9116171280 9411571200 9462111200
Part # Description Qty Price
51100 - FRAME ASSY
51003-35070

YN63..CBR

 1
51003-35070

YN63..ME

 1
51003-35130

YN63

 1
51003-35071

YN63..ME

 1
51100B - PLUG, HOLE(FOR FRAME)
90950-01395

LN6#,YN6#

 6
90950-01395

LN5#,6#,YN5#,6#

 2
90950-01395

LN5#,6#,RN5#,61,YN5#,6#

 6
51202 - CROSSMEMBER SUB-ASSY, FRAME, NO.1
51201-35150

LN61,YN63

 1
51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2
51203-35260

LN61,RN61,YN63

 1
51203-35270

LN61,RN61,YN63

 1
51202-35170

LN6#,YN6#

 1
51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3
51202-35171

RN61,YN63

 1
51202-35171

LN61,YN63

 1
51202-35210

RN61,YN63

 1
51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4
51204-35320

YN63..CBR

 1
51204-35310

YN63

 1
51206 - CROSSMEMBER SUB-ASSY, FRAME, NO.5
51205-35161

LN61,RN61,YN63

 1
51254 - BRACKET, DIFFERENTIAL SUPPORT, LH
51254-35010

LN61,RN61,YN63

 1
51291 - CROSSMEMBER, FRAME, REAR
51209-35111

LN61,RN61,YN63

 1
51209-35112

LN61,RN61,YN63

 1
51296B - REINFORCEMENT, DIFFERENTIAL BRACKET, LH
51296-35010

LN61,RN61,YN63

 1
51301 - BRACKET, FRAME NO.2 CROSSMEMBER, RH
51321-35050

LN6#,YN6#

 1
51321-35090

LN61,RN61,YN63

 1
51302 - BRACKET, FRAME NO.2 CROSSMEMBER, LH
51321-35050

LN6#,YN6#

 1
51321-35090

LN61,RN61,YN63

 1
51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51047-35040

YN63

 1
51047-35021

YN63

 1
51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51048-35021

YN63

 1
51048-35040

YN63

 1
51501 - SUPPORT SUB-ASSY, SUSPENSION ARM, RH
51501-35030

LN61,RN61,YN63

 1
51502 - SUPPORT SUB-ASSY, SUSPENSION ARM, LH
51502-35030

LN61,RN61,YN63

 1
51505C - SUPPORT SUB-ASSY, ANCHOR ARM, RH
51505-35080

LN61,RN61,YN63

 1
51505-35060

LN61,RN61,YN63

 1
51506C - SUPPORT SUB-ASSY, ANCHOR ARM, LH
51506-35010

LN61,RN61,YN63

 1
51506-35020

LN61,RN61,YN63

 1
51508A - BRACKET SUB-ASSY, LOWER ARM, RH
51508-35900

LN61,RN61,YN63

 1
51509A - BRACKET SUB-ASSY, LOWER ARM, LH
51509-35900

LN61,RN61,YN63

 1
51528A - REINFORCEMENT, LOWER ARM BRACKET, RH
51528-35900

LN61,RN61,YN63

 1
51529A - REINFORCEMENT, LOWER ARM BRACKET, LH
51529-35900

LN61,RN61,YN63

 1
51631 - STOPPER, FRONT SUSPENSION REBOUND, RH
51631-35040

LN61,RN61,YN63

 1
51061-35010

LN61,YN63

 1
51632 - STOPPER, FRONT SUSPENSION REBOUND, LH
51631-35040

LN61,RN61,YN63

 1
51061-35010

LN61,YN63

 1
51701 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH
51701-35100

LN61,RN61,YN63

 1
51701-35101

LN61,RN61,YN63

 1
51702 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH
51702-35081

LN61,RN61,YN63

 1
51702-35080

LN61,RN61,YN63

 1
51703 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH
51703-35050

LN61,RN61,YN63

 1
51703-35040

LN5#,6#,YN5#,6#

 1
51704 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH
51704-35060

LN5#,6#,YN5#,6#

 1
51704-35070

LN61,RN61,YN63

 1
51705A - BRACKET SUB-ASSY, CAB MOUNTING, NO.3
51705-35080

RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#

 2
51705A - BRACKET SUB-ASSY, CAB MOUNTING, NO.3
51705-35080

RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#

 2
51706A - BRACKET SUB-ASSY, CAB MOUNTING, NO.4
51707-35051

LN61,RN61,YN63

RH

 1
51708-35051

LN61,RN61,YN63

LH

 1
51706A - BRACKET SUB-ASSY, CAB MOUNTING, NO.4
51707-35051

LN61,RN61,YN63

RH

 1
51708-35051

LN61,RN61,YN63

LH

 1
51707A - BRACKET SUB-ASSY, CAB MOUNTING, NO.5
51709-35011

LN61,RN61,YN63

 1
51707A - BRACKET SUB-ASSY, CAB MOUNTING, NO.5
51709-35011

LN61,RN61,YN63

 1
Common parts
90105-12016
90105-12160
90170-12014
91161-71280
94115-71200
94621-11200
