YN63LG-MSV (1985)

Toyota Hilux

Production Aug 1985 - Mar 1989
Engine 4Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508-8903)LN61,RN61,YN63

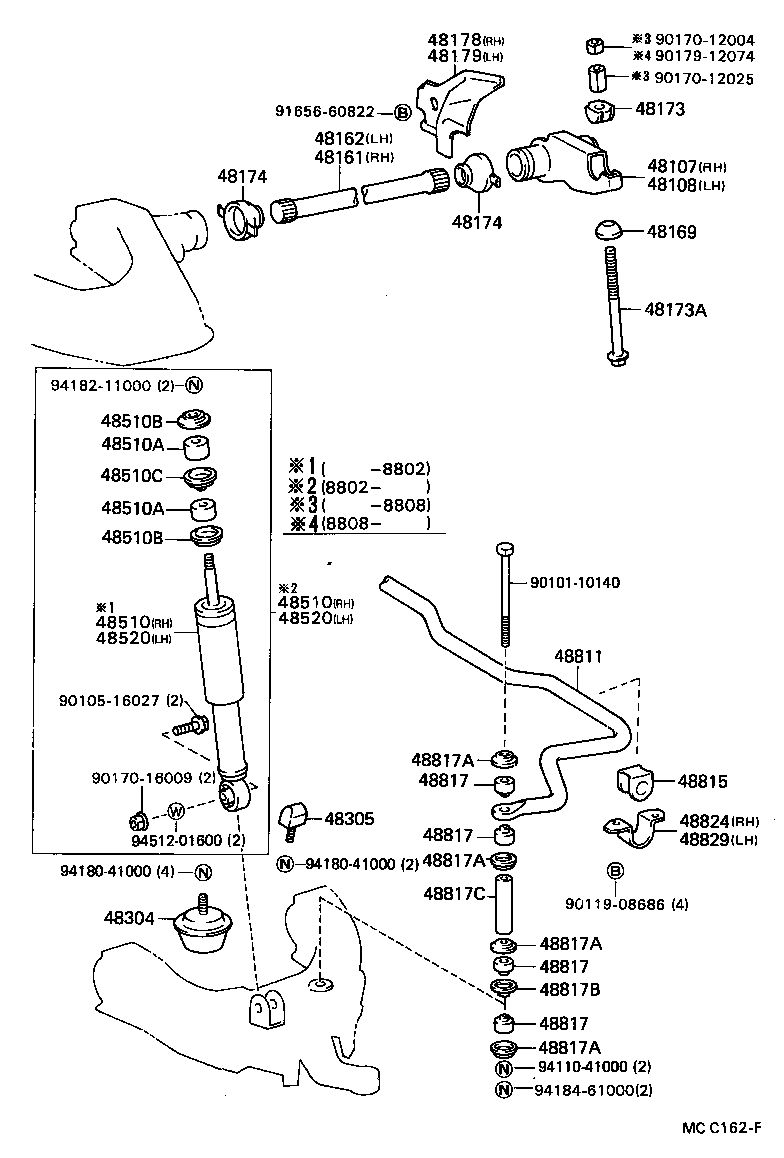

Click highlighted areas on diagram

diagram 48107 48108 48161 48162 48169 48173 48173A 48174 48174 48178 48179 48304 48305 48510 48510 48510A 48510A 48510B 48510B 48510C 48520 48520 48811 48815 48817 48817 48817 48817 48817A 48817A 48817A 48817A 48817B 48817C 48824 48829 9010110140 9010516027 9011908686 9017012004 9017012025 9017016009 9017912074 9165660822 9411041000 9418041000 9418041000 9418211000 9418461000 9451201600
Part # Description Qty Price
48107 - ARM SUB-ASSY, ANCHOR, RH
48107-35030

LN61,RN61,YN63

 1
48107-35040

LN61,RN61,YN63

 1
48108 - ARM SUB-ASSY, ANCHOR, LH
48108-35040

LN61,RN61,YN63

 1
48108-35030

LN61,RN61,YN63

 1
48169 - SWIVEL, ANCHOR ARM
48169-35010

LN61,RN61,YN63

 2
48173-35020

LN61,RN61,YN63

 2
48173 - SEAT, ANCHOR ARM ADJUSTER
48173-35030

LN61,RN61,YN63

 1
48173A - BOLT, HEXAGON(FOR ANCHOR ARM ADJUSTING)
90101-12159

LN61,RN61,YN63

 2
90101-12118

LN61,RN61,YN63

 2
48174 - COVER, TORSION BAR DUST
48174-26010

LN61,RN61,YN63

 4
48174 - COVER, TORSION BAR DUST
48174-26010

LN61,RN61,YN63

 4
48179 - PROTECTOR, TORSION BAR DUST COVER, LH
48179-35020

RN61,YN63

 1
48179-35030

RN61,YN63

 1
48304 - BUMPER SUB-ASSY, FRONT SPRING, NO.1
48304-35120

LN61,RN61,YN63

 4
48305 - BUMPER SUB-ASSY, FRONT SPRING, NO.2
48305-35020

LN61,RN61,YN63

 2
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48511-35300

LN61,YN63

 1
48511-39455

LN6#,YN6#..EUR,GEN,ME

 1
48511-39575

LN61,YN63

 1
48511-39576

LN61,YN63

 1
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48511-35300

LN61,YN63

 1
48511-39455

LN6#,YN6#..EUR,GEN,ME

 1
48511-39575

LN61,YN63

 1
48511-39576

LN61,YN63

 1
48510A - CUSHION, FRONT SHOCK ABSORBER
90948-01045

LN61,RN61,YN63

T=21

 2
90948-01003

LN6#,RN61,YN6#

T=15

 4
48510A - CUSHION, FRONT SHOCK ABSORBER
90948-01045

LN61,RN61,YN63

T=21

 2
90948-01003

LN6#,RN61,YN6#

T=15

 4
48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
90948-02002

LN6#,RN61,YN6#

ID=10.5

 4
90948-02131

LN61,RN61,YN63

ID=24

 4
48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
90948-02002

LN6#,RN61,YN6#

ID=10.5

 4
90948-02131

LN61,RN61,YN63

ID=24

 4
48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
90948-02007

LN6#,YN6#

 2
90948-02087

LN6#,RN61,YN6#

ID=12

 2
90948-02119

LN61,RN61,YN63

ID=14

 2
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48511-39455

LN6#,YN6#..EUR,GEN,ME

 1
48511-35300

LN61,YN63

 1
48511-39575

LN61,YN63

 1
48511-39576

LN61,YN63

 1
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48511-39455

LN6#,YN6#..EUR,GEN,ME

 1
48511-35300

LN61,YN63

 1
48511-39575

LN61,YN63

 1
48511-39576

LN61,YN63

 1
48811 - BAR, STABILIZER, FRONT
48811-35240

LN61,RN61,YN63

 1
48811-35190

LN61,YN63

 1
48817 - CUSHION, FRONT STABILIZER
90948-01002

LN61,RN61,YN63

 8
48817 - CUSHION, FRONT STABILIZER
90948-01002

LN61,RN61,YN63

 8
48817 - CUSHION, FRONT STABILIZER
90948-01002

LN61,RN61,YN63

 8
48817 - CUSHION, FRONT STABILIZER
90948-01002

LN61,RN61,YN63

 8
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02004

LN61,RN61,YN63

 8
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02004

LN61,RN61,YN63

 8
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02004

LN61,RN61,YN63

 8
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02004

LN61,RN61,YN63

 8
48817B - RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)
90948-02034

LN61,RN61,YN63

 2
48817C - COLLAR(FOR STABILIZER BAR)
90440-14003

LN61,RN61,YN63

 2
48824 - BRACKET, STABILIZER, FRONT
48824-35070

LN61,RN61,YN63

 1
48829 - BRACKET, STABILIZER
48829-35040

LN61,RN61,YN63

 1
Common parts
90101-10140
90105-16027
90119-08686
90170-12004
90170-12025
90170-16009
90179-12074
91656-60822
94110-41000
94180-41000
94182-11000
94184-61000
94512-01600
