YN63LG-MSV (1985)
Toyota Hilux
Production
Aug 1985
-
Mar 1989
Engine
4Y
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8508-8608)1Y,3Y,4Y..YN50,52,55,57,60,62,63,67

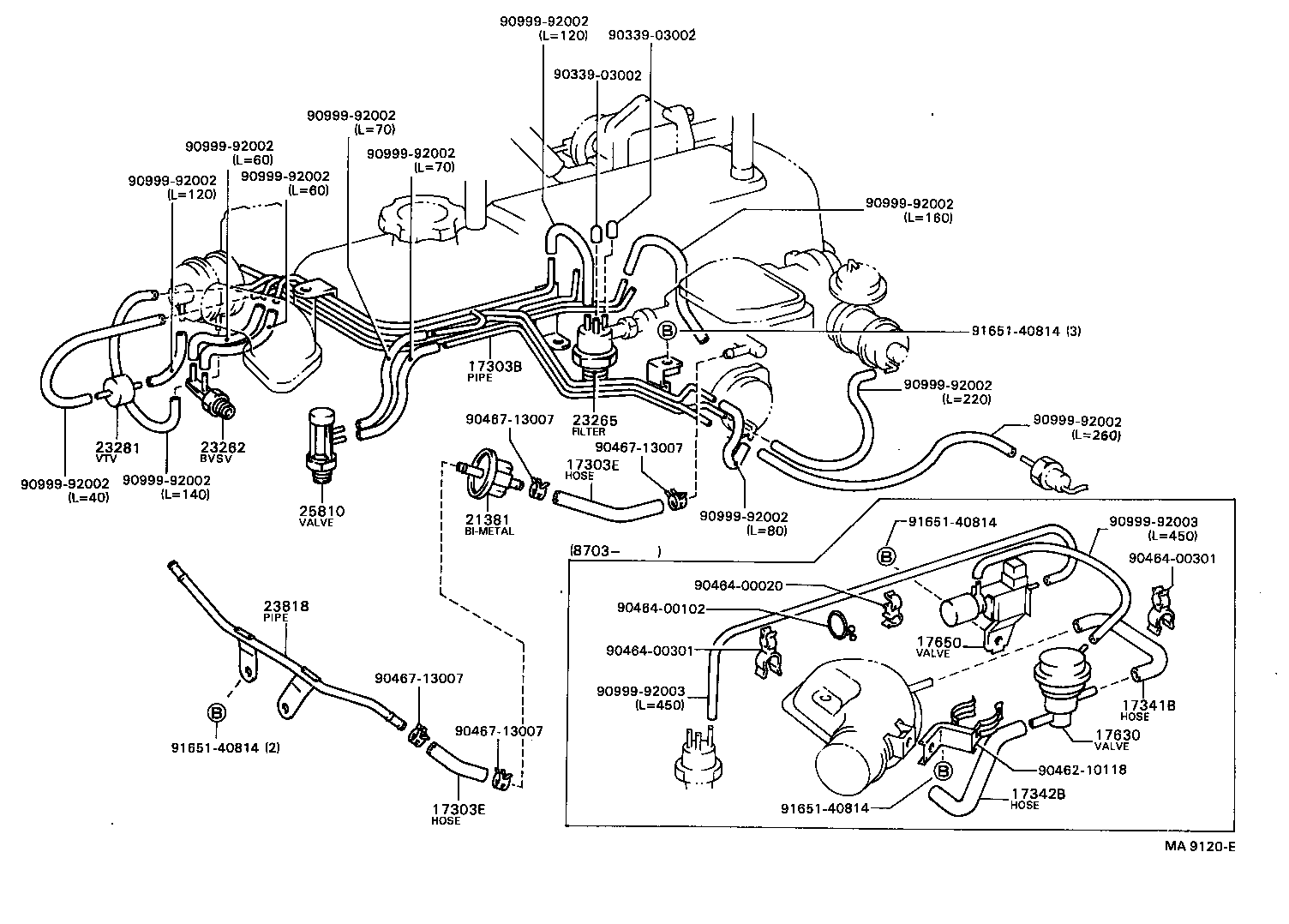

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303E - HOSE, NO.1(FOR AIR PIPE) | ||||
| 90445-14079 |
1Y#,3Y,4Y..YN50,52,55,57,60,62,63,67 |
1 | ||
| 21381 - BIMETAL, THERMOSTATIC | ||||
| 21381-71050 |
1Y#,3Y,4Y..YN50,52,55,57,60,62,63,67 |
1 | ||
| 23818 - PIPE, FUEL VAPOR FEED | ||||
| 23818-71010 |
1Y,3Y,4Y..YN50,52,55,57,60,62,63,67..LHD |
1 | ||
| Common parts | ||||
| 90445-14109 | ||||
| 90447-14035 | ||||
| 90447-14038 | ||||
| 90463-12008 | ||||
| 90464-00080 | ||||
| 90467-13007 | ||||
| 90480-17007 | ||||
| 90929-01060 | ||||
| 90964-00065 | ||||
| 90999-92003 | ||||
| 91651-40814 | ||||
(8608-8903)3Y,4Y..YN52,57,6#..ME
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-73040 |
3Y,4Y..YN52,57,6#..ME |
1 | ||
| 17303E - HOSE, NO.1(FOR AIR PIPE) | ||||
| 90445-14079 |
1Y#,3Y,4Y..YN50,52,55,57,60,62,63,67 |
1 | ||
| 17303E - HOSE, NO.1(FOR AIR PIPE) | ||||
| 90445-14079 |
1Y#,3Y,4Y..YN50,52,55,57,60,62,63,67 |
1 | ||
| 17341B - HOSE, NO.1(FOR AIR INJECTION SYSTEM) | ||||
| 17341-73040 |
3Y,4Y..YN52,57,6#..ME |
1 | ||
| 17342B - HOSE, NO.2(FOR IDLE-UP) | ||||
| 17342-73030 |
3Y,4Y..YN52,57,6#..ME |
1 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17300-73020 |
3Y,4Y..YN52,57,6#..ME |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 90910-12038 |
3Y,4Y..YN52,57,6#..ME |
1 | ||
| 21381 - BIMETAL, THERMOSTATIC | ||||
| 21381-71050 |
1Y#,3Y,4Y..YN50,52,55,57,60,62,63,67 |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01027 |
4Y..YN6#..ME |
1 | ||
| 23818 - PIPE, FUEL VAPOR FEED | ||||
| 23818-71010 |
1Y,3Y,4Y..YN50,52,55,57,60,62,63,67..LHD |
1 | ||
| 25810 - VALVE ASSY, BIMETAL | ||||
| 25820-37010 |
3Y,4Y..YN52,57,6#..ME |
1 | ||
| Common parts | ||||
| 90339-03002 | ||||
| 90462-10118 | ||||
| 90464-00020 | ||||
| 90464-00102 | ||||
| 90464-00301 | ||||
| 90467-13007 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 91651-40814 | ||||
